Install this prebent 1993 Ford F-150 brake line set in no time!
Stainless Steel Brake Line Set 1993 Ford F-150 4WD Ext Cab 6.5ft Bed w/Cruise Control for 5.8L engines

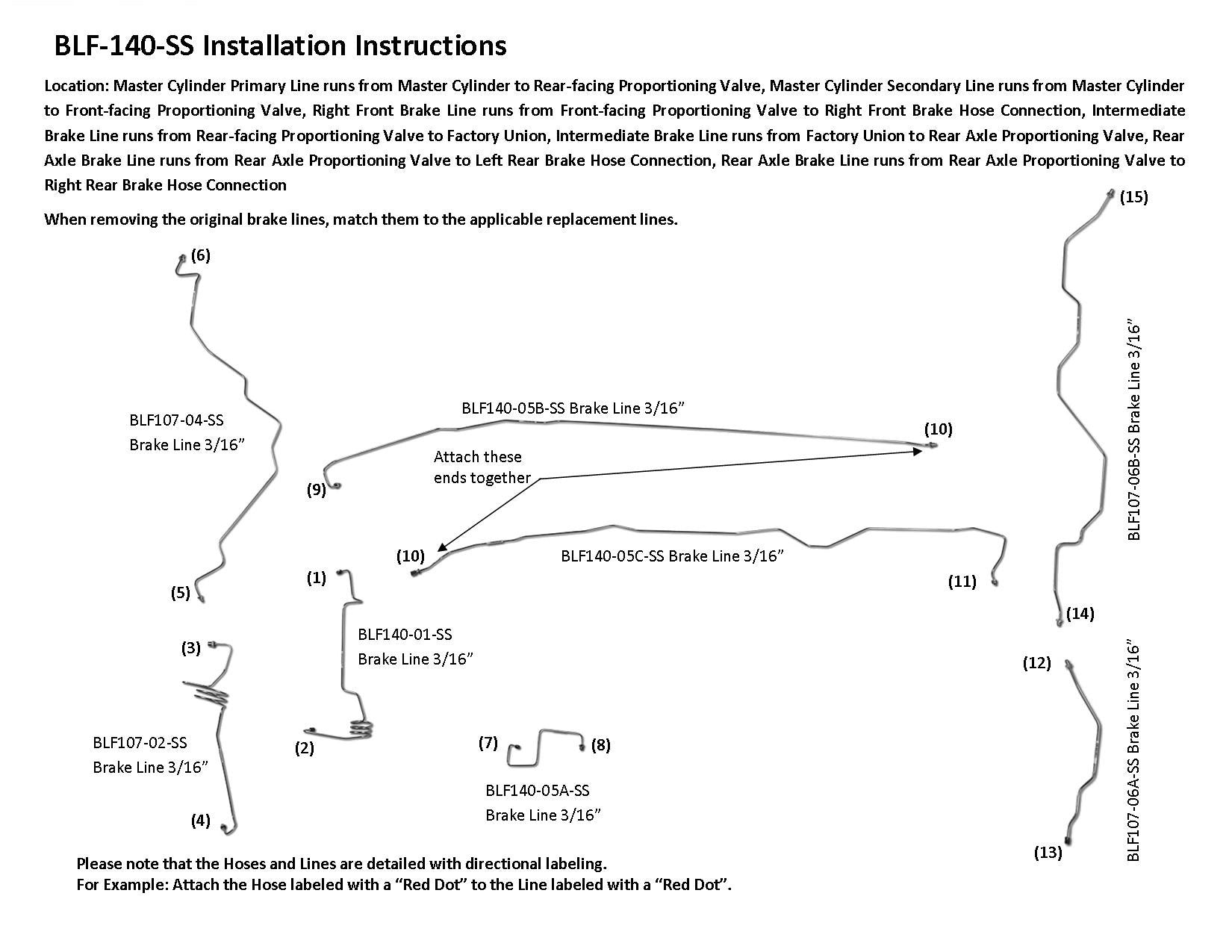

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLF140-05B-SS and BLF140-05C-SS. See the video below on how to remove the shipping bend

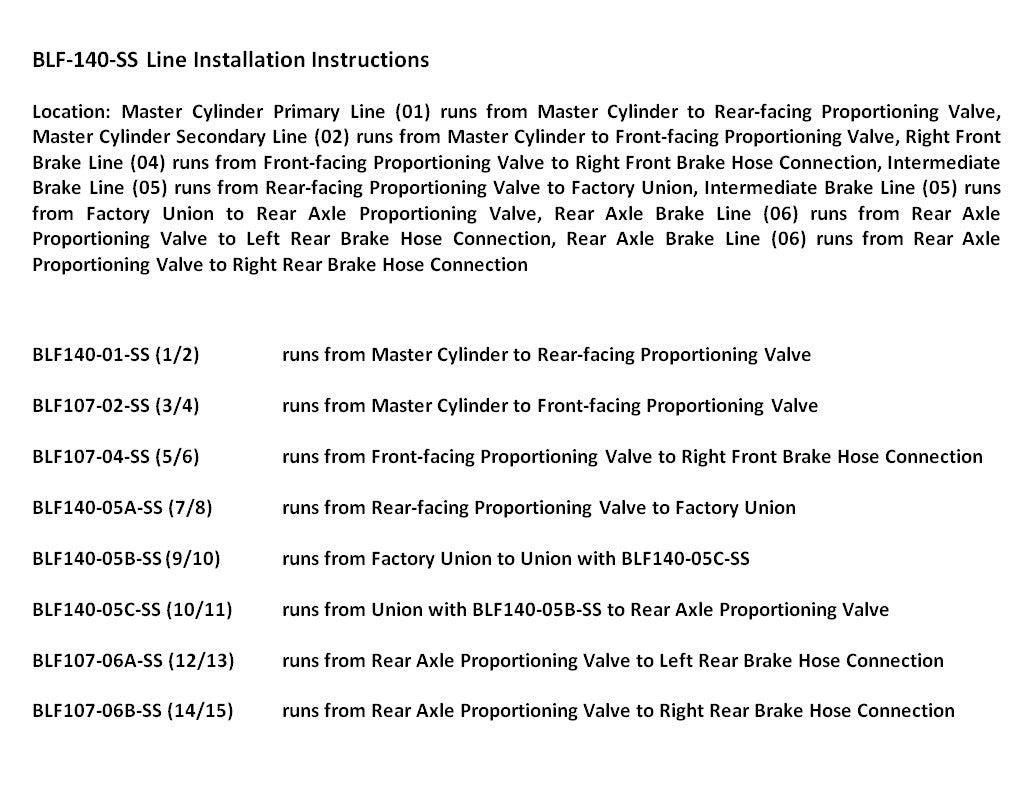

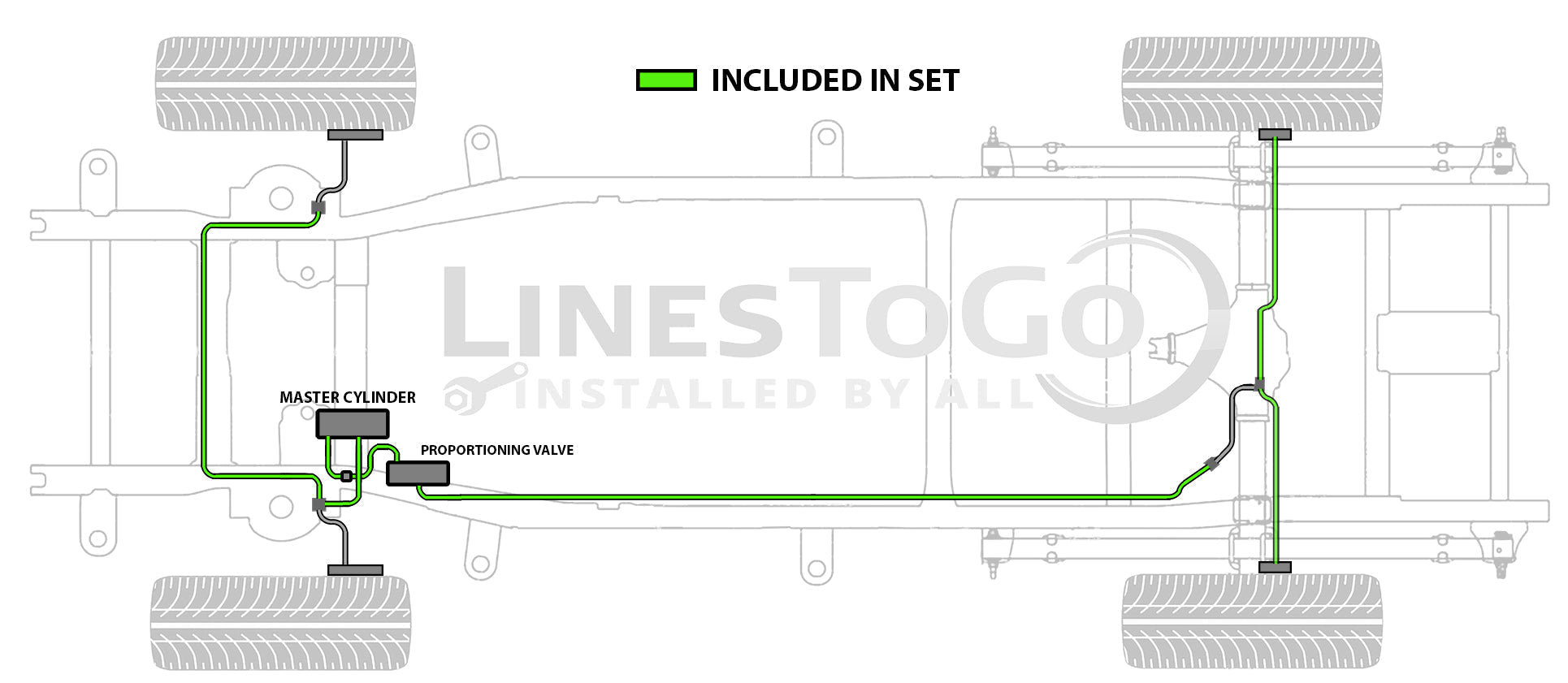

Master Cylinder Primary Line runs from Master Cylinder to Rear-facing Proportioning Valve, Master Cylinder Secondary Line runs from Master Cylinder to Front-facing Proportioning Valve, Right Front Brake Line runs from Front-facing Proportioning Valve to Right Front Brake Hose Connection, Intermediate Brake Line runs from Rear-facing Proportioning Valve to Factory Union, Intermediate Brake Line runs from Factory Union to Rear Axle Proportioning Valve, Rear Axle Brake Line runs from Rear Axle Proportioning Valve to Left Rear Brake Hose Connection, Rear Axle Brake Line runs from Rear Axle Proportioning Valve to Right Rear Brake Hose Connection

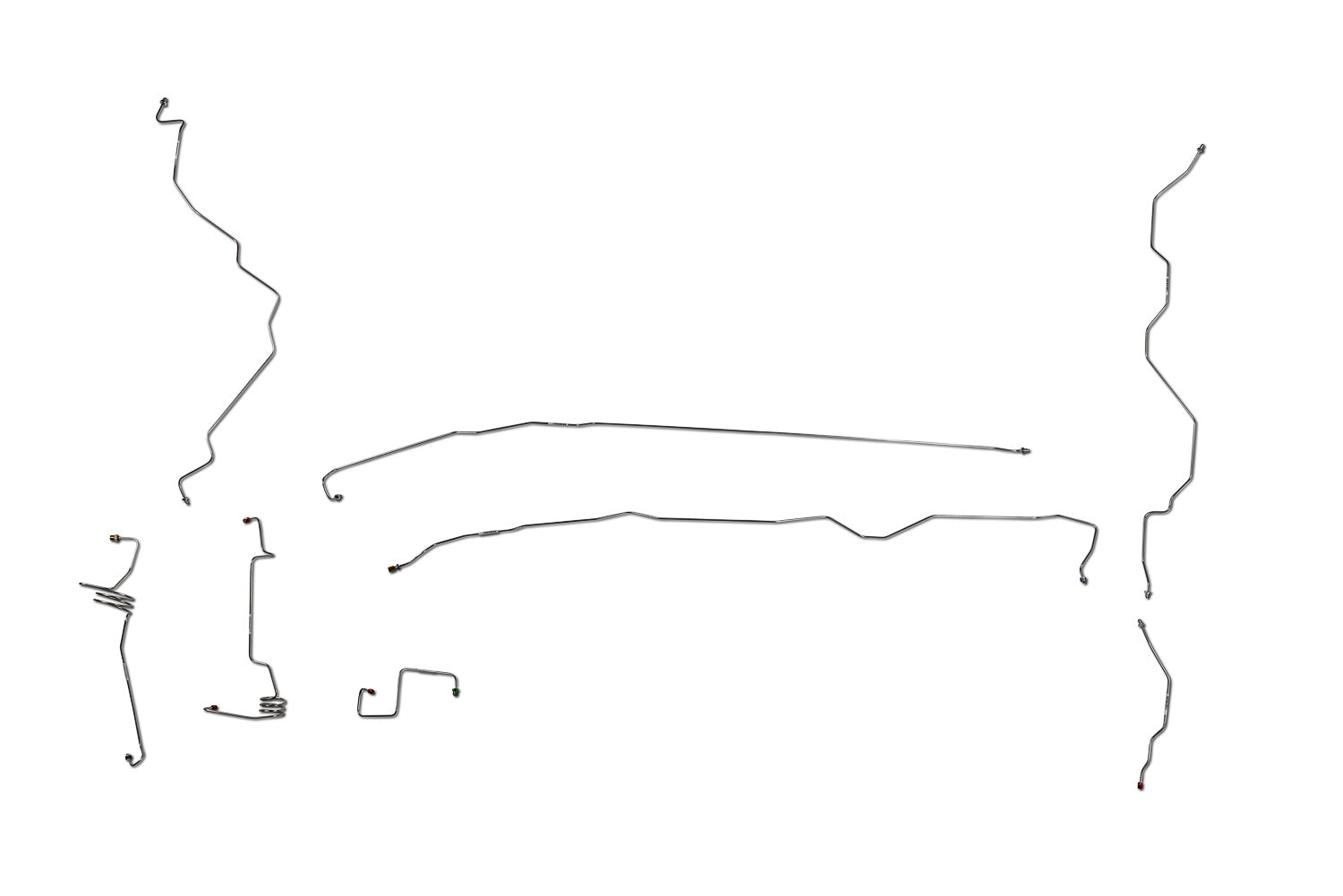

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
