Ford Explorer Brake Line Set 2002 4.6L BLF-126-SS1B Stainless Steel

w/o Traction Control

Ford Explorer Brake Line Set 2002 4.6L BLF-126-SS1B Stainless Steel
Ford Explorer Brake Line Set 2002 4.6L BLF-126-SS1B Stainless Steel

Ford Explorer Brake Line Set 2002 4.6L BLF-126-SS1B Stainless Steel

w/o Traction Control

MSRP: from
SALE: from
Save $63.74
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLF-126-SS1B
  • Weight: 5

Install this pre bent 2002 Ford Explorer 4.6L w/o Traction Control brake line set in no time!

Brake Line Ford Explorer

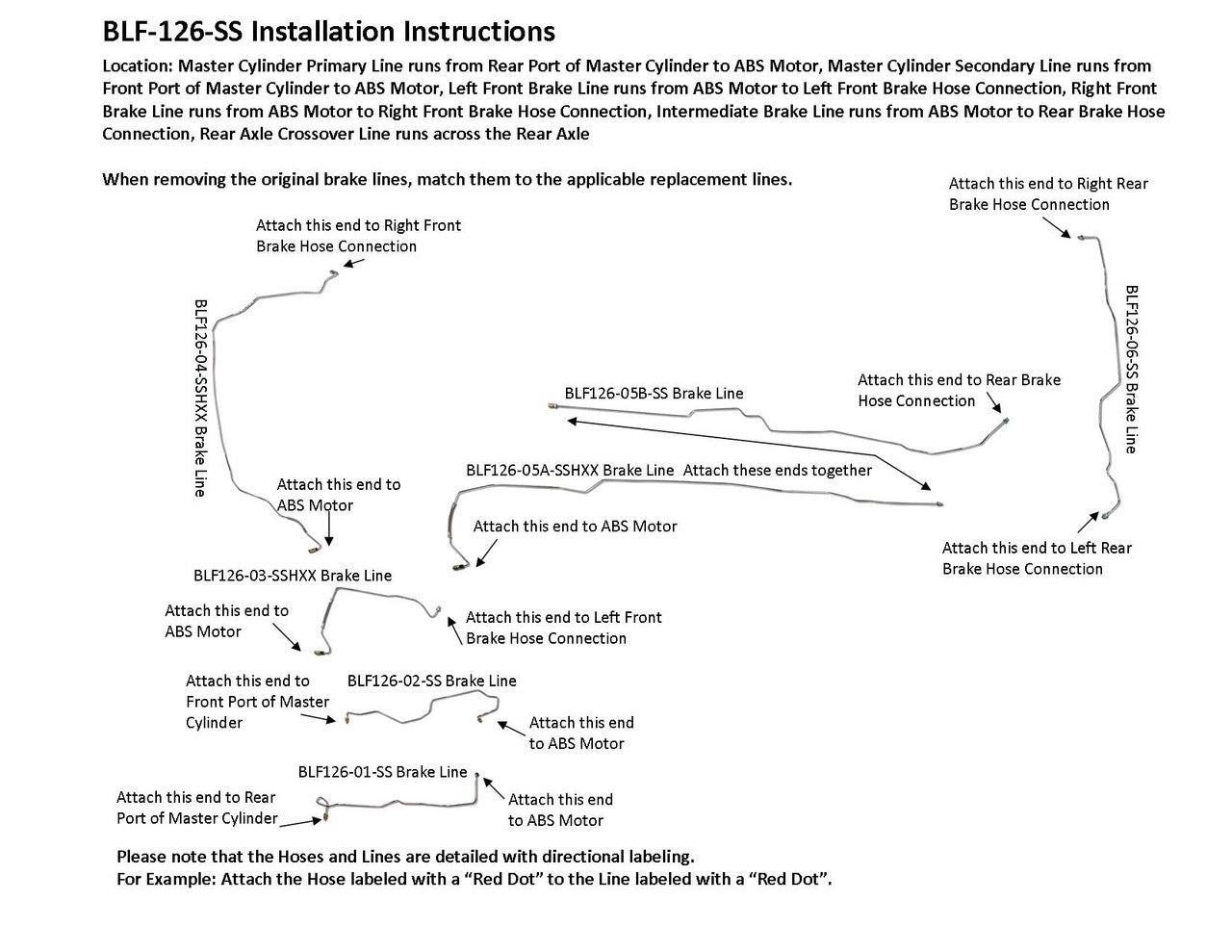

Location: Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLF126-04-SSHXX. See the video below on how to remove the shipping twist.

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF126-05A-SSHXX and BLF126-05B-SS. See the video below on how to remove the shipping bend.

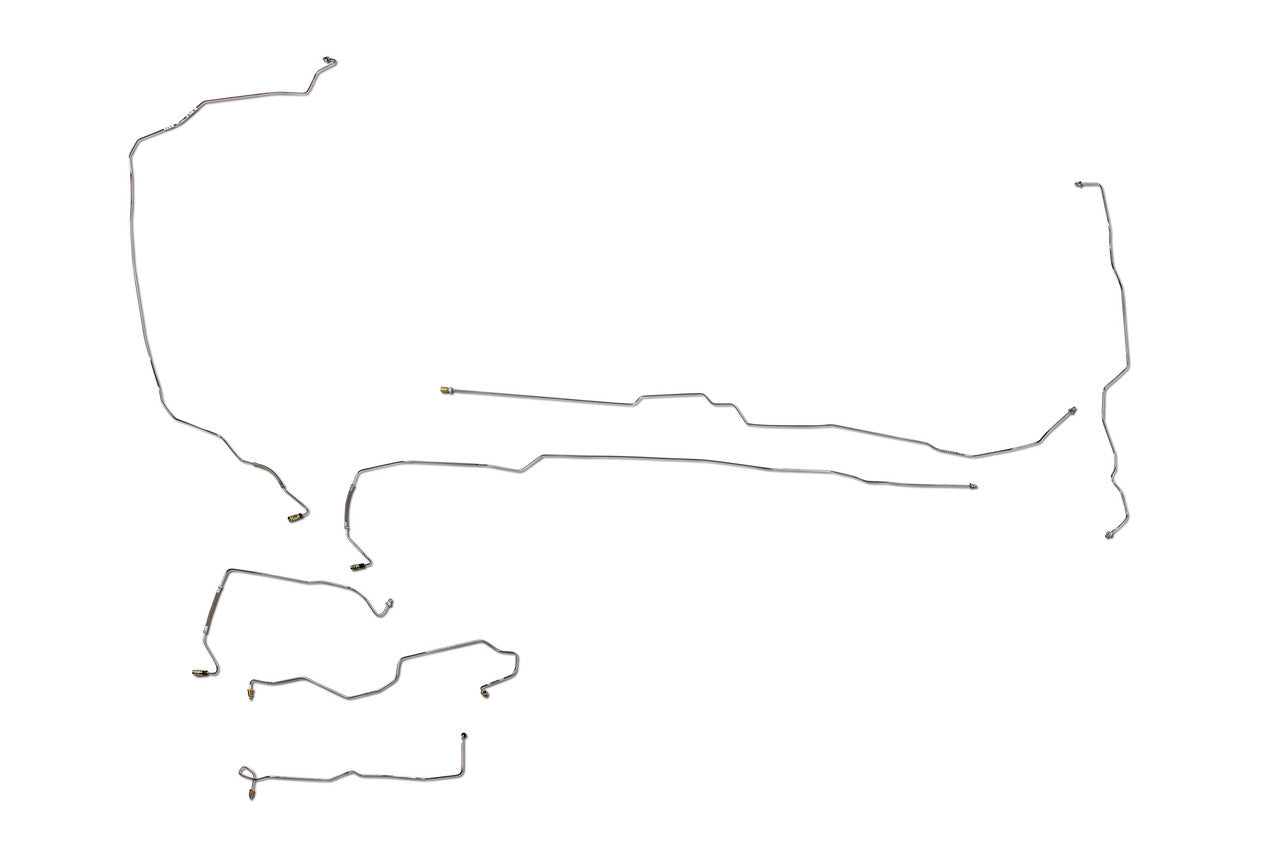

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 37" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
