Dodge Ram 2500 Brake Line Set 2001 2WD Club Cab 8ft Bed 5.2L BLD-141-SS2D Stainless Steel
w/AWAL (All Wheel Anti-lock), w/Dana 60 Rear Axle or w/Dana 70 Rear Axle
Dodge Ram 2500 Brake Line Set 2001 2WD Club Cab 8ft Bed 5.2L BLD-141-SS2D Stainless Steel
w/AWAL (All Wheel Anti-lock), w/Dana 60 Rear Axle or w/Dana 70 Rear Axle
Delivery Time & Rates

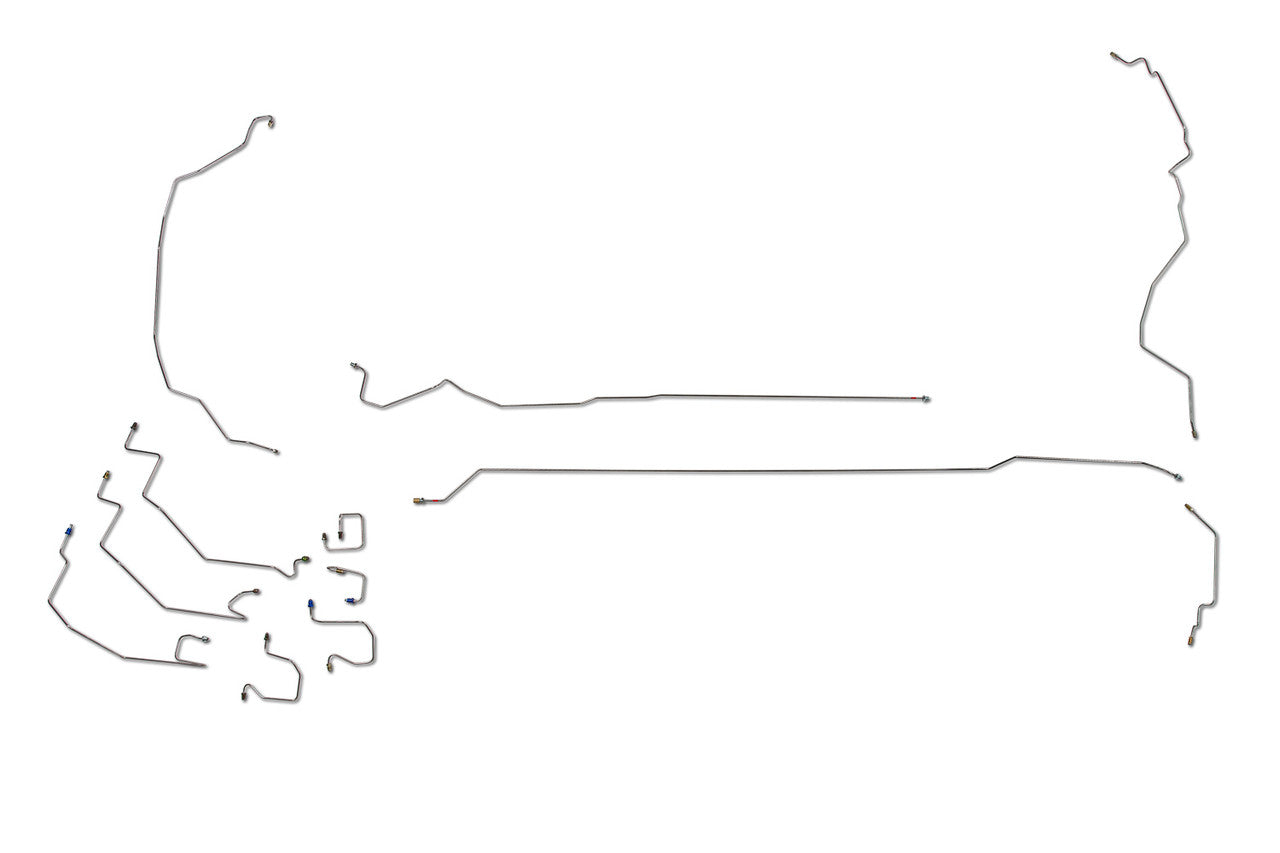

Install this pre bent 2001 Dodge Ram 2500 brake line set in no time!
Brake Line Set Stainless Steel 2WD Club Cab 8ft Bed w/AWAL (All Wheel Anti-lock Brakes), w/Dana 60 Rear Axle or w/Dana 70 Rear Axle for 5.2L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLD139-05B-SS. See the video below on how to remove the shipping bend

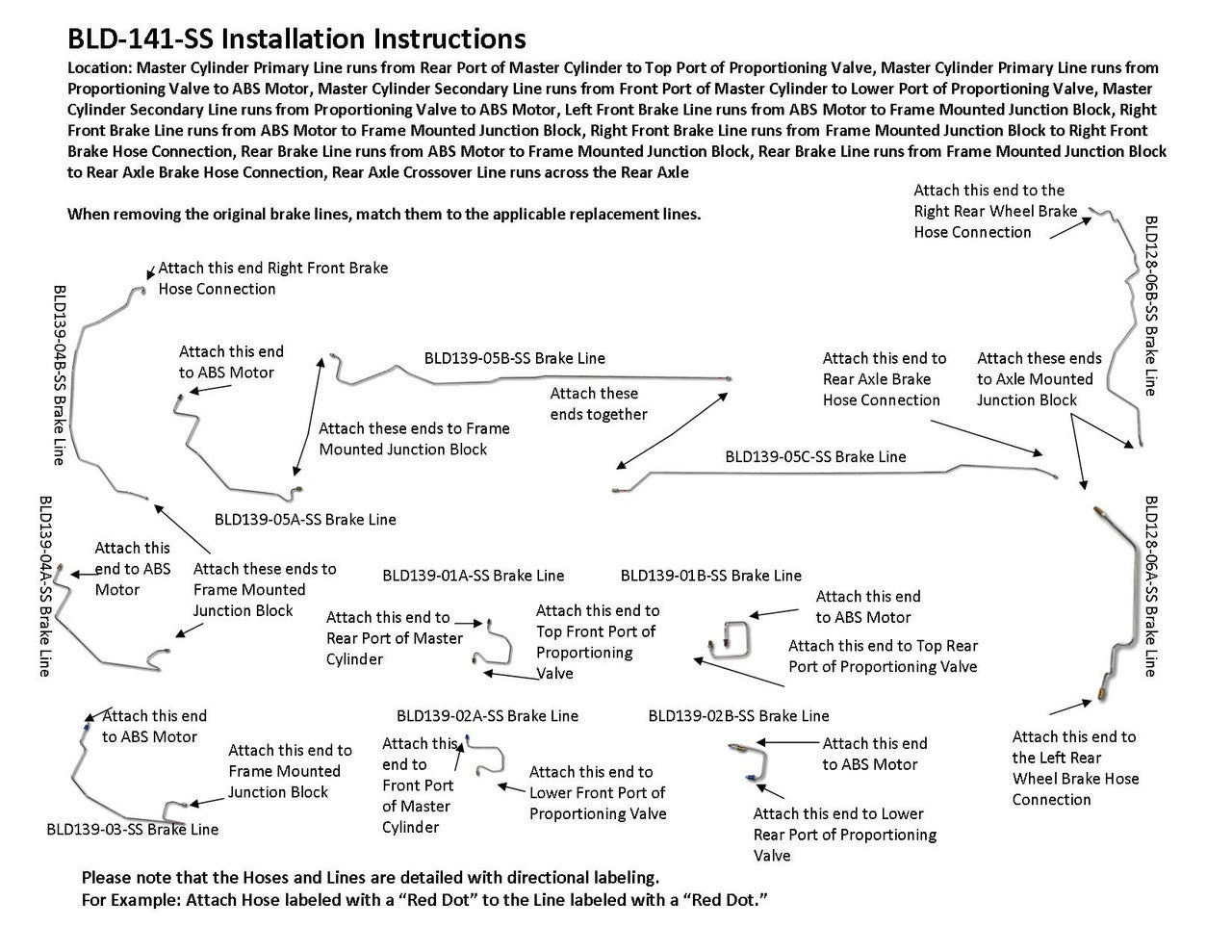

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Port of Proportioning Valve, Master Cylinder Primary Line runs from Proportioning Valve to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Lower Port of Proportioning Valve, Master Cylinder Secondary Line runs from Proportioning Valve to ABS Motor, Left Front Brake Line runs from ABS Motor to Frame Mounted Junction Block, Right Front Brake Line runs from ABS Motor to Frame Mounted Junction Block, Right Front Brake Line runs from Frame Mounted Junction Block to Right Front Brake Hose Connection, Rear Brake Line runs from ABS Motor to Frame Mounted Junction Block, Rear Brake Line runs from Frame Mounted Junction Block to Rear Axle Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle
2 Master Cylinder Primary Brake Lines 3/16", 2 Master Cylinder Secondary Brake Lines 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (2 sections) ,1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
