Dodge Ram 1500 Pickup Brake Line Set 2003 2WD Quad Cab 6.5ft Bed 3.7L BLD-149-SS2A Stainless Steel
w/RWAL (Rear Wheel Anti-Lock) w/4 Wheel Disc Brakes
Dodge Ram 1500 Pickup Brake Line Set 2003 2WD Quad Cab 6.5ft Bed 3.7L BLD-149-SS2A Stainless Steel
w/RWAL (Rear Wheel Anti-Lock) w/4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 2003 Ram 1500 brake line set in no time!
Brake Line Set Stainless Steel 2003 Dodge Ram 1500 2WD Quad Cab 6.5ft Bed w/Rear Wheel Anti-Lock (RWAL) w/4 Wheel Disc Brakes for 3.7L Gas engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLD148-05B-SS and BLD148-05C-SS. See the video below on how to remove the shipping bend

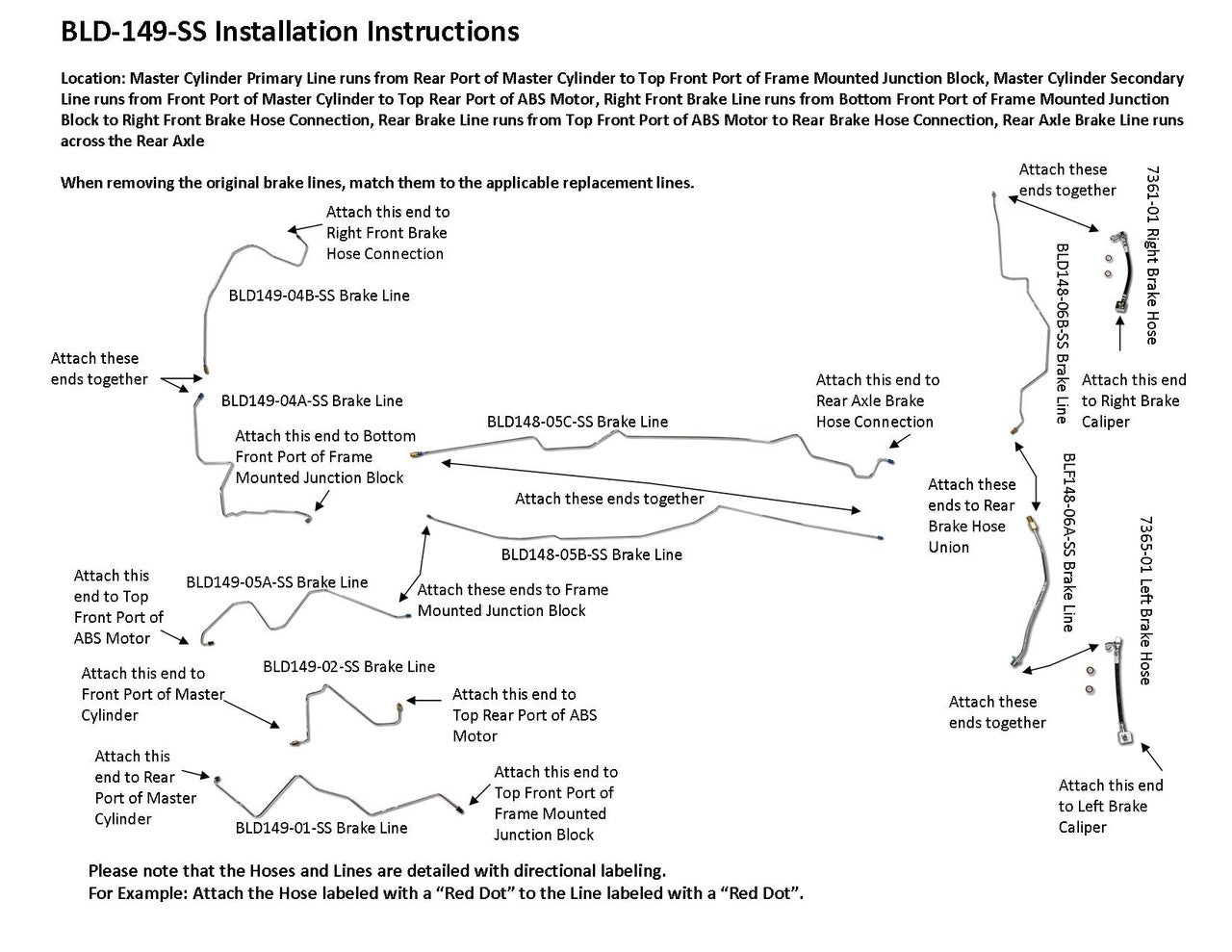

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Front Port of Frame Mounted Junction Block, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Top Rear Port of ABS Motor, Right Front Brake Line runs from Bottom Front Port of Frame Mounted Junction Block to Right Front Brake Hose Connection, Rear Brake Line runs from Top Front Port of ABS Motor to Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

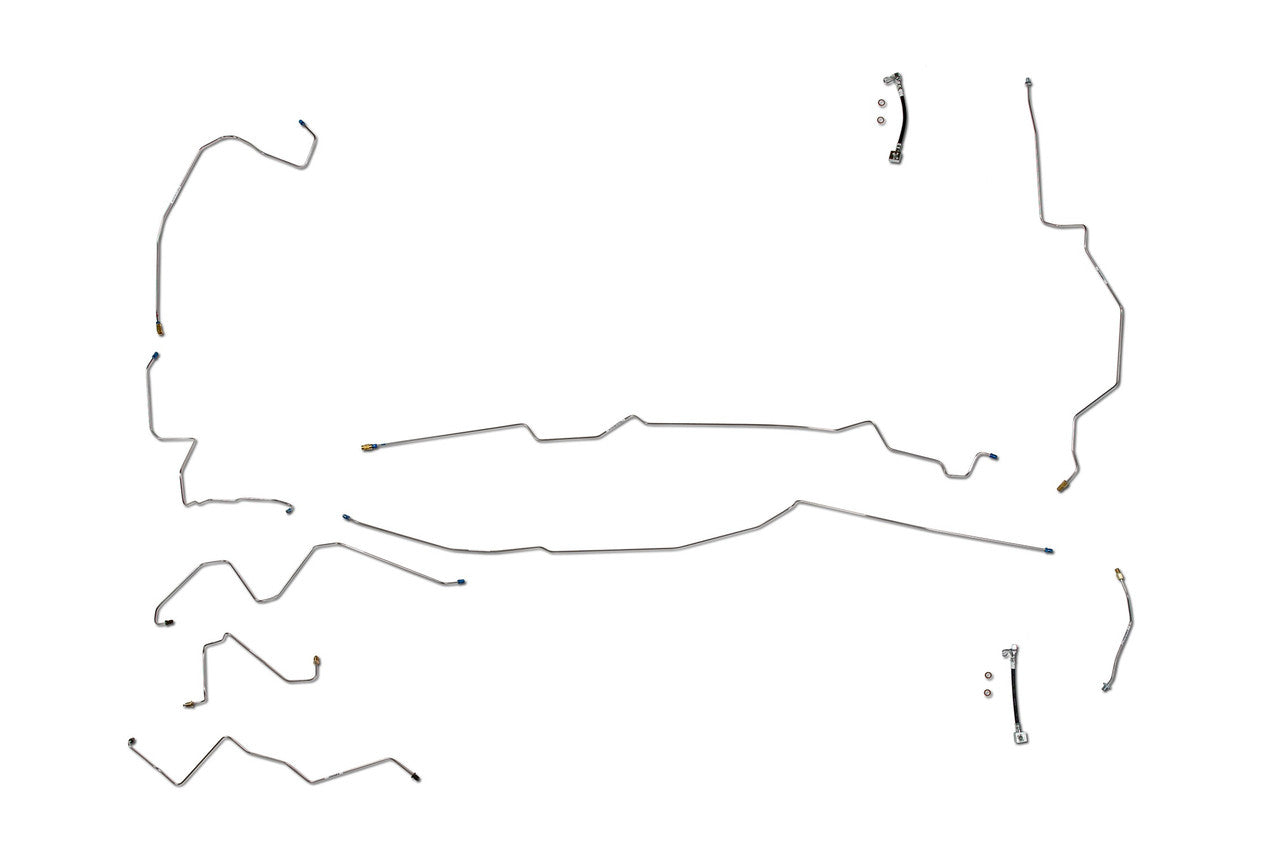

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), 1 Left Rear Brake Hose, 1 Right Rear Brake Hose
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Fluoroelastomer with OE style fittings
