Dodge Durango Brake Line Set 2003 2WD BLD-122-SS1A Stainless Steel
w/AWAL (All Wheel Anti Lock) Front Disc/Rear Drum Brakes
Dodge Durango Brake Line Set 2003 2WD BLD-122-SS1A Stainless Steel
w/AWAL (All Wheel Anti Lock) Front Disc/Rear Drum Brakes
Delivery Time & Rates
Install this pre bent 2003 Durango brake line set in no time!
Brake Line Set Stainless Steel 2003 Dodge Durango 2WD w/AWAL (All Wheel Anti-Lock), Front Disc/Rear Drum for 4.7L and 5.9L engines

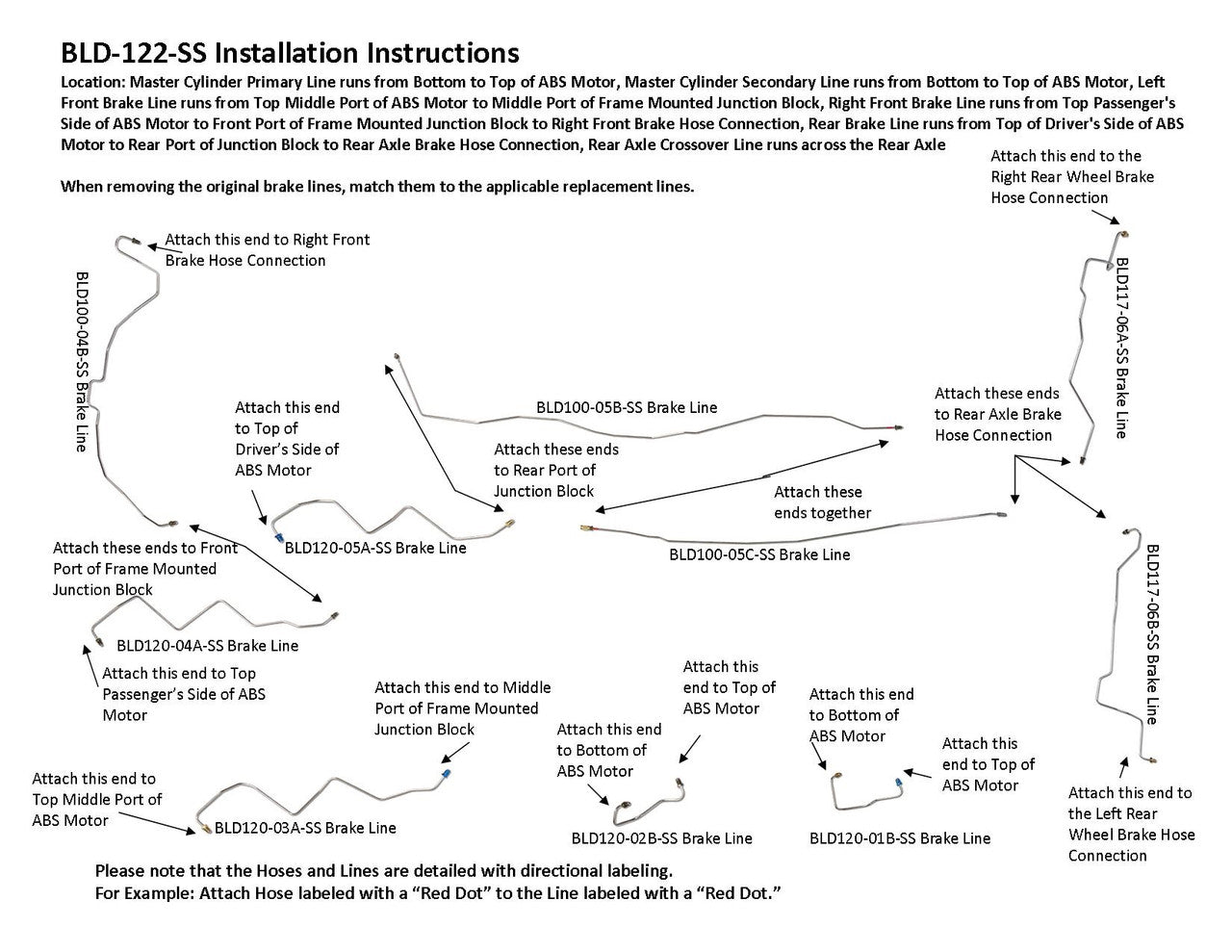

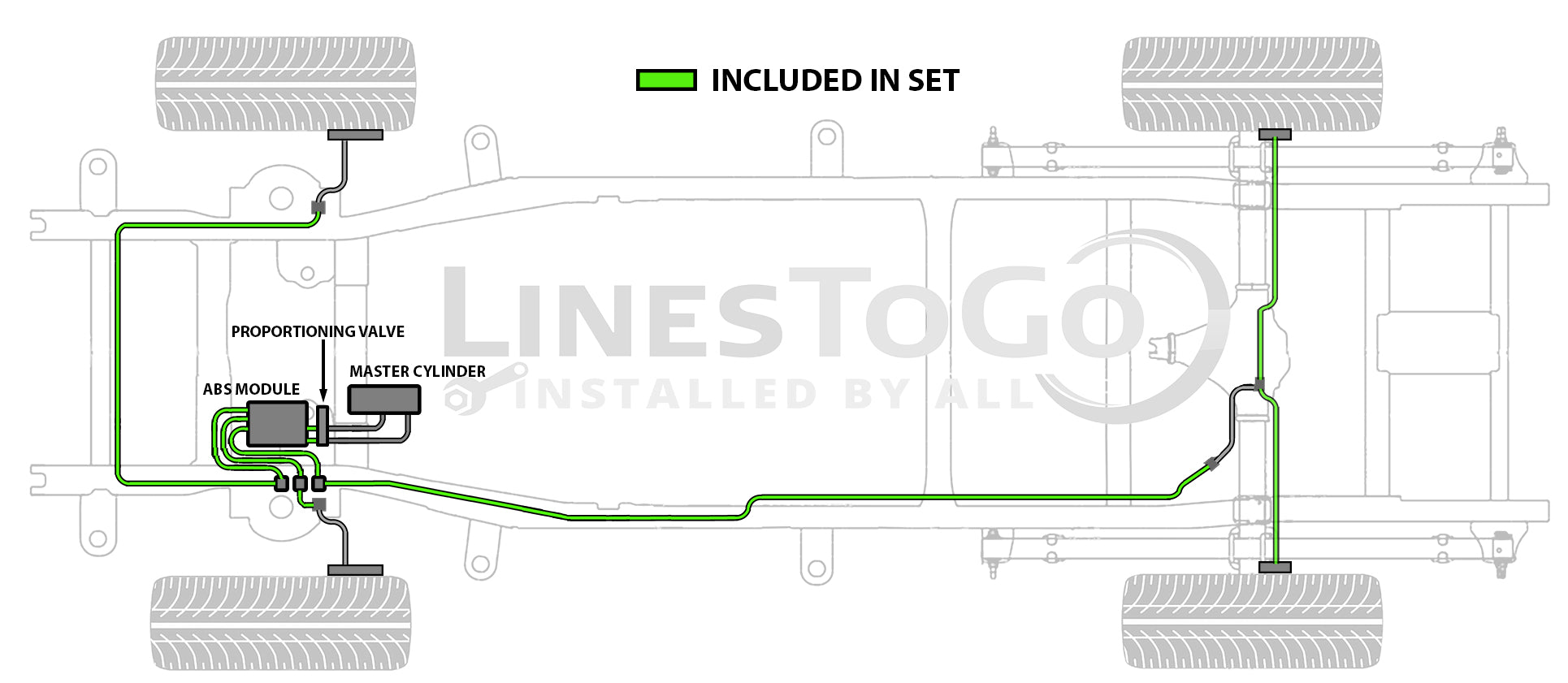

Master Cylinder Primary Line runs from Bottom to Top of ABS Motor, Master Cylinder Secondary Line runs from Bottom to Top of ABS Motor, Left Front Brake Line runs from Top Middle Port of ABS Motor to Middle Port of Frame Mounted Junction Block, Right Front Brake Line runs from Top Passenger's Side of ABS Motor to Front Port of Frame Mounted Junction Block to Right Front Brake Hose Connection, Rear Brake Line runs from Top of Driver's Side of ABS Motor to Rear Port of Junction Block to Rear Axle Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle

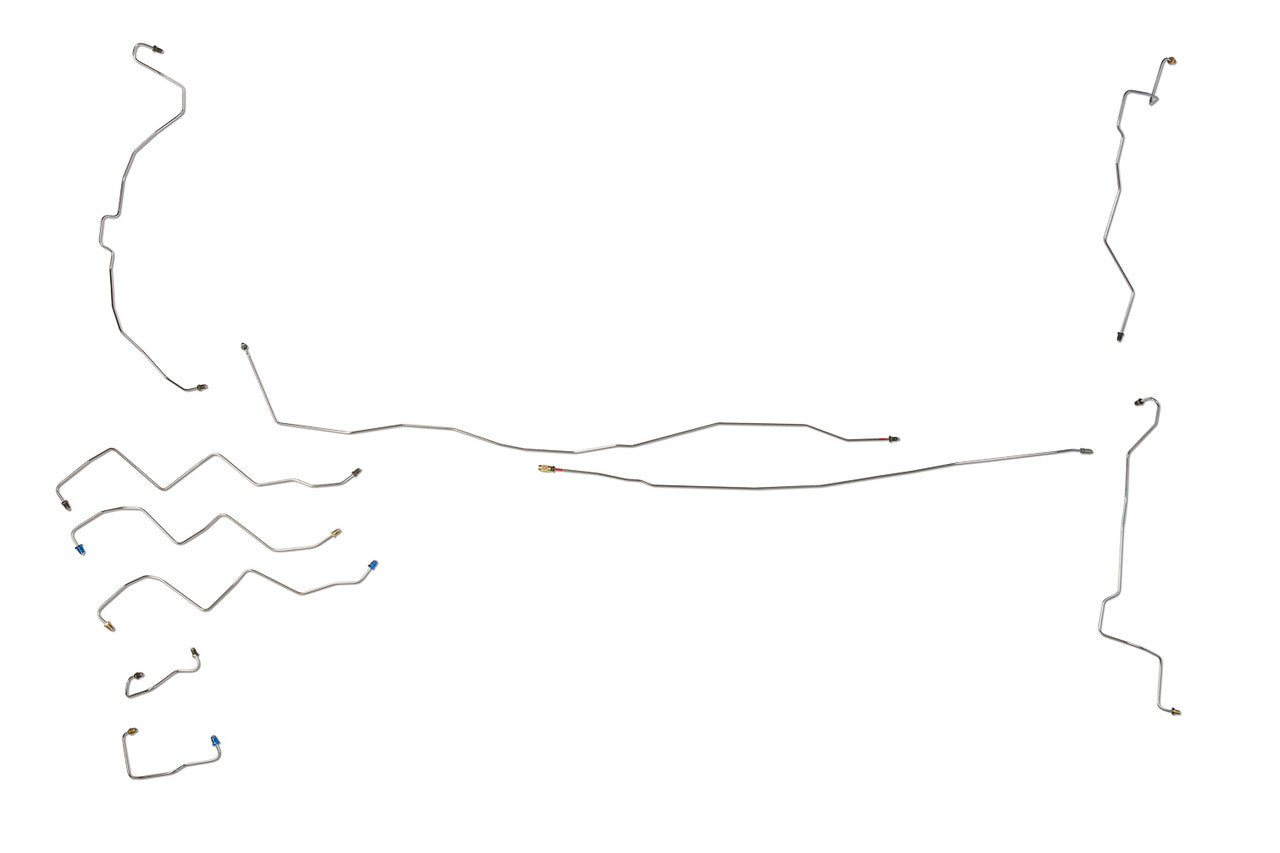

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16",1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16 (2 sections), Does NOT include Brake Hoses or Master Cylinder Lines that run to ABS Motor

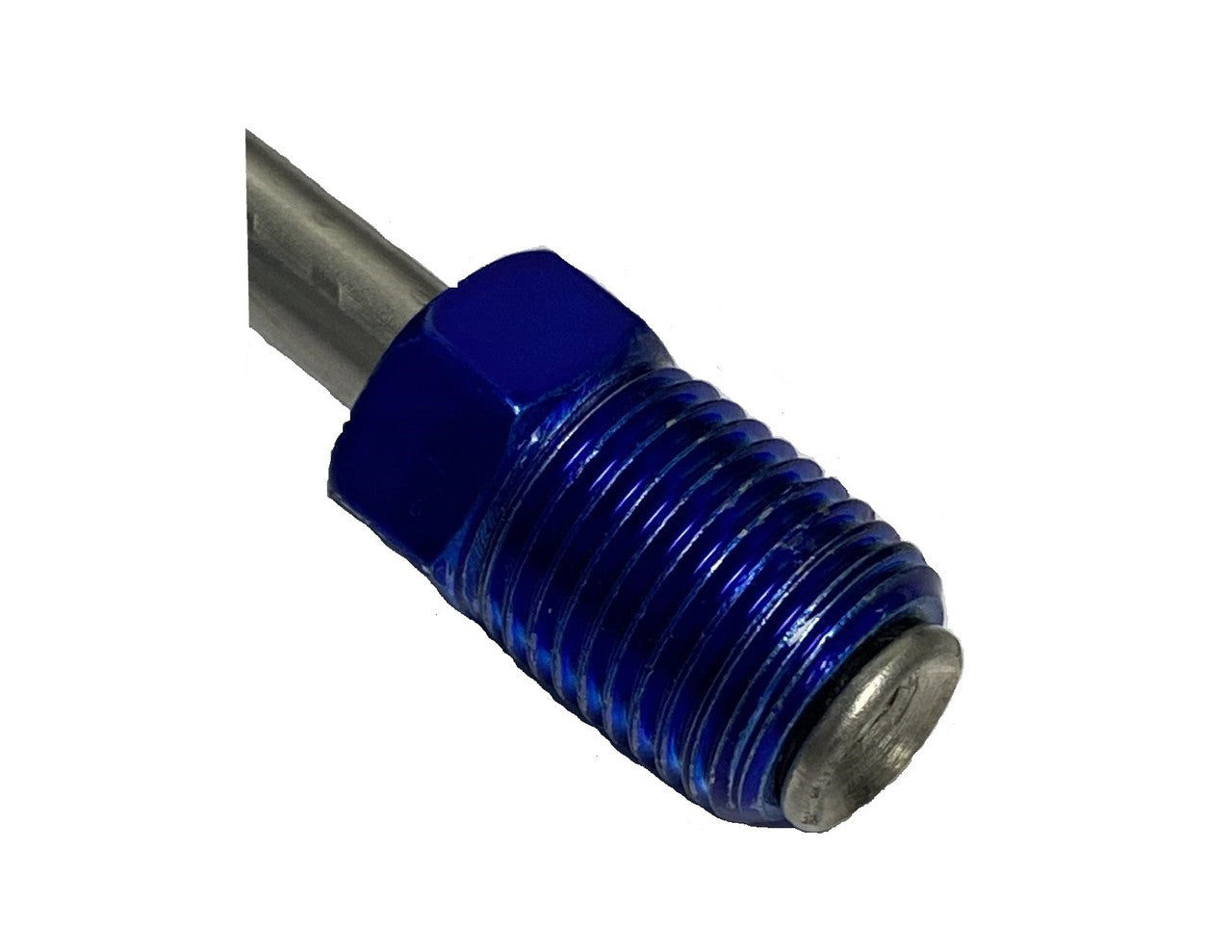

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
