Dodge Durango Brake Line Set 2002 4WD BLD-121-SS Stainless Steel
w/AWAL (All Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001
Dodge Durango Brake Line Set 2002 4WD BLD-121-SS Stainless Steel
w/AWAL (All Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001
Delivery Time & Rates
Install this pre bent 2002 Durango brake line set in no time!
Brake Line Set Stainless Steel 2002 Dodge Durango 4WD w/AWAL (All Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001 for 4.7L and 5.9L engines.
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLD101-05B-SS. See the video below on how to remove the shipping bend
- Weight: 5

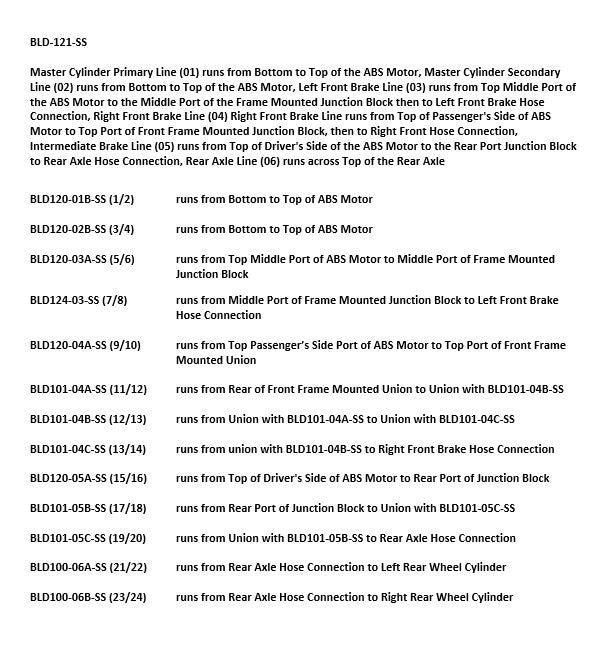

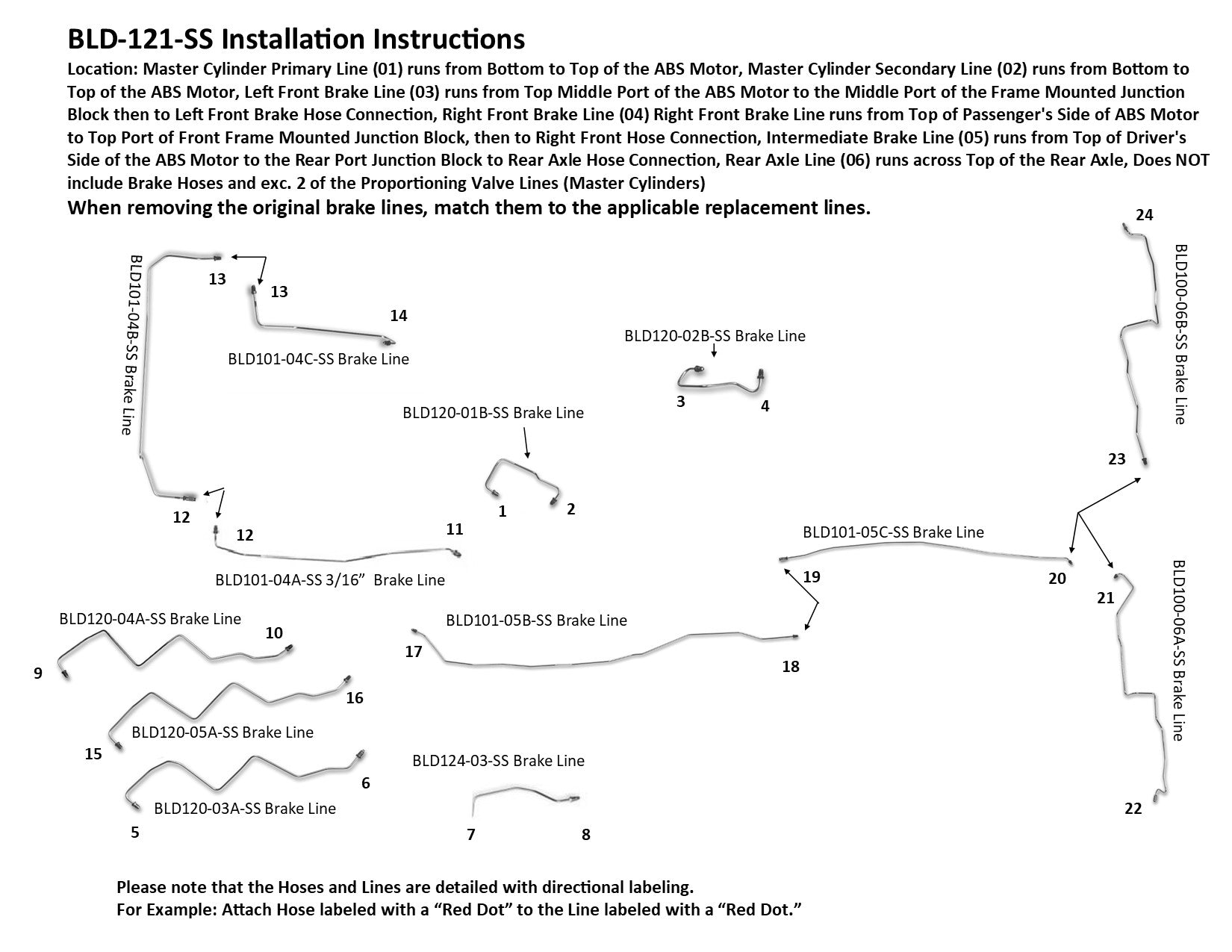

- Installation Instructions

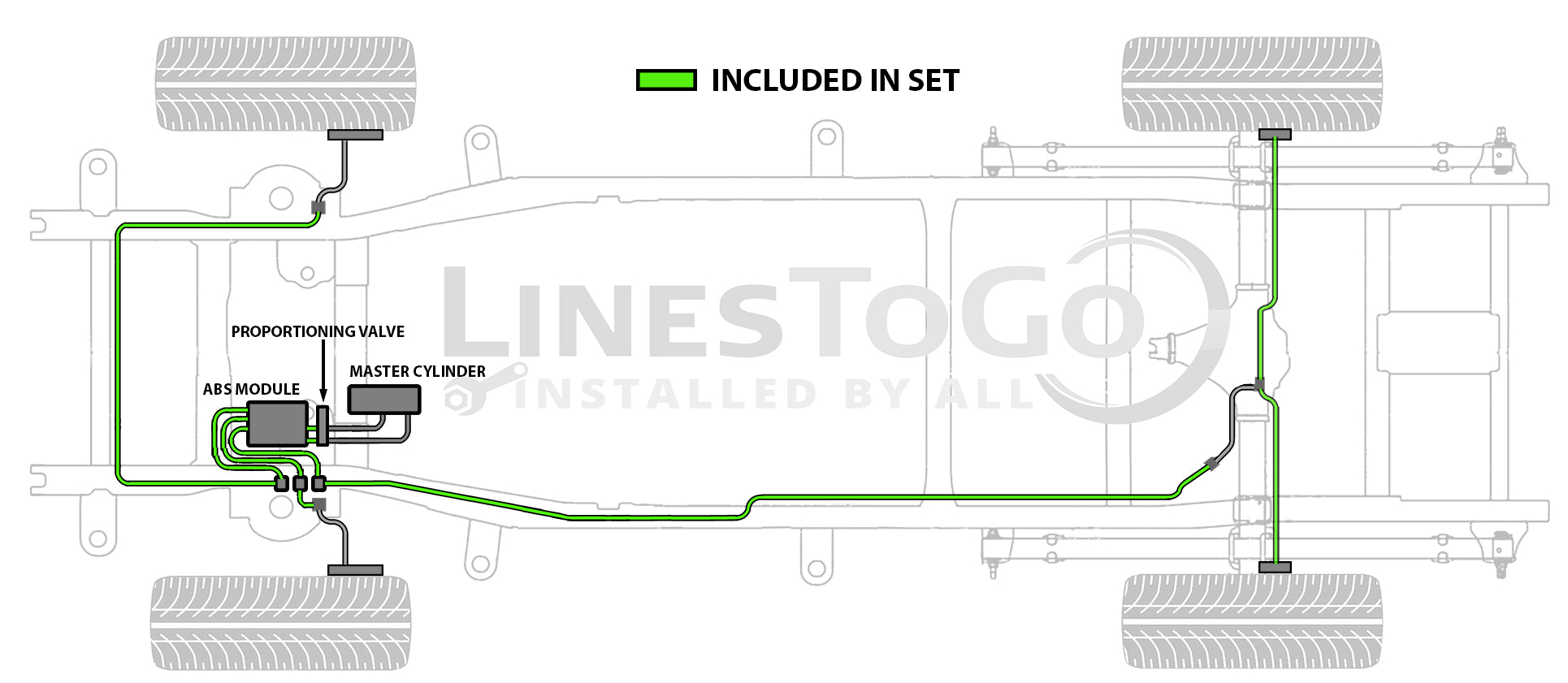

Master Cylinder Primary Line runs from Bottom to Top of the ABS Motor, Master Cylinder Secondary Line runs from Bottom to Top of the ABS Motor, Left Front Brake Line runs from Top Middle Port of the ABS Motor to the Middle Port of the Frame Mounted Junction Block then to Left Front Brake Hose Connection, Right Front Brake Line runs from Top of Passenger's Side of ABS Motor to Top Port of Front Frame Mounted Junction Block, then to Right Front Hose Connection, Intermediate Brake Line runs from Top of Driver's Side of the ABS Motor to the Rear Port Junction Block to Rear Axle Hose Connection, Rear Axle Line runs across Top of the Rear Axle

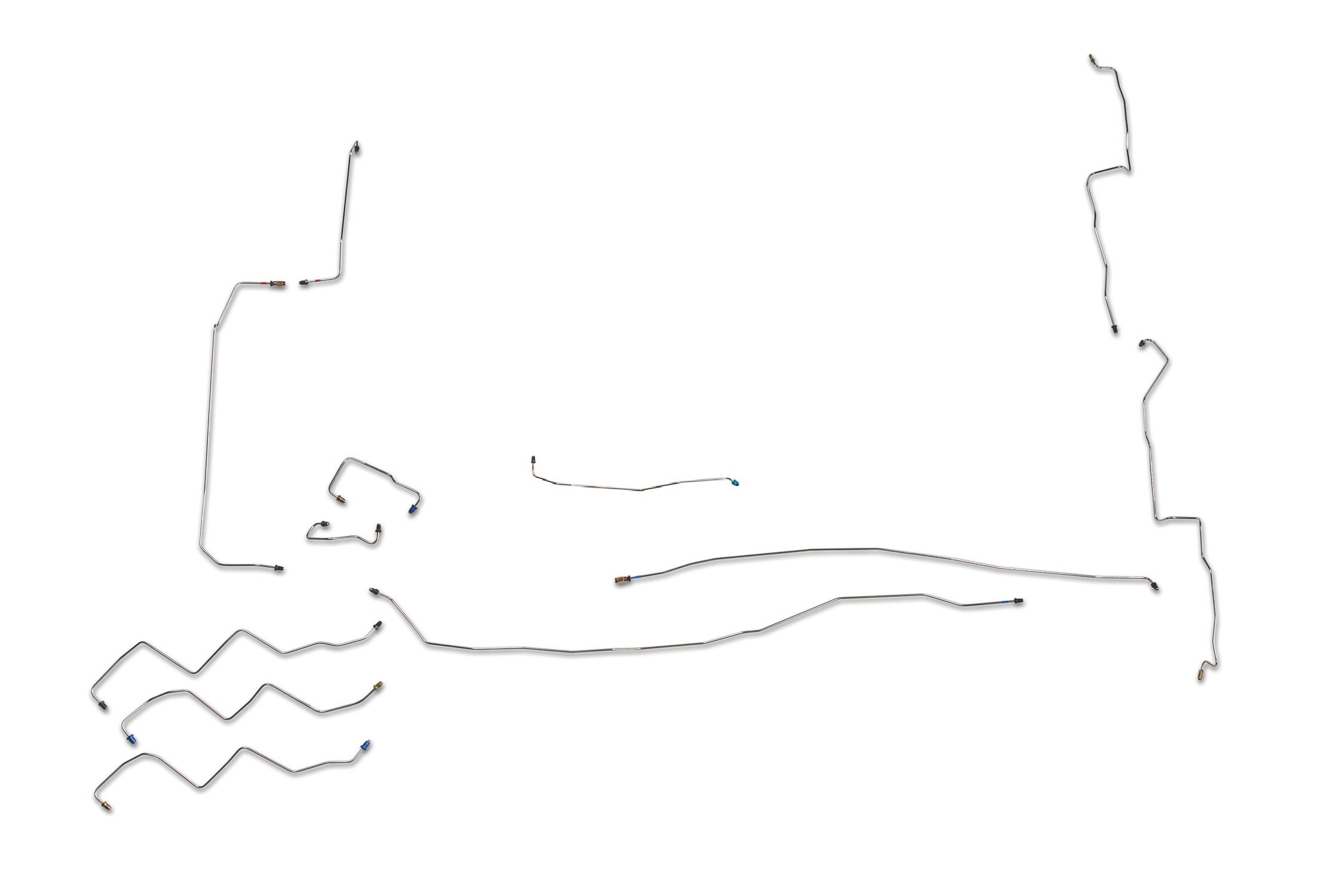

1 Master Cylinder Primary Line 3/16, 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16" (in 2 sections), 1 Right Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Line (in 2 sections), Does NOT include Brake Hoses and exc. 2 of the Proportioning Valve Lines that run to ABS Motor (Master Cylinders Lines)

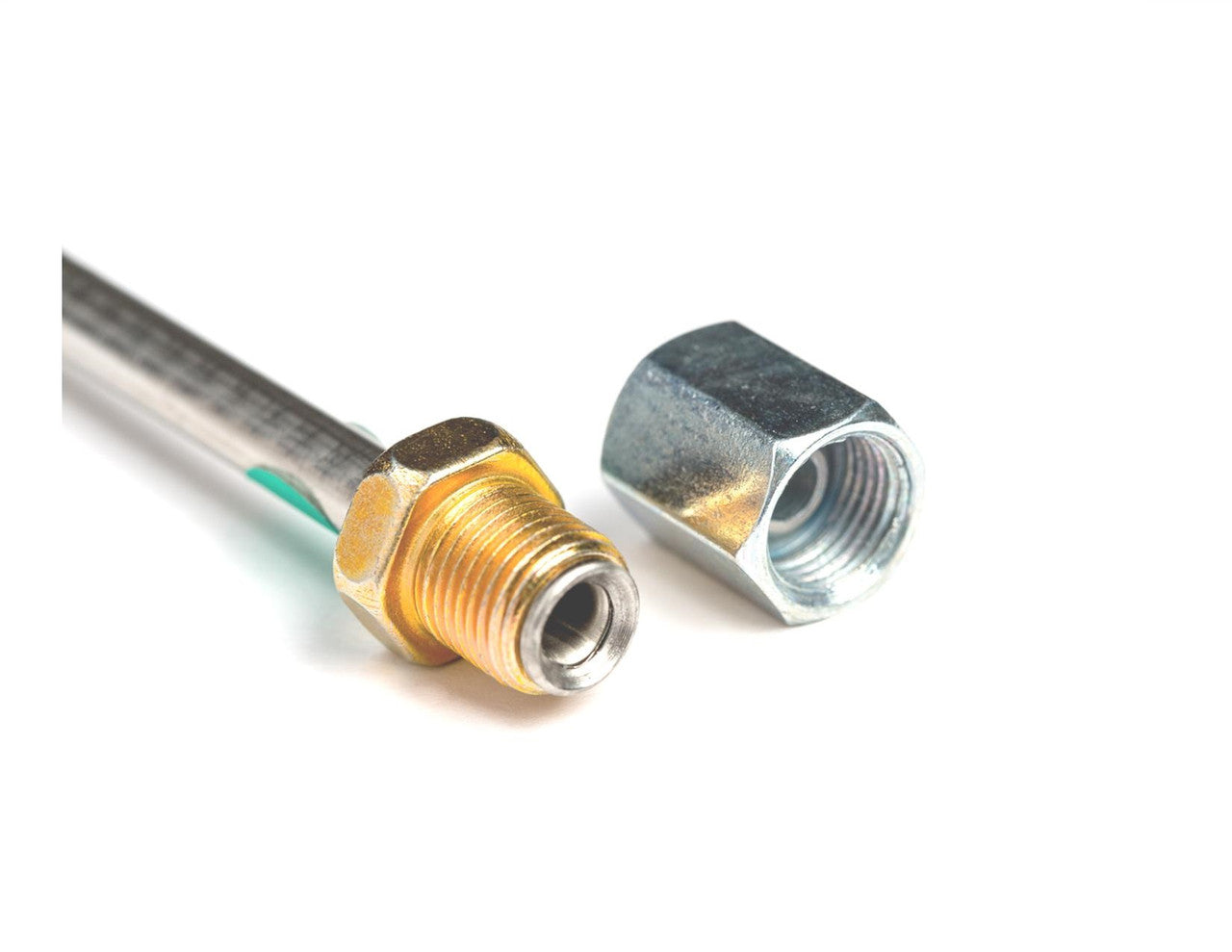

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
