Dodge Durango Brake Line Set 2001 4WD BLD-101-SS1A Stainless Steel
w/Front Disc/Rear Drum Brakes w/RWAL (Rear Wheel Anti-lock) - Built Before: 07/17/2001
Dodge Durango Brake Line Set 2001 4WD BLD-101-SS1A Stainless Steel
w/Front Disc/Rear Drum Brakes w/RWAL (Rear Wheel Anti-lock) - Built Before: 07/17/2001
Delivery Time & Rates
Install this pre bent 2001 Durango brake line set in no time!
Brake Line Set Stainless Steel 2001 Dodge Durango 4WD w/Front Disc/Rear Drum Brakes w/RWAL (Rear Wheel Anti-lock) - Built Before: 07/17/2001 for 4.7L and 5.9L engines.
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLD101-05B-SS. See the video below on how to remove the shipping bend.
- Weight: 3

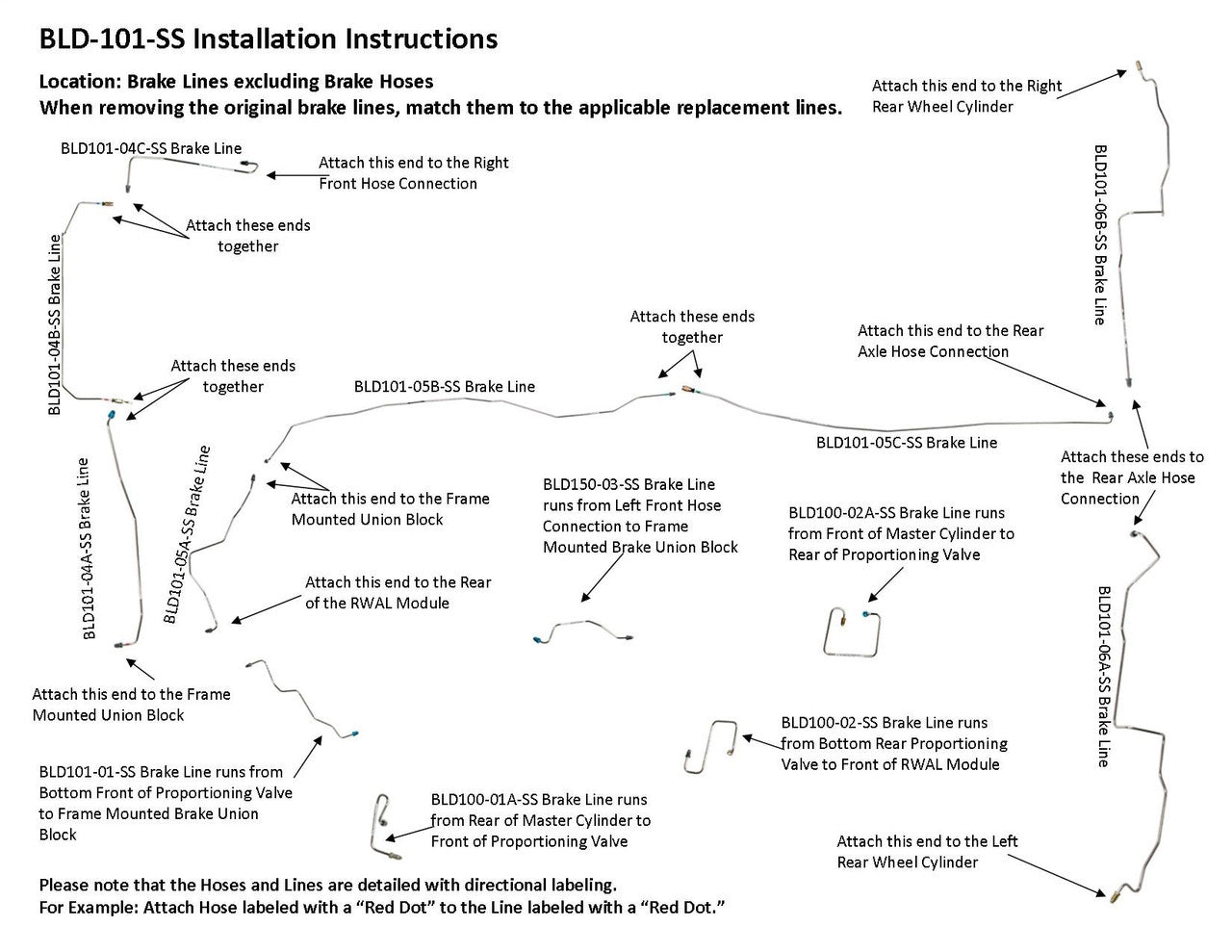

- Installation Instructions
1 Master Cylinder Primary Line from Rear of Master Cylinder to Front of Proportioning Valve, 1 Master Cylinder Primary Line from Bottom Front of Proportioning Valve to Frame Mounted Brake Union Block, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Rear of Proportioning Valve, 1 Master Cylinder Secondary Line from Bottom Rear of Proportioning Valve to Front of RWAL Module, 1 Left Front Line from Left Front Hose Connection to Frame Mounted Brake Union Block, 1 Right Front Line from Right Front Hose Connection to Frame Mounted Brake Union Block (3 easy to install sections), 1 Rear Line from Rear of RWAL Module to Frame Mounted Brake Union Block (3 easy to install sections), 1 Rear Line from Frame Mounted Brake Union Block to Rear Axle Hose Connection (2 easy to install sections)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
