Dodge Durango Brake Line Set 1998 4WD 5.9L Gas Engines BLD-156-SS1C Stainless Steel

w/RWAL (Rear Wheel Anti-Lock), Front Disc/Rear Drum

Dodge Durango Brake Line Set 1998 4WD 5.9L Gas Engines BLD-156-SS1C Stainless Steel
Dodge Durango Brake Line Set 1998 4WD 5.9L Gas Engines BLD-156-SS1C Stainless Steel
Dodge Durango Brake Line Set 1998 4WD 5.9L Gas Engines BLD-156-SS1C Stainless Steel

Dodge Durango Brake Line Set 1998 4WD 5.9L Gas Engines BLD-156-SS1C Stainless Steel

w/RWAL (Rear Wheel Anti-Lock), Front Disc/Rear Drum

MSRP: from
SALE: from
Save $62.50
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: BLD-156-SS1C
  • Weight: 6

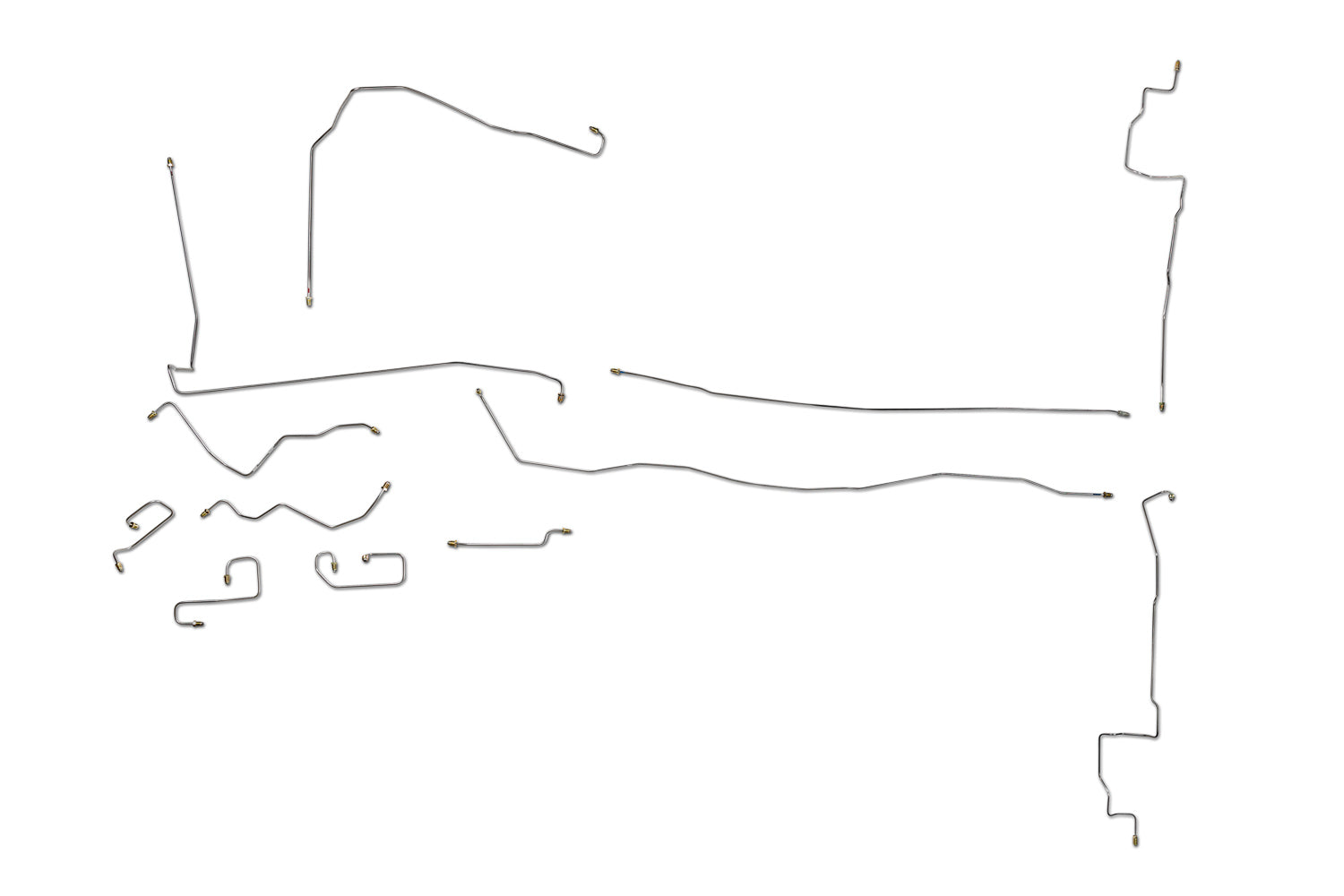

Install this pre bent 1998 Dodge Durango brake line set stainless steel in no time!

Brake Line Set Stainless Steel 1998 Dodge Durango 4WD w/RWAL, Front Disc/Rear Drum for 5.9L gas engines.

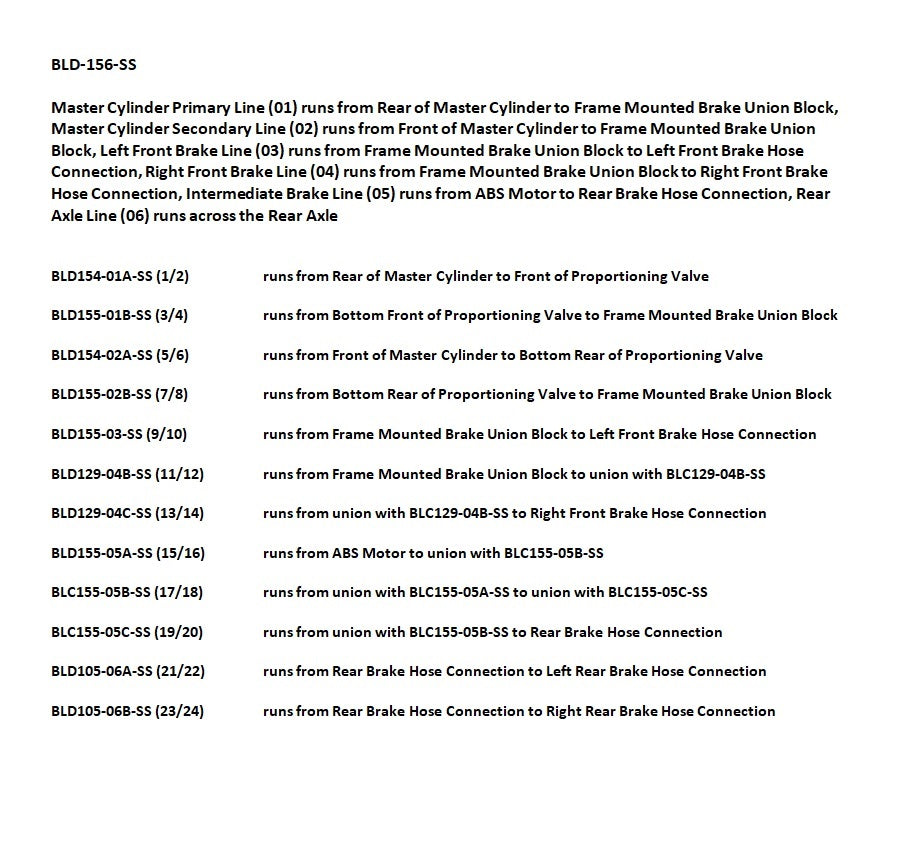

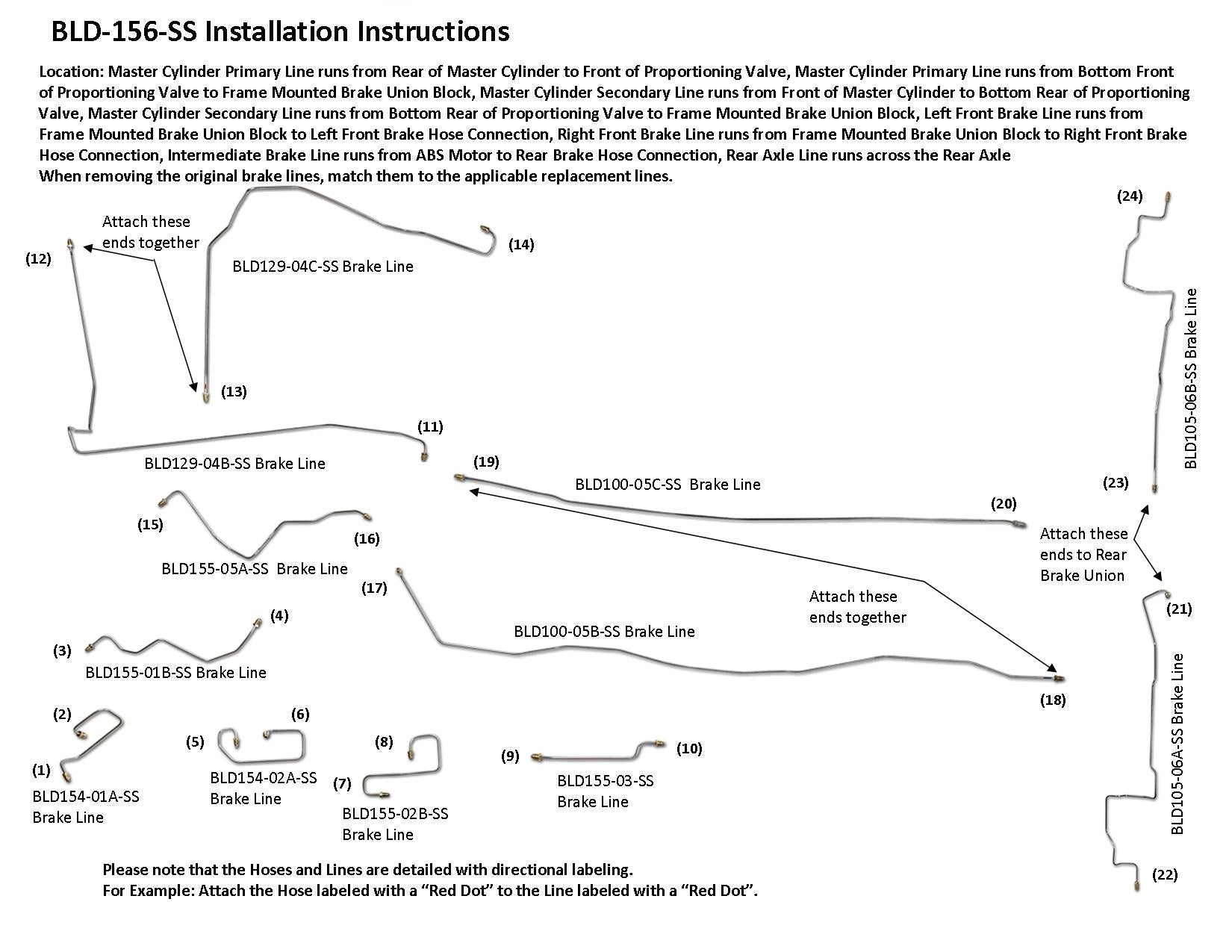

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Front of Proportioning Valve, Master Cylinder Primary Line runs from Bottom Front of Proportioning Valve to Frame Mounted Brake Union Block, Master Cylinder Secondary Line runs from Front of Master Cylinder to Bottom Rear of Proportioning Valve, Master Cylinder Secondary Line runs from Bottom Rear of Proportioning Valve to Frame Mounted Brake Union Block, Left Front Brake Line runs from Frame Mounted Brake Union Block to Left Front Brake Hose Connection, Right Front Brake Line runs from Frame Mounted Brake Union Block to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection, Rear Axle Line runs across the Rear Axle

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLD129-04B. See the video below on how to remove the shipping twist.

Included in Set: 2 Master Cylinder Primary Brake Lines 3/16", 2 Master Cylinder Secondary Brake Lines 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

OEM Part Numbers:  52009101AB, 52009486, 52009643AB, 52009487, 52010372AC, 52010370AC, 52010372AC, 52009546, 52009547

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 58" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
