Install this pre bent 2006 Dodge Dakota brake line set in no time!
Stainless Steel Brake Line Set 2006 Dodge Dakota Quad Cab 5.4ft Bed w/Rear Wheel Anti-lock Brakes for 4.7L engines.
Please Note: Before installing your brake lines, a shipping bend will need to be removed from the lines labeled BLD168-05B-SS and BLD168-05C-SS. See the video below on how to remove the shipping bend

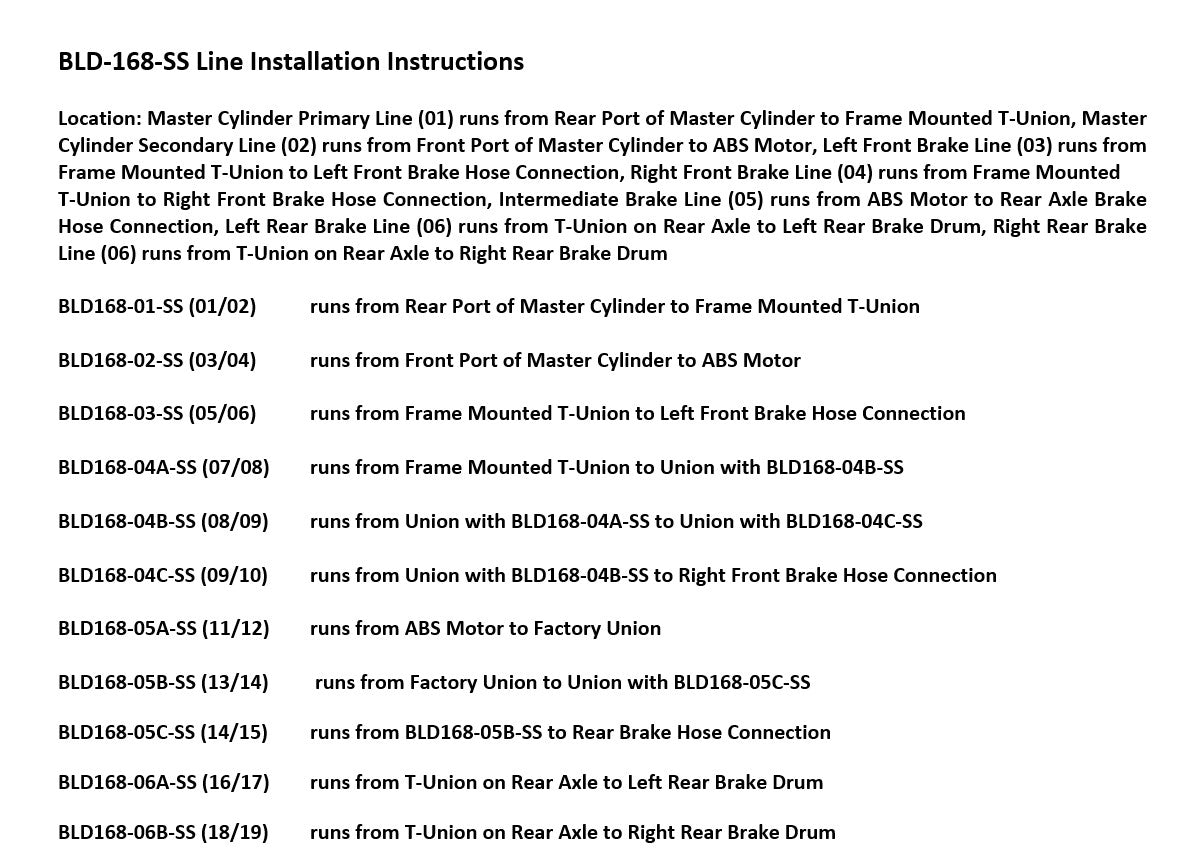

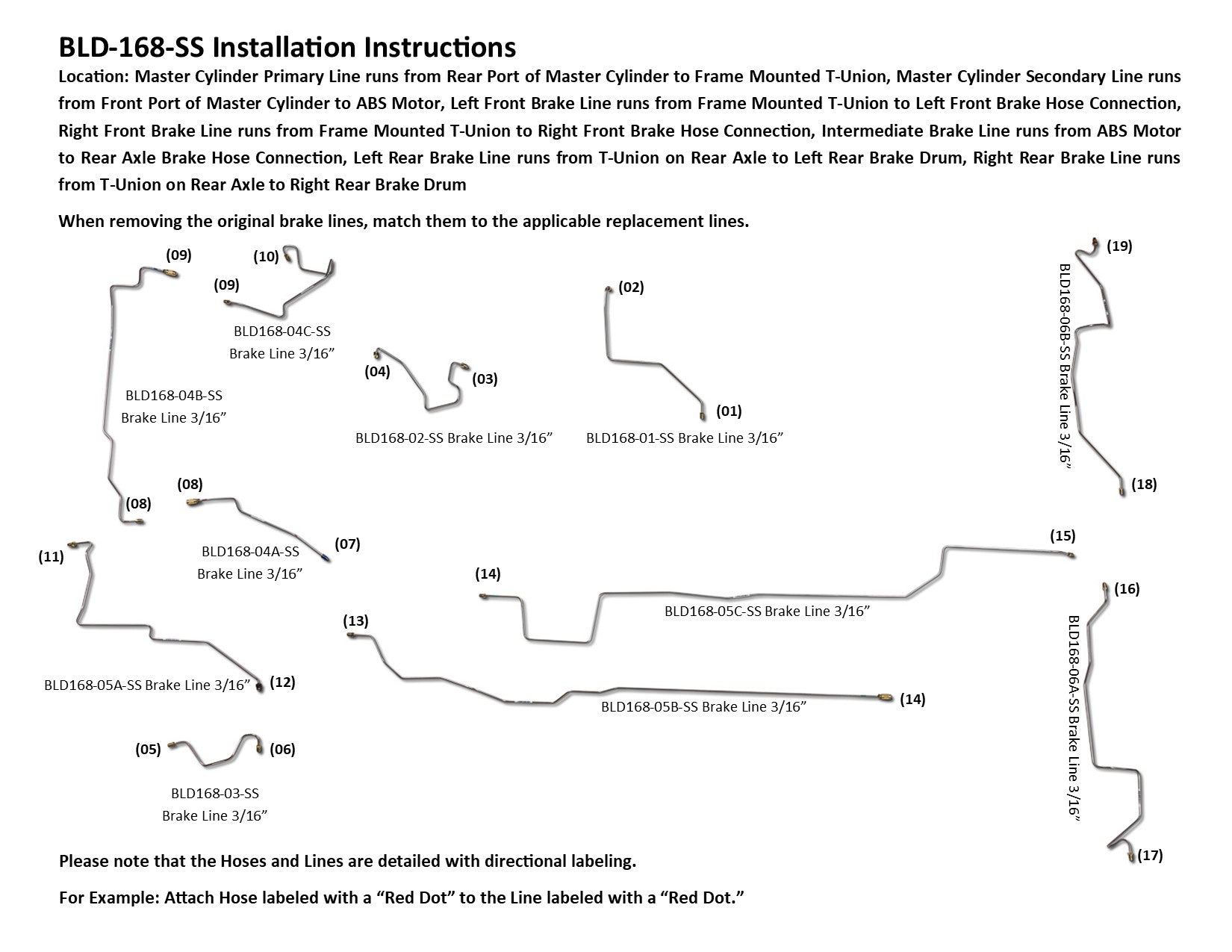

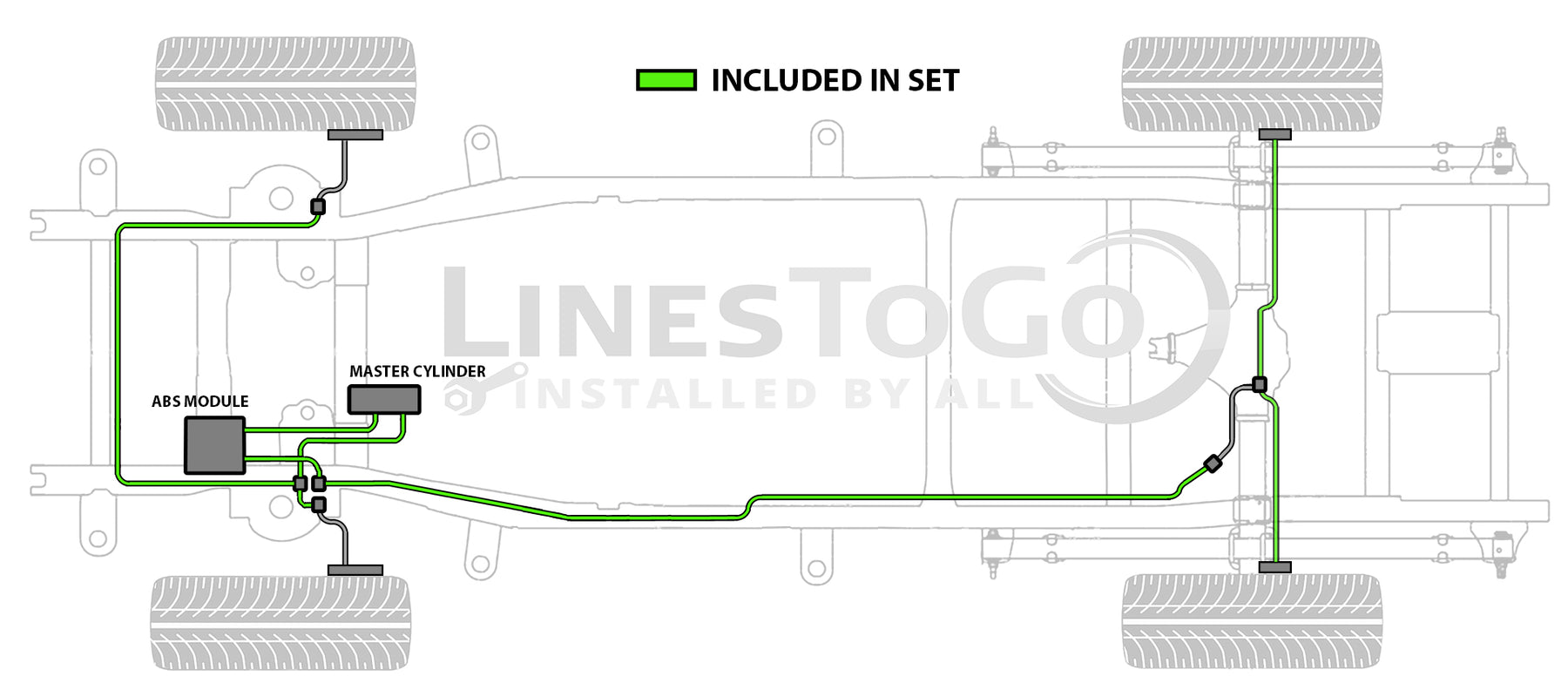

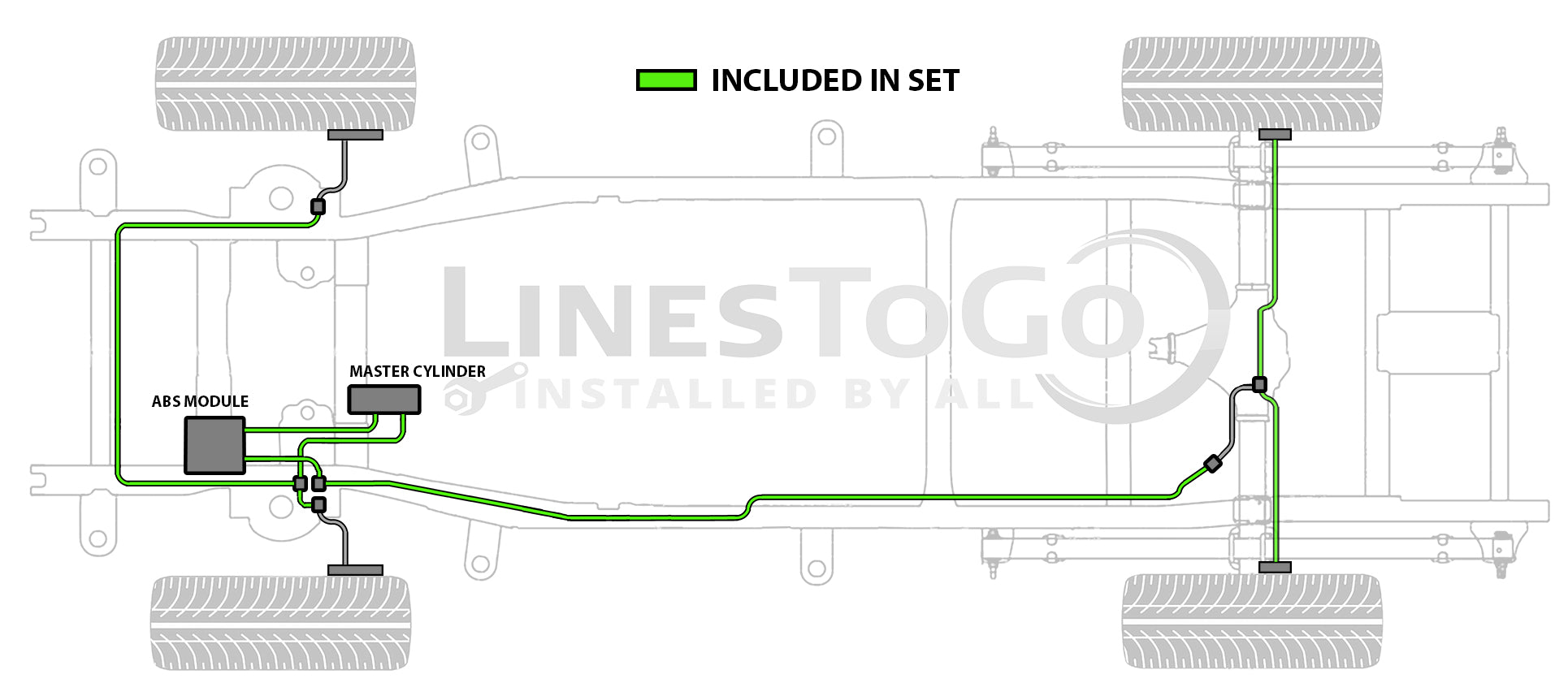

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Frame Mounted T-Union, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from Frame Mounted T-Union to Left Front Brake Hose Connection, Right Front Brake Line runs from Frame Mounted T-Union to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection, Left Rear Brake Line runs from T-Union on Rear Axle to Left Rear Brake Drum, Right Rear Brake Line runs from T-Union on Rear Axle to Right Rear Brake Drum

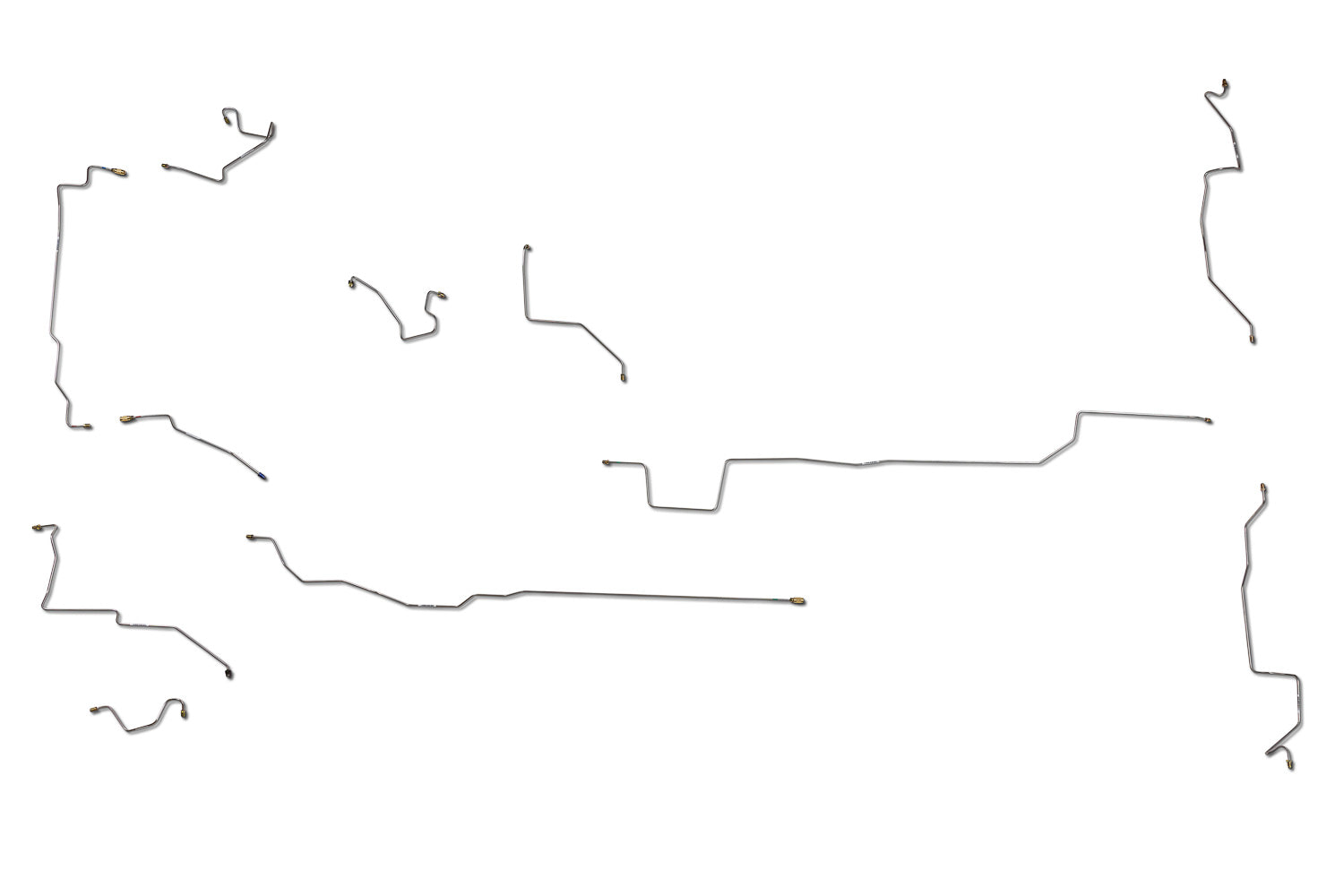

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
