Dodge Dakota Brake Line Set 2003 4WD Club Cab 6.5ft Bed BLD-114-SS1A Stainless Steel

w/RWAL (Rear Wheel Anti-lock) w/4 Wheel Disc Brakes

Dodge Dakota Brake Line Set 2003 4WD Club Cab 6.5ft Bed BLD-114-SS1A Stainless Steel
Dodge Dakota Brake Line Set 2003 4WD Club Cab 6.5ft Bed BLD-114-SS1A Stainless Steel
Dodge Dakota Brake Line Set 2003 4WD Club Cab 6.5ft Bed BLD-114-SS1A Stainless Steel

Dodge Dakota Brake Line Set 2003 4WD Club Cab 6.5ft Bed BLD-114-SS1A Stainless Steel

w/RWAL (Rear Wheel Anti-lock) w/4 Wheel Disc Brakes

SALE: from
from
Save $61.24
from /

Delivery Time & Rates

Install this pre bent 2003 Dakota brake line set in no time!

Brake Line Set Stainless Steel 2003 Dodge Dakota 4WD Club Cab 6.5ft Bed w/Rear Wheel Anti-lock Brakes w/4 Wheel Disc Brakes for 3.9L, 4.7L, and 5.9L engines

Please Note: Before installing your brake line, shipping bends will need to be removed from the line labeled BLD105-05B-SS and BLD105-05C-SS. See the video below on how to remove the shipping bend

SKU: BLD-114-SS1A
Box Dimensions 46" x 12" x 7"
Product Warranty 1 Year

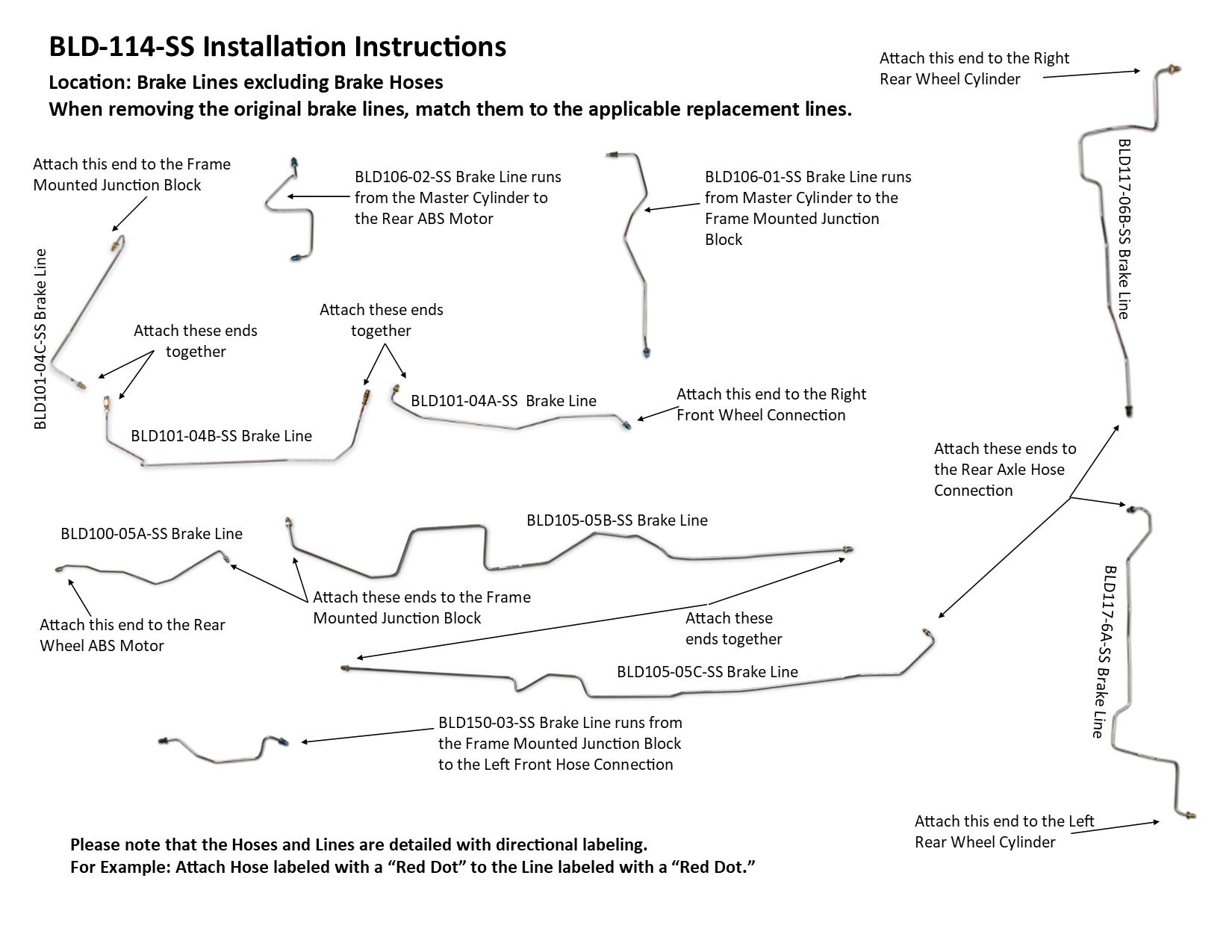

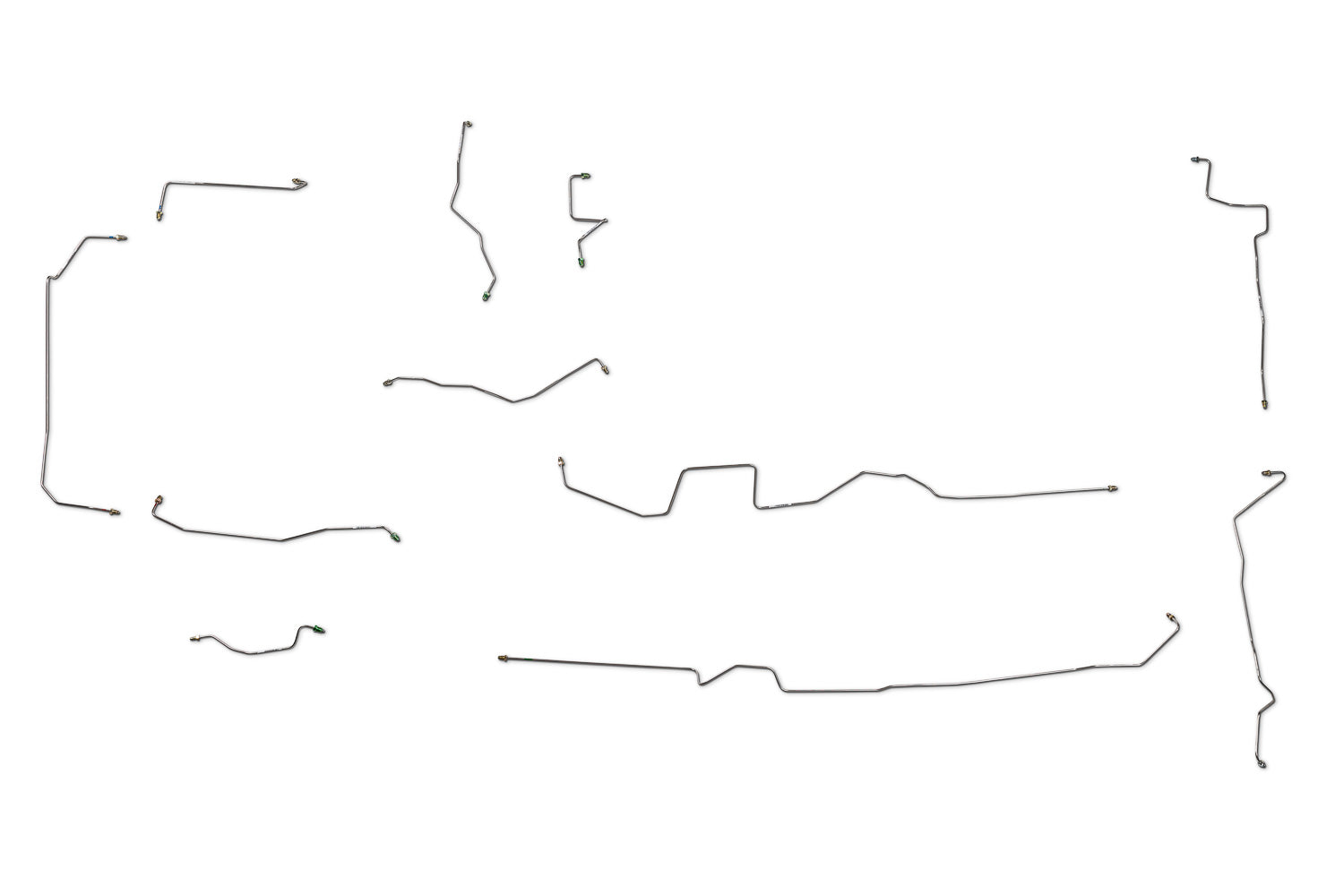

1 Master Cylinder Primary Line from Rear of Master Cylinder to Frame Mounted Junction Block, 1 Master Cylinder Secondary Line from Master Cylinder to Rear Wheel ABS Motor, 1 Left Front Line from Frame Mounted Junction Block to Left Front Wheel, 1 Right Front Line from Frame Mounted Junction Block to the Right Front Wheel (3 easy to install sections), 1 Rear Intermediate Line from Rear Wheel ABS Motor to Frame Mounted Junction Block to Rear Axle Hose Connection (3 easy to install sections), 1 Rear Axle Line across Top of the Rear Axle (2 sections)

52010255AB, 52010258AB, 52009904AD, 52009880AG, 520010254AA, 52009891AB, 52009890AB

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
