Dodge Dakota Brake Line Set 2002 2WD Club Cab 6.5ft Bed 3.9L BLD-113-SS1B Stainless Steel
w/RWAL (Rear Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001
Dodge Dakota Brake Line Set 2002 2WD Club Cab 6.5ft Bed 3.9L BLD-113-SS1B Stainless Steel
w/RWAL (Rear Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001
Delivery Time & Rates
Install this pre bent 2002 Dakota brake line set in no time!
Brake Line Set Stainless Steel 2002 Dodge Dakota 2WD Club Cab 6.5ft Bed w/RWAL (Rear Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built After: 07/18/2001 for 3.9L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the line labeled BLD110-05B-SS. See the video below on how to remove the shipping bend
- Weight: 4

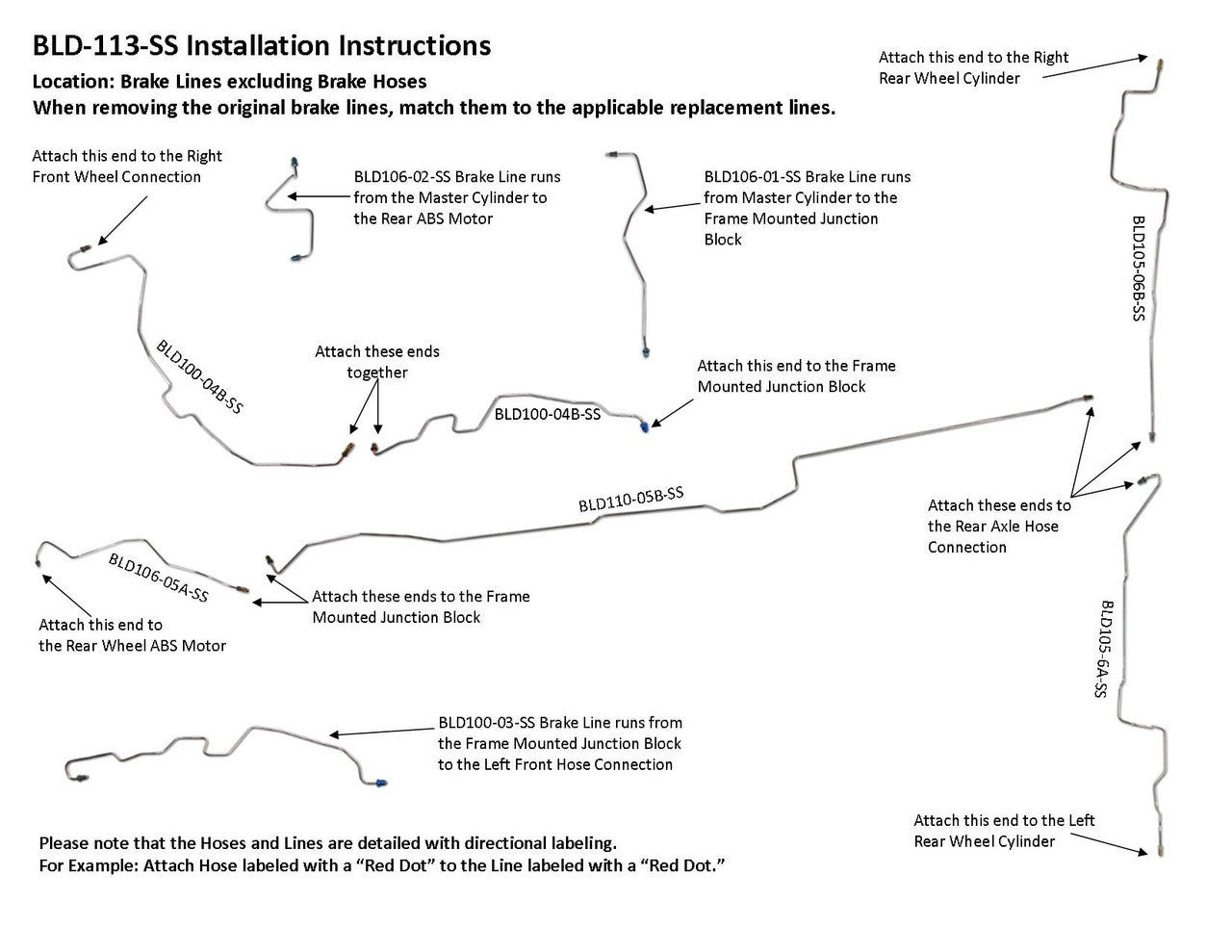

- Installation Instructions

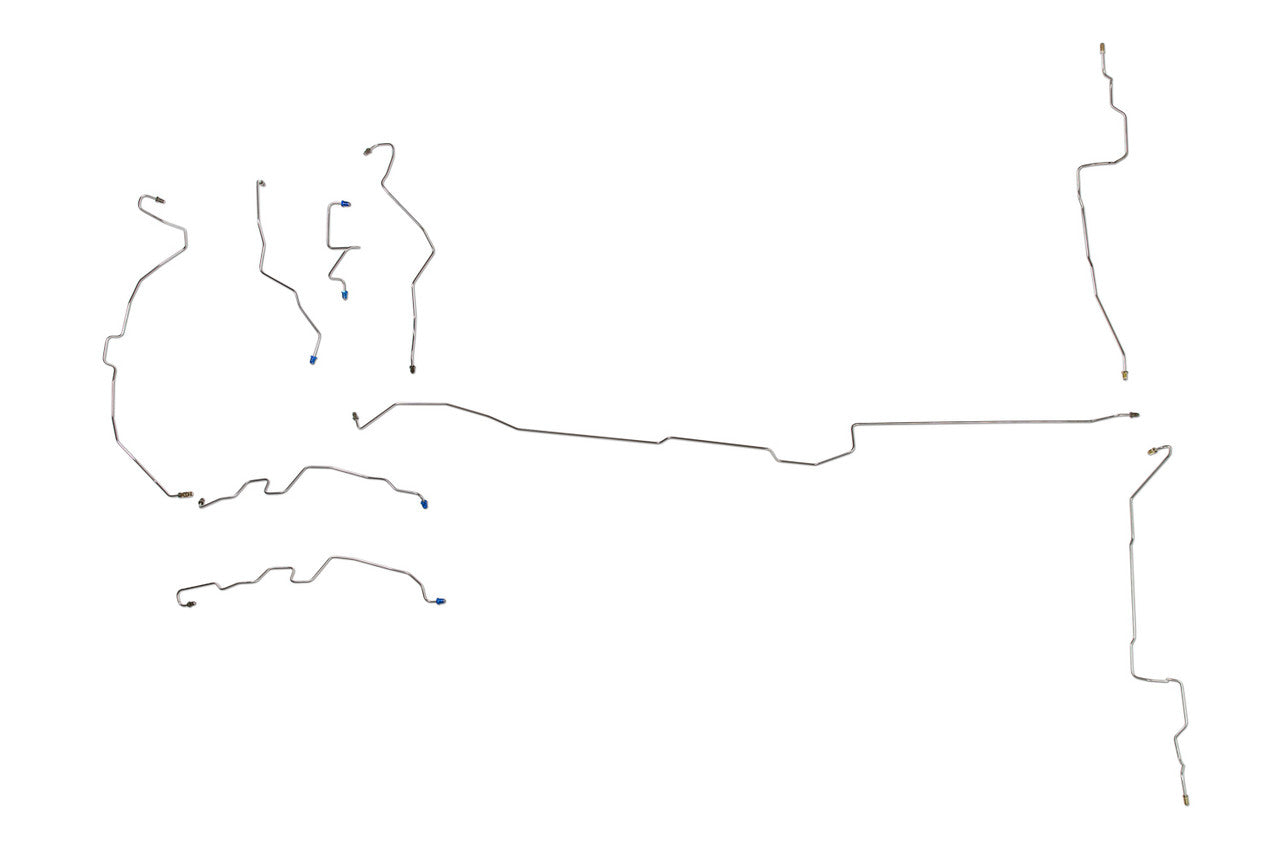

1 Master Cylinder Primary Line from Rear of Master Cylinder to Frame Mounted Junction Block, 1 Master Cylinder Secondary Line from Master Cylinder to Rear Wheel ABS Motor, 1 Left Front Line from Frame Mounted Junction Block to Left Front Wheel, 1 Right Front Line from Frame Mounted Junction Block to the Right Front Wheel (2 easy to install sections), 1 Rear Intermediate Line from Rear Wheel ABS Motor to Frame Mounted Junction Block to Rear Axle Hose Connection (2 easy to install sections), 1 Rear Axle Line across Top of the Rear Axle (2 sections)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
