Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel

w/AWAL (All Wheel Anti-lock) Front Disc/Rear Drum - Built Before: 07/17/2001

Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel
Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel
Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel
Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel
Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel

Dodge Dakota Brake Line Set 07/2001 4WD Club Cab 6.5ft Bed BLD-120-SS1C Stainless Steel

w/AWAL (All Wheel Anti-lock) Front Disc/Rear Drum - Built Before: 07/17/2001

SALE: from
from
Save $61.24
from /

Delivery Time & Rates

Install this pre bent 2001 Dakota brake line set in no time!

Brake Line Set Stainless Steel 2001 Dodge Dakota 4WD Club Cab 6.5ft Bed w/AWAL (All Wheel Anti-lock Brakes) Front Disc/Rear Drum - Built Before: 07/17/2001 for 2.5L, 3.9L, 4.7L and 5.9L engines

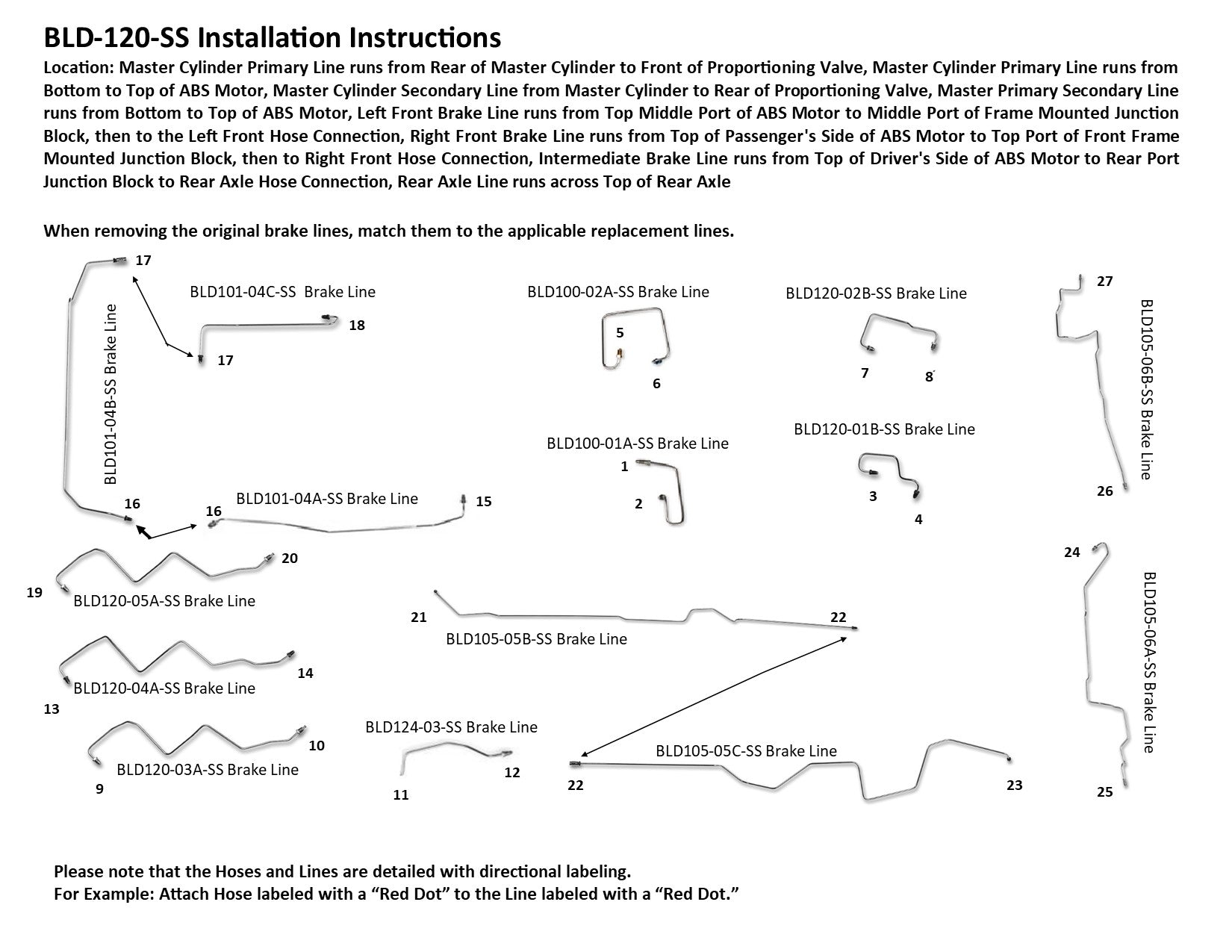

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD105-05B-SS and BLD105-05C-SS. See the video below on how to remove the shipping bend

SKU: BLD-120-SS1C
Box Dimensions 46" x 11" x 7"
Product Warranty 1 Year

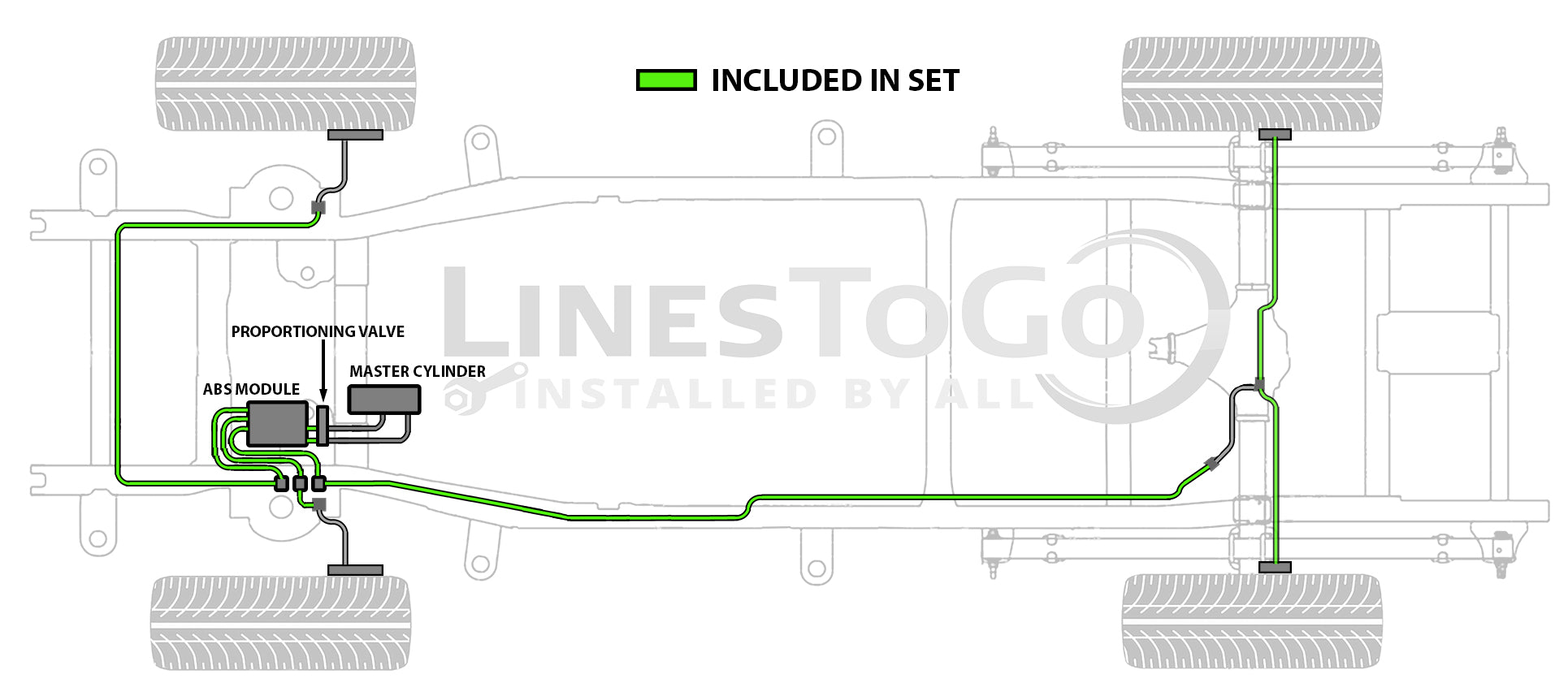

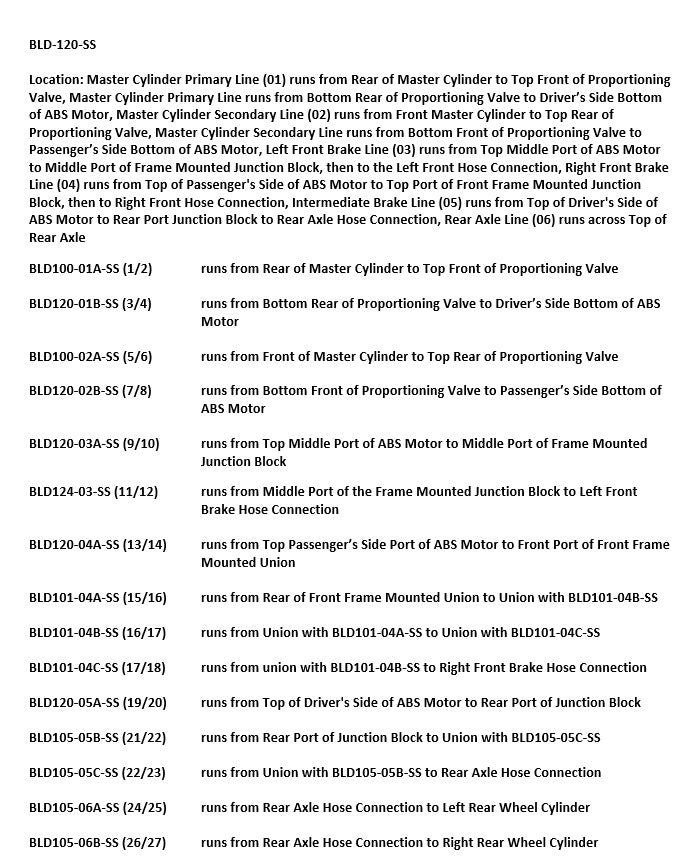

Master Cylinder Primary Line runs from Rear of Master Cylinder to Top Front of Proportioning Valve, Master Cylinder Primary Line runs from Bottom Rear of Proportioning Valve to Driver’s Side Bottom of ABS Motor, Master Cylinder Secondary Line runs from Front Master Cylinder to Top Rear of Proportioning Valve, Master Cylinder Secondary Line runs from Bottom Front of Proportioning Valve to Passenger’s Side Bottom of ABS Motor, Left Front Brake Line runs from Top Middle Port of ABS Motor to Middle Port of Frame Mounted Junction Block, then to the Left Front Hose Connection, Right Front Brake Line runs from Top of Passenger's Side of ABS Motor to Top Port of Front Frame Mounted Junction Block, then to Right Front Hose Connection, Intermediate Brake Line runs from Top of Driver's Side of ABS Motor to Rear Port Junction Block to Rear Axle Hose Connection, Rear Axle Line runs across Top of Rear Axle

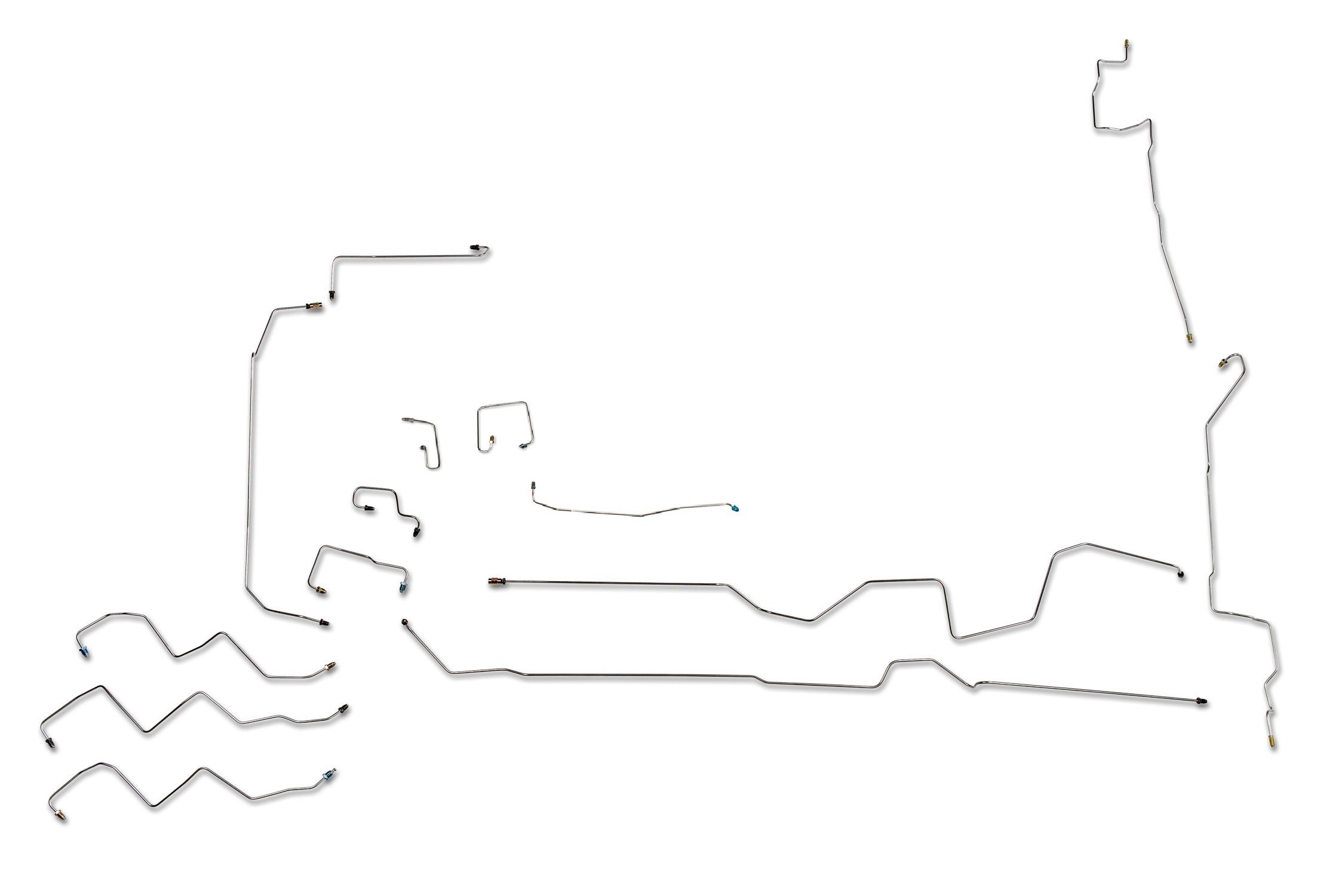

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Primary Line Brake 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16",  1 Left Front Brake Line 3/16" (in 2 sections), 1 Right Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Line 3/16" (2 sections), Does NOT include Brake Hoses

05013305AA, 05013304AA, 5200989AE/AD/AF, 5200989AE/AD/AF, 52102243AB, 52009891AB, 52009890AC

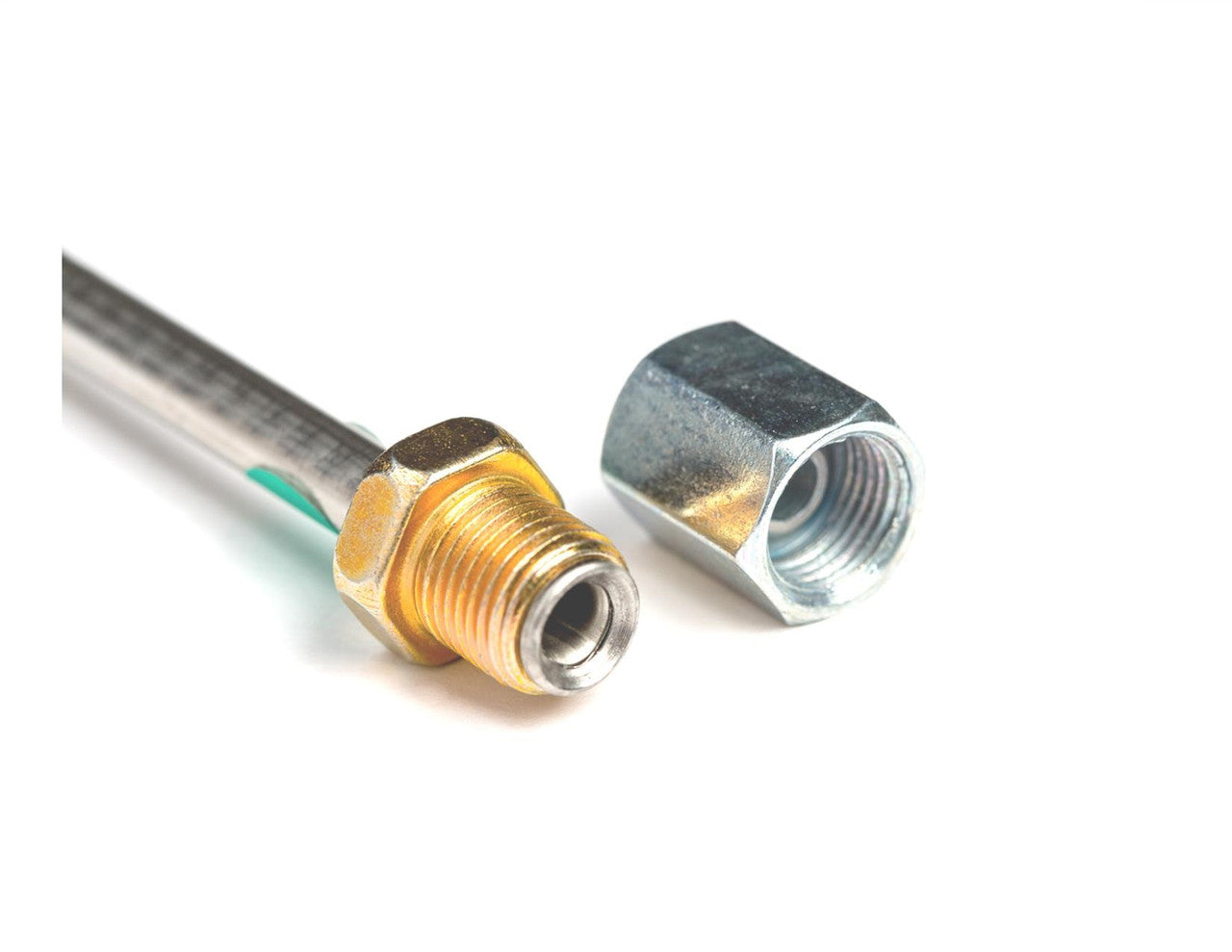

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
