Product Overview
Install this pre bent 1999 Dakota brake line set in no time!
Brake Line Set Stainless Steel 1999 Dodge Dakota 2WD Club Cab 6.5ft Bed w/RWAL (Rear Wheel Anti-lock Brakes) for engine sizes 2.5L, 3.9L, 5.2L, and 5.9L engines.

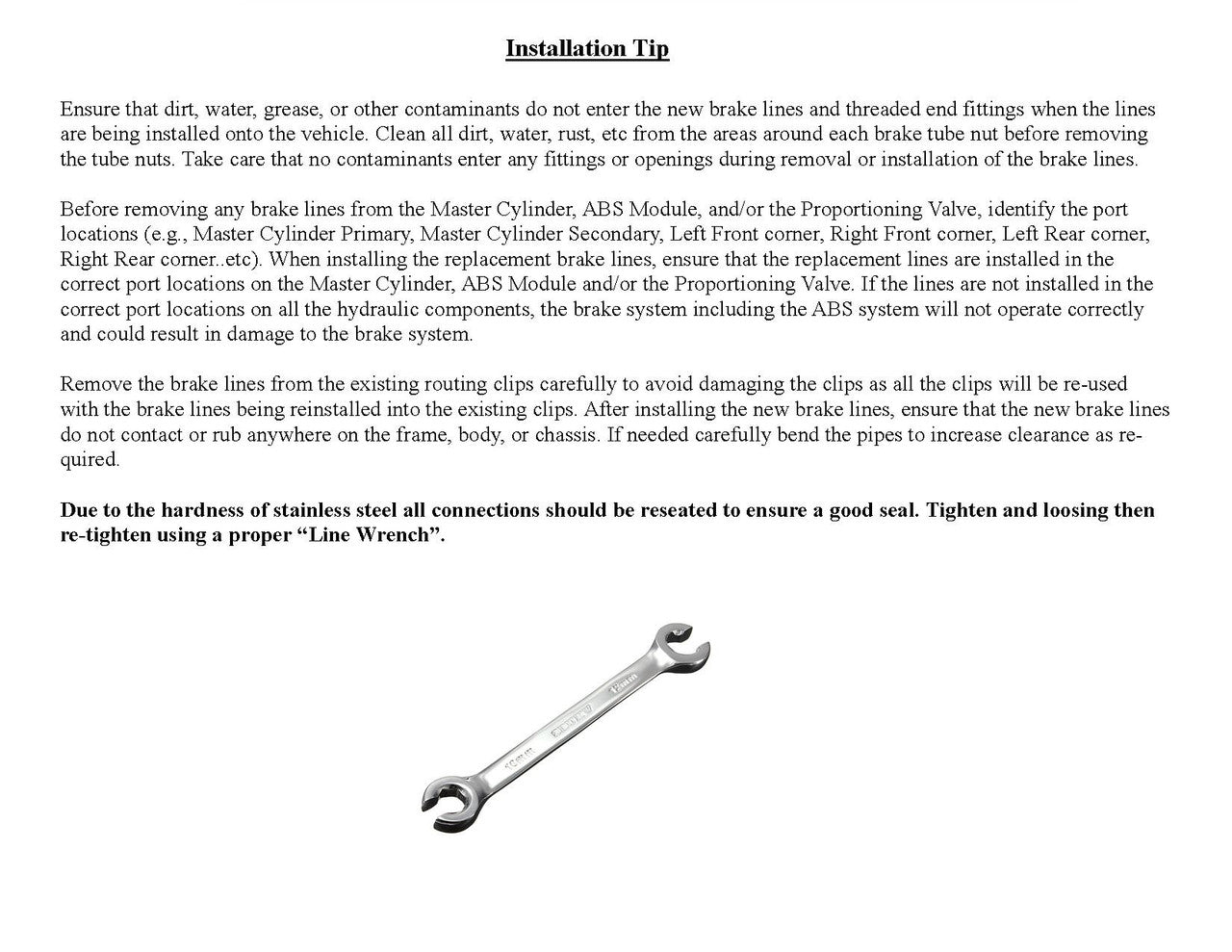

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLD105-05B-SS and BLD105-05C-SS. See the video below on how to remove the shipping bend.

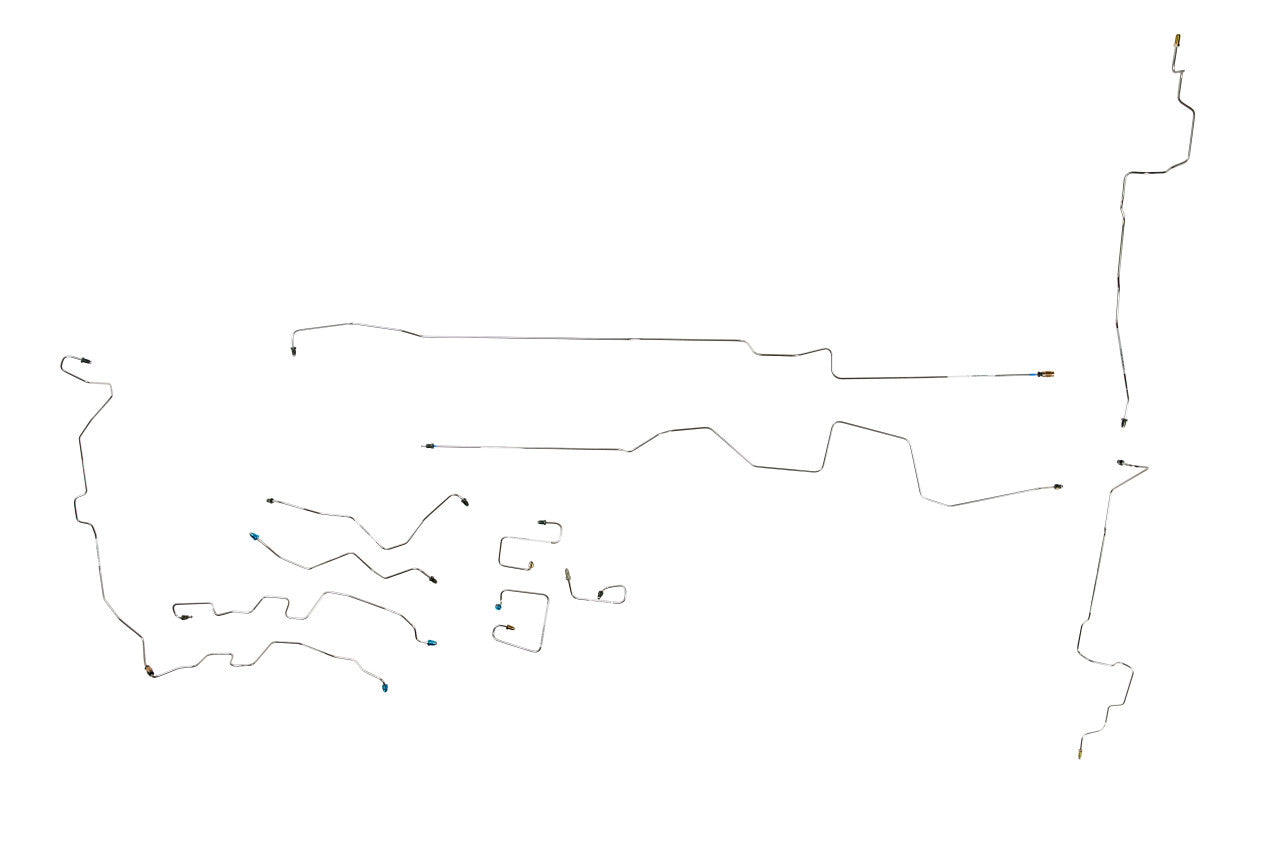

Included in Set: 1 Line 3/16" from Bottom Front of the Proportioning Valve to the Frame Mounted Junction, 1 Line 3/16" from the Rear of the Master Cylinder to the Front of the Proportioning Valve, 1 Line 3/16" from the Bottom of the Proportioning Valve to the Front of the Rear ABS Motor, 1 Line 3/16" from the front of the Master Cylinder to the Top Rear of the Proportioning Valve, 1 Line 3/16" from the Frame Mounted Junction to the Left Front Brake Hose Connection, 1 Line 3/16" (2 easy to install sections) from the Frame Mounted Junction to the Right Front Brake Hose Connection, 1 Line 3/16" (3 easy to install sections) from Rear of ABS Motor to the Frame mounted Junction then to the Rear axle Hose Connection, Rear Axle Crossover Line (in 2 Sections) from Left to Right over the Top of the Axle.
Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 46" x 12" x 7"
