Dodge Dakota Brake Line Set 1998 2WD Reg Cab 6.5ft Bed 3.9L BLD-164-SS1B Stainless Steel
w/RWAL (Rear Wheel Anti-lock Brakes)
Dodge Dakota Brake Line Set 1998 2WD Reg Cab 6.5ft Bed 3.9L BLD-164-SS1B Stainless Steel
w/RWAL (Rear Wheel Anti-lock Brakes)
Delivery Time & Rates
Install this pre bent 1998 Dakota brake line set in no time!
Brake Line Set Stainless Steel 1998 Dodge Dakota 2WD Reg Cab 6.5ft Bed w/RWAL (Rear Wheel Anti-lock Brakes) for 3.9L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the line labeled BLD162-05B-SS. See the video below on how to remove the shipping bend

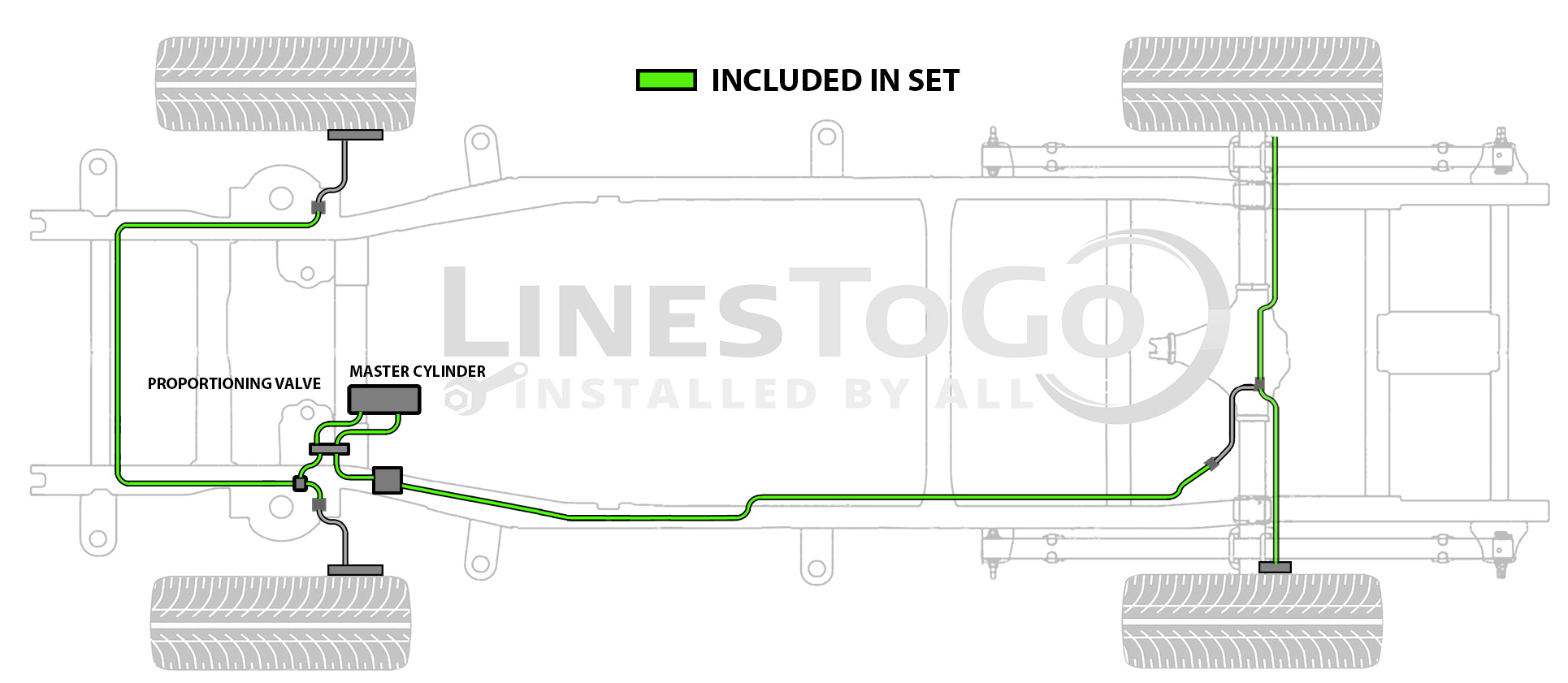

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Front Port of Proportioning Valve, Master Cylinder Primary line runs from Lower Front Port of Proportioning Valve to Frame Mounted Junction Block, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Top Rear Port of Proportioning Valve, Master Cylinder Secondary Line runs from Lower Rear Port of Proportioning Valve to Front Port of RWAL Motor, Left Front Brake Line runs from Frame Mounted Junction Block to Left Front Brake Hose Connection, Right Front Brake Line runs from Frame Mounted Junction Block to Right Front Brake Hose Connection, Intermediate Brake Line runs from Rear of ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Crossover Line runs across Rear Axle
1 Master Cylinder Primary Brake Line 3/16" (2 sections), 1 Master Cylinder Secondary Brake Line 3/16" (2 sections), 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
