Dodge Dakota Brake Line Set 1997 4WD Club Cab 6.5ft Bed 5.2L BLD-154-SS1C Stainless Steel

w/AWAL (All Wheel Anti-Lock)

Dodge Dakota Brake Line Set 1997 4WD Club Cab 6.5ft Bed 5.2L BLD-154-SS1C Stainless Steel
Dodge Dakota Brake Line Set 1997 4WD Club Cab 6.5ft Bed 5.2L BLD-154-SS1C Stainless Steel
Dodge Dakota Brake Line Set 1997 4WD Club Cab 6.5ft Bed 5.2L BLD-154-SS1C Stainless Steel

Dodge Dakota Brake Line Set 1997 4WD Club Cab 6.5ft Bed 5.2L BLD-154-SS1C Stainless Steel

w/AWAL (All Wheel Anti-Lock)

MSRP: from
SALE: from
Save $62.50
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: BLD-154-SS1C
  • Weight: 5

Install this pre bent 1997 Dakota brake line set in no time!

Brake Line Set Stainless Steel 1997 Dodge Dakota 4WD Club Cab 6.5ft Bed w/AWAL (All Wheel Anti-lock Brakes) for 5.2L Engines.

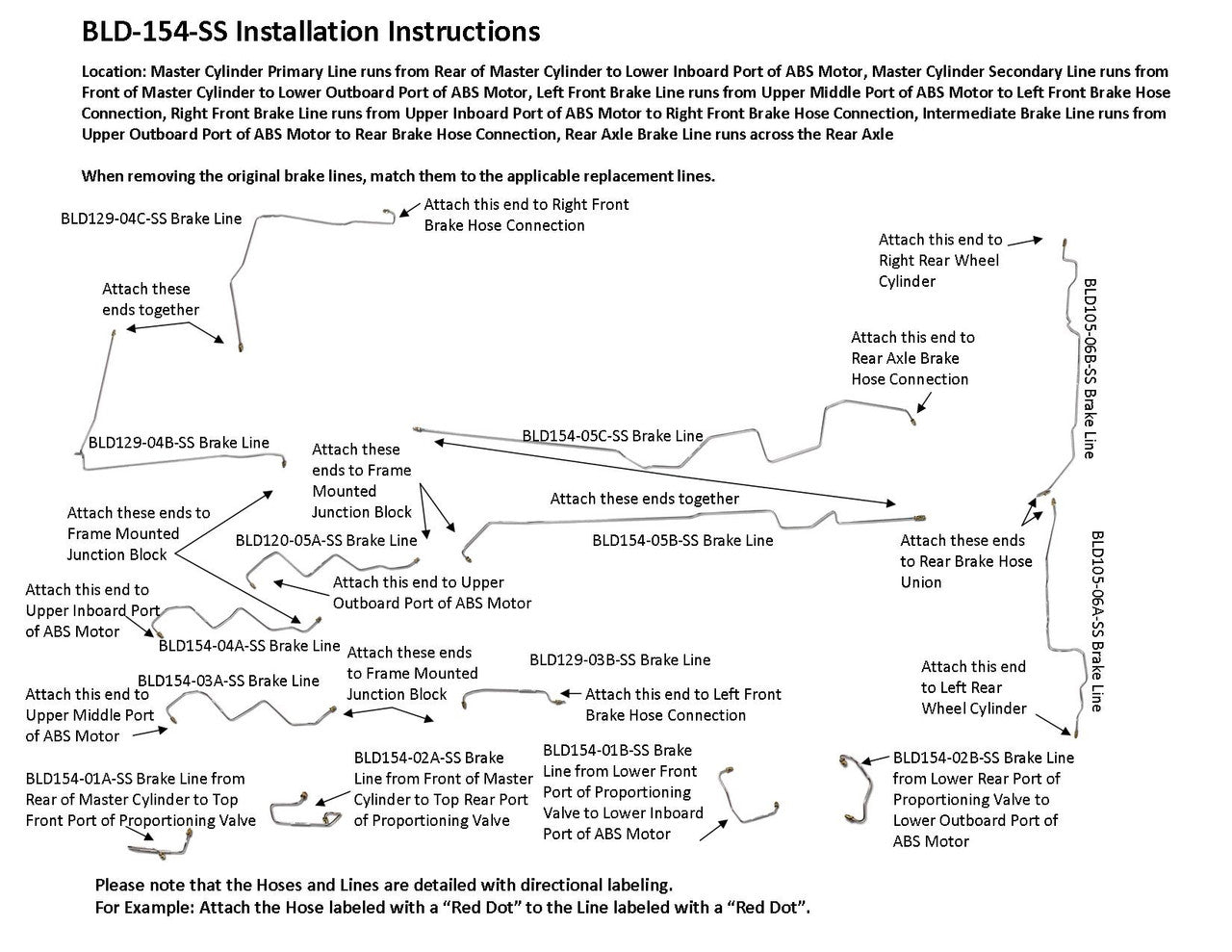

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Middle Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Inboard Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor to Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle.

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD154-05B-SS, BLD154-05C-SS. See the video below on how to remove the shipping bend.

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLD129-04B-SS. See the video below on how to remove the shipping twist.

OEM: 52009643AB, 52009101AB, 52010374AB, 52009493, 52010370AC, 52010377AB, 52009890AB, 52009891AB

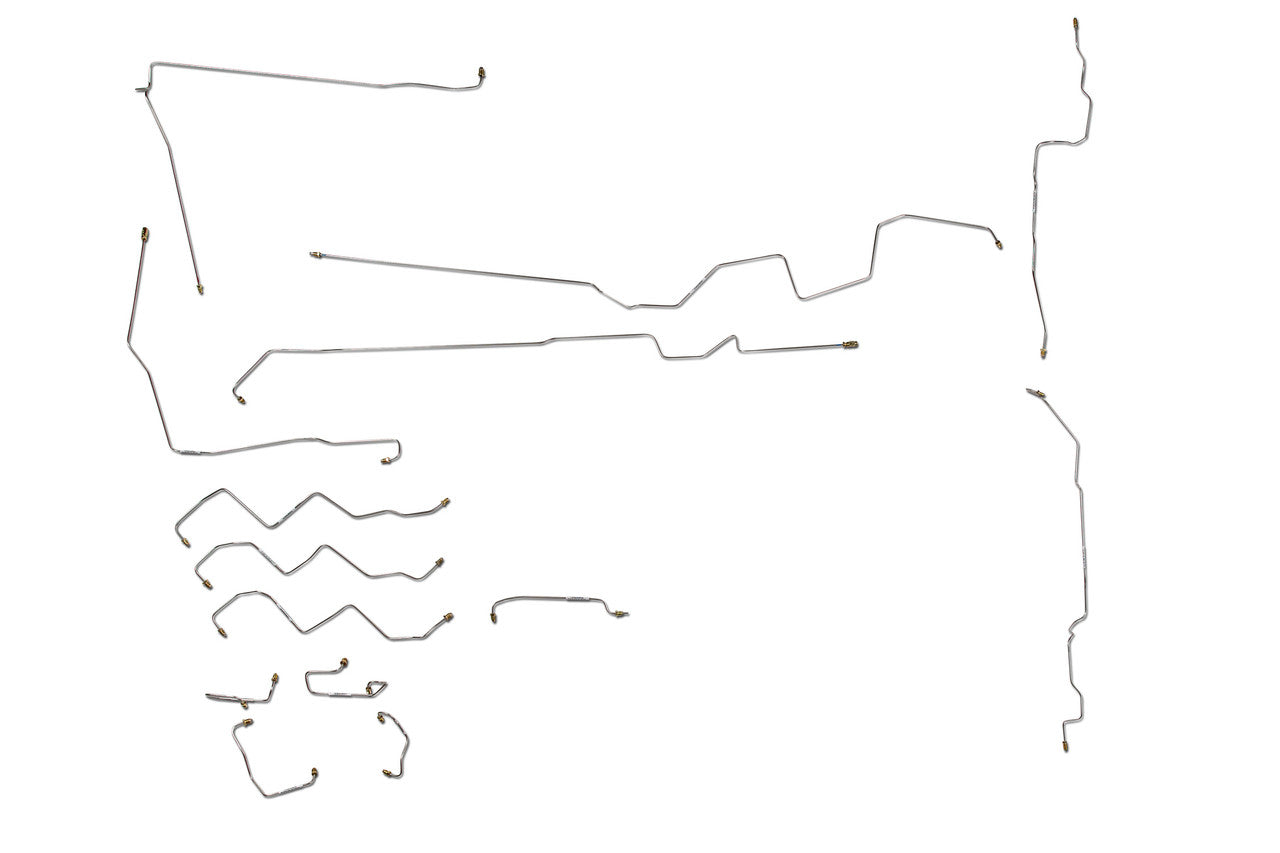

Included in Set: 1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16" (in 2 easy to install sections), 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses.

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"
