Product Overview
Install this pre bent 1996 Dakota brake line set in no time!

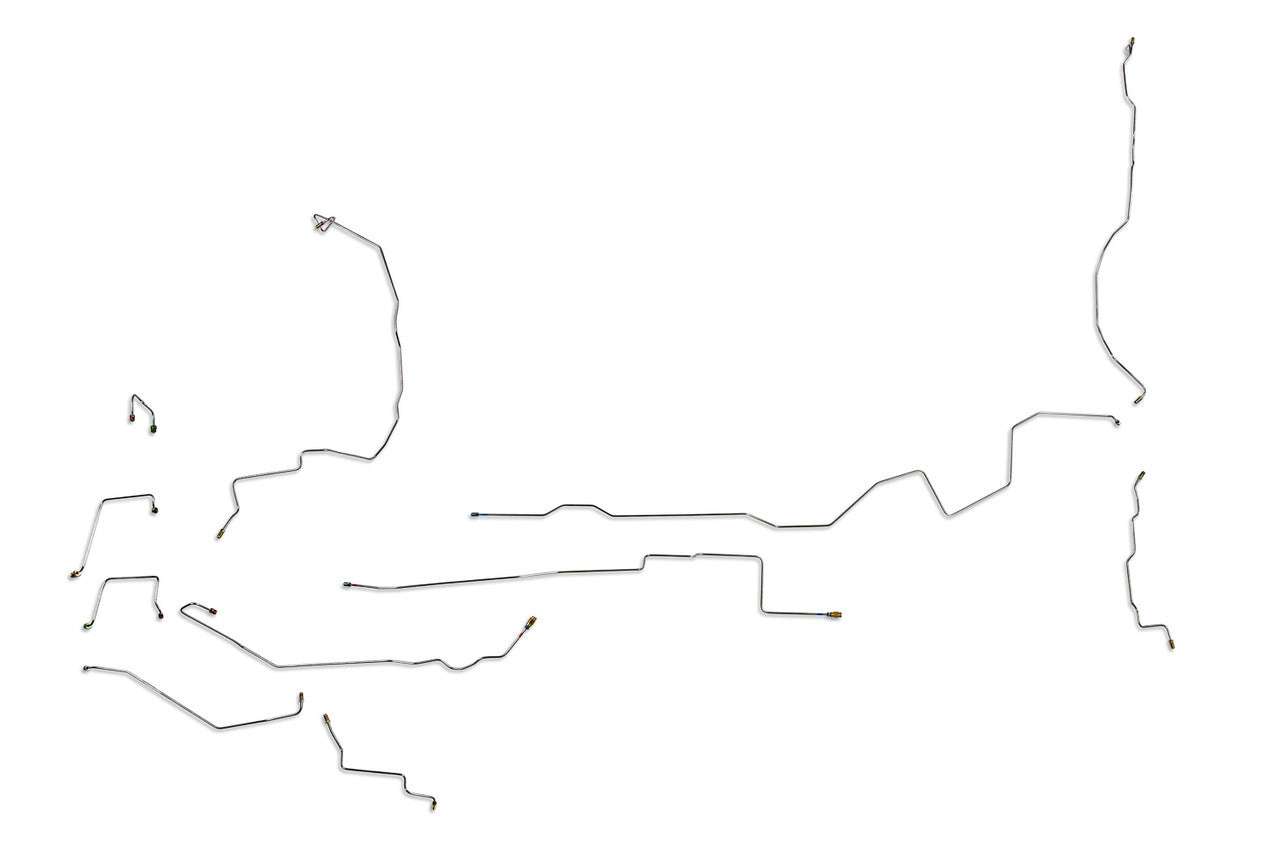

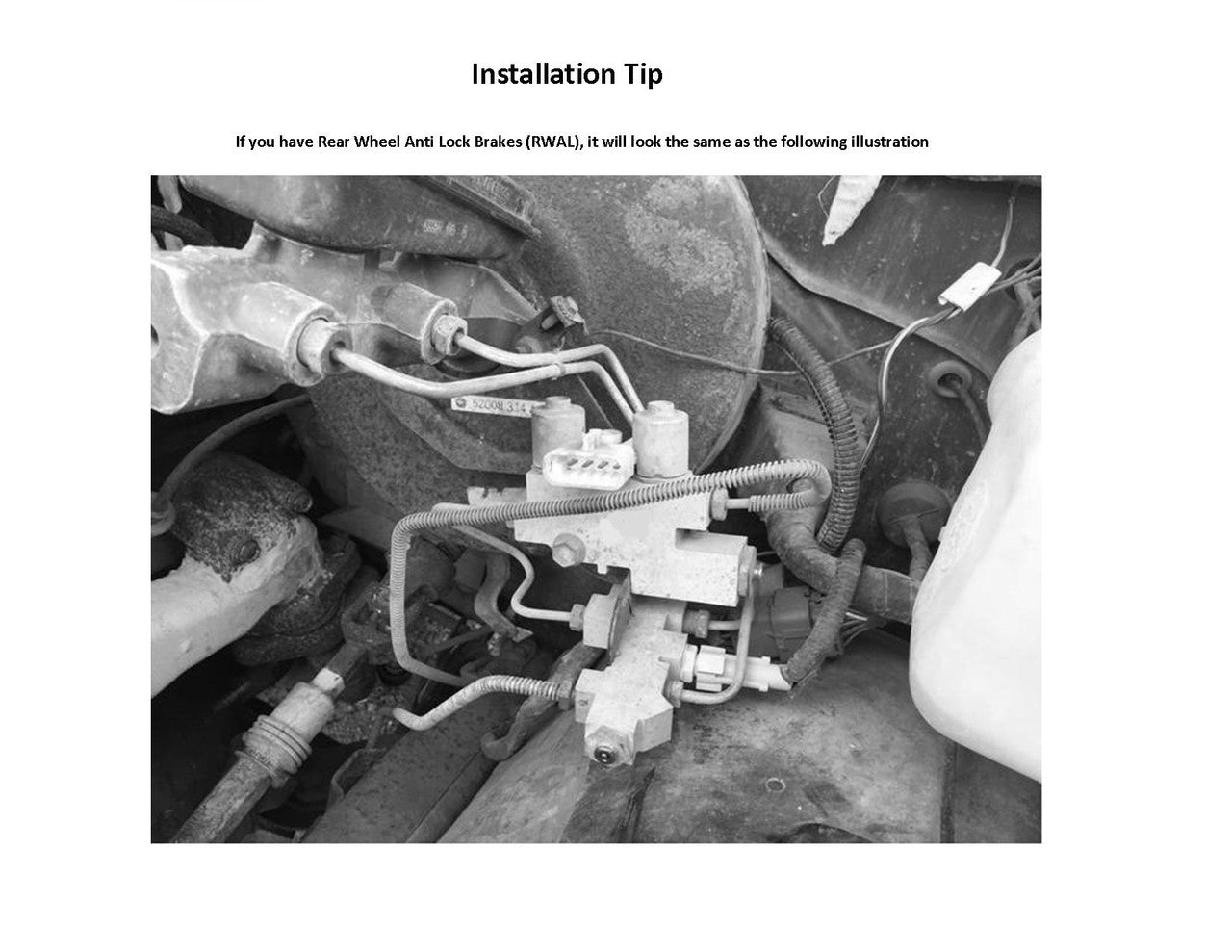

Brake Line Set Stainless Steel 1996 Dodge Dakota 4WD Club Cab 6.5ft Bed w/RWAL (Rear Wheel Anti-lock) for 2.5L, 3.9L, 5.2L engines.

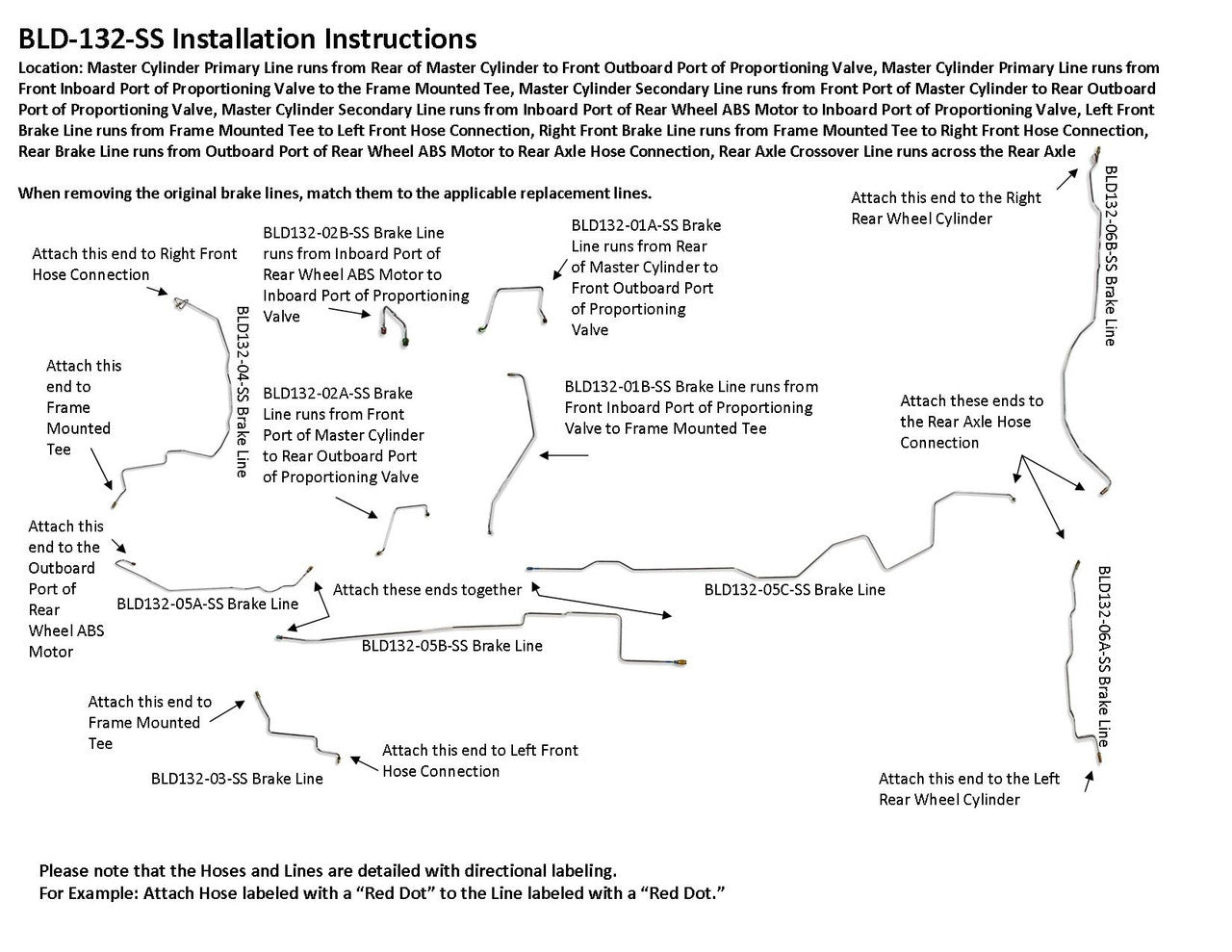

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Front Outboard Port of Proportioning Valve, Master Cylinder Primary Line runs from Front Inboard Port of Proportioning Valve to the Frame Mounted Tee, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Rear Outboard Port of Proportioning Valve, Master Cylinder Secondary Line runs from Inboard Port of Rear Wheel ABS Motor to Inboard Port of Proportioning Valve, Left Front Brake Line runs from Frame Mounted Tee to Left Front Hose Connection, Right Front Brake Line runs from Frame Mounted Tee to Right Front Hose Connection, Rear Brake Line runs from Outboard Port of Rear Wheel ABS Motor to Rear Axle Hose Connection, Rear Axle Crossover Line runs across the Rear Axle
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLD132-05C-SS. See the video below on how to remove the shipping bend.
Included in Set: 1 Master Cylinder Primary Line 3/16" (2 sections), 1 Master Cylinder Secondary Line 3/16" (2 sections), 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

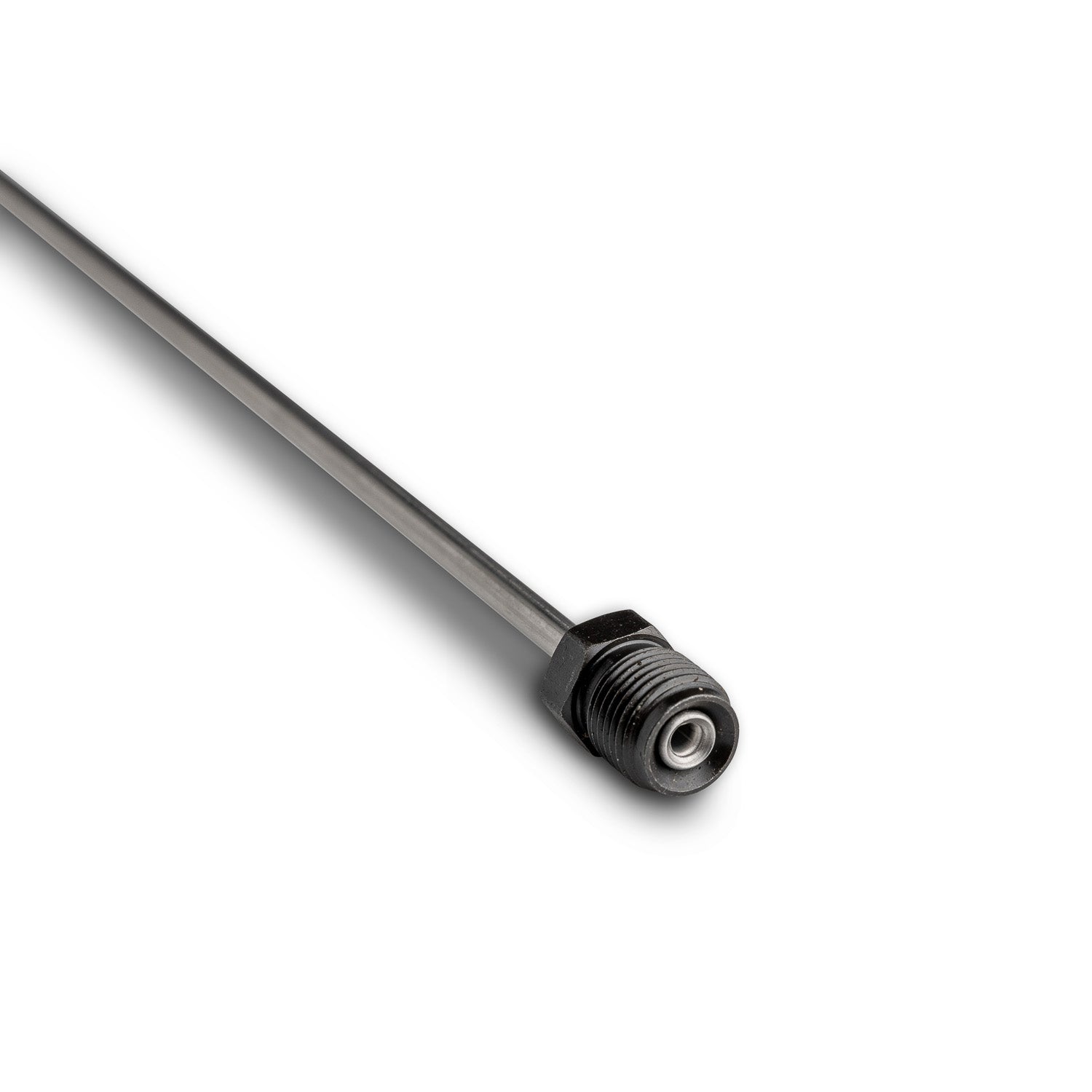

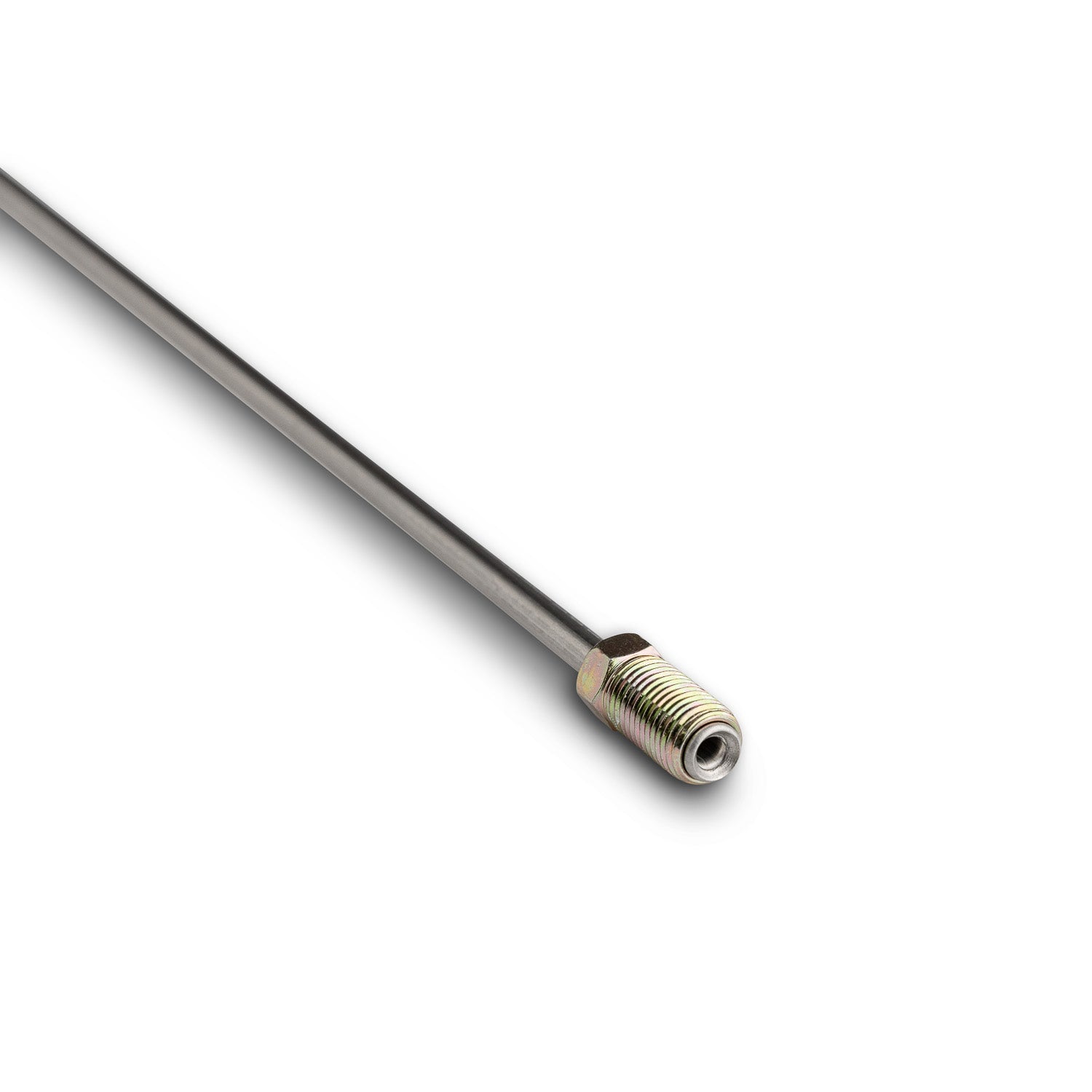

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 47" x 12" x 7"
