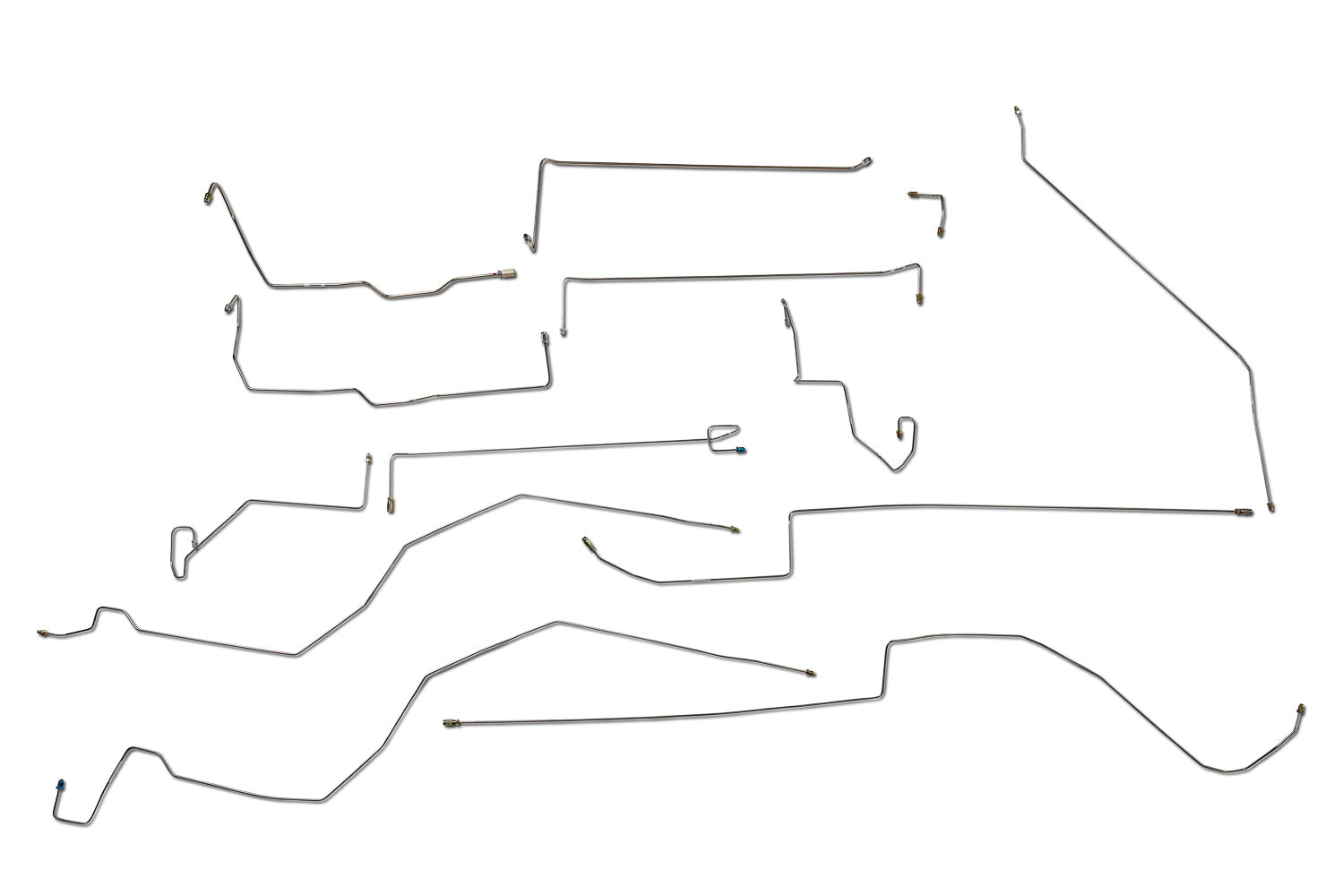

Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel

w/ABS w/4 Wheel Disc Brakes

Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel
Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel

Chrysler 300 Brake Line Set 2009 3.5L BLD-160-SS4F Stainless Steel

w/ABS w/4 Wheel Disc Brakes

SALE:
Save $58.49
/
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

Install this pre bent 2009 Chrysler 300 brake line set stainless steel in no time!

Brake Line Set Stainless Steel 2009 Chrysler 300 w/ABS w/4 Wheel Disc Brakes for 3.5L engines

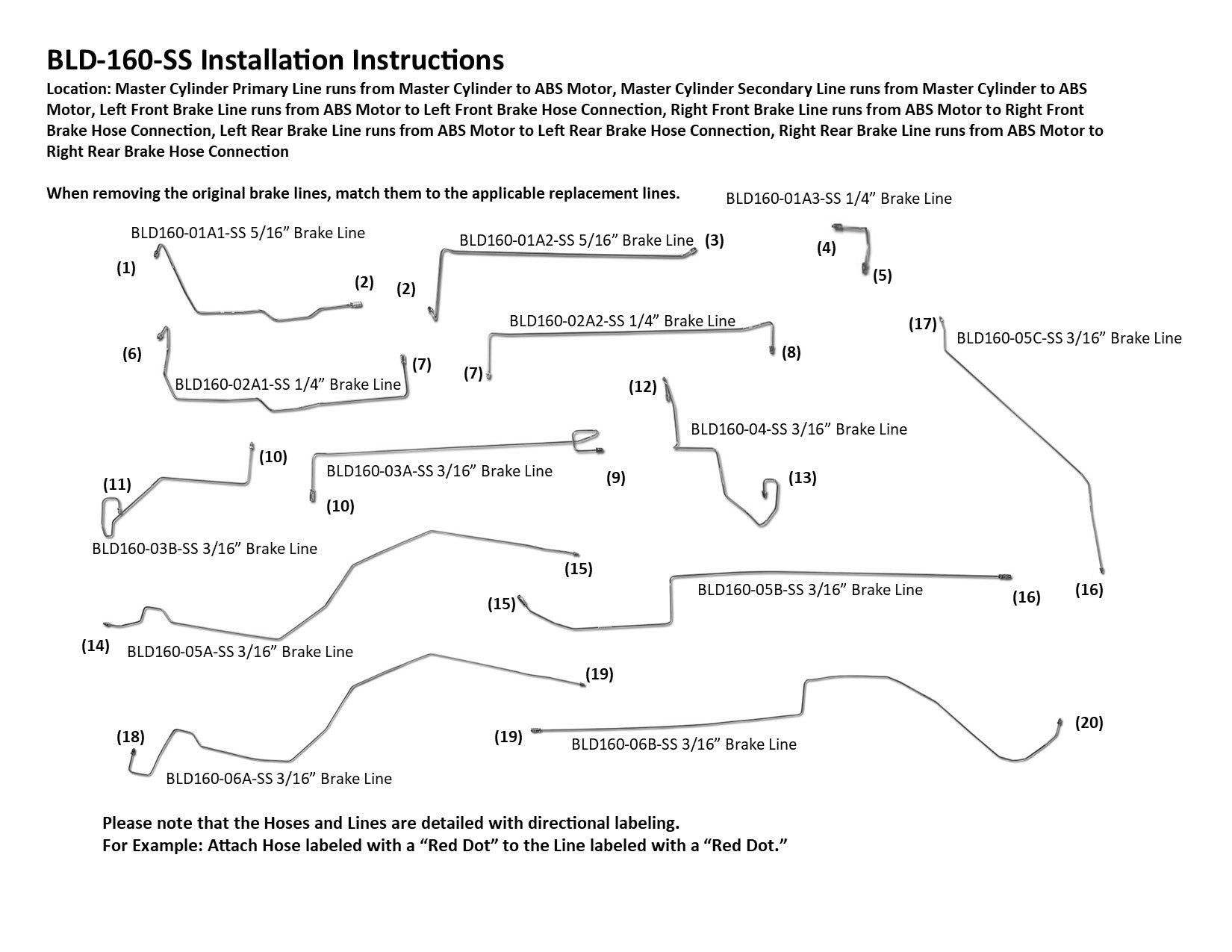

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD160-05A-SS, BLD160-05B-SS, BLD160-06A-SS and BLD160-06B-SS. See the video below on how to remove the shipping bend

SKU: BLD-160-SS4F
Box Dimensions 46" x 11" x 7"

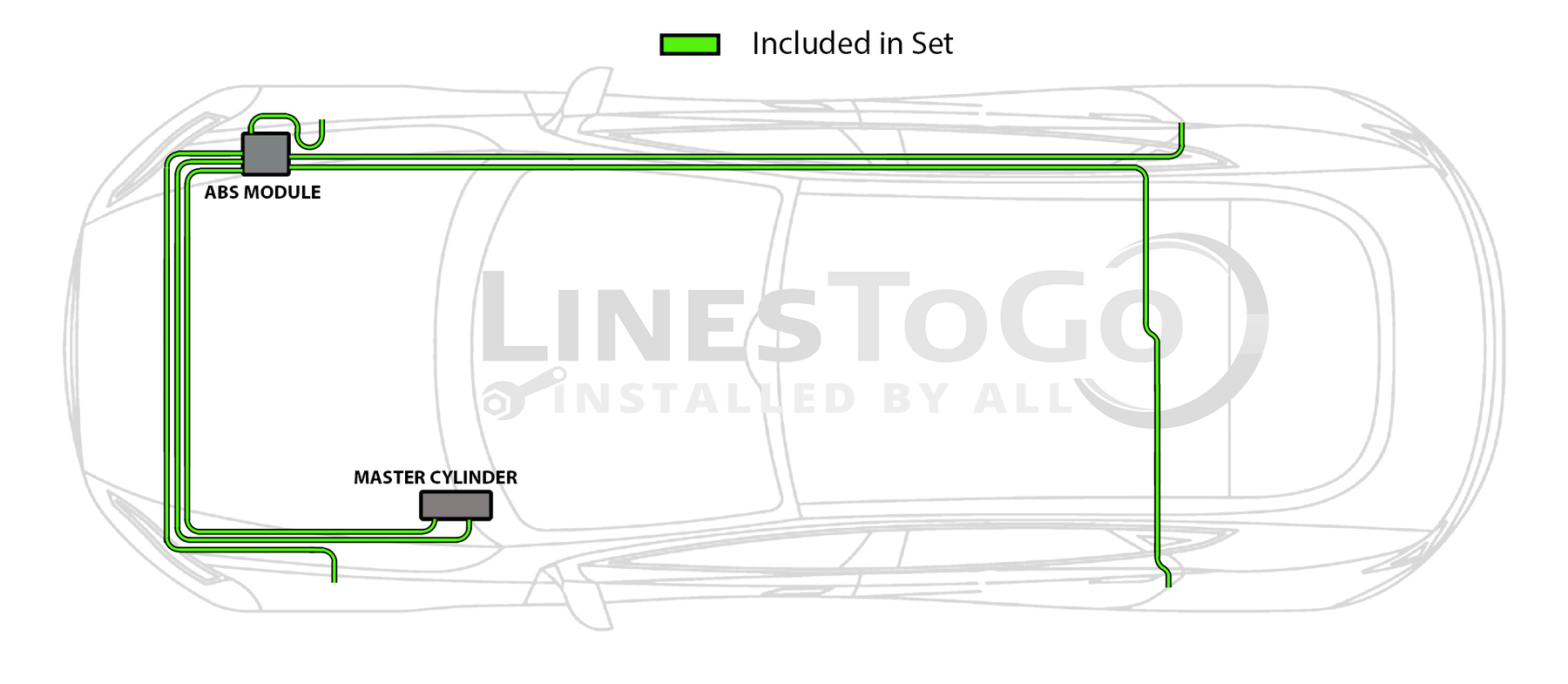

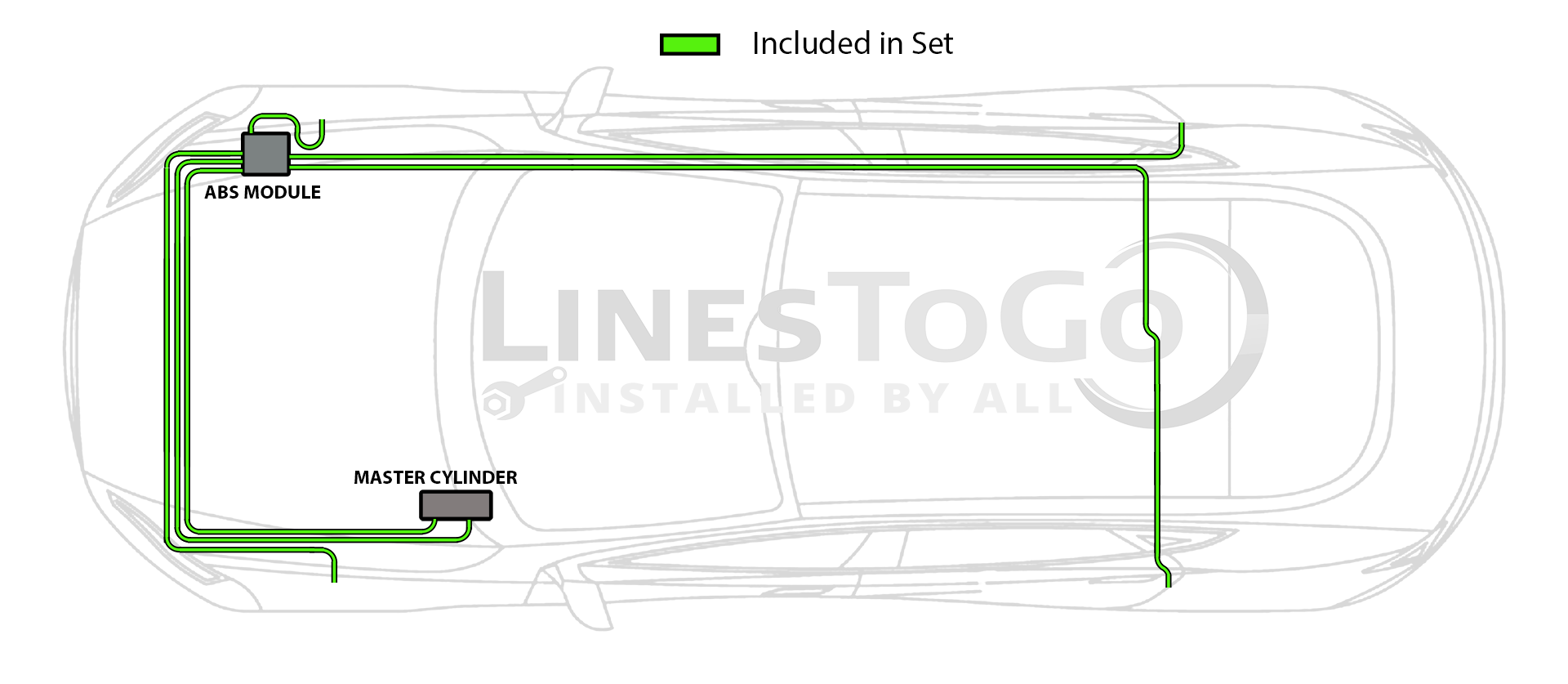

Master Cylinder Primary Line runs from Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

1 Master Cylinder Primary Brake Line 5/16" (in 2 easy to install sections), 1 Master Cylinder Primary Brake Line 5/16, 1 Master Cylinder Secondary Brake Line 1/4" (in 2 easy to install sections), 1 Left Front Brake Line 3/16" (in 2 easy to install sections), 1 Right Front Brake Line 3/16", 1 Left Rear Brake Line 3/16" (in 3 easy to install sections), 1 Right Rear Brake Line 3/16" (in 2 easy to install sections), Does NOT include Brake Hoses

68033789AA, 68033790AA, 5170762AA, 05175873AA, 05175872AA

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
