Chevy Truck Transmission Line Set 1990 C/K 1500/2500 5.0L TCL-172-SS1C Stainless Steel
w/4L60-E Transmission w/o HD Cooling
Chevy Truck Transmission Line Set 1990 C/K 1500/2500 5.0L TCL-172-SS1C Stainless Steel
w/4L60-E Transmission w/o HD Cooling
Delivery Time & Rates
Install this pre bent 1990 transmission cooler line set in no time!
Transmission Cooler Line 1990 Chevrolet C/K 1500/2500 w/4L60-E Transmission w/o HD Cooling 5.0L Stainless Steel
- Weight: 4

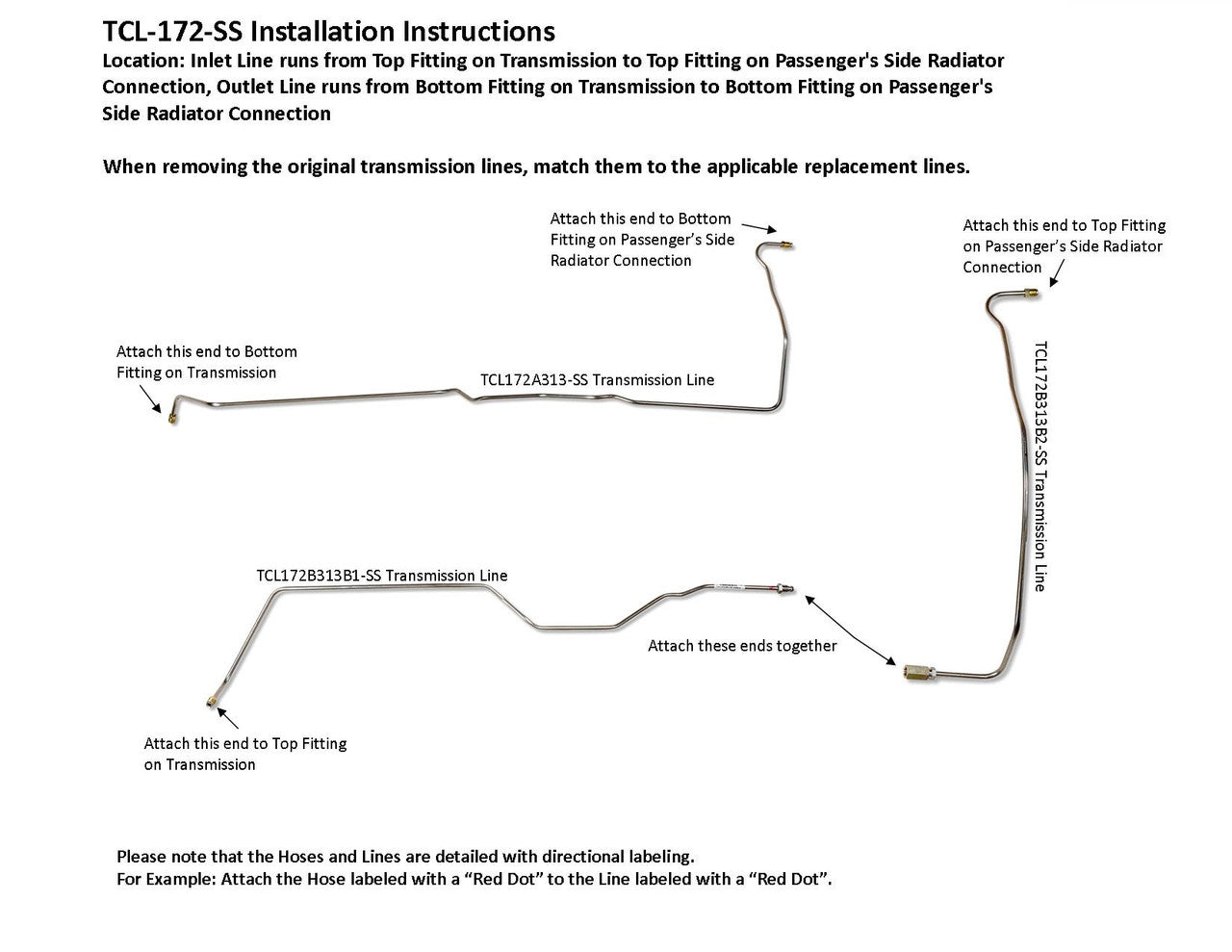

- Installation Instructions

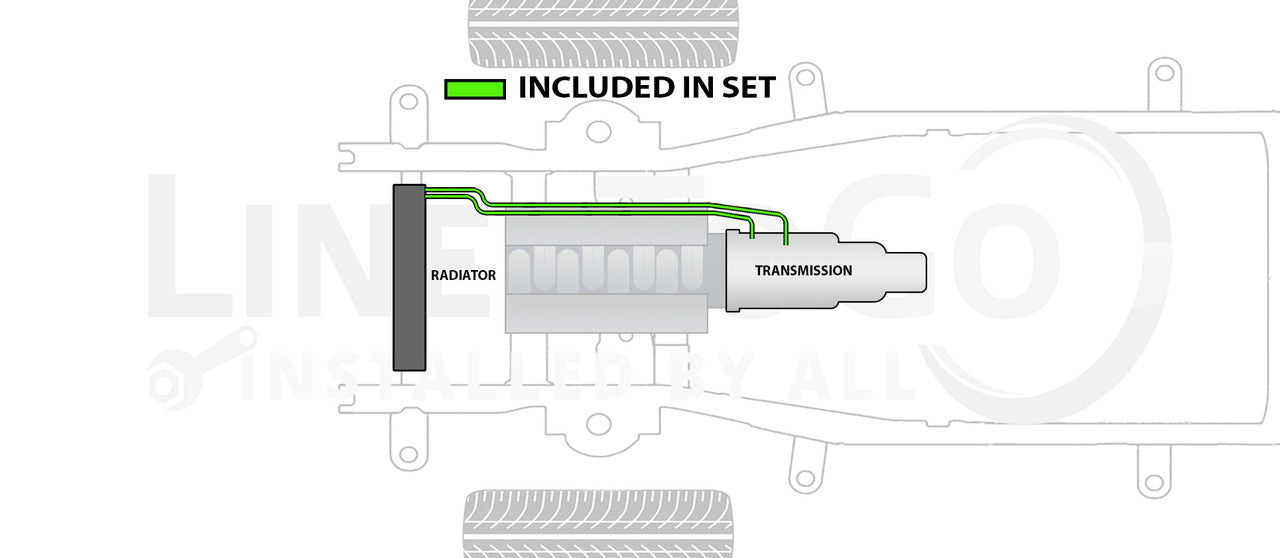

Inlet Line runs from Top Fitting on Transmission to Top Fitting on Passenger's Side Radiator Connection, Outlet Line runs from Bottom Fitting on Transmission to Bottom Fitting on Passenger's Side Radiator Connection

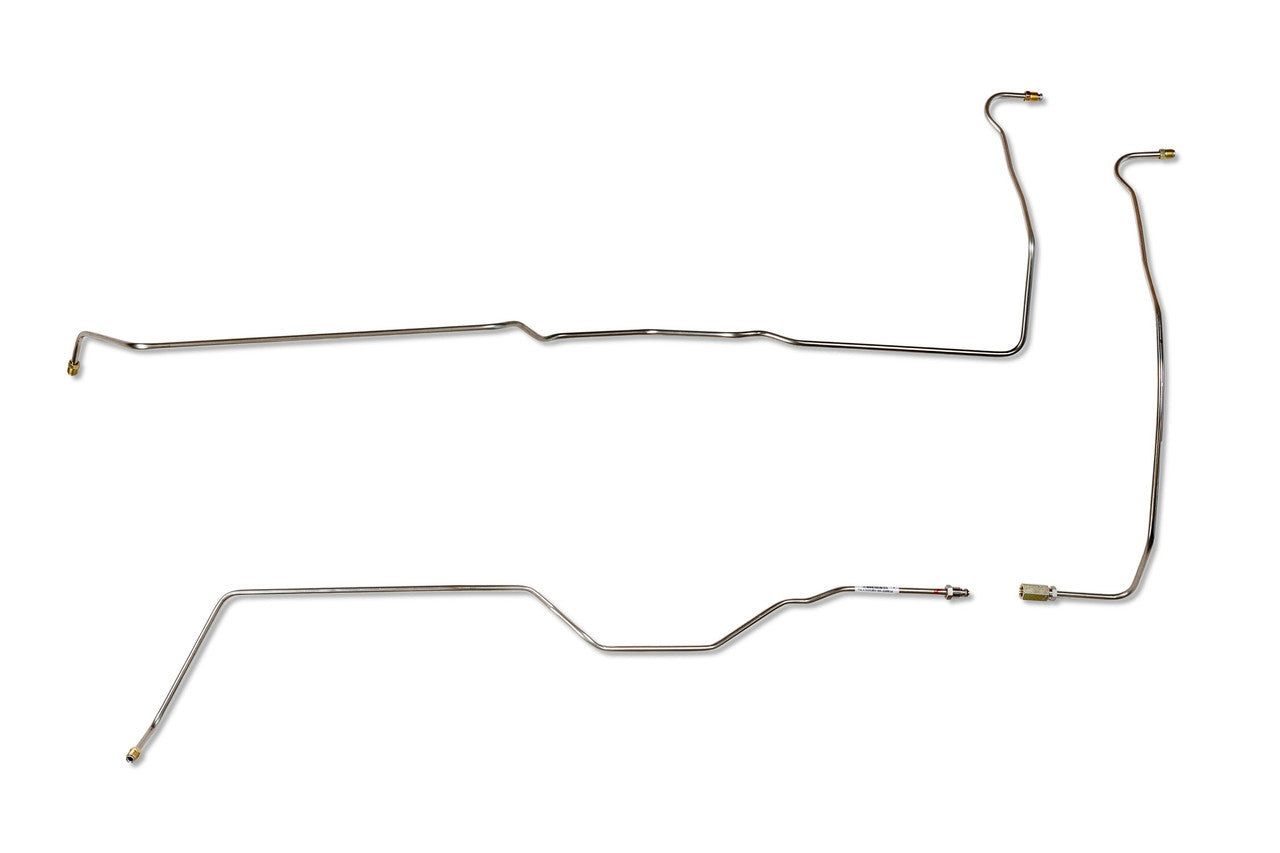

1 Inlet Line 5/16" (in 2 easy to install sections), 1 Outlet Line 5/16"
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
