Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F

Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F
Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F

Chevy Truck Rear Fuel Line Set with Intermediate Brake Line 1997 K3500 4WD Crew Cab 8 ft Bed 5.7L FL246-D1F

MSRP: from
SALE: from
Save $62.95
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL246-D1F
  • Weight: 5

Shop LinesToGo for 1997 Chevy truck fuel lines with the intermediate brake line for Chev/GMC K3500 4WD Crew Cab 8 ft box 5.7L

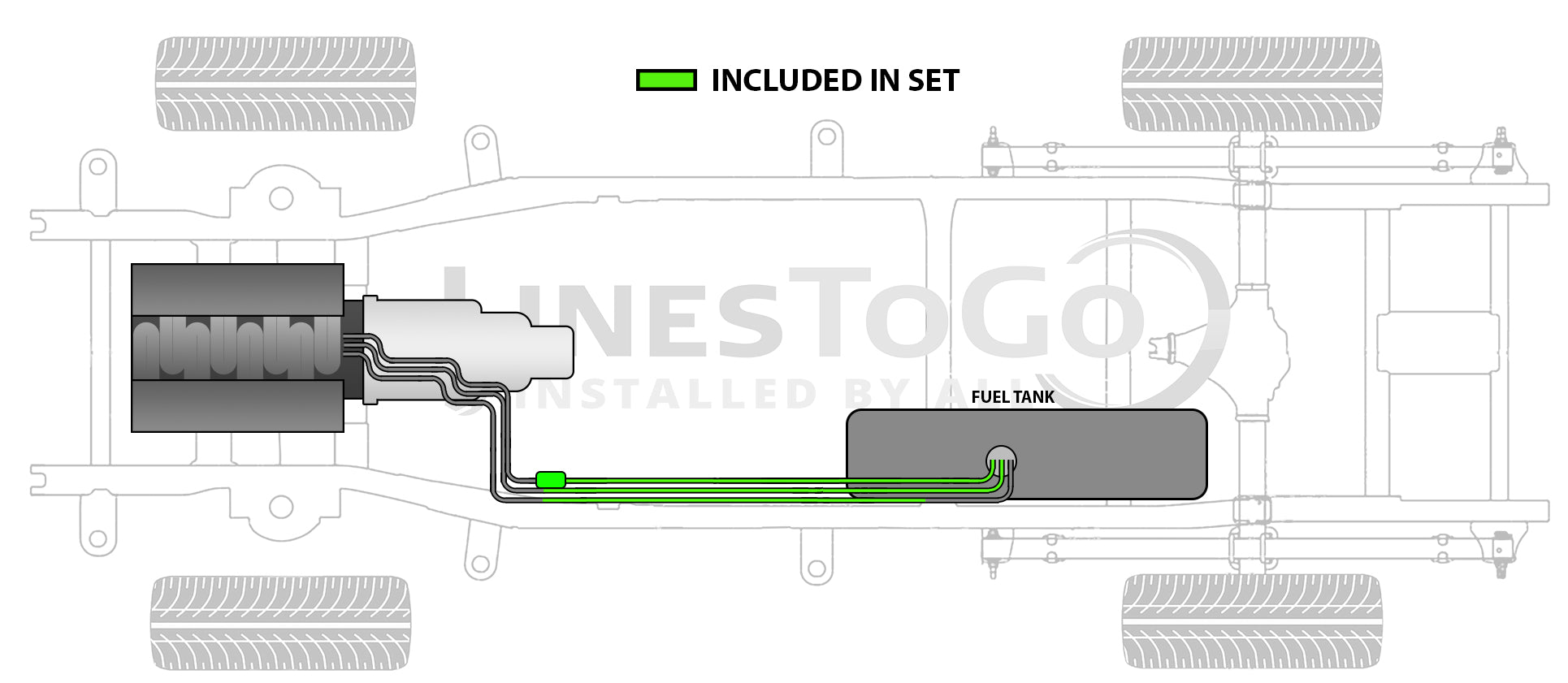

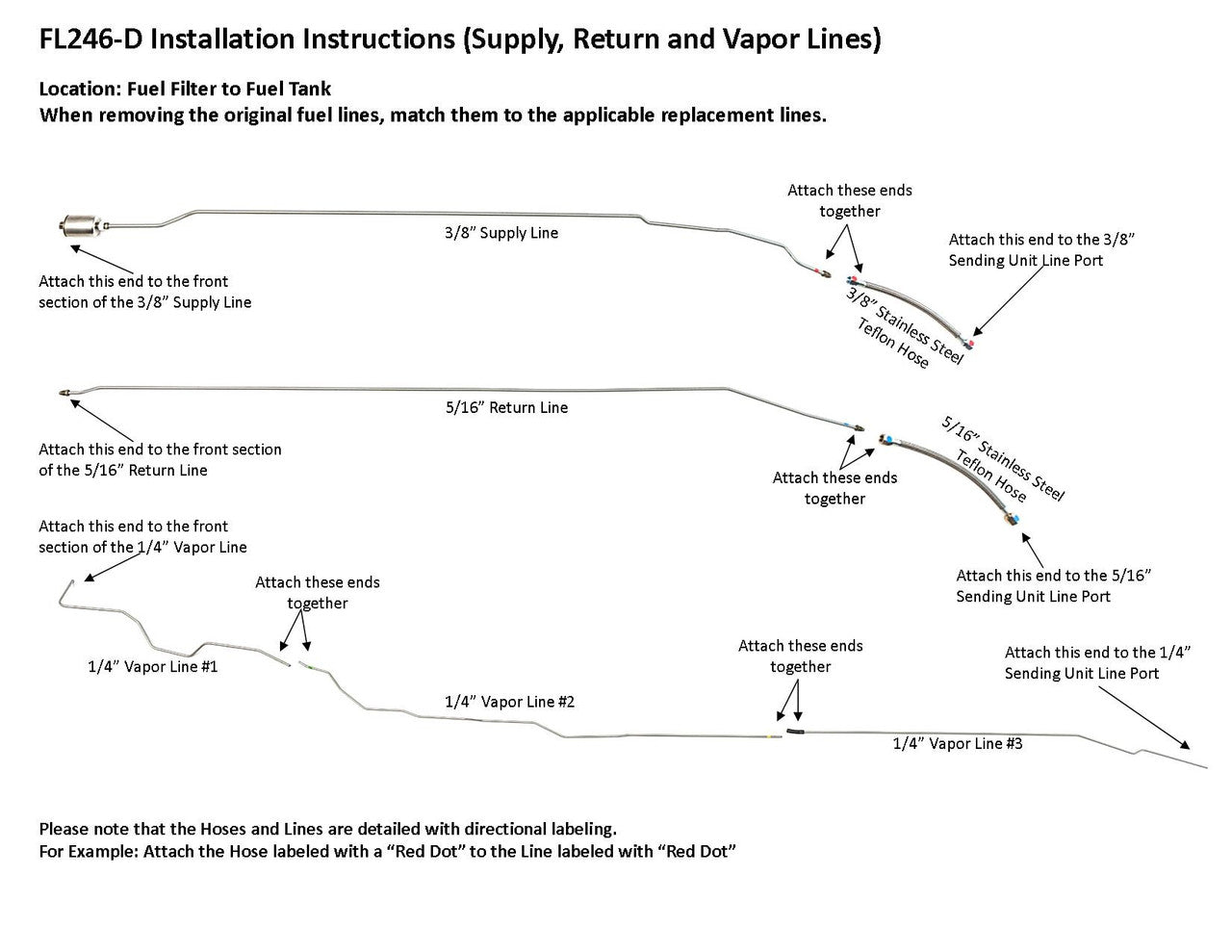

Location: Fuel Filter to Fuel Tank

OEM Part Number: 25764858, 25764865, 25764861

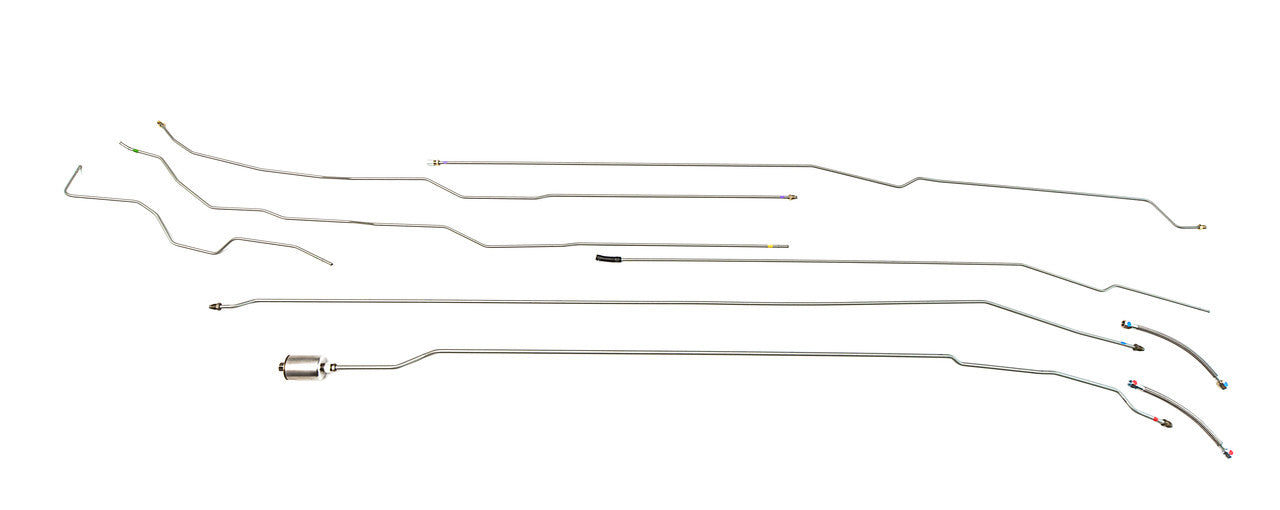

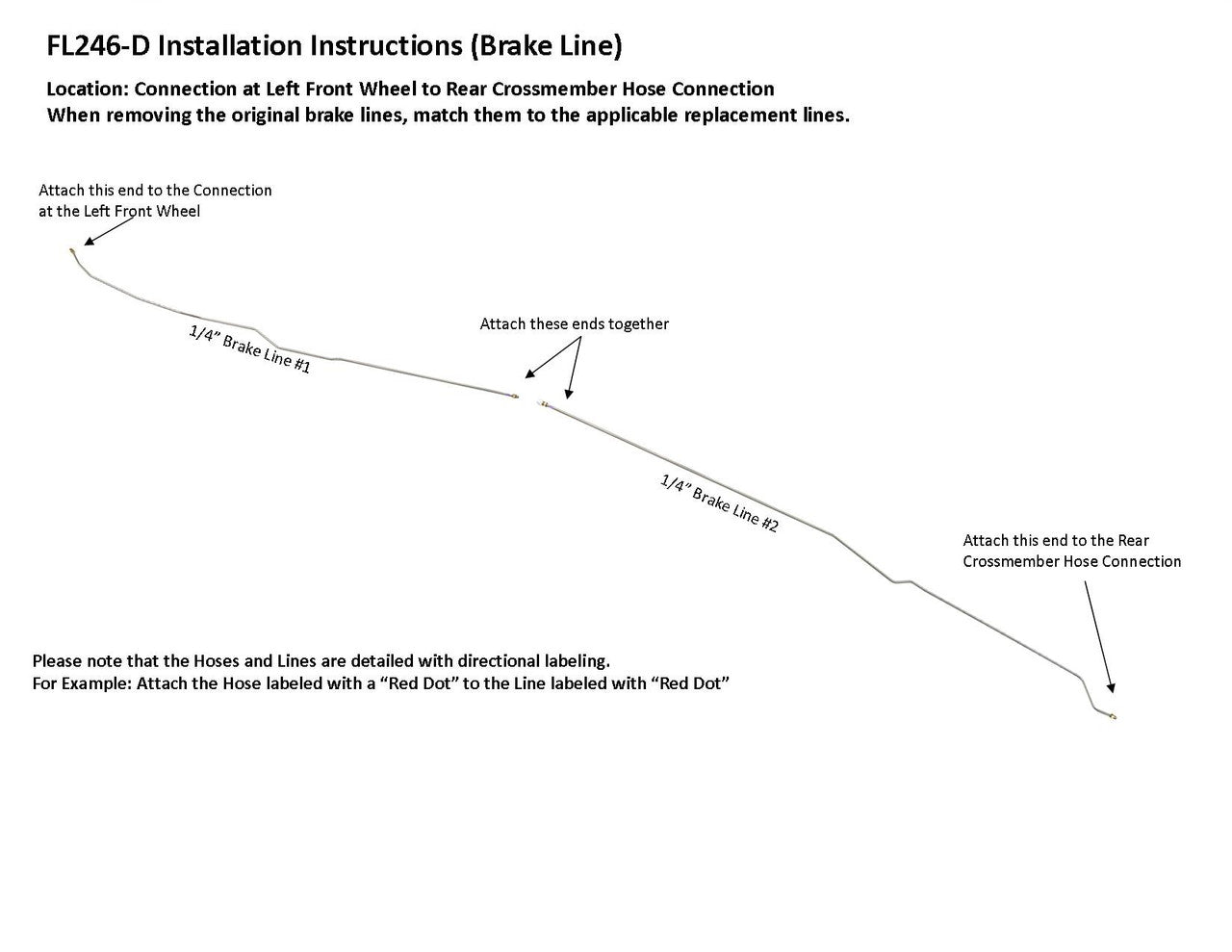

Included in Set: 1 supply line 3/8", 1 return line 5/16",1 vapor line 1/4", 1 intermediate brake line 1/4", hoses to sending unit connection, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

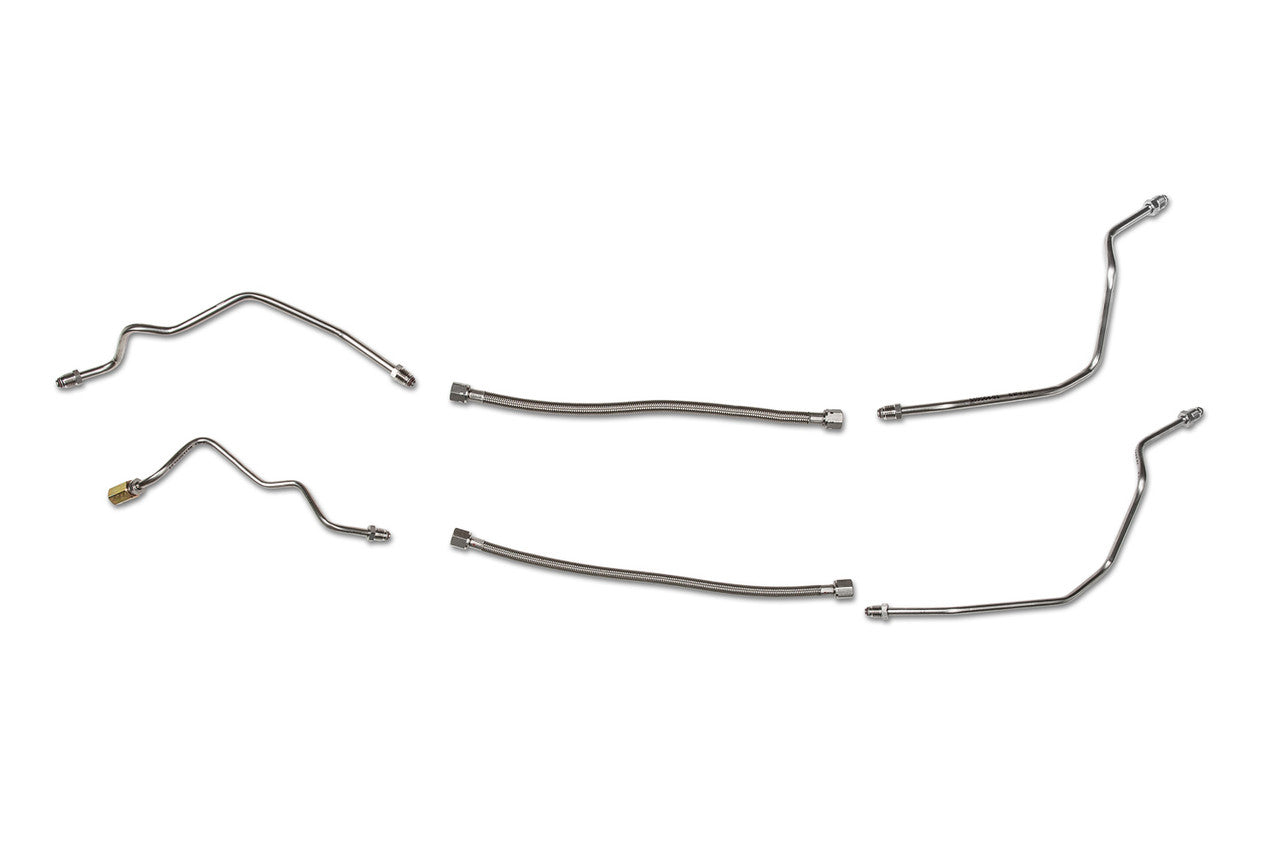

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 88" x 6" x 4"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
