SALE:
Save $59.38
/

Delivery Time & Rates

Shipping calculated at checkout.

This fuel line is made for 1987 R10 models of Chevy trucks with 2WD Reg Cab 6.5ft/8ft Bed and 5.7L engines. The FL506-A1B set is made with several durable parts for easy installation.

SKU: FL506-A1B
Box Dimensions 39" x 11" x 7"

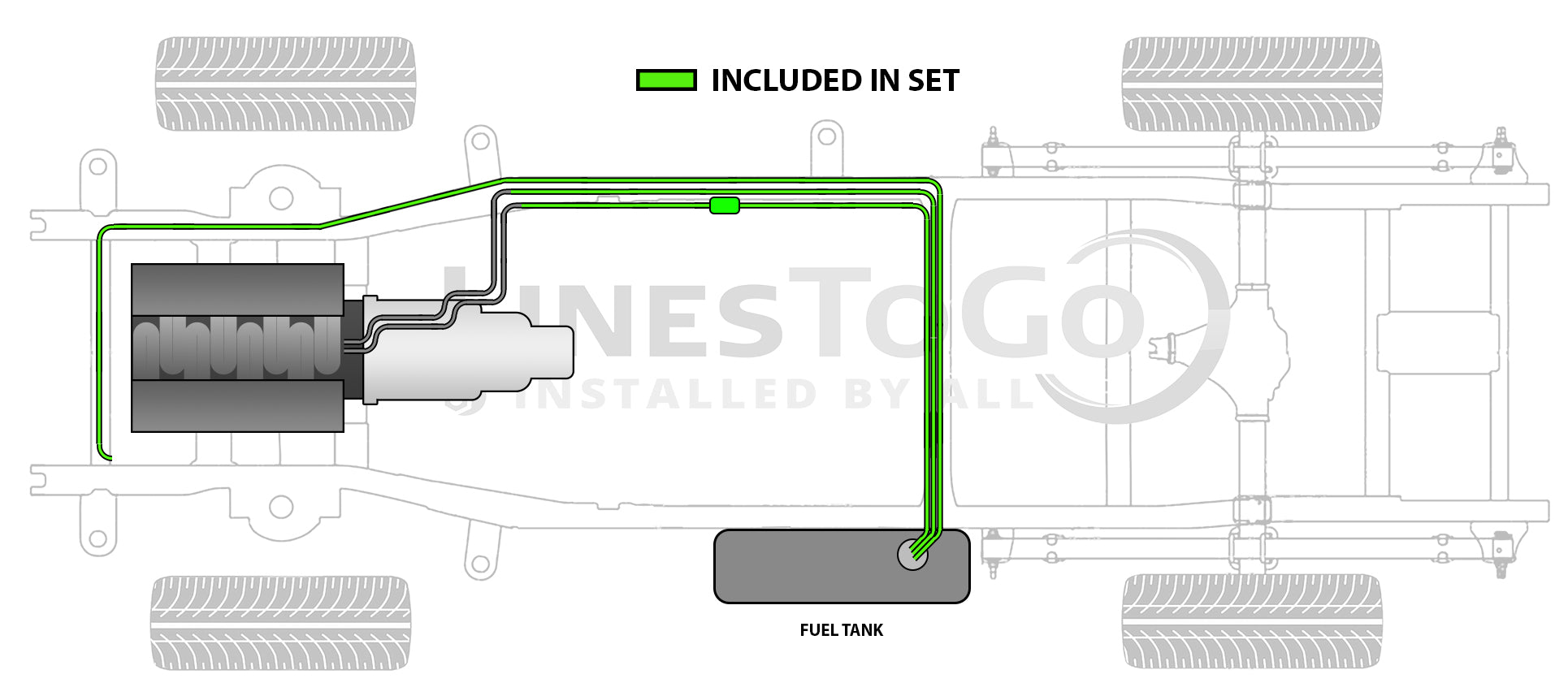

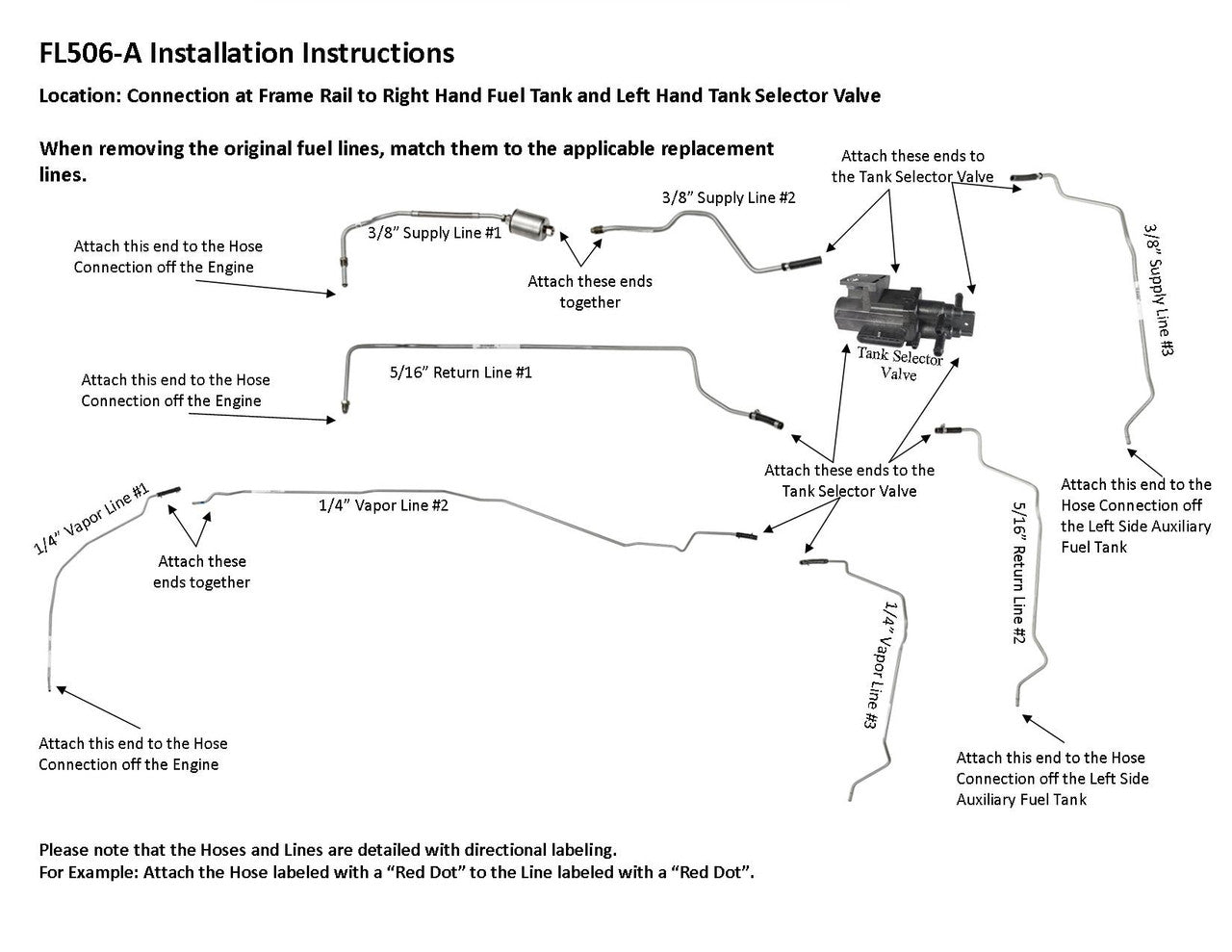

Connection at Frame Rail to Right Hand Fuel Tank and Left Hand Tank Selector Valve

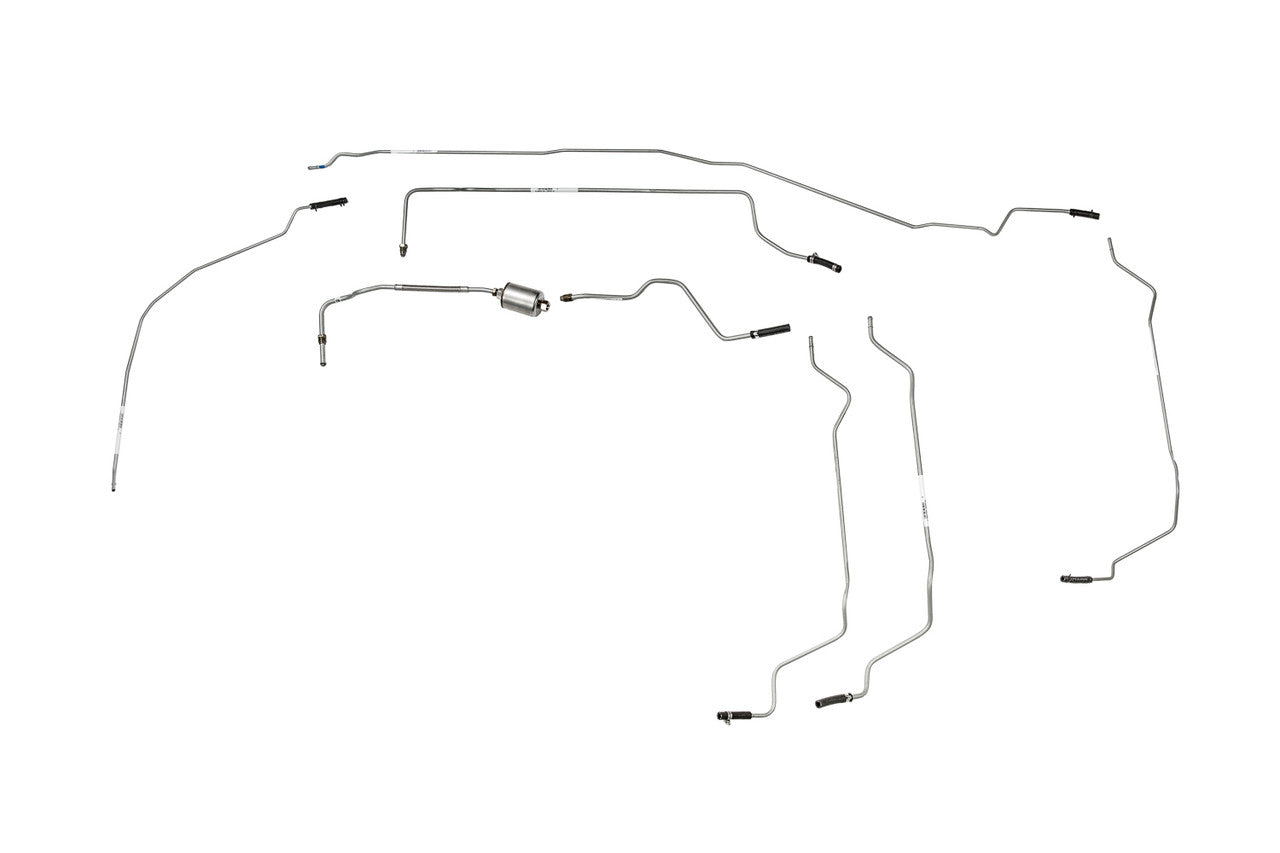

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 1/4" ( in 3 easy to install sections), 1 fuel filter

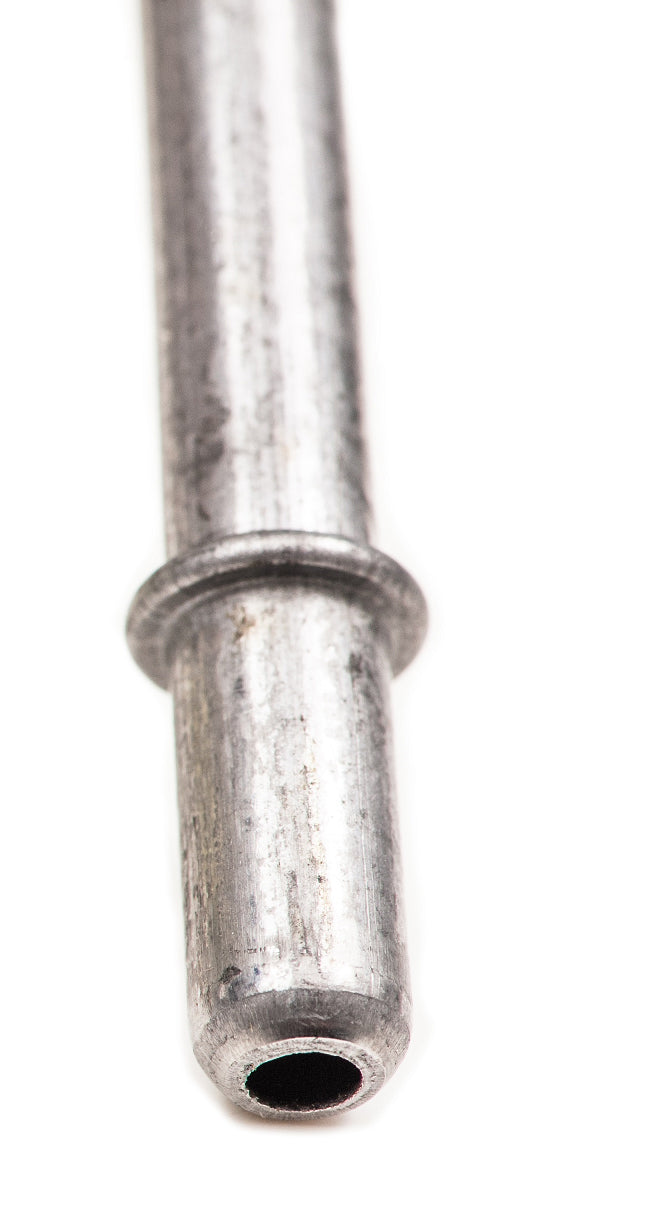

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses made from Stainless Steel Braided Teflon with OE style fittings: 3234-01

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250, FI-504250, FI-505250

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Overall rating: 3.5 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Not for an 87 c10/r10

"Not sure what truck these lines are for but they're definitely not for a 87 r10. The lines do not match with the original at all. The steel line quality actually looks decent. I wouldn't trust spring clamps that are packaged with this on efi/tbi - even if used for the return line. Save your time and money and build yourself steel braided AN lines."

— John (2/5)

The fuel lines I ordered

"The fuel lines I ordered were exactly what I needed. I had looked everywhere without luck. I am very pleased with my purchase."

— Randall L. (5/5)
