Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1

Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1
Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1

Chevy Truck Rear Fuel Line Set 1987 R10 2WD Reg Cab 6.5ft/8ft Bed 4.3L FL506-A1

SALE:
Save $58.38
/

Delivery Time & Rates

This fuel line is made for 1987 R10 models of Chevy trucks with 2WD Reg Cab, 6.5ft/8ft Bed and a 4.3L engine. The FL506-A1 set is made with several durable parts for easy installation.

SKU: FL506-A1
Box Dimensions 39" x 11" x 7"

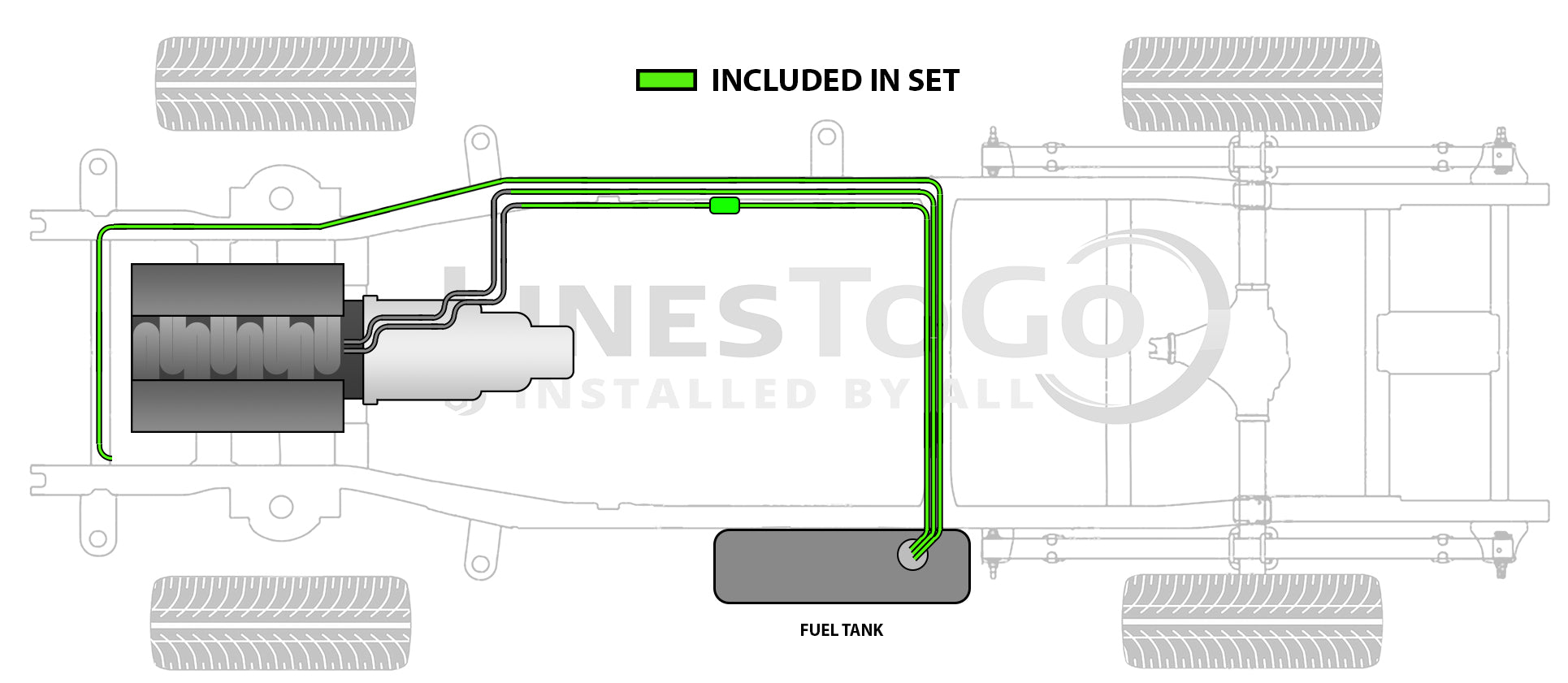

Connection at Frame Rail to Right Hand Fuel Tank and Left Hand Tank Selector Valve

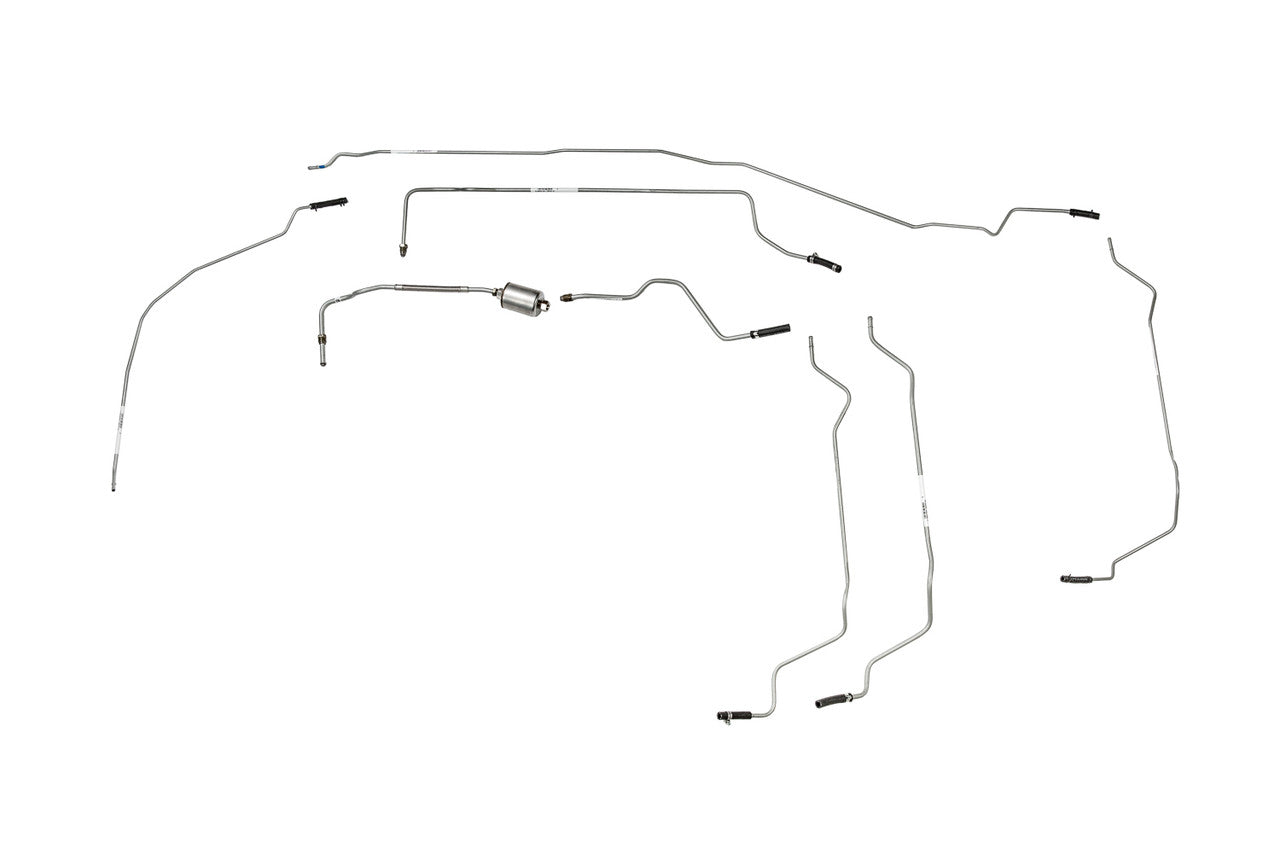

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 1/4" ( in 3 easy to install sections), 1 fuel filter

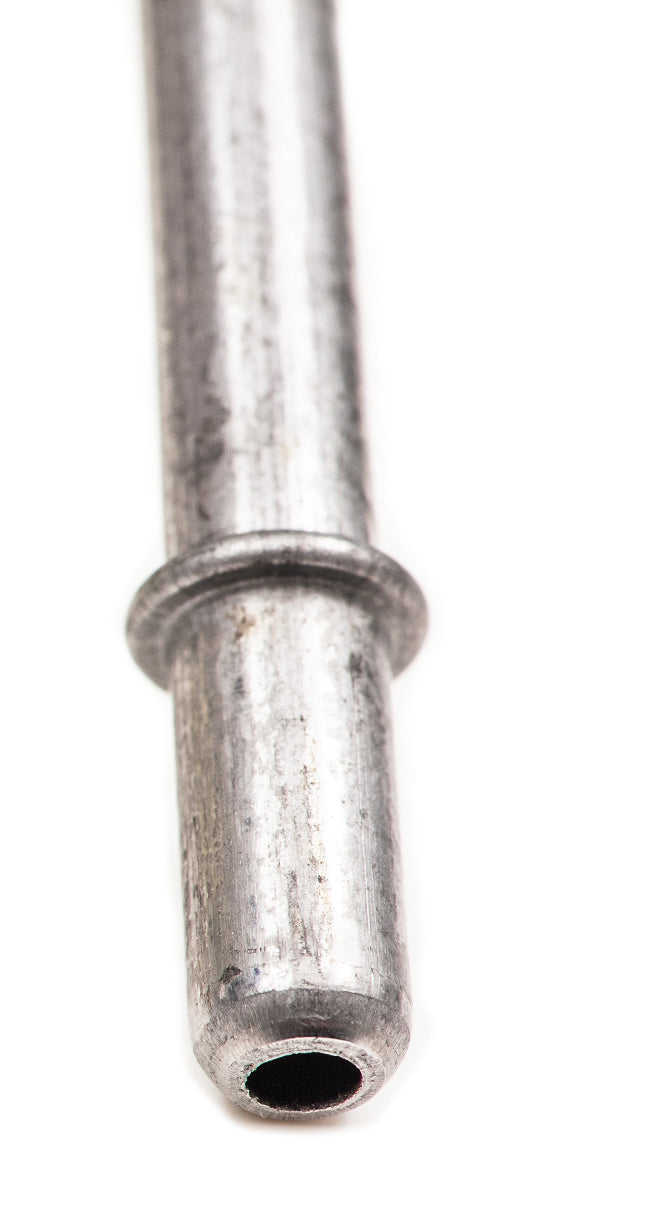

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses made from Stainless Steel Braided Teflon with OE style fittings: 3234-01

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250, FI-504250, FI-505250
