Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C

Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C
Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C

Chevy Truck Front Fuel Line Set 1994 K1500/2500/3500 6.5L Diesel FL397-B1C

SALE:
Save $51.83
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo for 1994 Chevy truck fuel lines for K Series 4WD 6.5L Diesel

SKU: FL397-B1C
Box Dimensions 28" X 7" X 5"

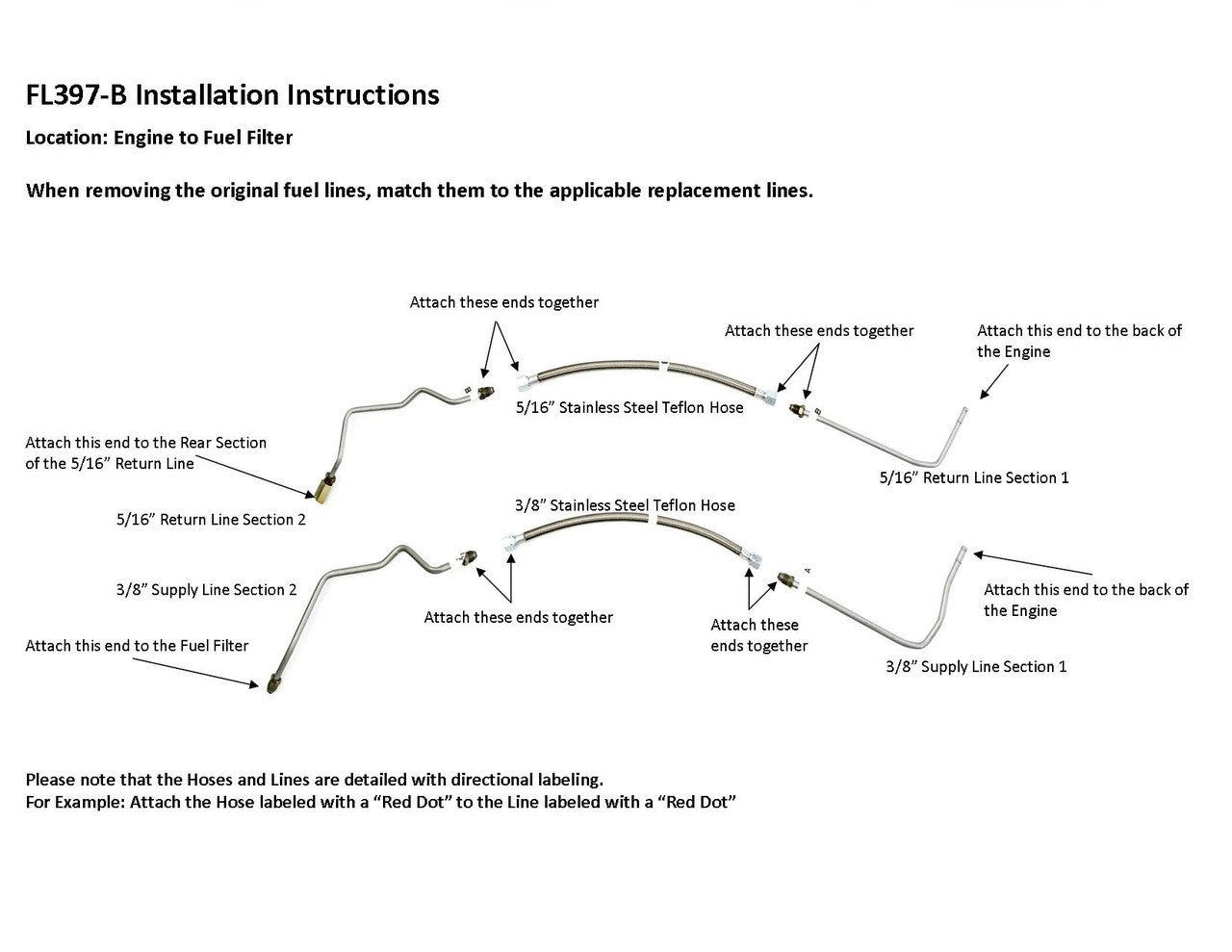

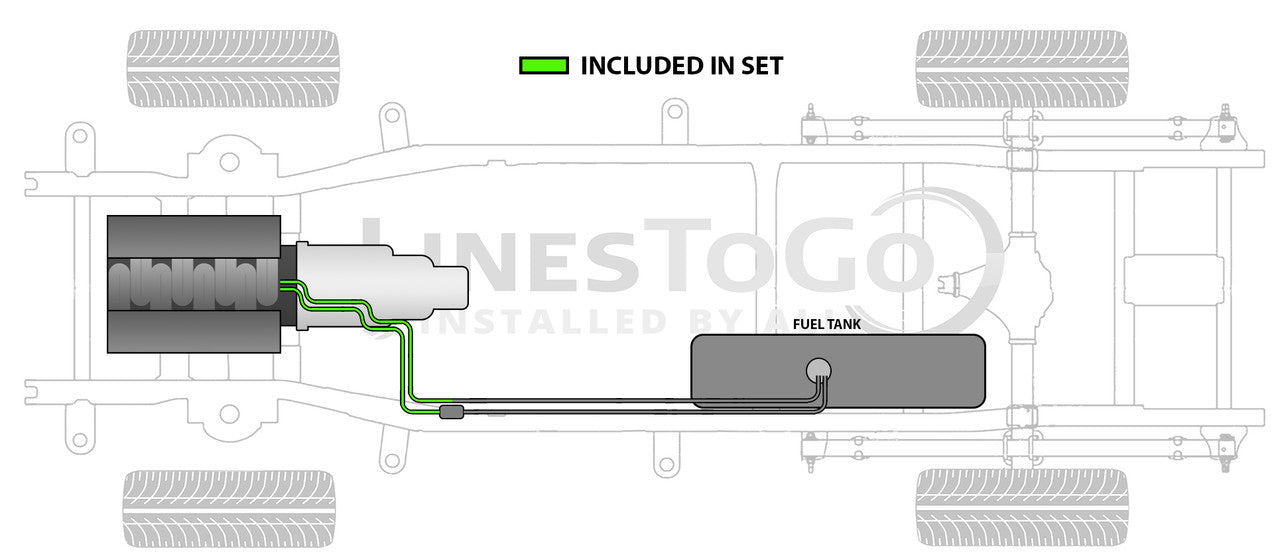

Engine to Lift Pump

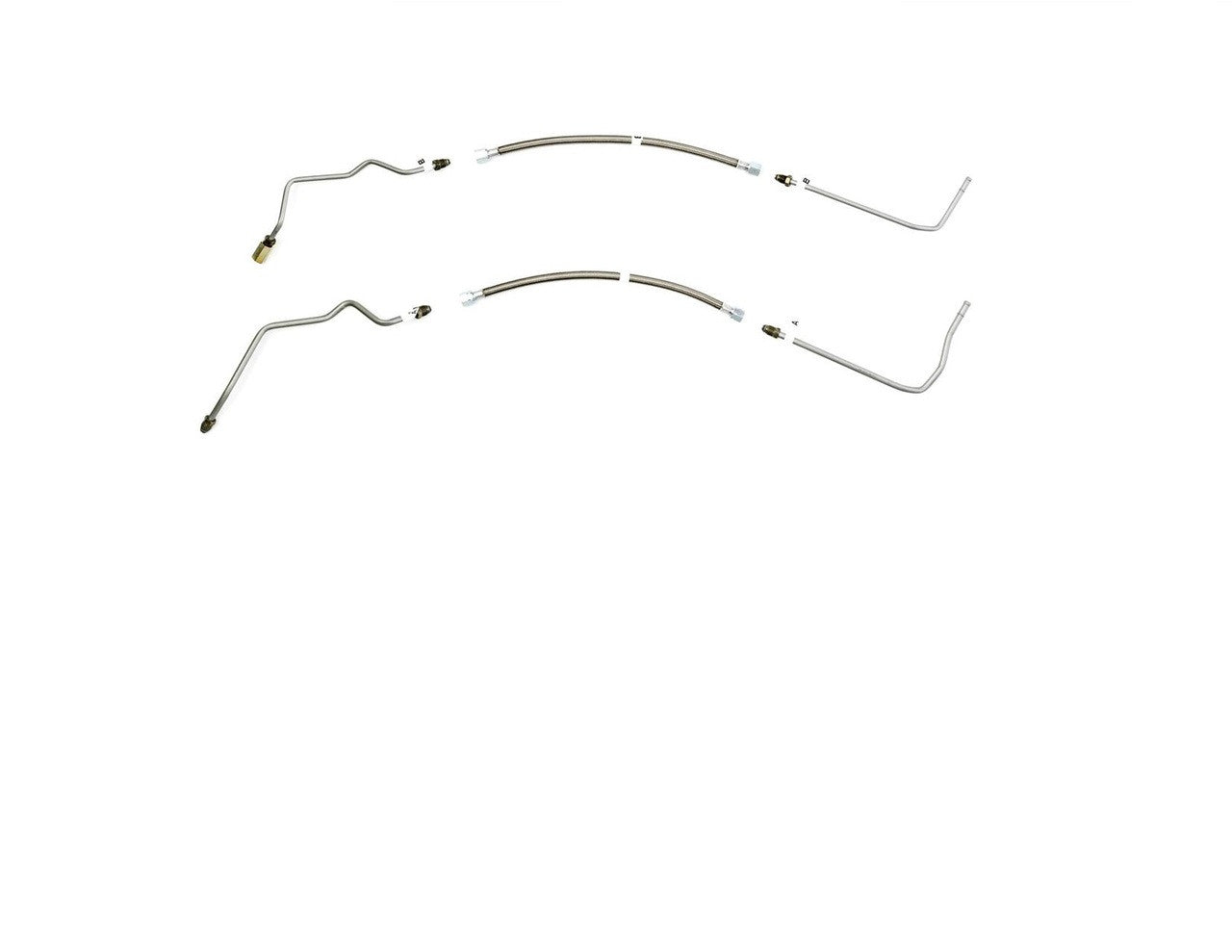

1 supply line 3/8" ( in 2 easy to install sections), 1 return lines 5/16" ( in 2 easy to install sections), hoses to join upper and lower sections, 1 union

15721518, 15721519

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Overall rating: 5.0 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: [lines].

Review highlights

Reviews

Great

"Great"

— James S. (5/5)

Fit perfectly.

"Fit perfectly."

— Dakota M. (5/5)

Much Better Than OEM.

"Easy to install, has QR code on the package so all you have to do is scan it and it'll take you right to the directions. The lines are color coded for easy matching, the braided lines are far superior to OEM and installation was much simpler than the OEM lines. I'd definitely use Lines 2 Go again."

— Timothy (5/5)

Great product

"Great product"

— Roger F. (5/5)

Appears OEM installation is fixed

"Appears OEM installation is fixed to engine /bellhousing assy, Before engine is placed in vehicle. Obviously no one will want to remove engine to replace fuel lines! Had to cut retaining strap on engine w/chisel and straighten each precision bend a little to get upper sections in place, very very difficult! Your 3 section lines are far superior to OEM parts in every aspect!"

— Danny K. (5/5)
