Name: Chevy Trailblazer EXT Fuel Line Set 2004 5.3L Fuel Tank FL446-C3B
Brand: Lines - To - Go
SKU: FL446-C3B
Price: 241.78 USD
Availability: InStock

Year Make & Model

Chevy Trailblazer EXT Fuel Line Set 2004 5.3L Fuel Tank FL446-C3B

Price

SALE:

Save $60.45

Delivery Time & Rates

Shop LinesToGo for 2004 Trailblazer EXT fuel lines 5.3L

SKU: FL446-C3B

Weight: 4

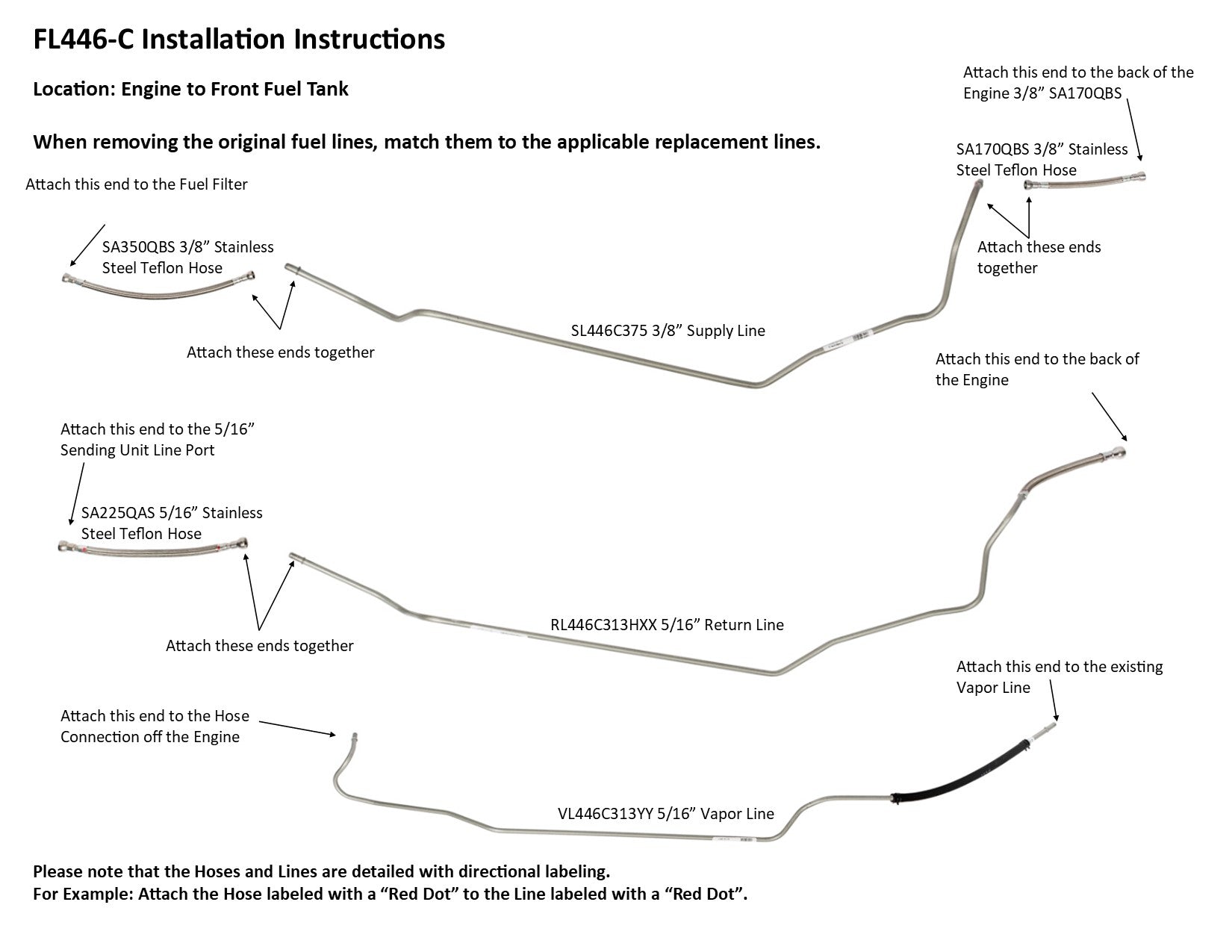

Installation Instructions

Box Dimensions 46" x 11" x 7"

Product Warranty 1 Year

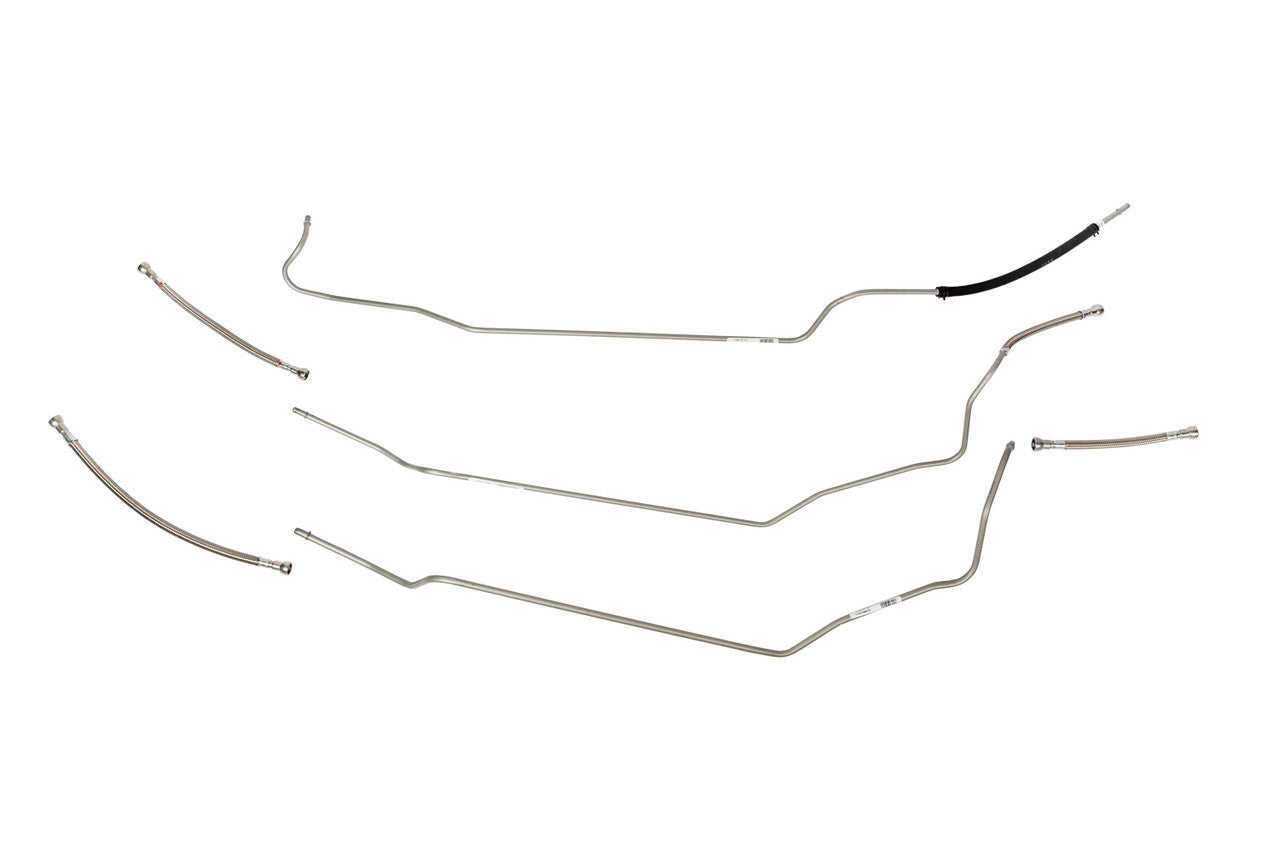

Engine to Front Fuel Tank

1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, flex hose to sending unit connection

15112994

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3176-01, SA350QBS, SA170QBS, SA225QAS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250
