Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A

w/Remote Fuel Filter and 25 Gal Fuel Tank (RPO code NNK)

Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A
Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A

Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A6A

w/Remote Fuel Filter and 25 Gal Fuel Tank (RPO code NNK)

SALE:
Save $59.07
/

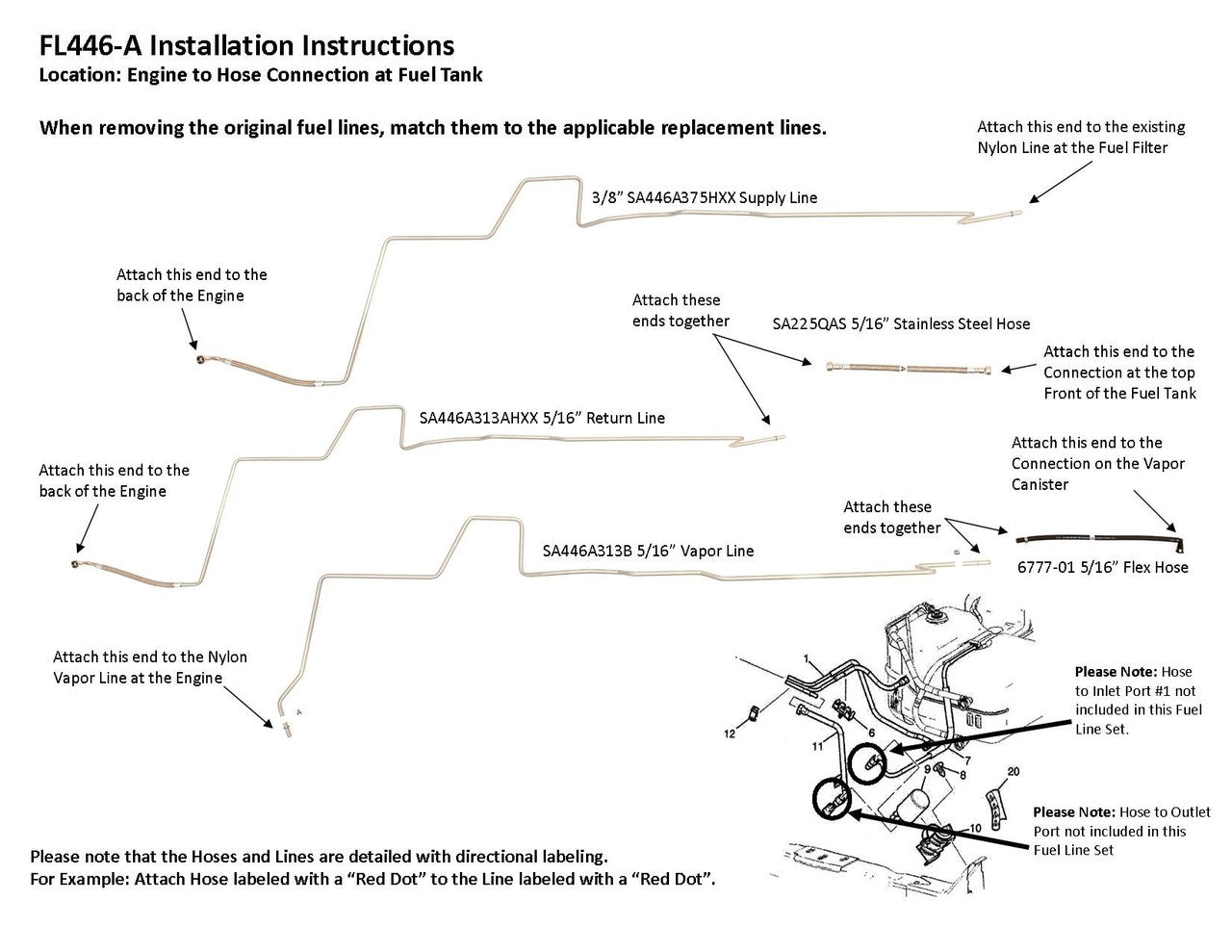

Install Instructions
Check Your RPO Code

Delivery Time & Rates

Zip/Postal Code:
  • Weight: 5

Product Overview

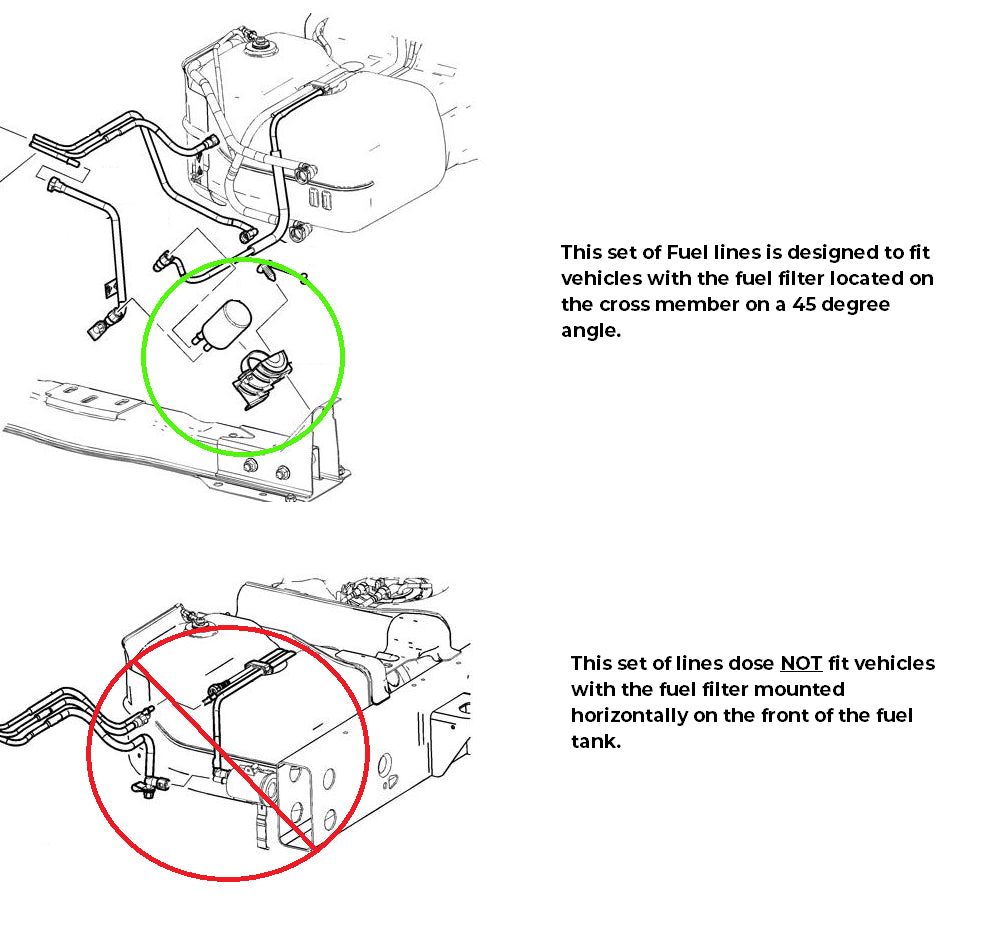

Shop LinesToGo for 2003 Trailblazer fuel lines for EXT 4.2L w/Remote Fuel Filter (Fuel Filter is located away from the Fuel Tank) and 25 Gal Fuel Tank

Location: Engine to Hose Connection at Fuel Tank

OEM Part Number: 15203688

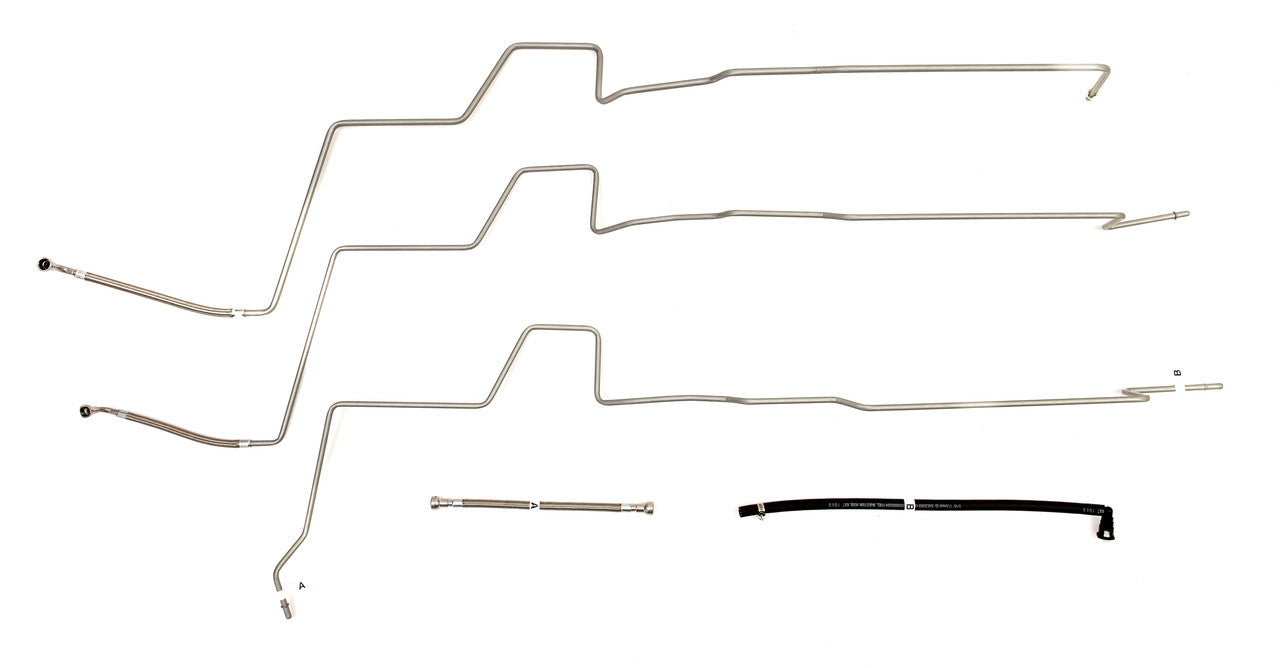

Included in Set: 1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, flex hose to front fuel tank.

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"
