Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B

w/o Remote Fuel Filter w/18 Gal Fuel Tank

Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B
Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B
Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B
Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B

Chevy Trailblazer/Chevy Trailblazer EXT Fuel Line Set 2003 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B3B

w/o Remote Fuel Filter w/18 Gal Fuel Tank

MSRP: from
SALE: from
Save $59.07
from /
Check Your RPO Code

Delivery Time & Rates

Zip/Postal Code:
SKU: FL446-B3B
  • Weight: 5

Fuel Line Set 2003 Trailblazer and Trailblazer EXT 4.2L w/o Remote Fuel Filter (Fuel Filter is located at the Fuel Tank) and w/18 Gal Fuel Tank

Location: Engine to Hose Connection at Fuel Tank

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SL446B375A, RL446B313A, and VL446B313BYY. See the video below on how to remove the shipping bend.

OEM Part Number: 88983139

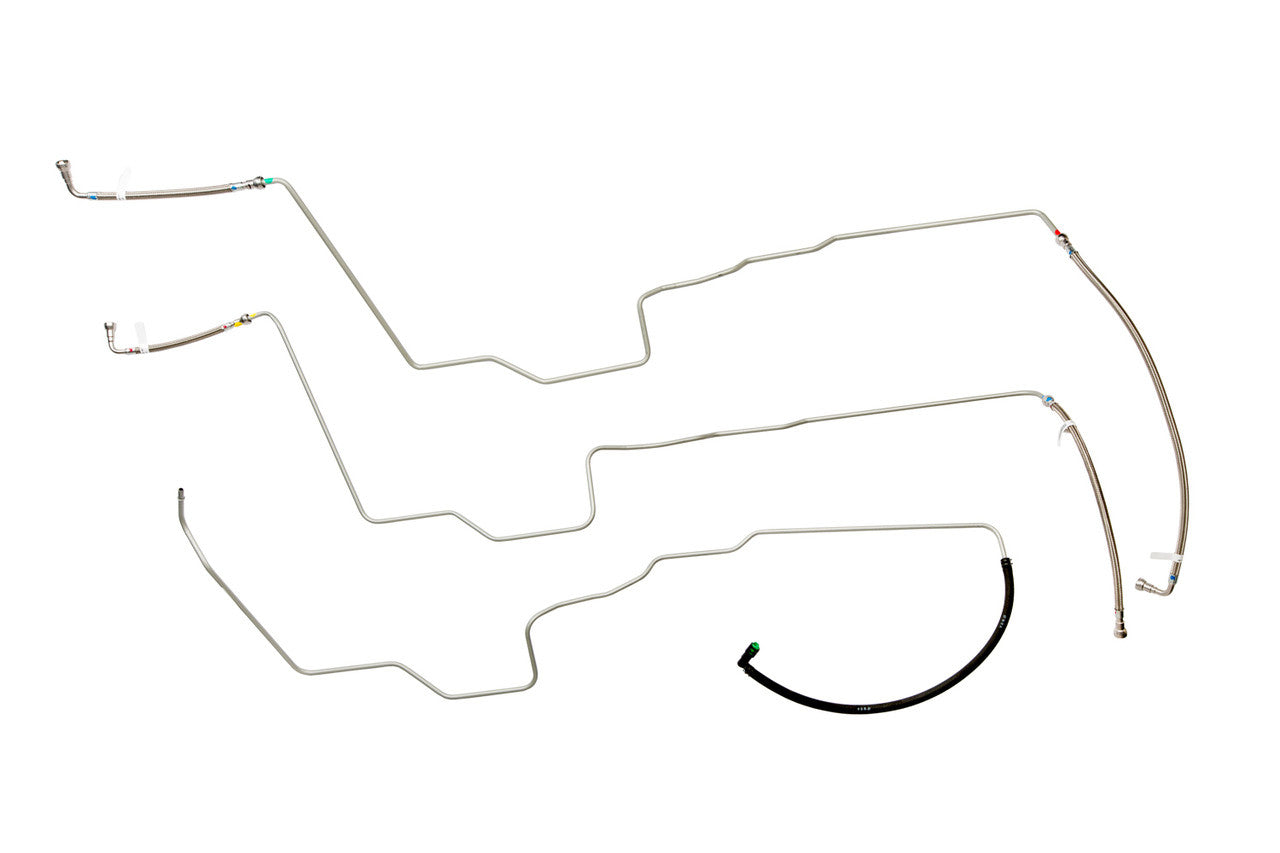

Included in Set: 1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, hoses to tank connection

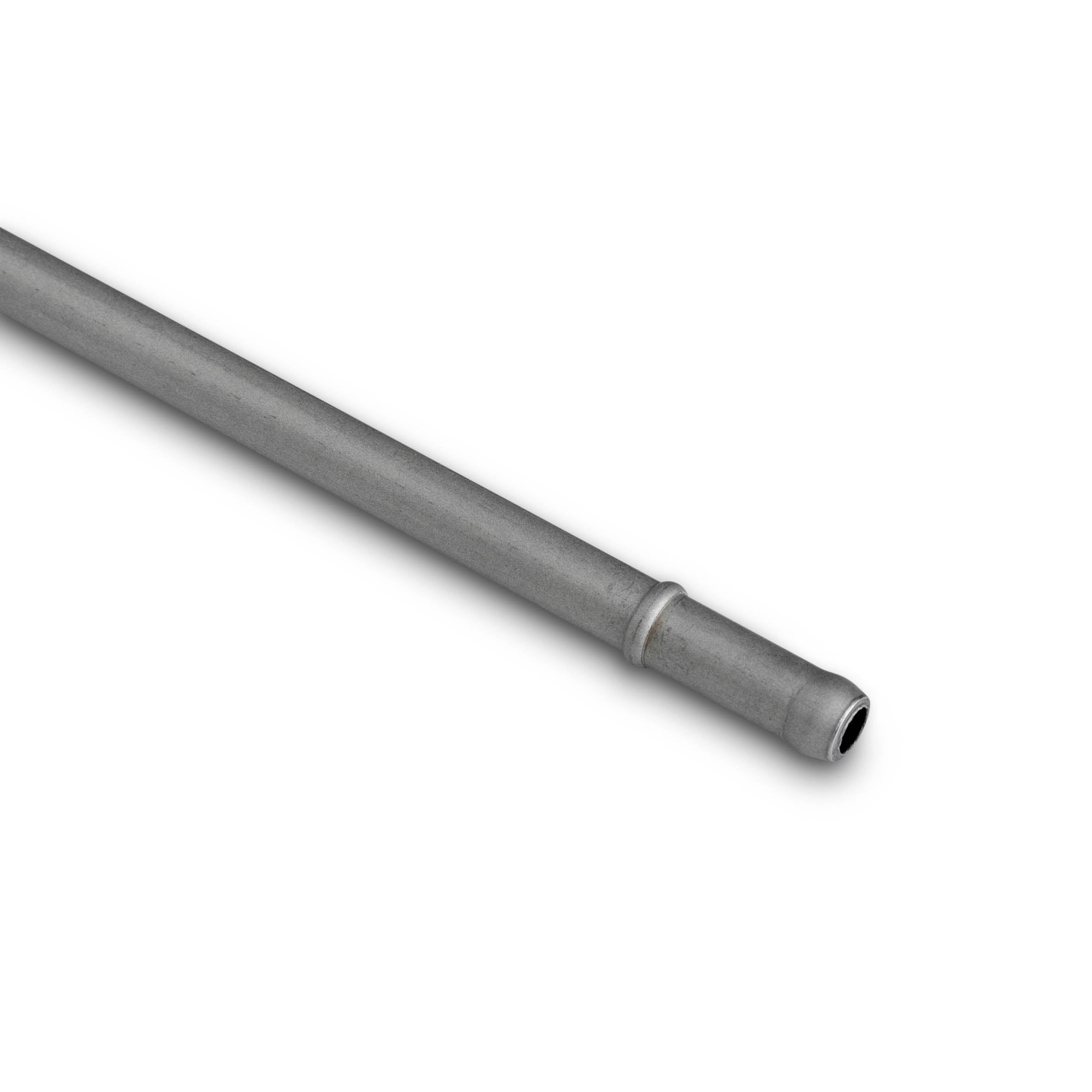

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

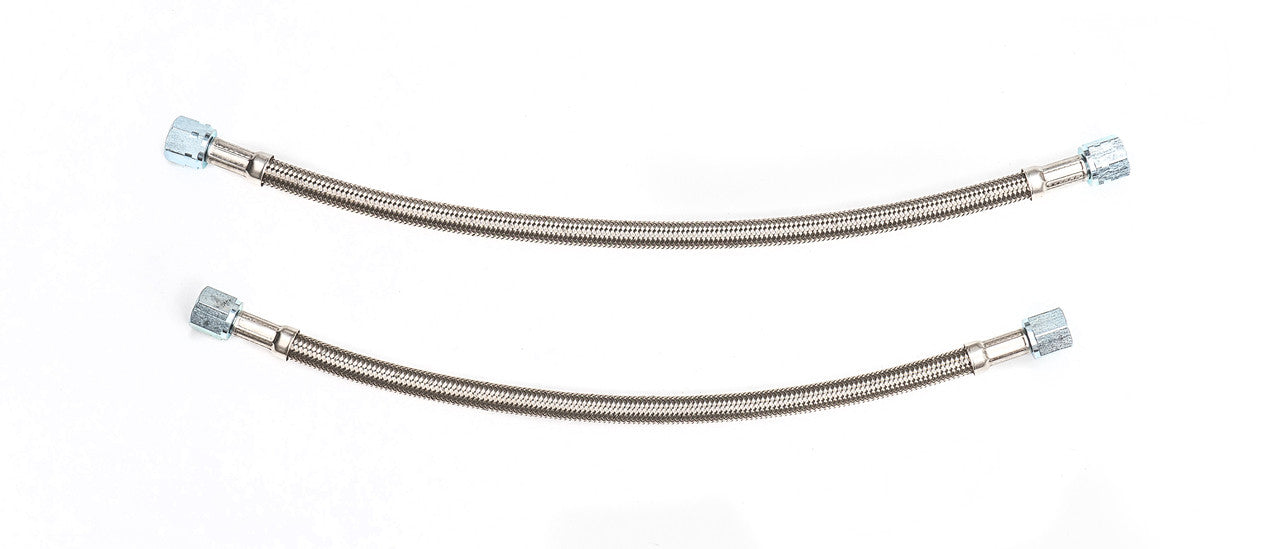

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
