Shop LinesToGo for 2003 Tahoe fuel lines for C/K 1500 4 Door 5.3L Non Flex Fuel

Nylon Lines Between Fuel Lines and Fuel Tank:

Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3071-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

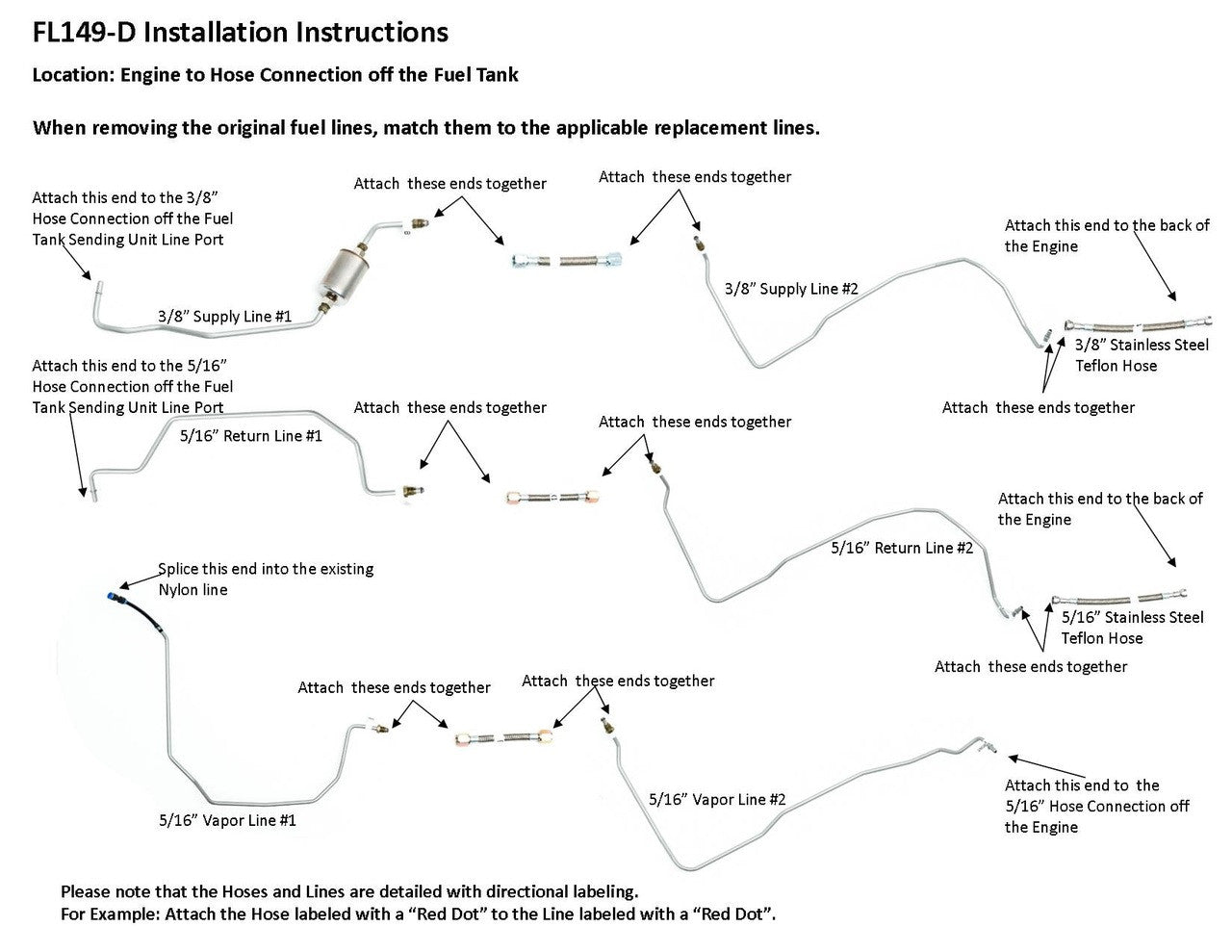

Nylon Installation Instructions:

Step 1

Cut the new nylon hose in the same position as the original nylon hose.

Step 2

Cut the original nylon hose in the same position as the new nylon hose.

Step 3

Use the original nylon hose with connector and attach it with supplied union to the new nylon hose

SKU: FL149-D3E
Box Dimensions 39" x 11" x 7"
Product Warranty 1 Year

Engine to Hose Connection Off Fuel Tank

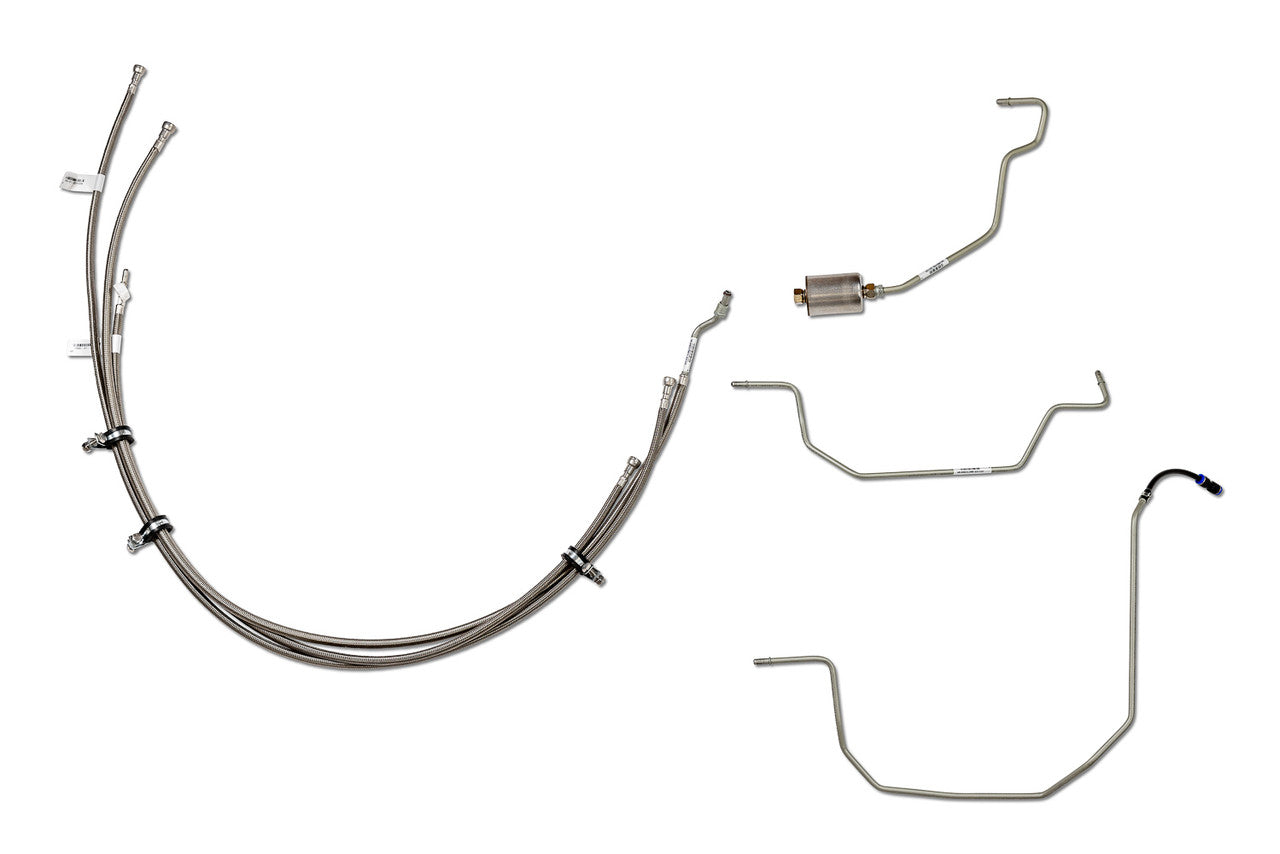

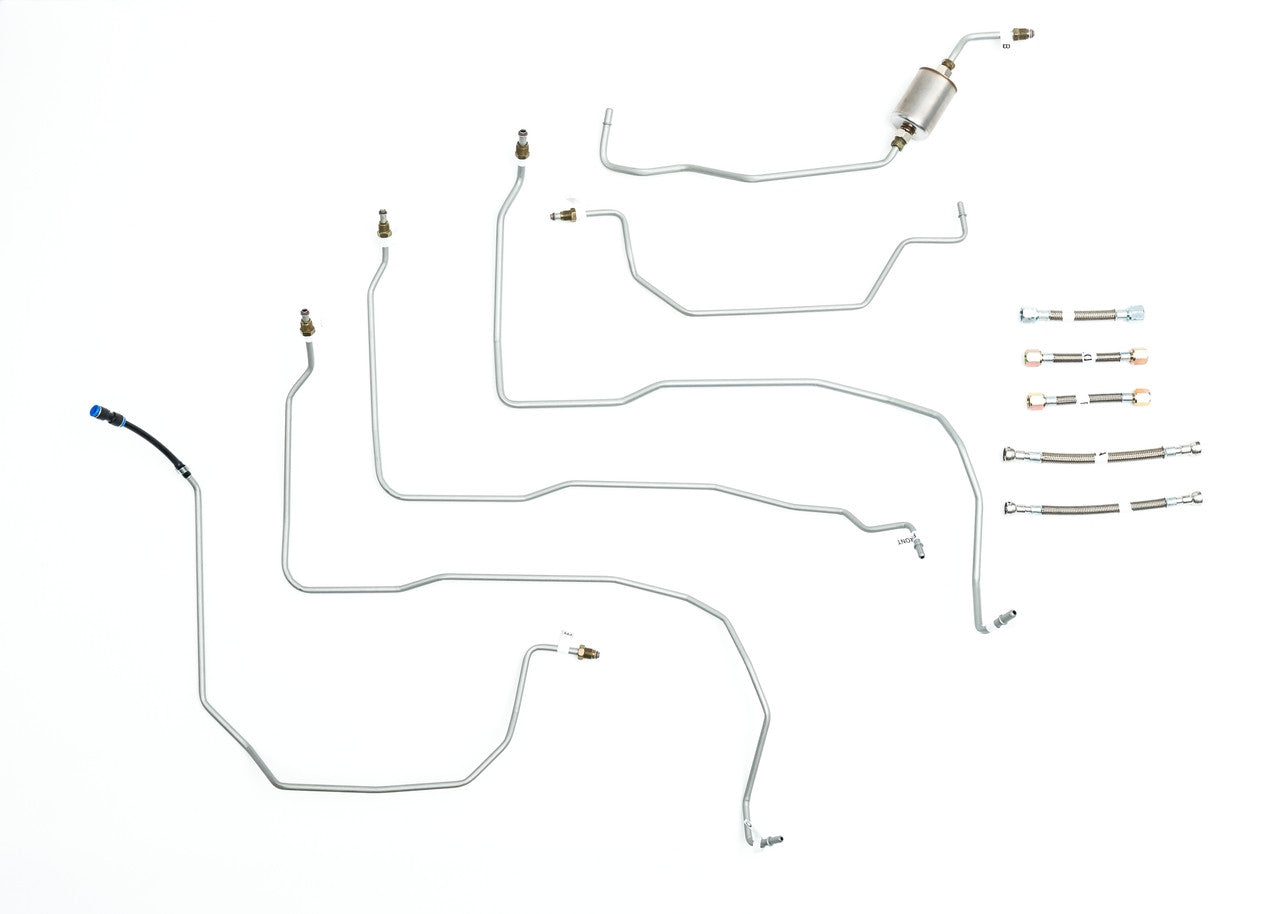

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16"( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to engine connection, hoses to join rear and front sections, nylon hose with union, 1 fuel filter

15769836

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
