Chevy Tahoe Brake Line Set 2004 1500 130" WB 5.3L BLC-212-SS5F Stainless Steel

w/4 Wheel Disc Brakes w/o Active Brake Control

Chevy Tahoe Brake Line Set 2004 1500 130" WB 5.3L BLC-212-SS5F Stainless Steel
Chevy Tahoe Brake Line Set 2004 1500 130" WB 5.3L BLC-212-SS5F Stainless Steel
Chevy Tahoe Brake Line Set 2004 1500 130" WB 5.3L BLC-212-SS5F Stainless Steel

Chevy Tahoe Brake Line Set 2004 1500 130" WB 5.3L BLC-212-SS5F Stainless Steel

w/4 Wheel Disc Brakes w/o Active Brake Control

MSRP: from
SALE: from
Save $64.99
from /
Stainless steel
Check Your RPO Code

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-212-SS5F
  • Weight: 6

Choose from 2004 Tahoe brake lines to fit your Chevrolet without a problem...

Brake Line Set Stainless Steel 2004 Chevrolet Tahoe 1500 130" WB. w/4 Wheel Disc Brakes w/o Active Brake Control for 5.3L engines.

OEM Part Number: 22932594

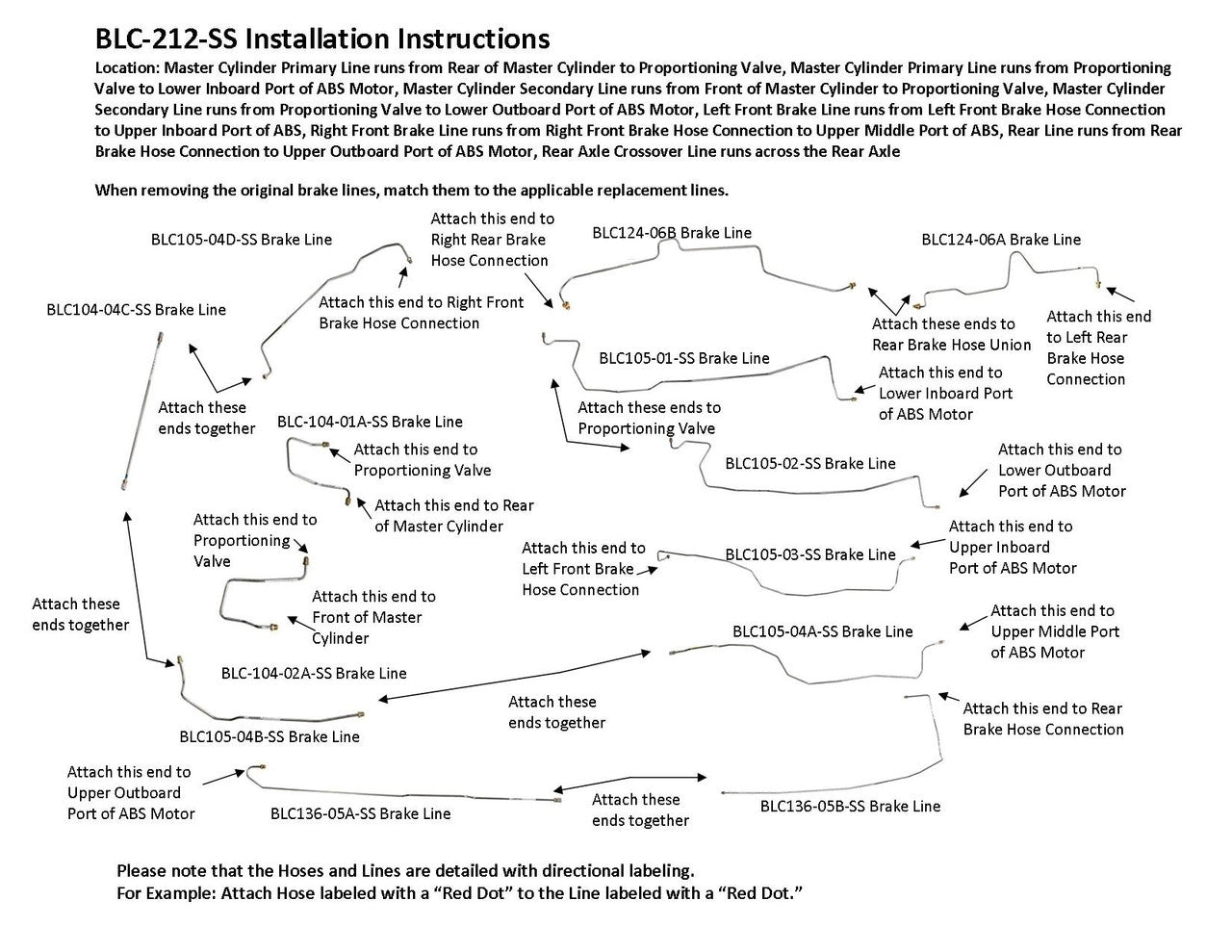

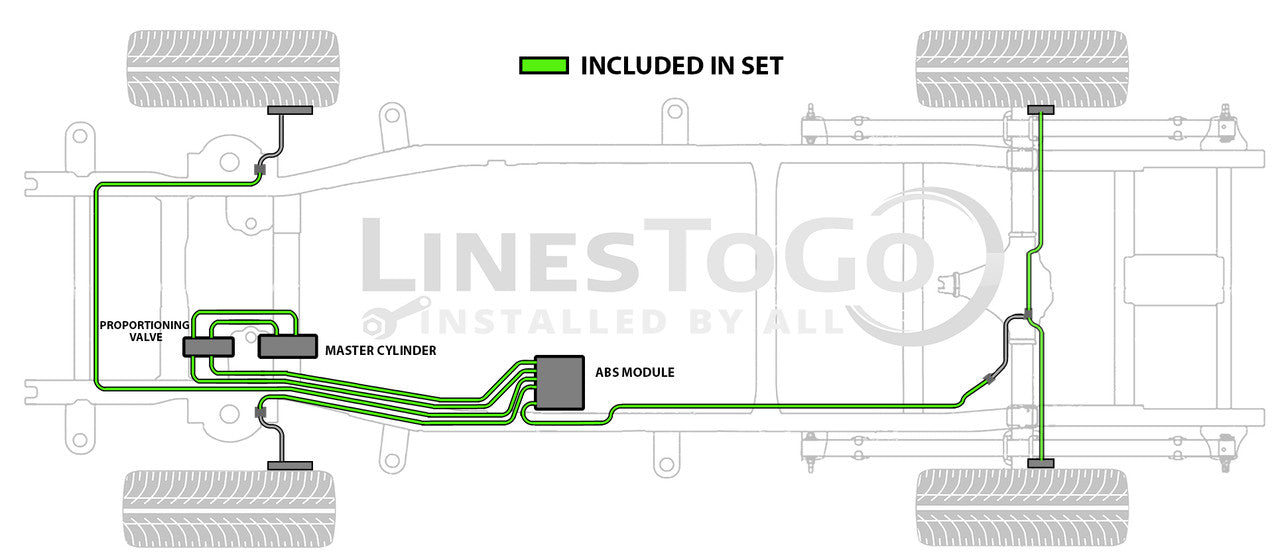

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Proportioning Valve, Master Cylinder Primary Line runs from Proportioning Valve to Lower Inboard Port of ABS Motor,  Master Cylinder Secondary Line runs from Front of Master Cylinder to Proportioning Valve, Master Cylinder Secondary Line runs from Proportioning Valve to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Left Front Brake Hose Connection to Upper Inboard Port of ABS, Right Front Brake Line runs from Right Front Brake Hose Connection to Upper Middle Port of ABS, Rear Line runs from Rear Brake Hose Connection to Upper Outboard Port of ABS Motor, Rear Axle Crossover Line runs across the Rear Axle

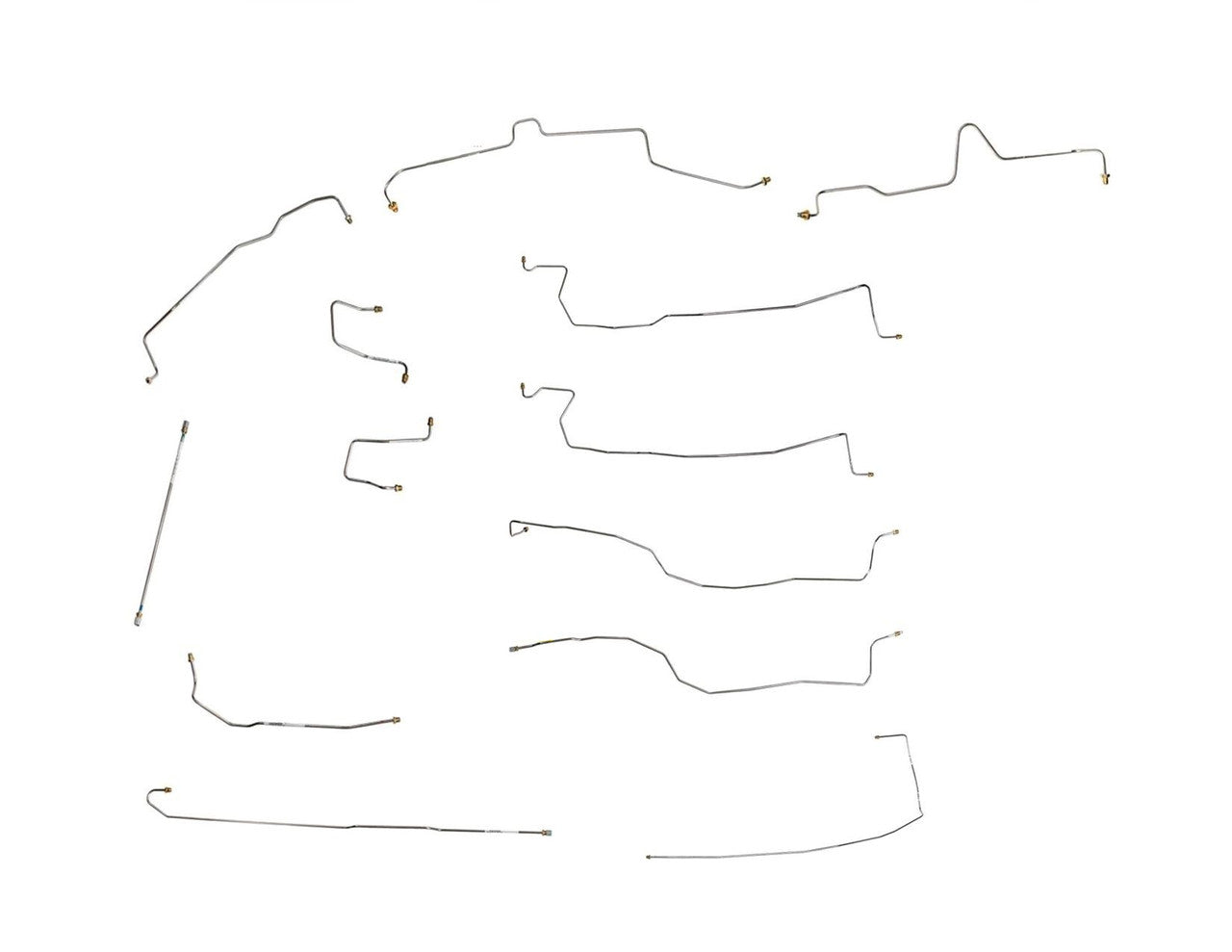

Included in Set: 2 Master Cylinder Primary Brake Lines 1/4", 2 Master Cylinder Secondary Brake Lines 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 4 easy to install sections), 1 Rear Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
