SALE:
Save $65.57
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo for 1996 Suburban fuel lines - K1500/K2500 4WD Gas 5.7L Engine

SKU: FL507-D1E
Box Dimensions 67" x 6" x 4"

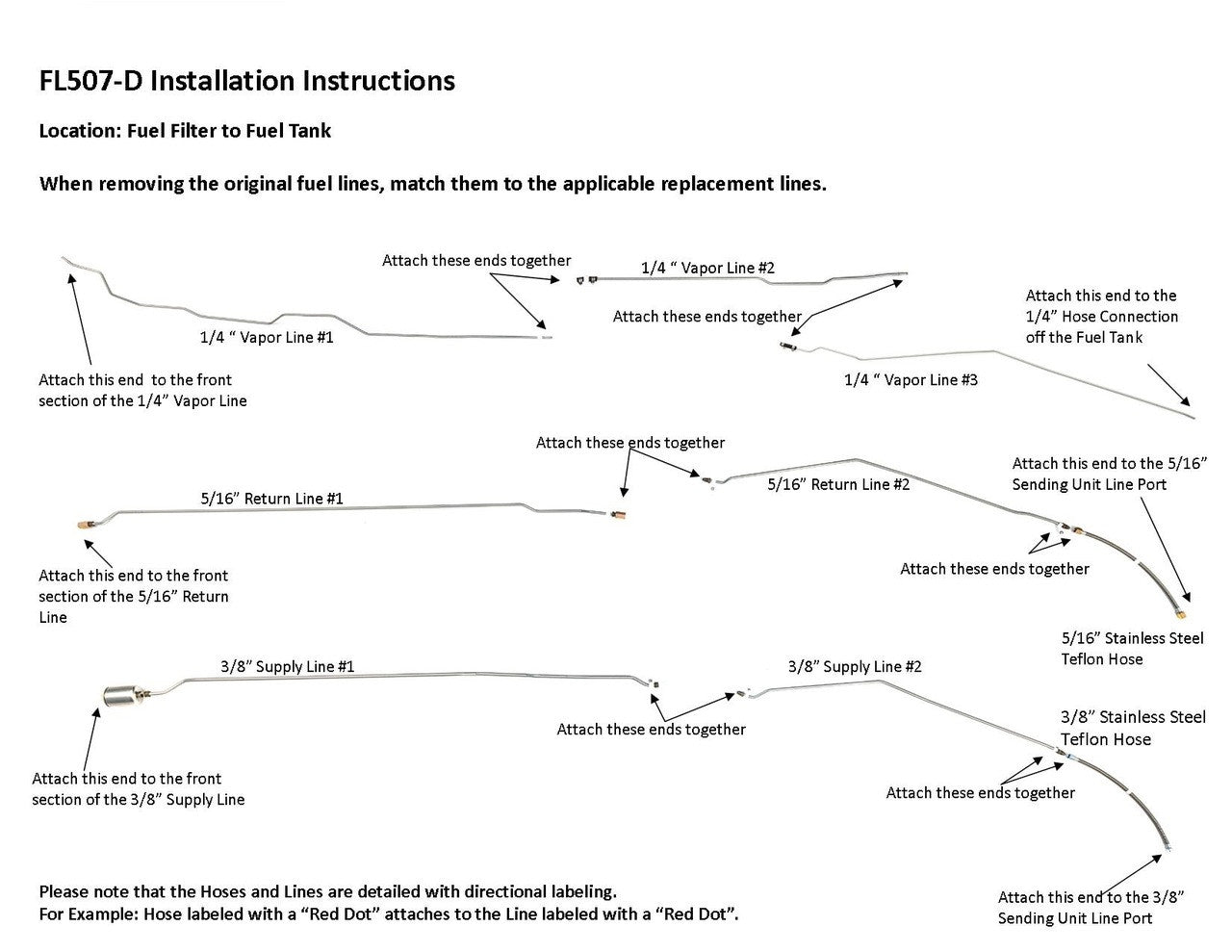

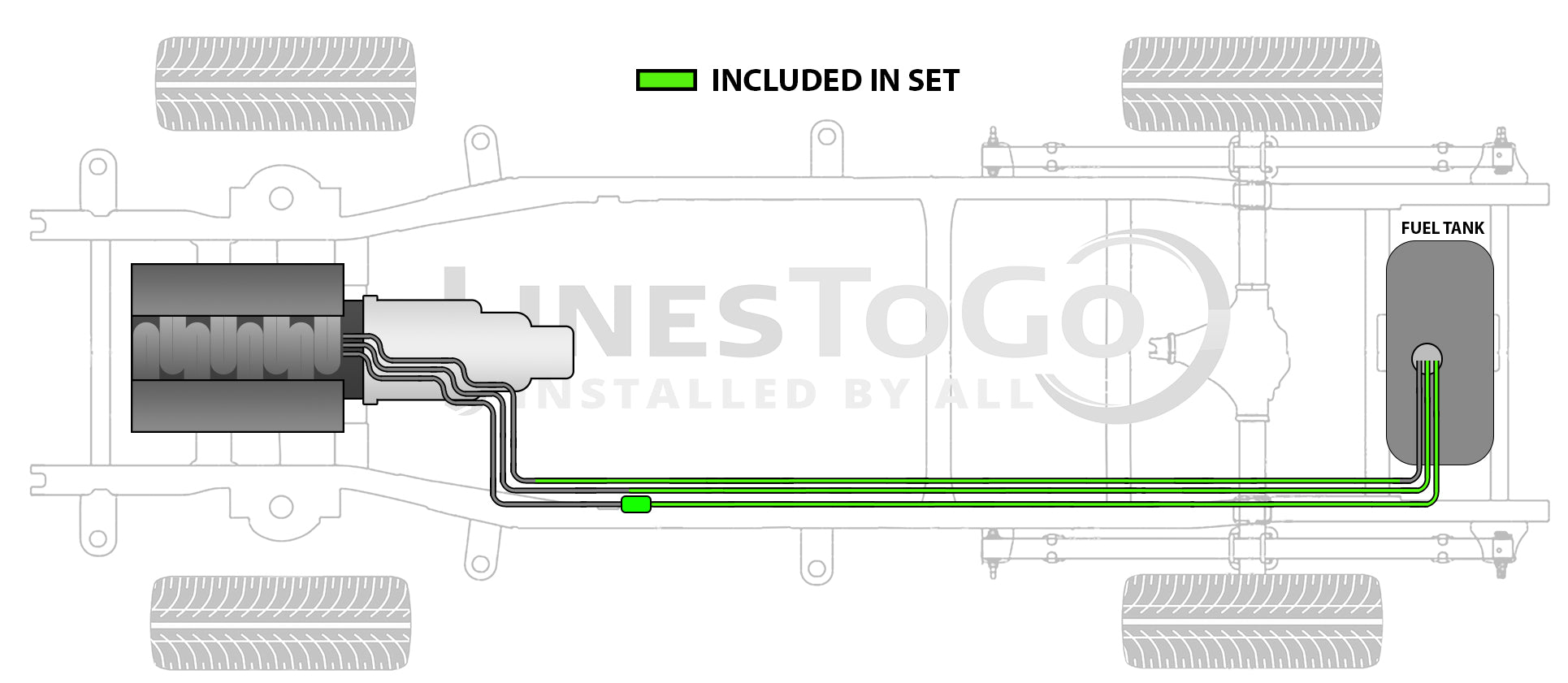

Fuel Filter to Fuel Tank

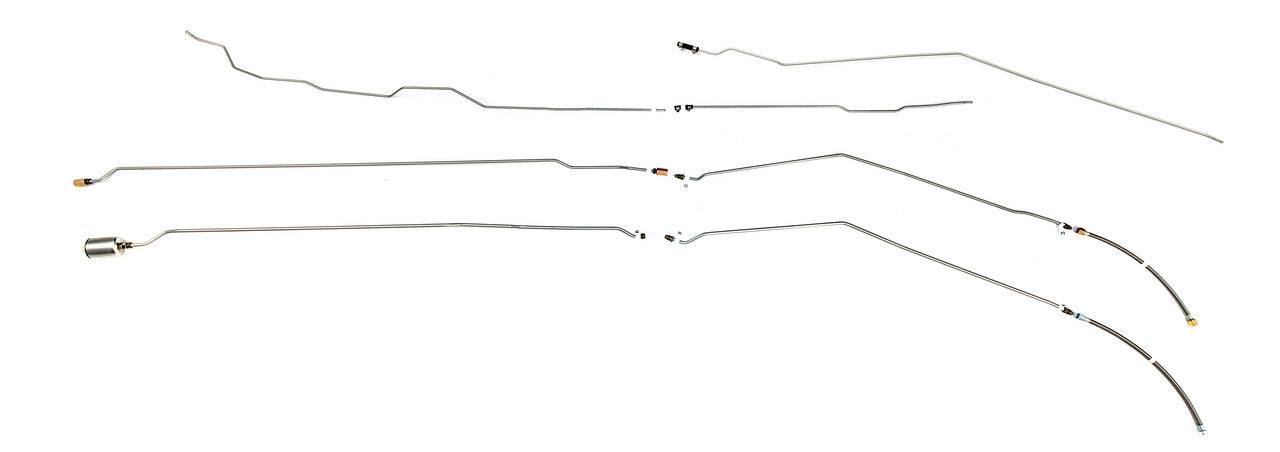

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 3 unions

15722220, 15722276

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

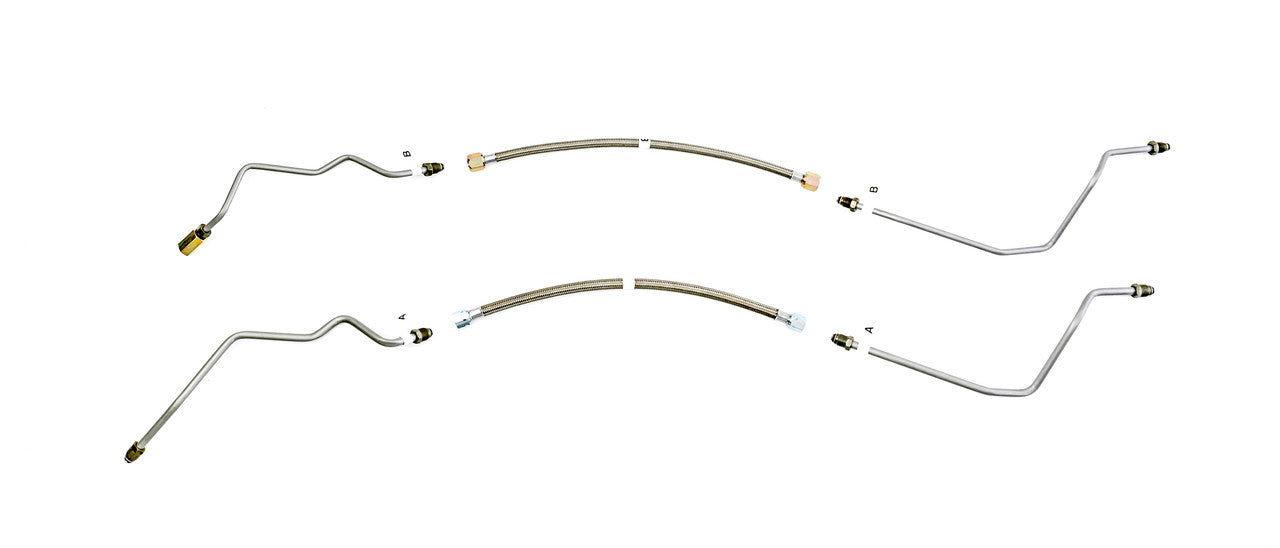

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA380AS, SA430BS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
Chevy Suburban Front Fuel Line Set 1996 K1500/2500 5.7L FL398-M1A
Save $44.07
Sale
Chevy Suburban Intermediate Brake Line 1996 K1500/2500 4WD 5.7L BLC-102-SS1B Stainless Steel
Save $34.75

Overall rating: 4.8 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["bends","lines"].

Review highlights

Reviews

Excellent service

"Excellent service"

— Michael J. (5/5)

1996 Suburban Fuel Lines

"They dont offer a complete line set. The picture they display is in reverse and gives the impression it runs from the engine back. Lines had some interesting bends that didnt match the original lines. The bends were fairly tight and short and not easy to adjust."

— Teds (4/5)

Very fast shipping. Solid product

"Very fast shipping. Solid product suitable for commercial use."

— Chad O. (5/5)

Fit the way the original

"Fit the way the original lines from factory did. Thank You"

— David T. (5/5)

Excellent kit, lines fit perfect!

"Excellent kit, lines fit perfect! Thanks"

— David T. (5/5)

Q&A
