Shop LinesToGo for 1995 Suburban fuel lines - K1500/K2500 4WD 5.7L Gas Engine

SKU: FL507-D1D
Box Dimensions 67" x 6" x 4"

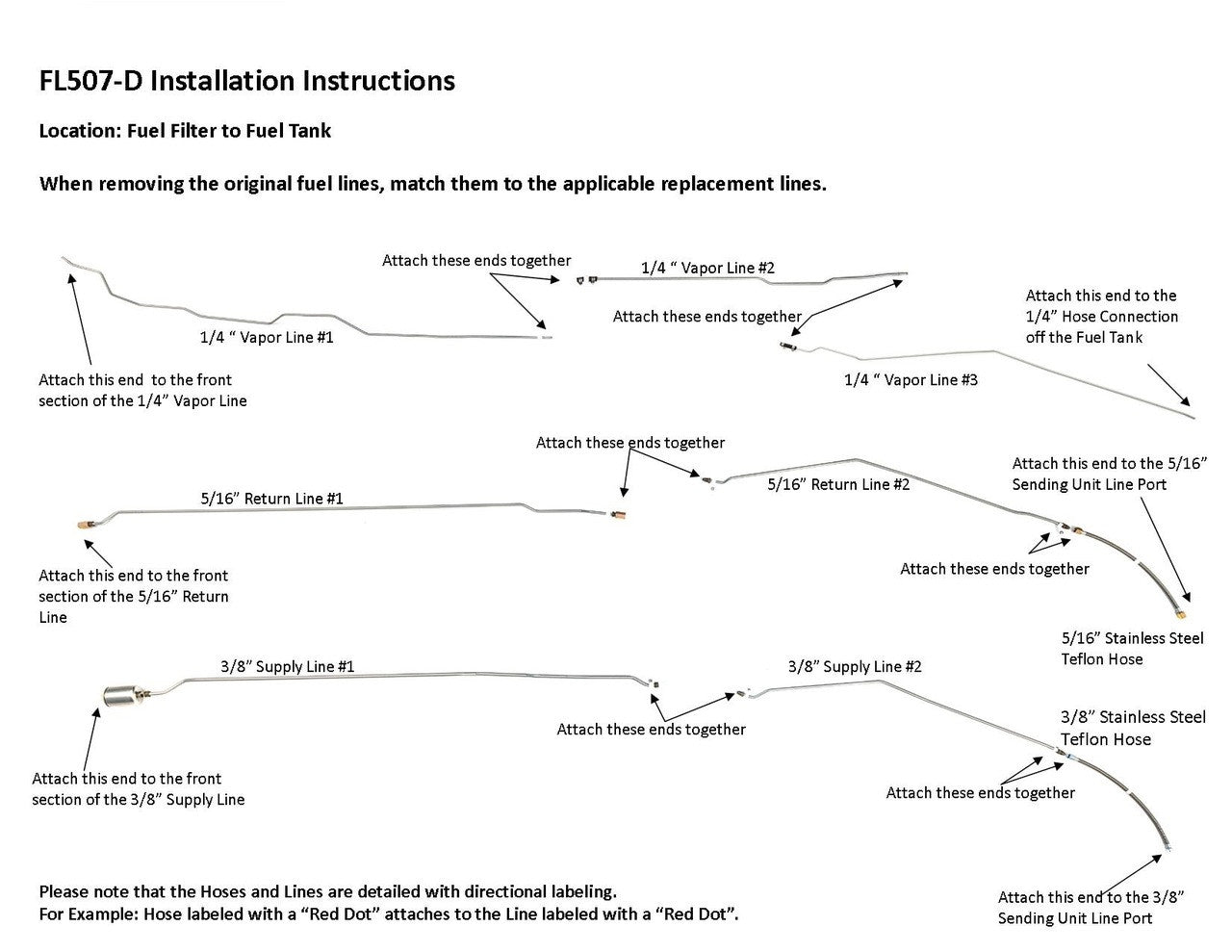

Fuel Filter to Fuel Tank

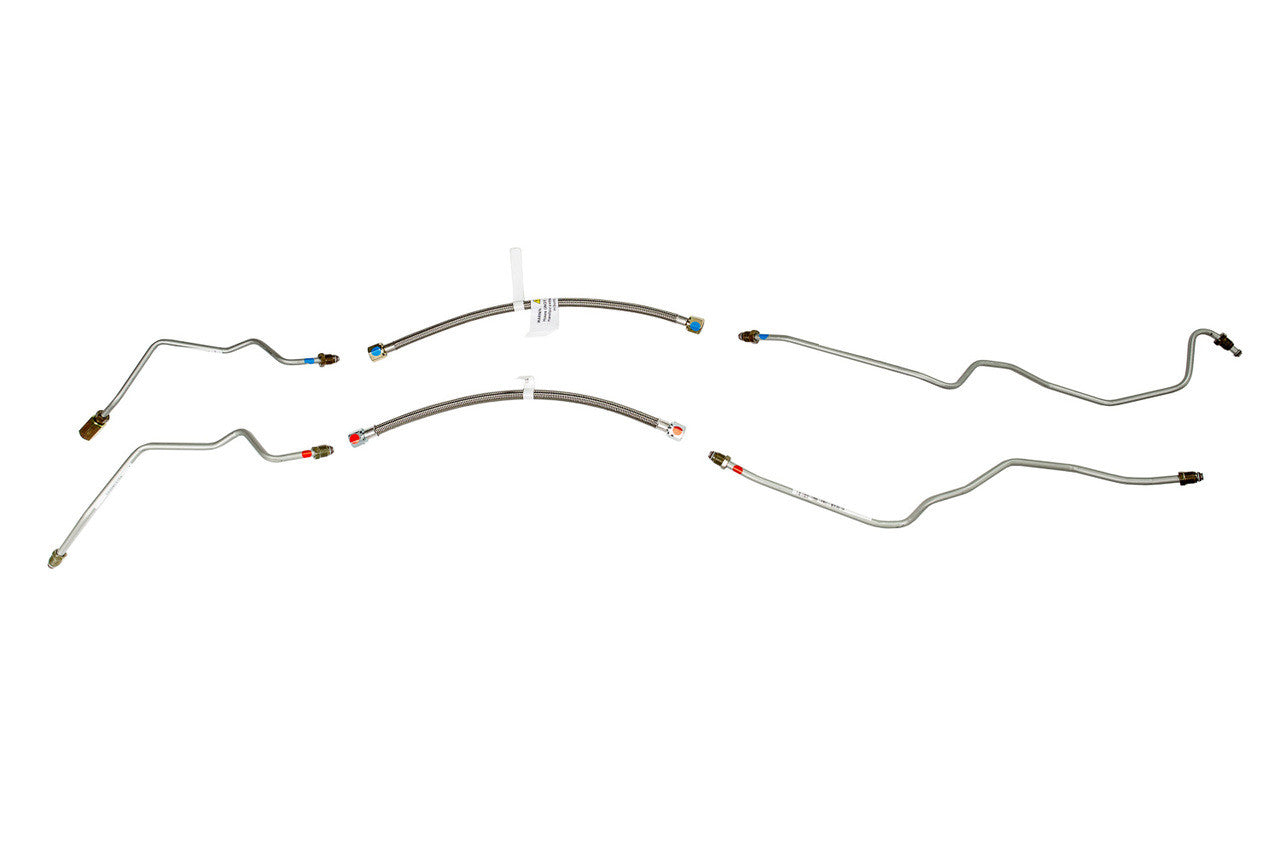

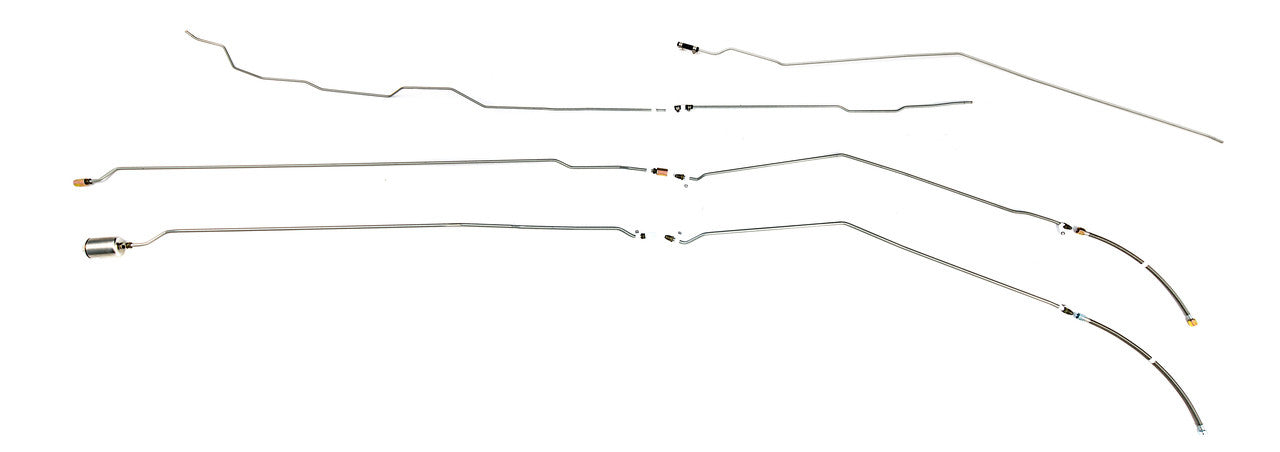

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 3 unions

15722220, 15722276

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA380AS, SA430BS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250
