Shop LinesToGo for 1988 Suburban fuel lines - R10/20 2WD Diesel 6.2L

SKU: FL507-ED1B
Box Dimensions 68" X 7" X 5"

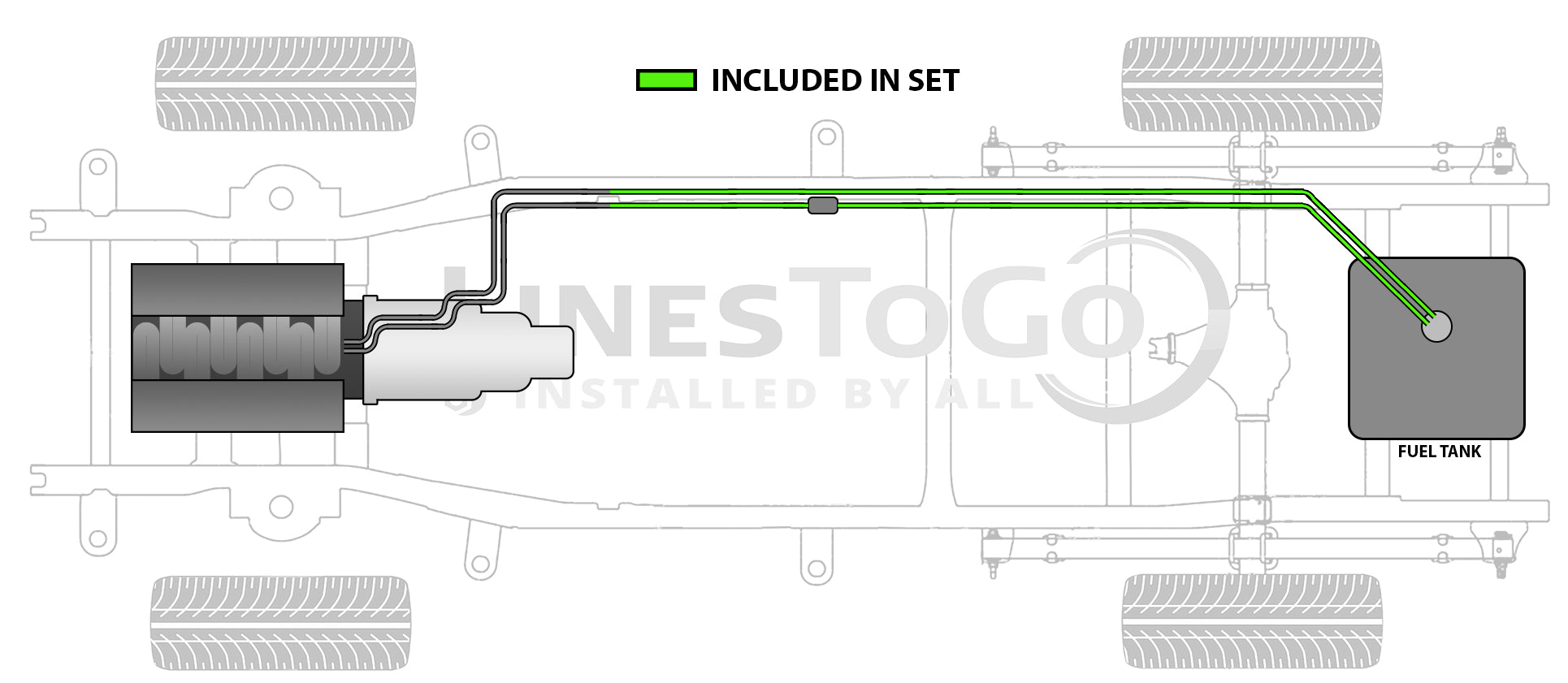

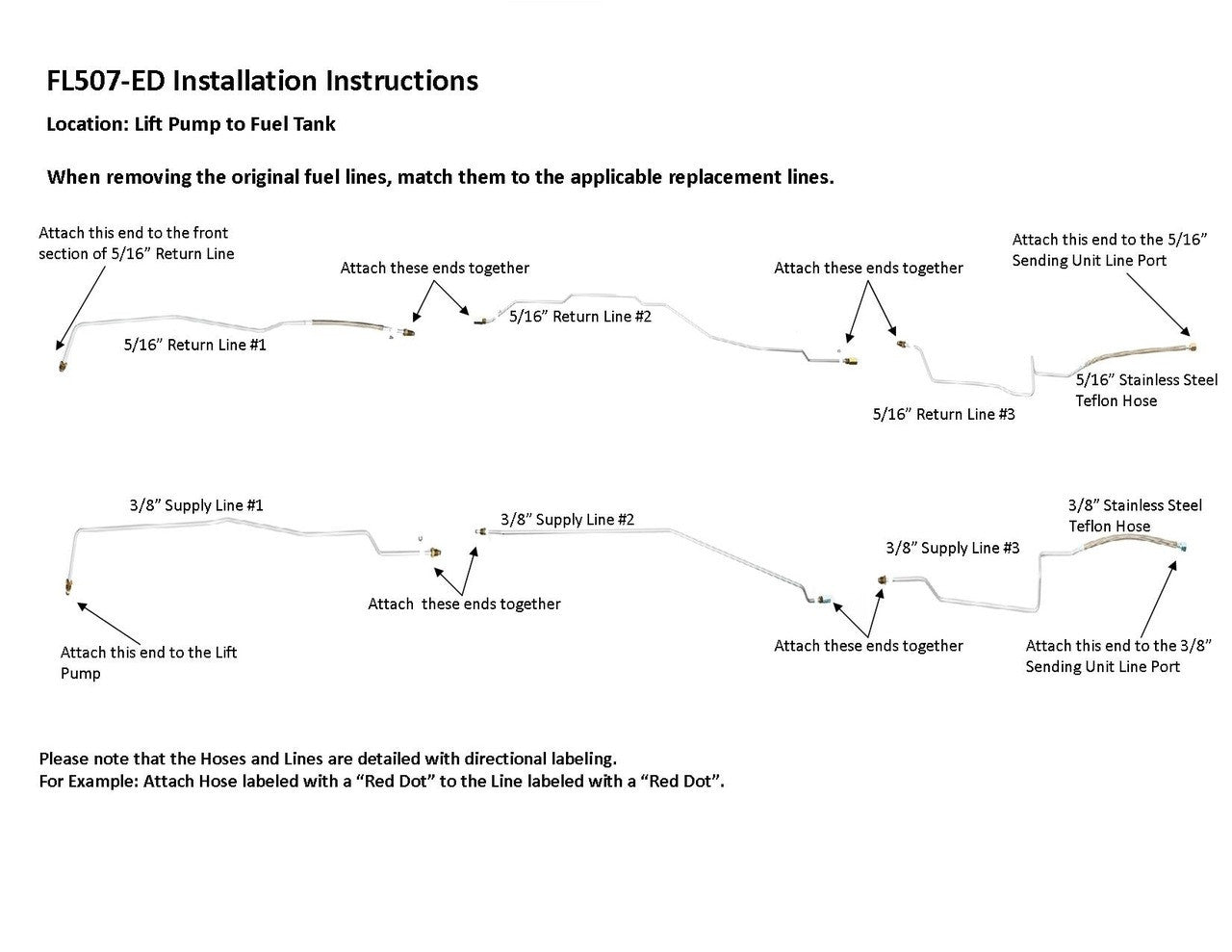

Lift Pump to Fuel Tank

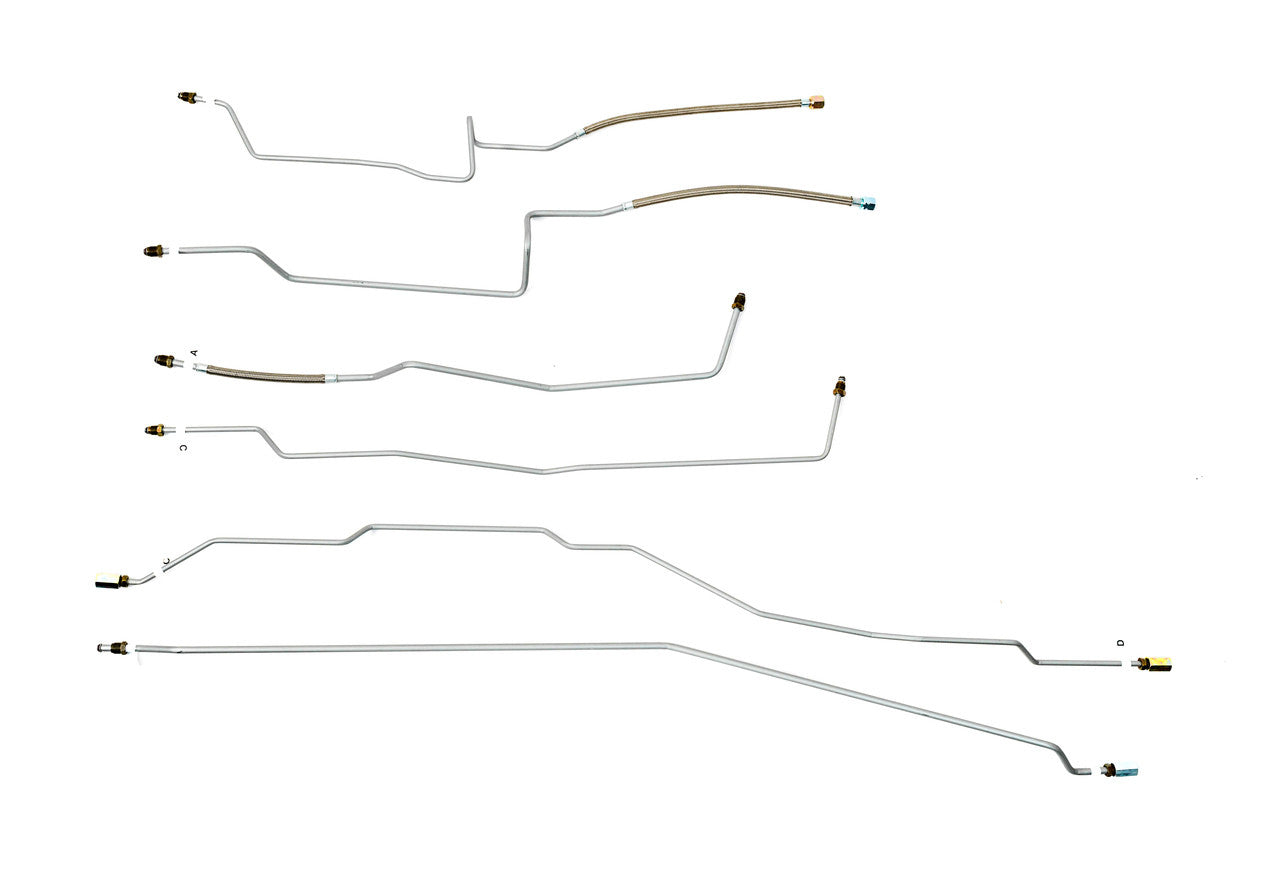

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 3 easy to install sections), hoses to sending unit connection, 3 unions

15548985, 15548987

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
