Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D

Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D
Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D

Chevy Suburban Intermediate/Rear Fuel and Brake Line Set 1990 V1500 4WD Gas 5.7L FL507-G5D

SALE:
Save $69.57
/

Delivery Time & Rates

Shop LinesToGo for 1990 Suburban Fuel Lines - V1500 Suburban 4WD for 5.7L Gas engines.

SKU: FL507-G5D
Box Dimensions 57" x 11" x 7"

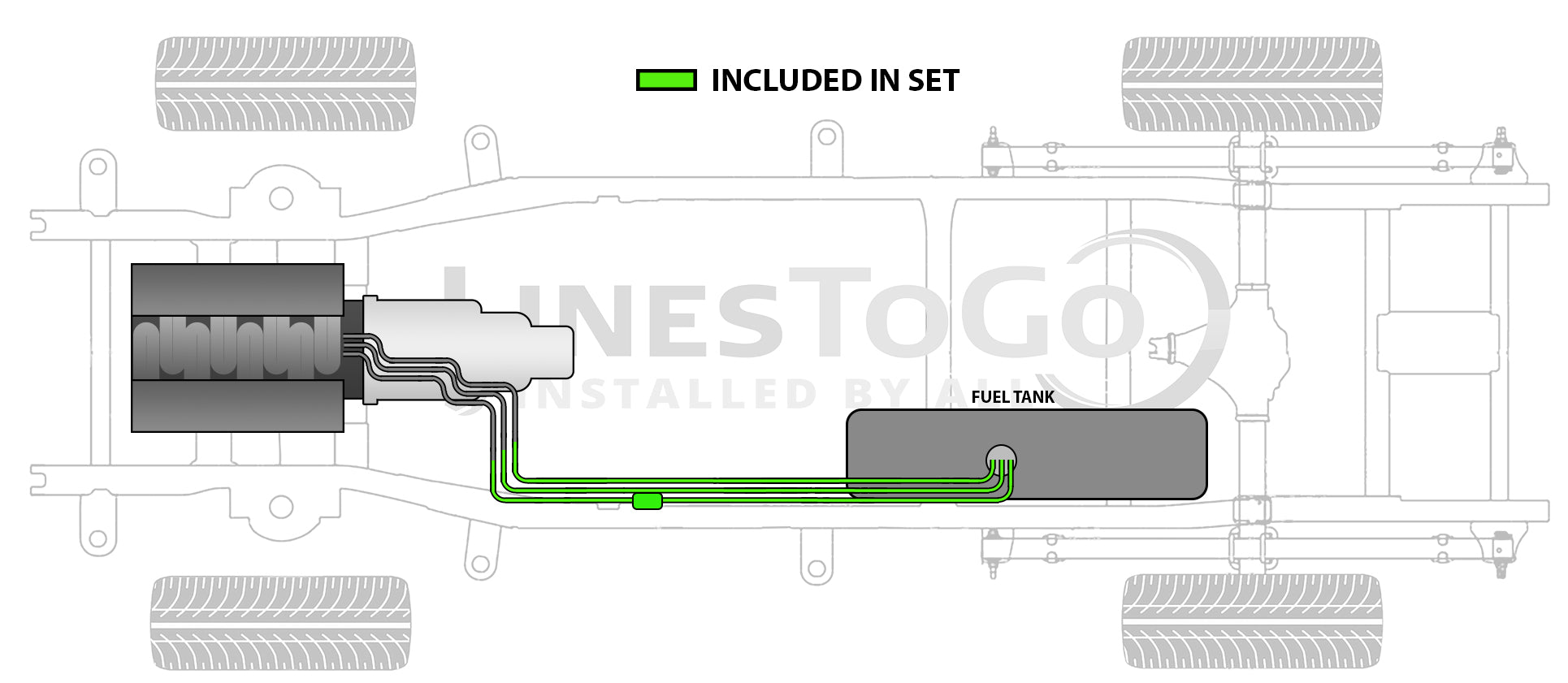

Hose Connection at the Frame Rail to Fuel Tank (Intermediate and Rear)

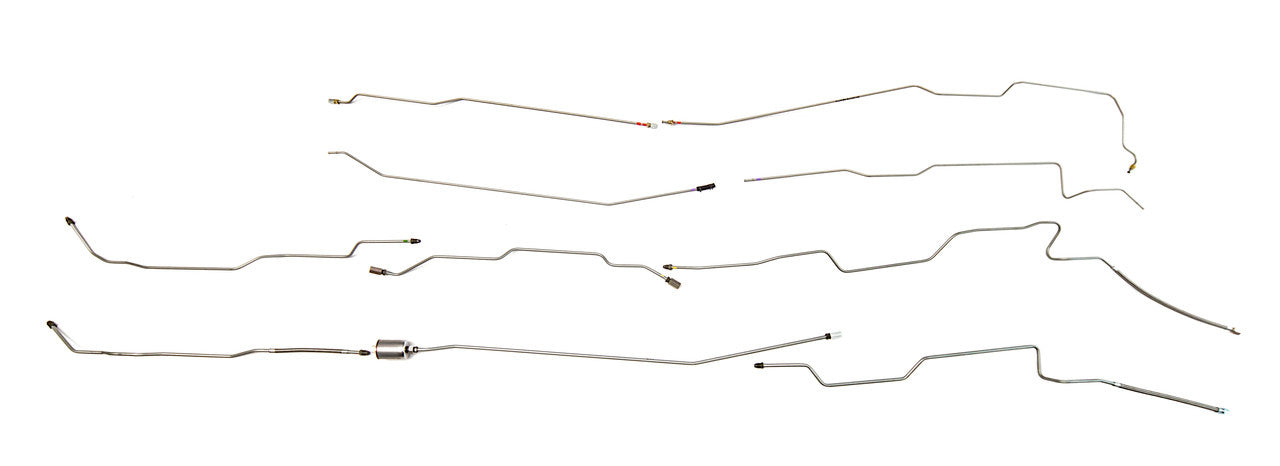

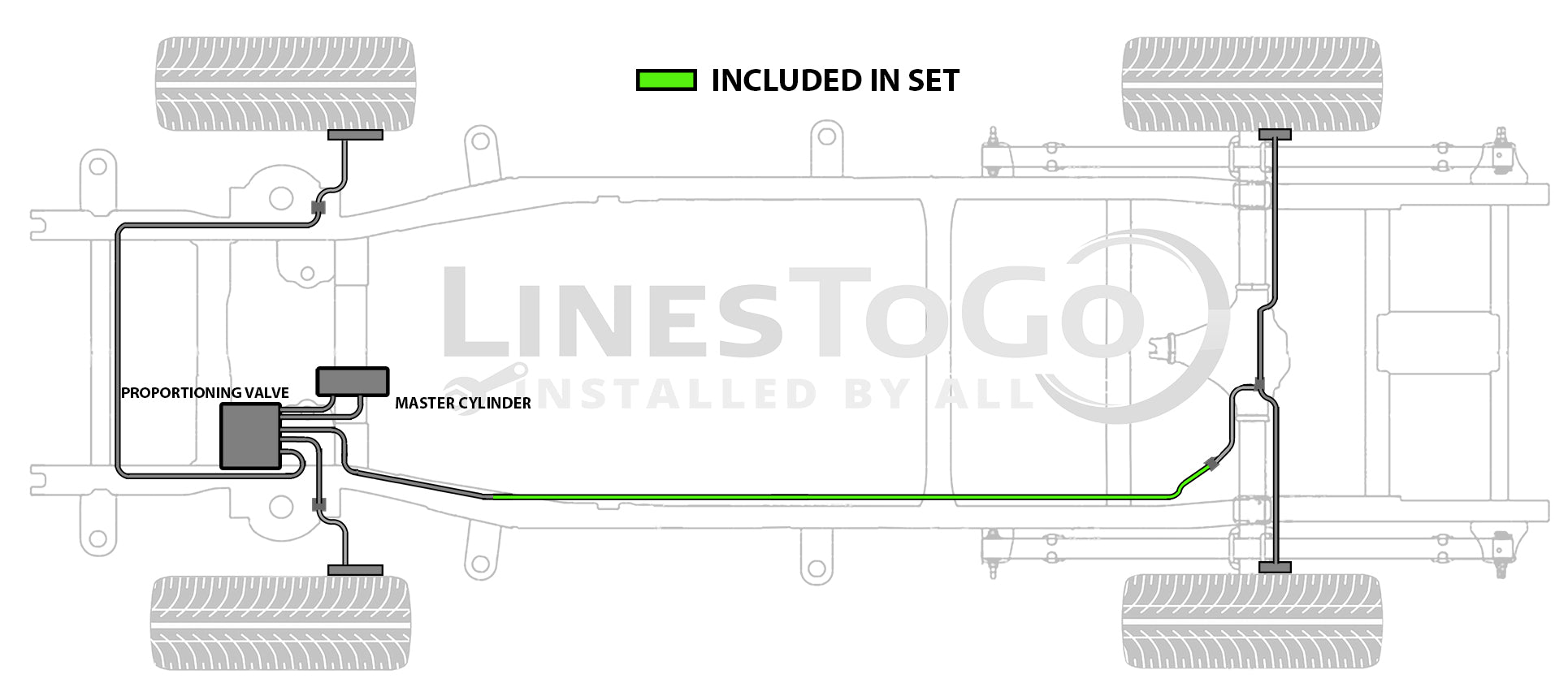

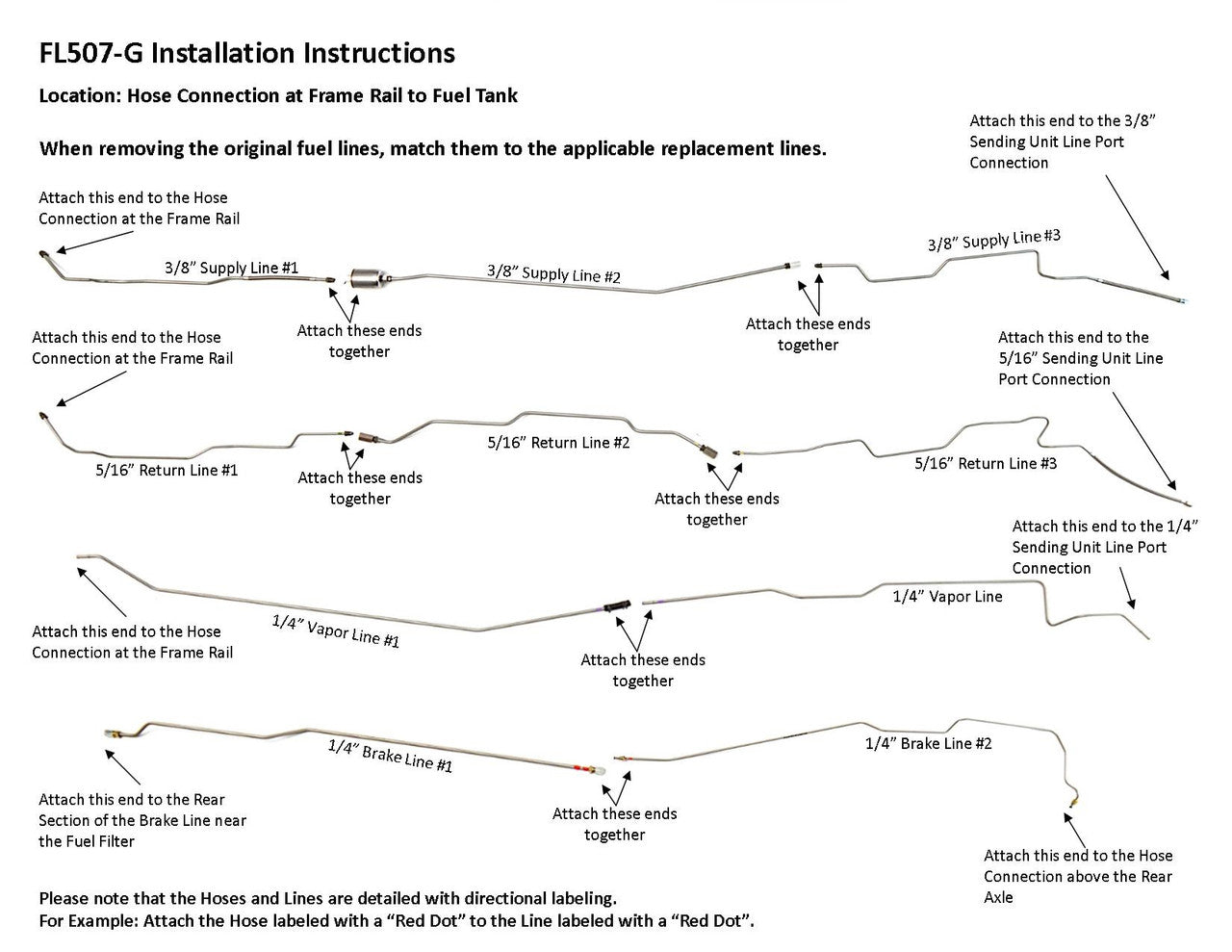

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 3 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), 1 brake line 1/4" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 5 unions

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3234-01, 3176-01

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250
