Shop LinesToGo for 2002 Suburban fuel lines - 5.3L (L59) Flex Fuel Only

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

6093-01 includes 1 - 3/8” Nylon Line, 1 union, 1 - 90 degree quick connector 3/8"

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

SKU: FL149-DX1A
Box Dimensions 39" x 11" x 7"

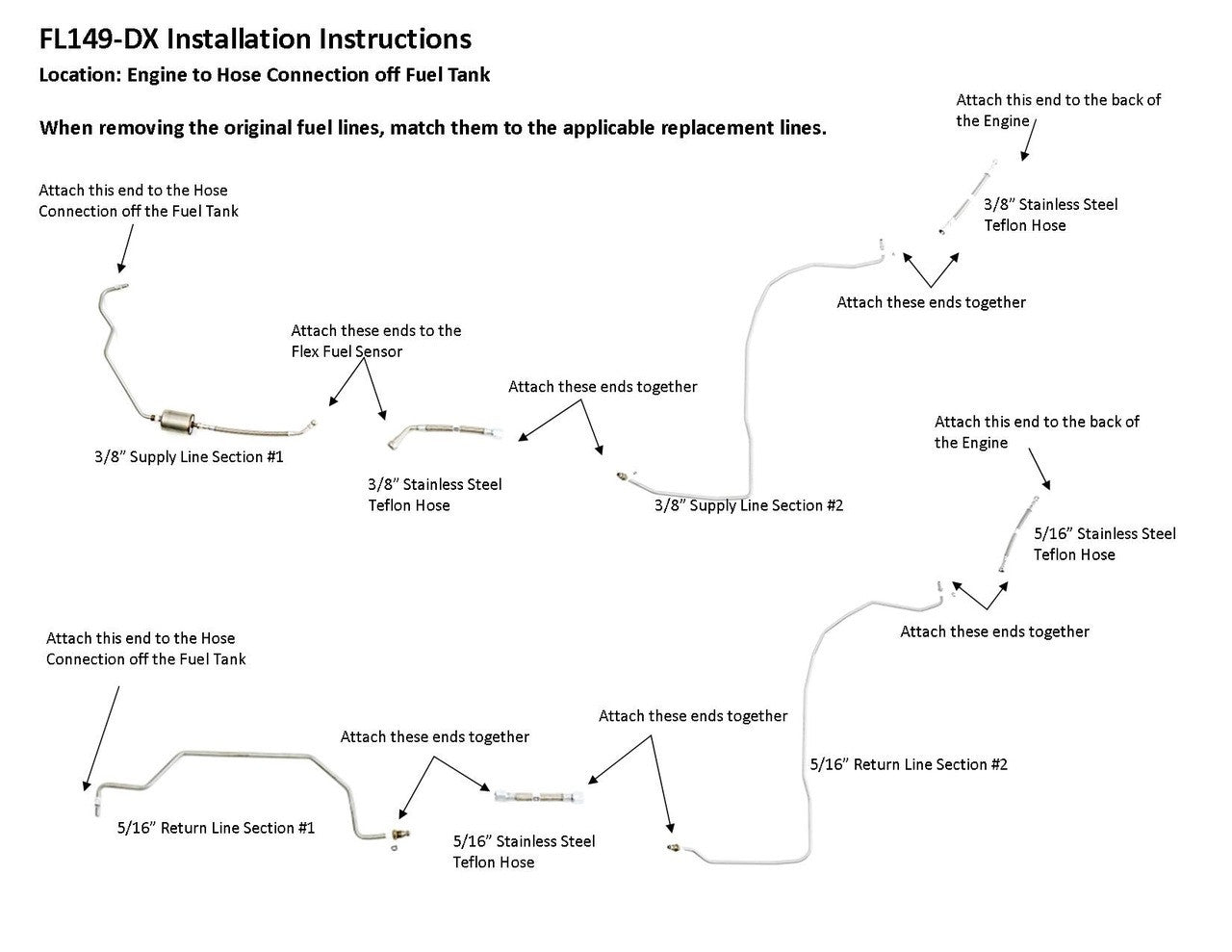

Engine to Hose Connection off Fuel Tank

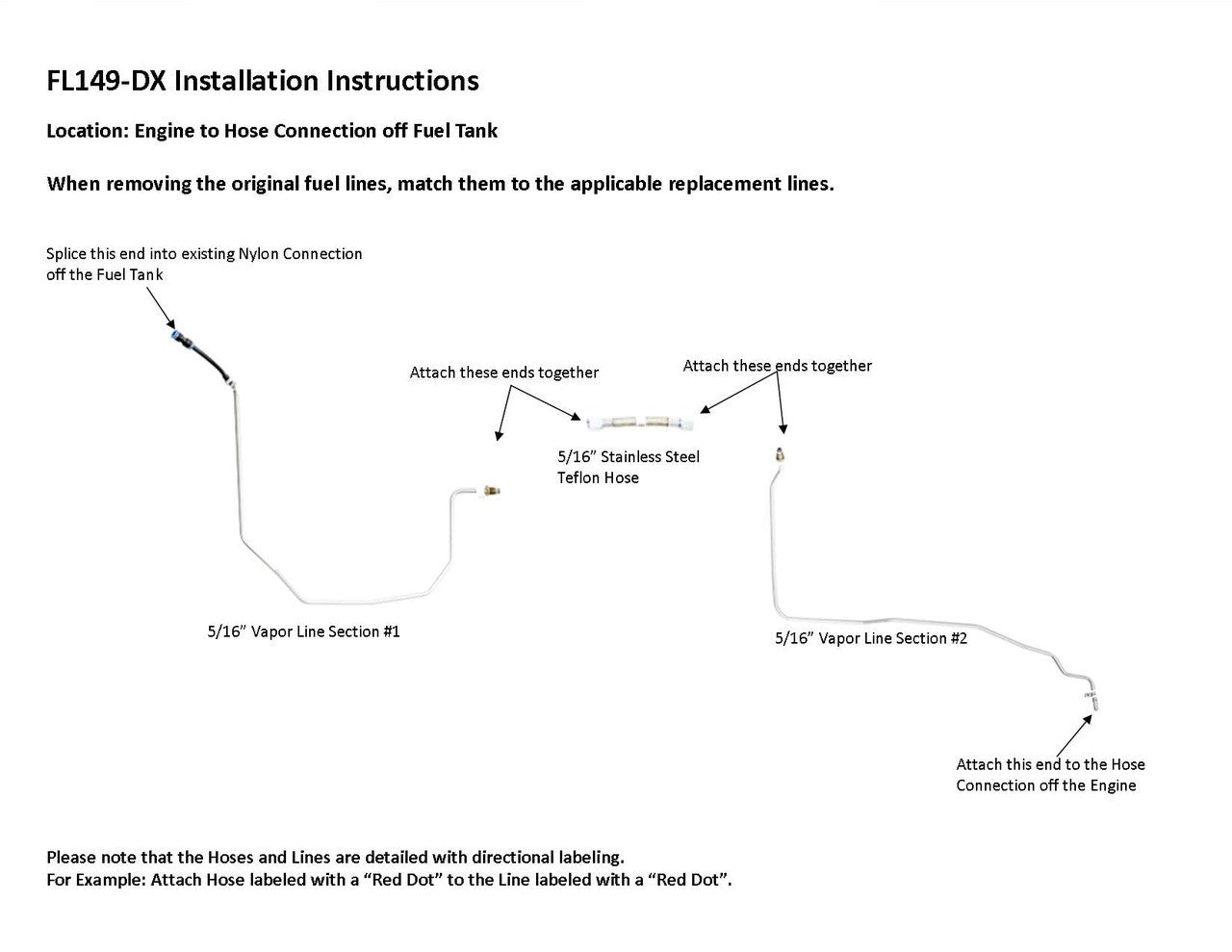

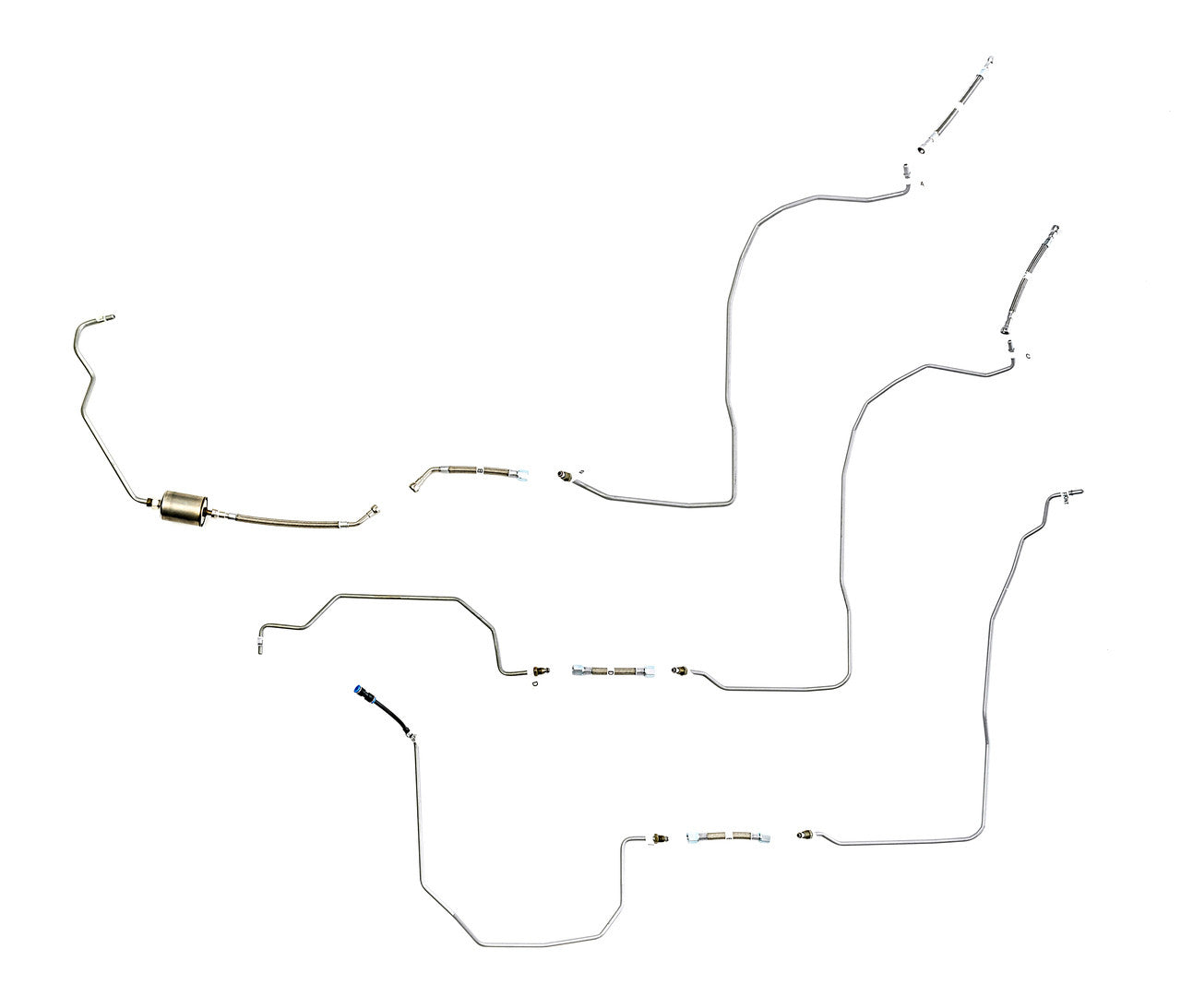

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16"( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to engine connection, hoses to join rear and front sections, hoses to flex fuel sensor, nylon hose with union, 1 fuel filter

15207074

Lines are constructed from Galfan® coated  steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
