SALE:
Save $37.82
/

Delivery Time & Rates

Shop LinesToGo for 1977 Suburban fuel lines - C10/C20 2WD Gas 5.0L engine

Please Note: Before installing your lines, shipping bends will need to be removed from the lines labeled SL507H375A1, RL507H313A2YY, VL507H250A1-B, BL507H250A1-B, and BL507H250A3. See the video below on how to remove the shipping bend.

SKU: FL507-H1E
Box Dimensions 57" x 11" x 7"

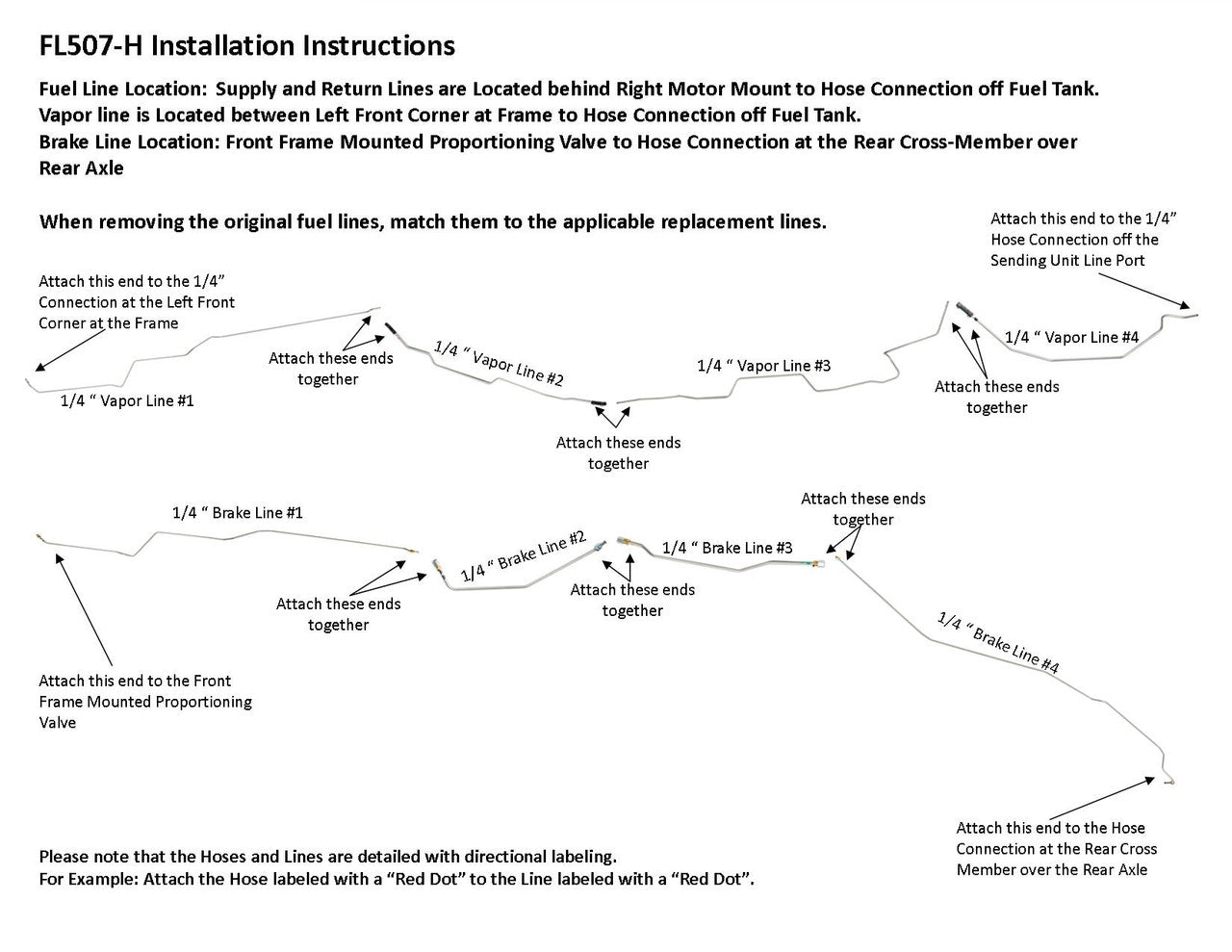

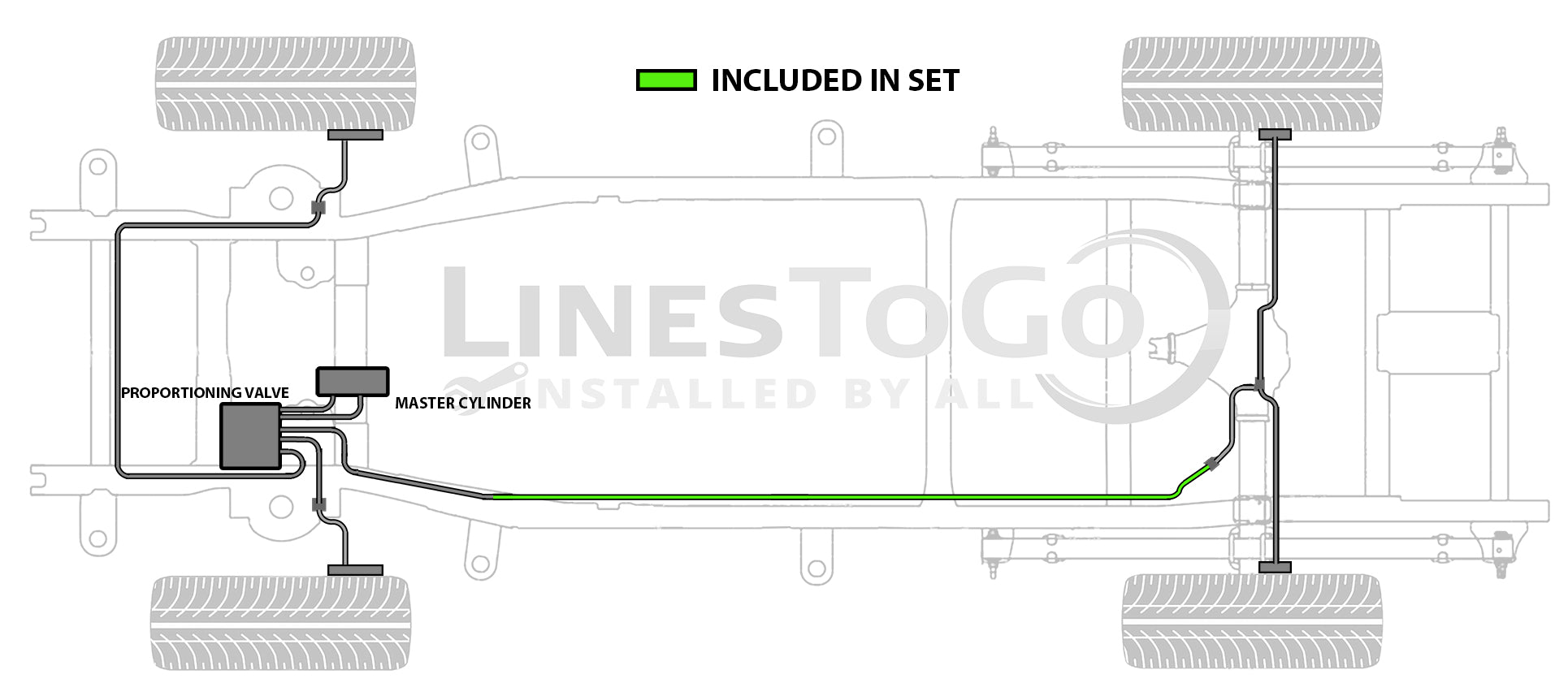

Brake Line Location: Front Frame Mounted Proportioning Valve to Hose Connection at the Rear Cross-Member over Rear Axle

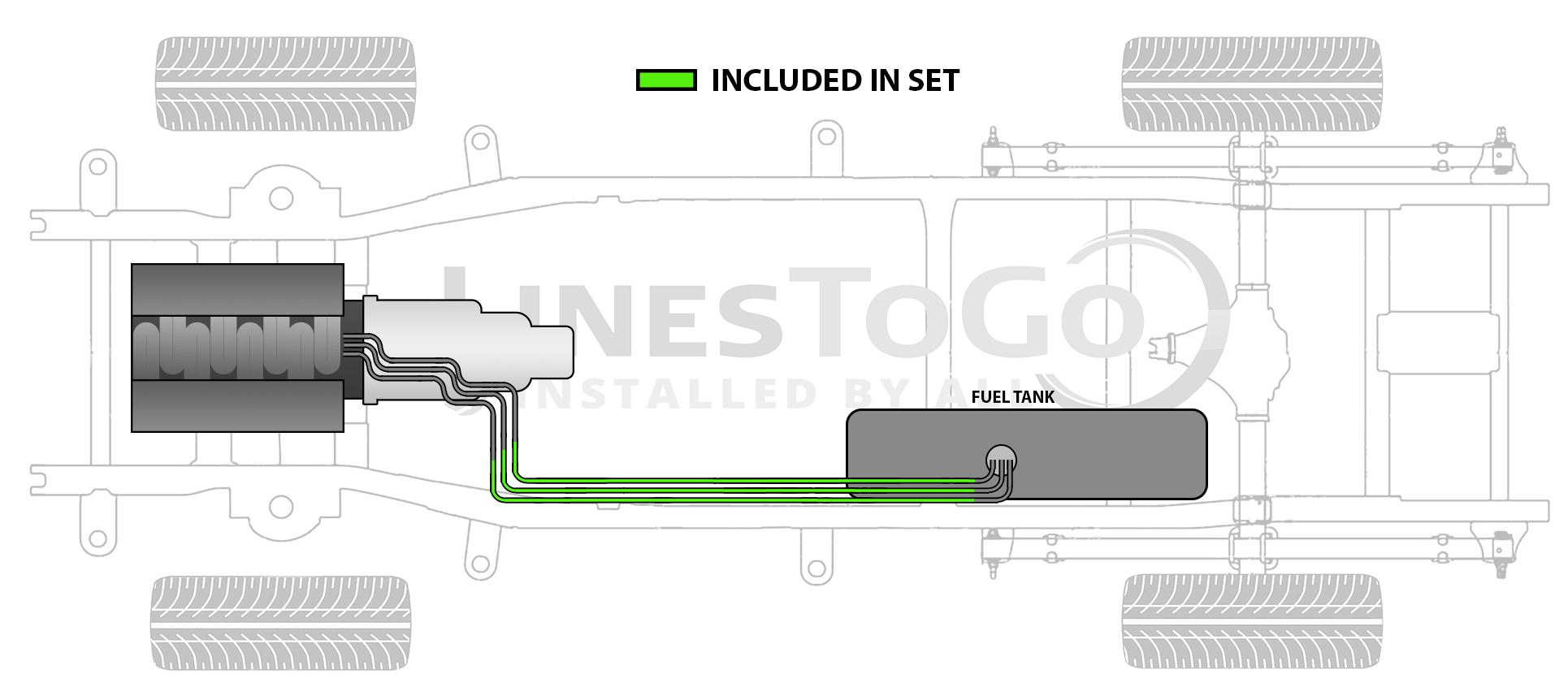

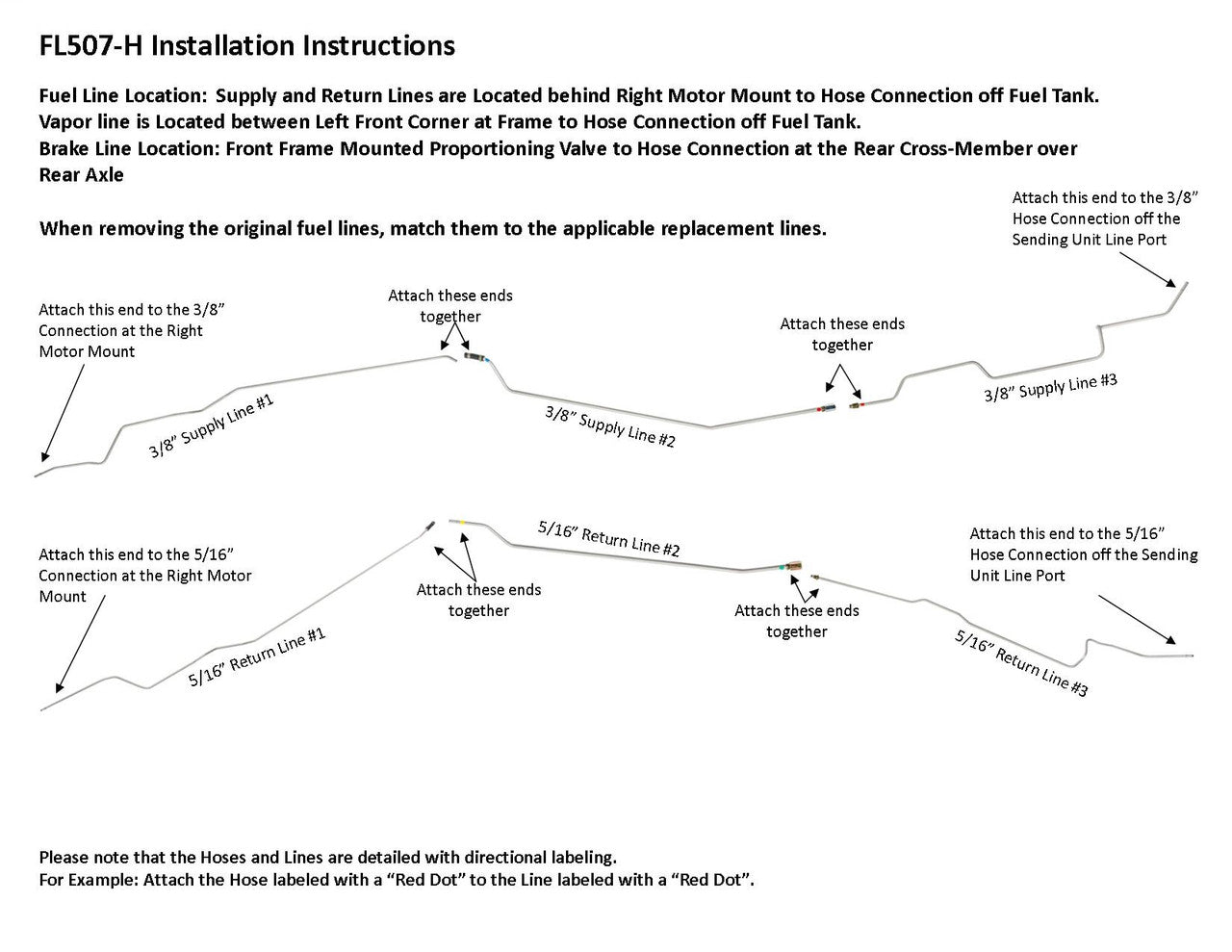

Fuel Line Location: Supply and Return Lines are Located behind Right Motor Mount to Hose Connection off Fuel Tank. Vapor line is Located between Left Front Corner at Frame to Hose Connection off Fuel Tank

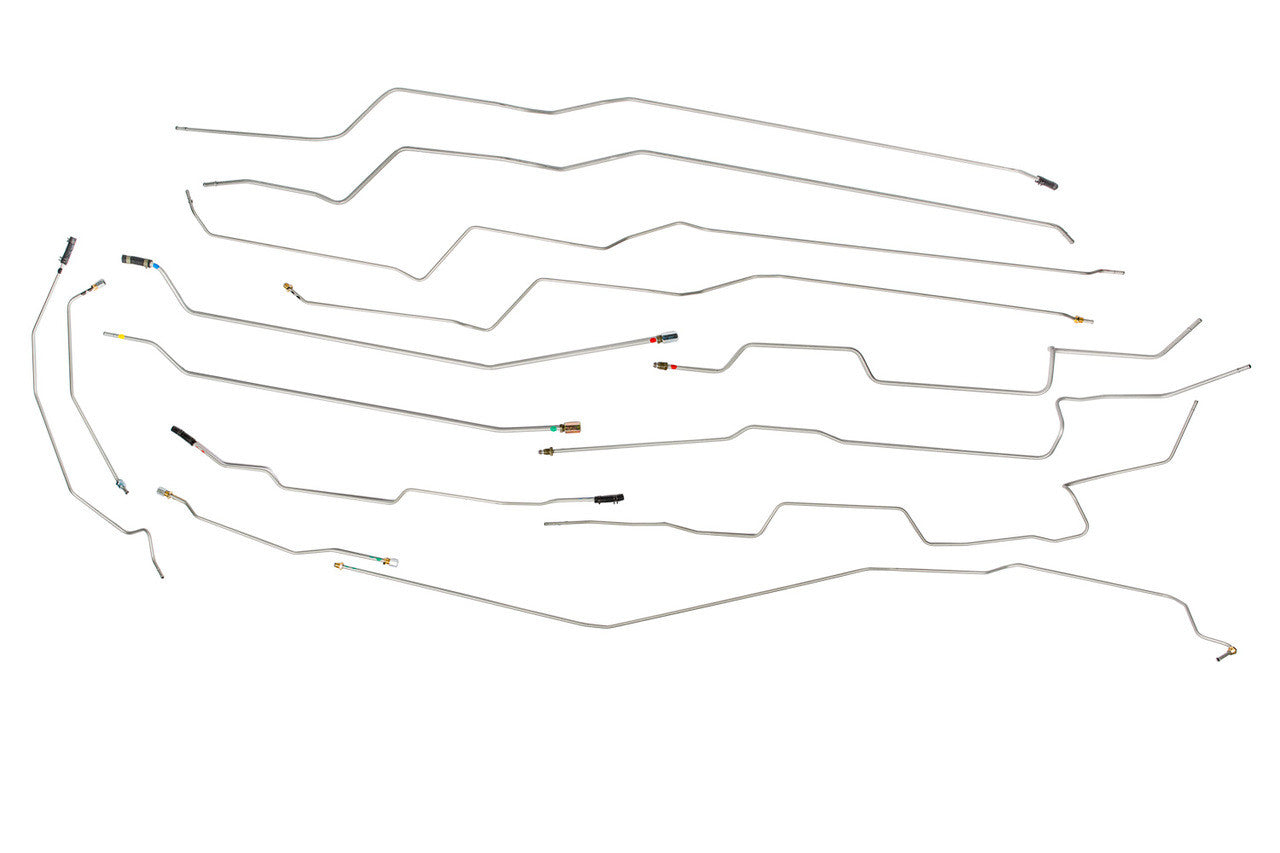

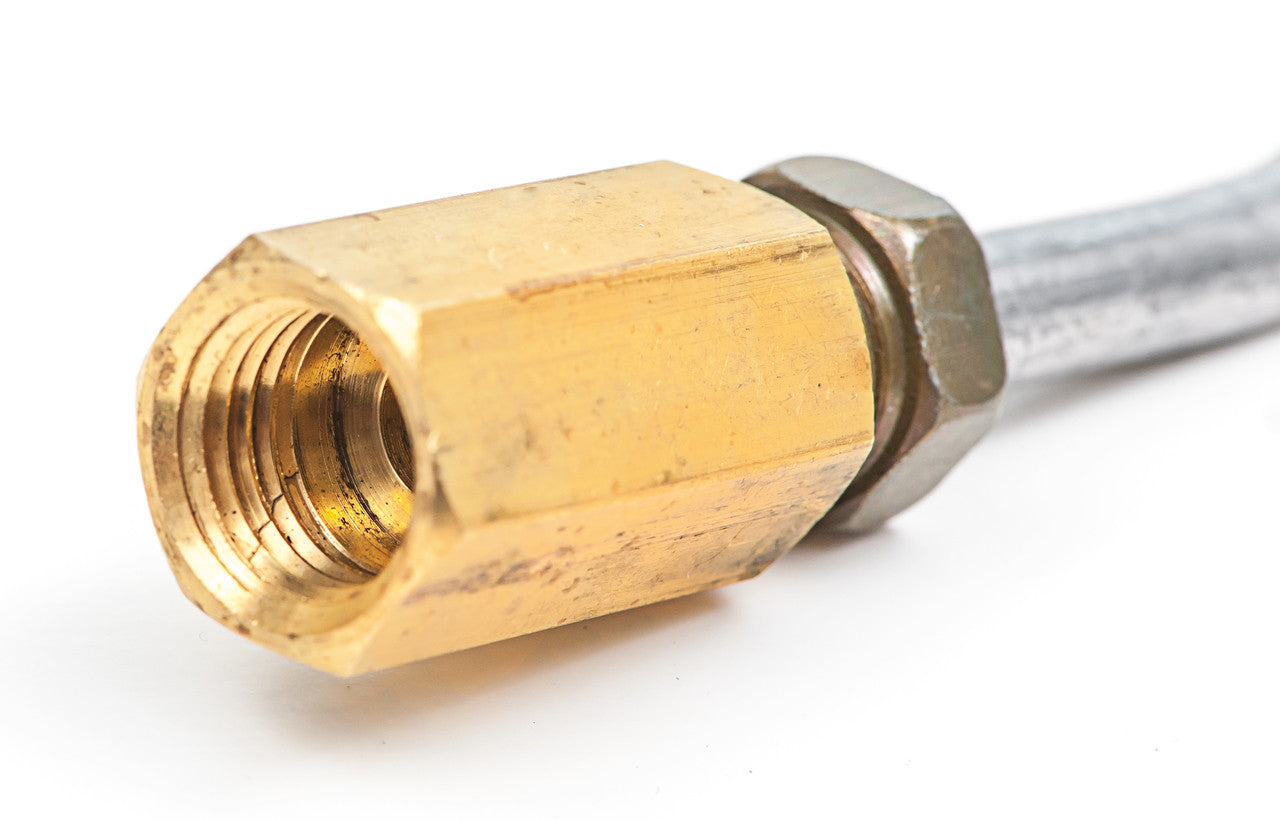

1 supply line 3/8" (in 3 easy to install sections), 1 return line 5/16" (in 3 easy to install sections), 1 vapor line 1/4" (in 4 easy to install sections),1 brake line 1/4" (in 4 easy to install sections), hoses to join the sections, 5 unions

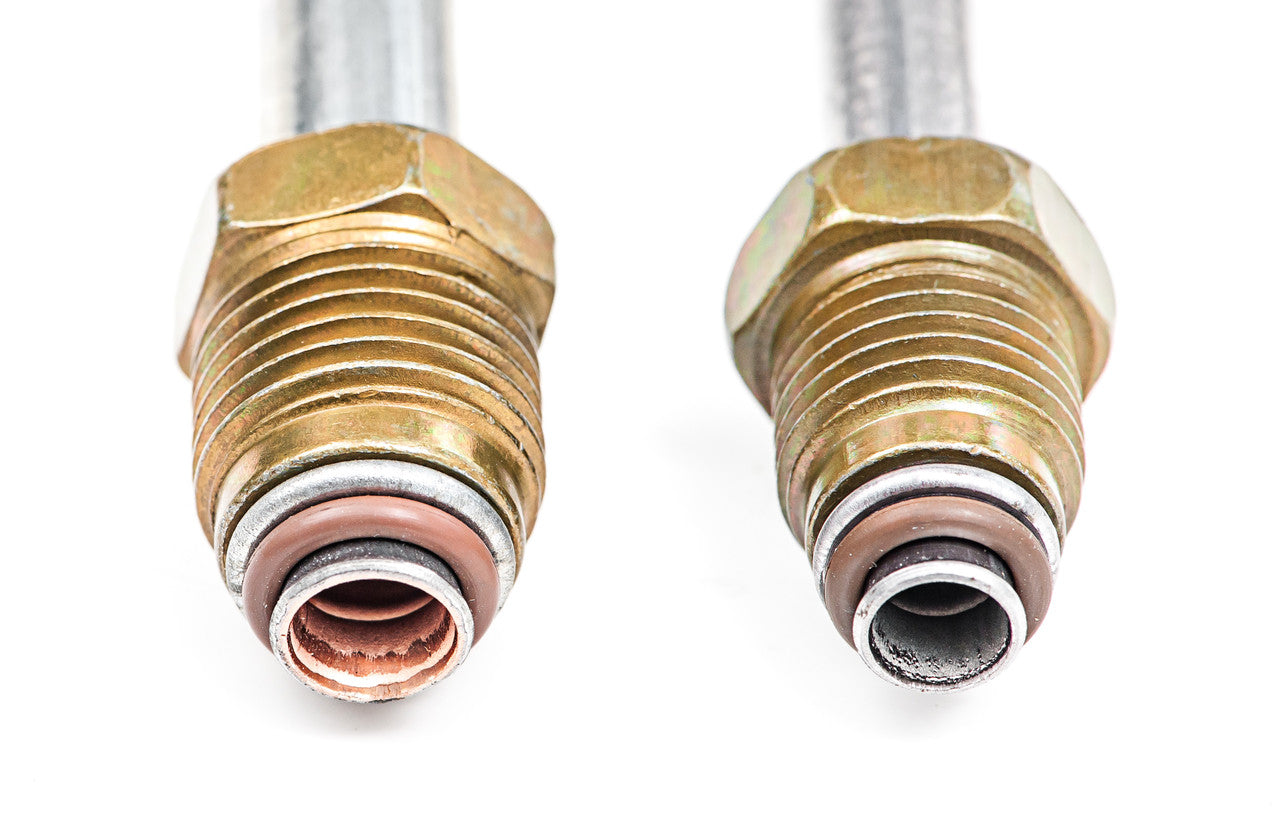

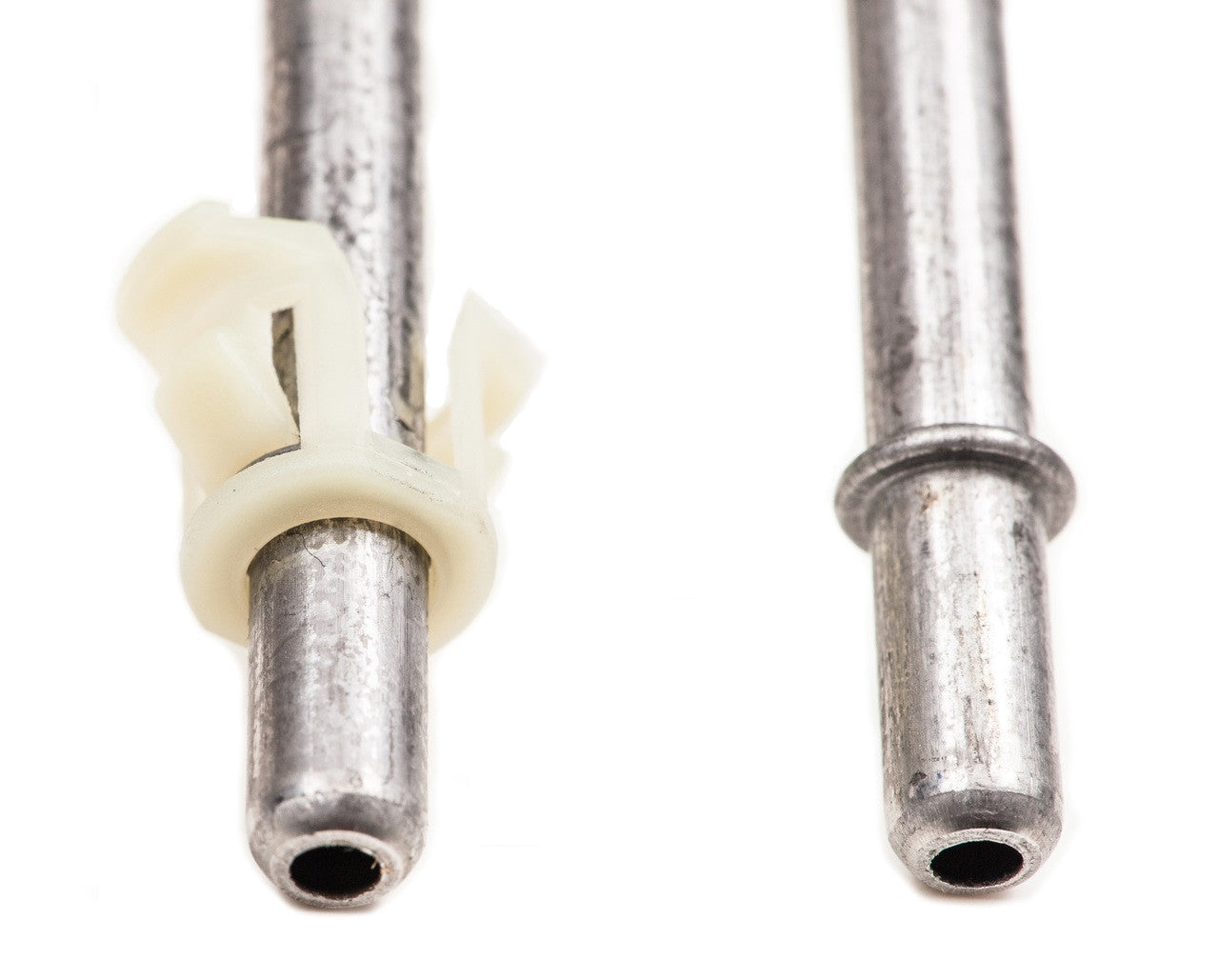

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250, FI-504250, FI-505250
