Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel

w/o Active Brake Control

Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel
Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel

Chevy Suburban Brake Line Set 2004 1500 130" WB 5.3L BLC-136-SS3B Stainless Steel

w/o Active Brake Control

SALE: from
from
Save $56.24
from /

Delivery Time & Rates

Choose from 2004 Suburban brake lines to fit your Chevrolet without a problem...

Brake Line Set Stainless Steel Chevy Suburban 1500 130" WB w/o Active Brake Control for 5.3L engines

SKU: BLC-136-SS3B
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

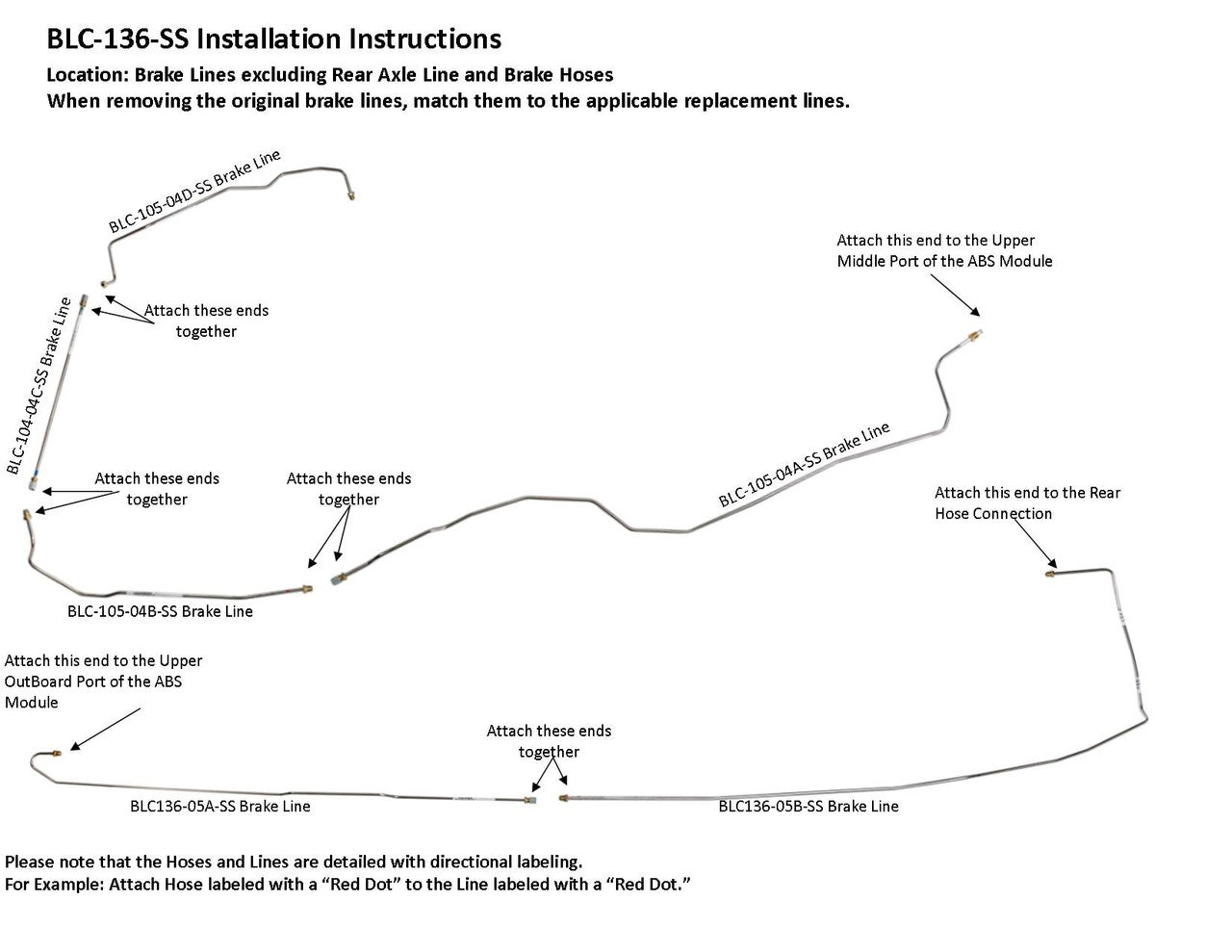

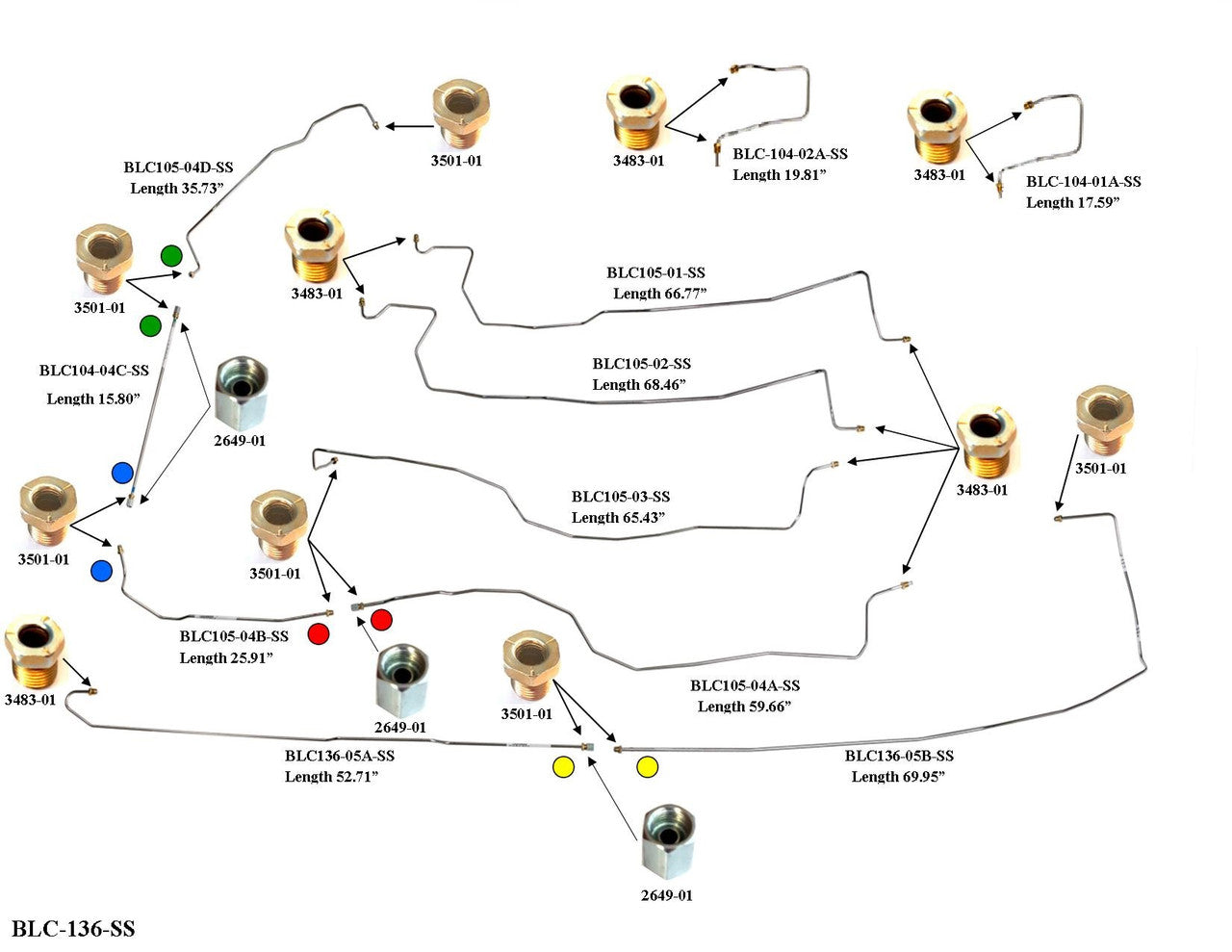

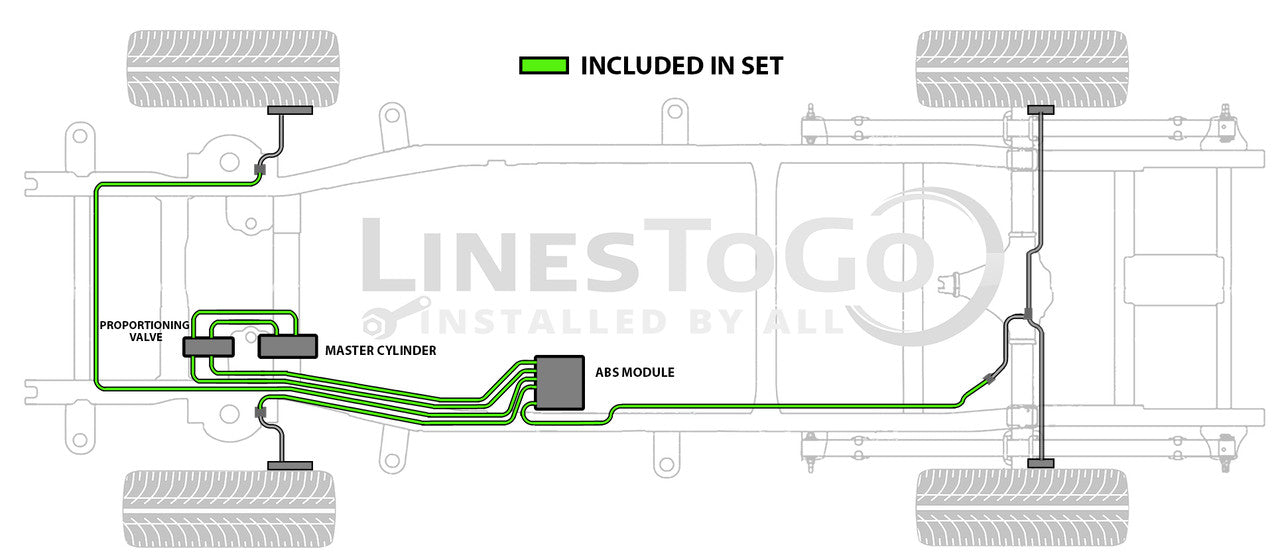

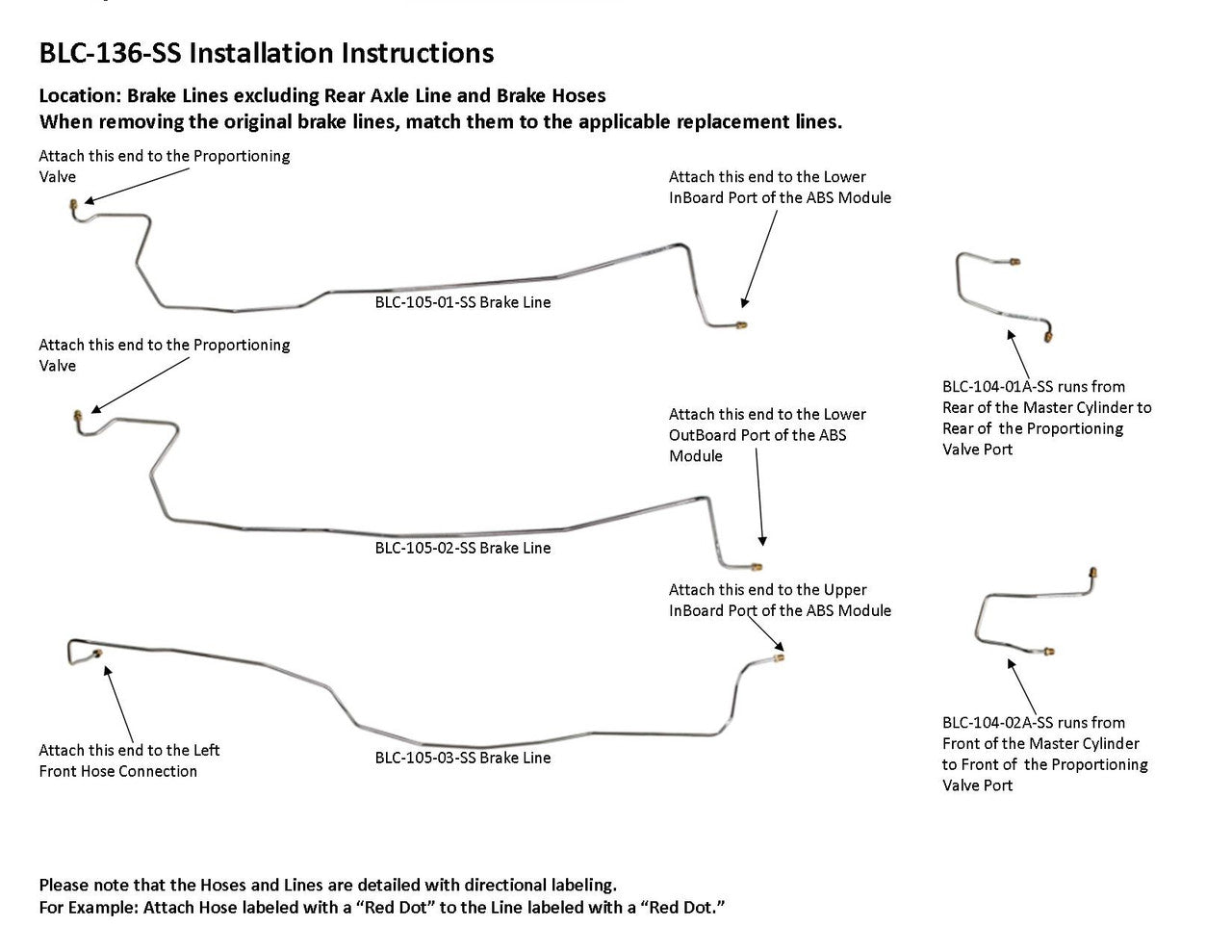

1 Master Cylinder Primary Line from Rear of Master Cylinder to Proportioning Valve, 1 Primary Line from Proportioning Valve to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Proportioning Valve, 1 Master Cylinder Secondary Line from Proportioning Valve to Lower Outboard Port of ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of ABS, Right Front Line from Hose Connection to Upper Middle Port of ABS (4 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections)

22932594

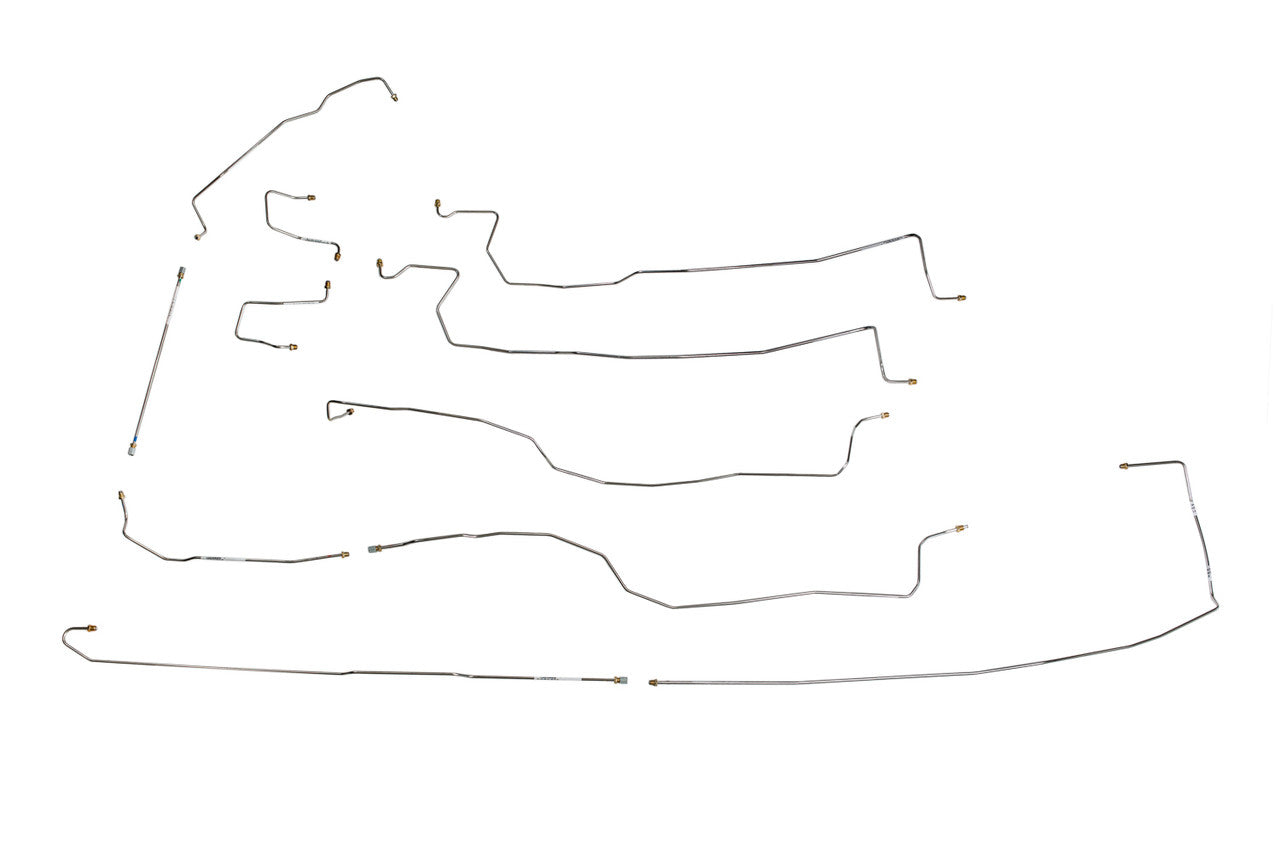

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
