Shop LinesToGo for 2006 Silverado Chevrolet truck fuel lines - C/K Series 1500 Reg Cab 6.5 ft & 8 ft box  2WD & 4WD 5.3L Non-Flex Fuel Stainless Steel Set

Nylon lines between the fuel line and the fuel tank are not included. However, you can purchase Stainless Steel Lines between fuel lines and fuel tank, 5076-01C.

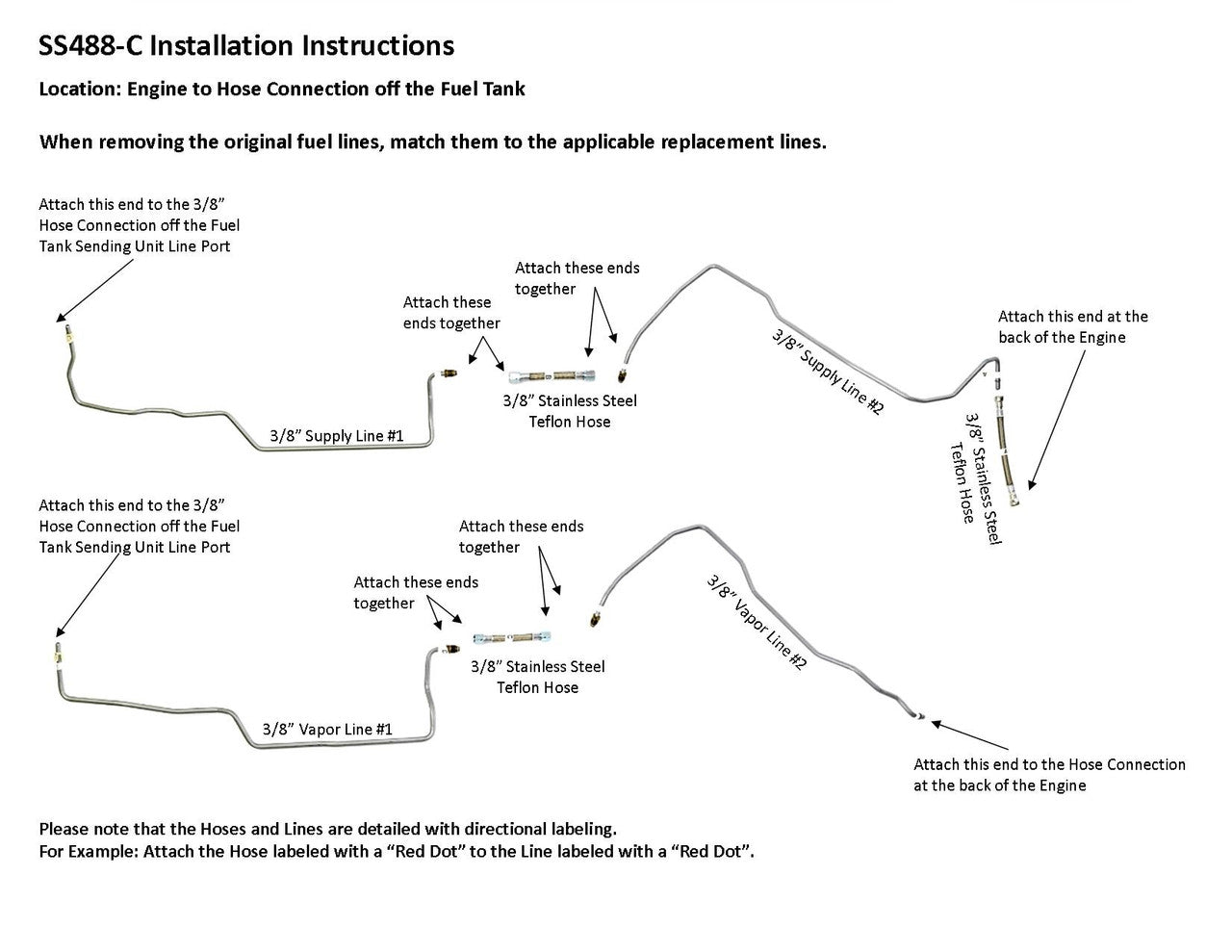

Location: Engine to Hose Connection off Fuel Tank

OEM Part Number: 15946178

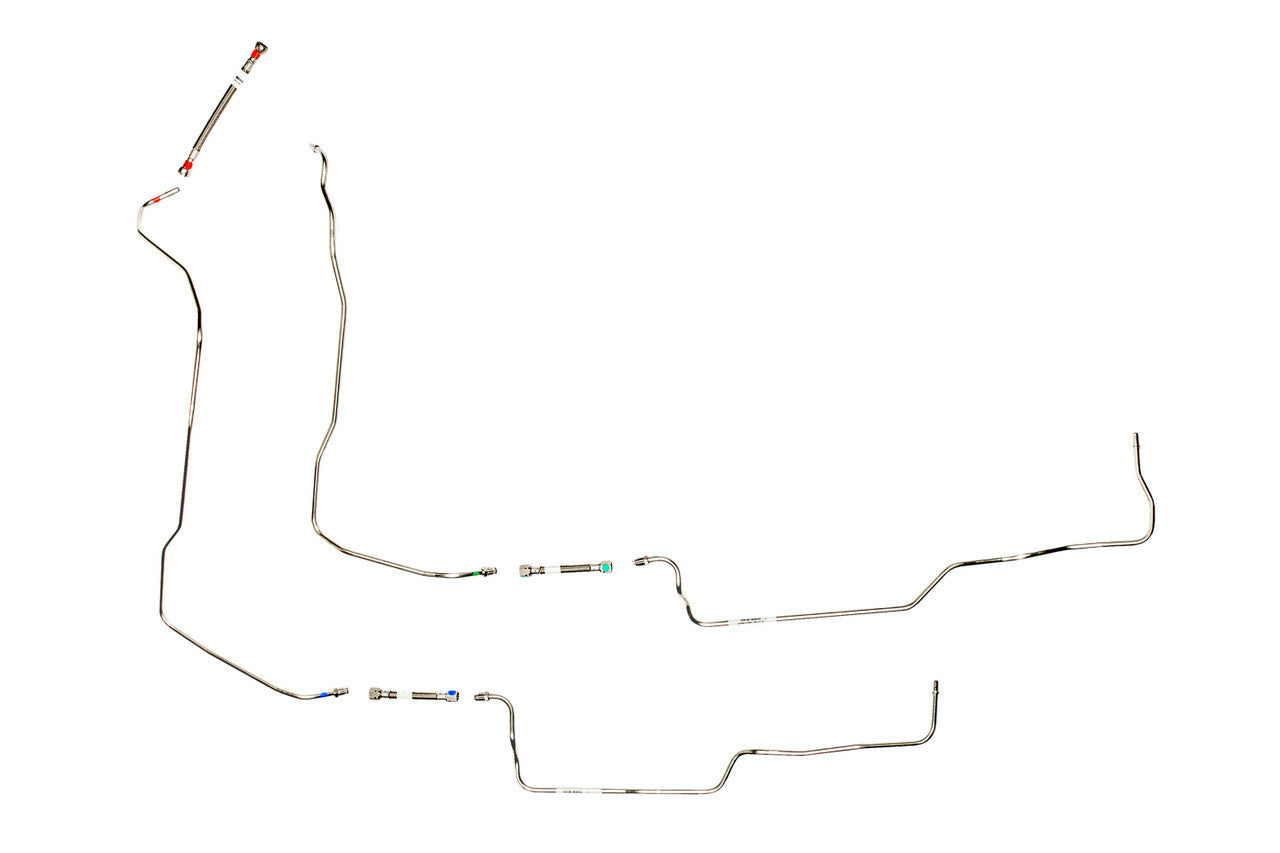

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hoses to join rear and front sections, hose to engine connection

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
