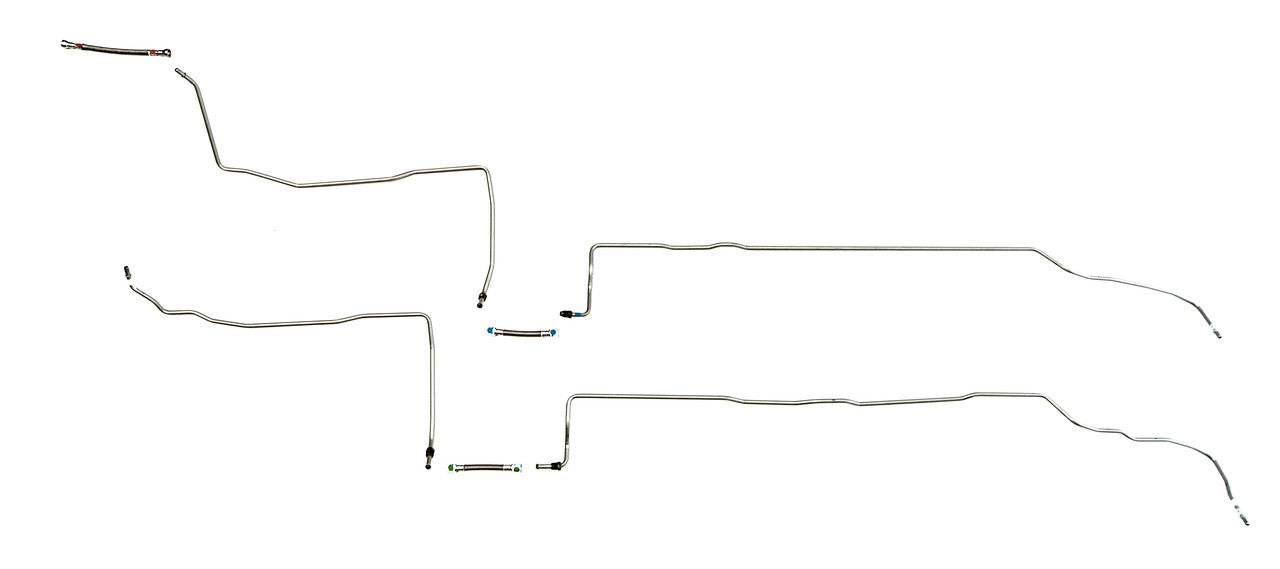

Fuel Line Set 06 Silverado 1500 Ext Cab 6.5 ft & 8 ft box 2WD & 4WD 4.3L

Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3070-01, which will attach to your existing nylon line providing a new connector for the supply and vapor lines to connect to.

SKU: FL486-A1B
Box Dimensions 57" x 11" x 7"

Engine to Hose Connection off Fuel Tank

1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hoses to join rear and front sections

15208060

Lines are constructed from Galfan® coated  steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

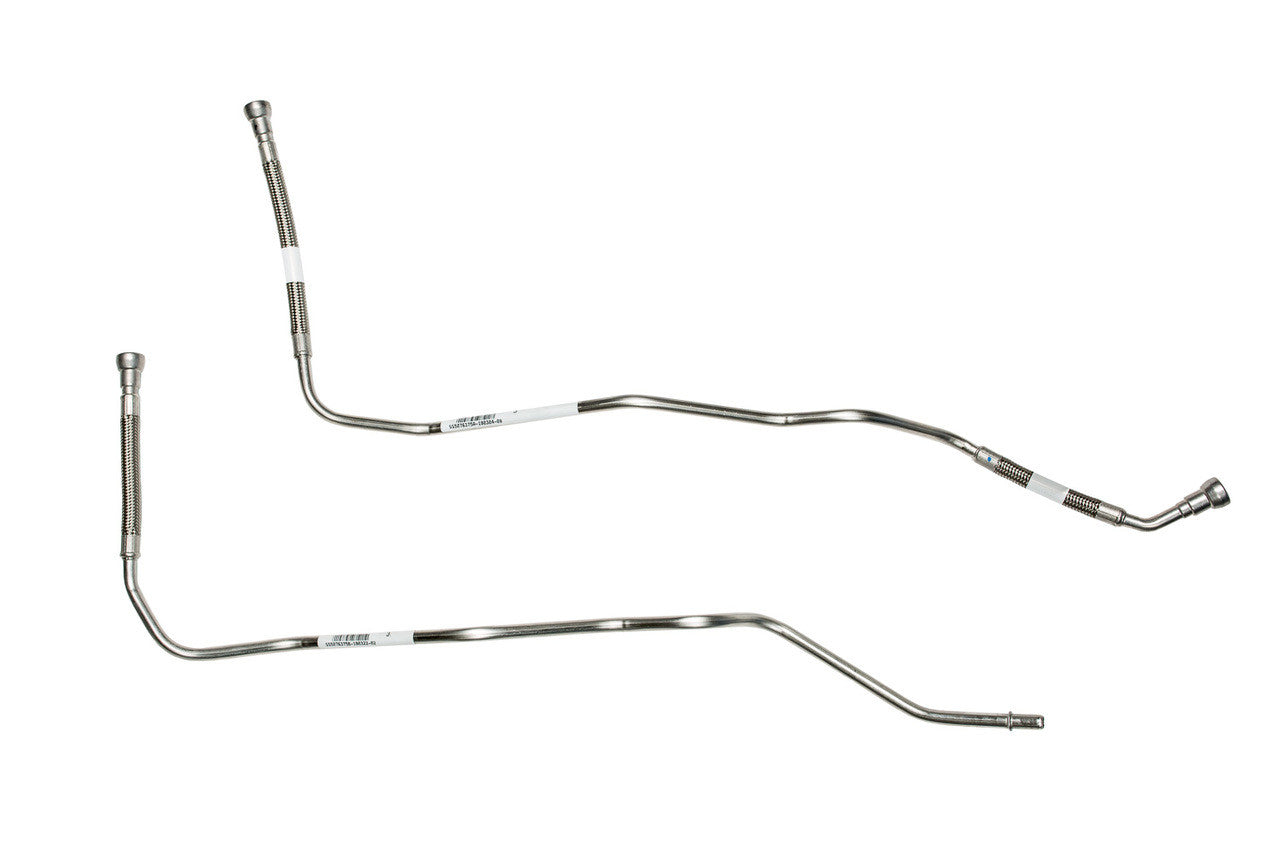

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
