Shop LinesToGo for 2005 Chevrolet Silverado truck fuel lines -

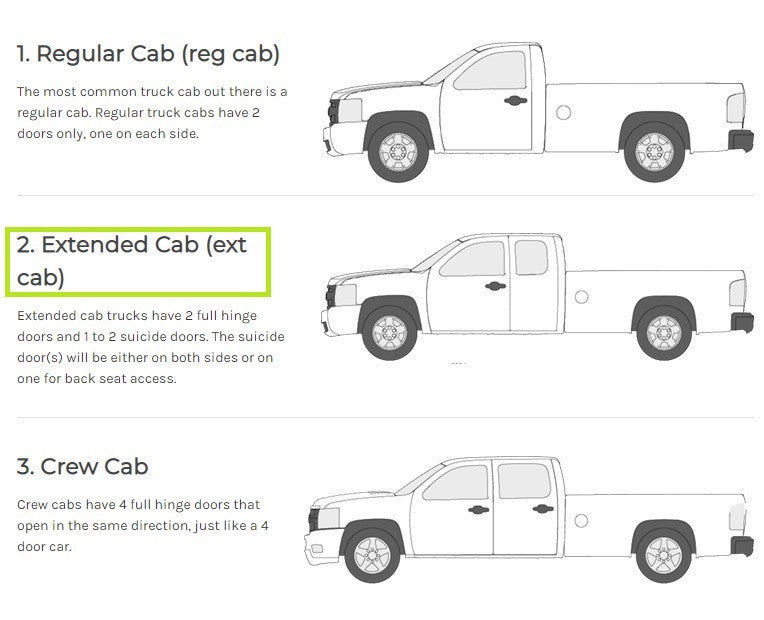

Stainless Steel Fuel Line Set 2005 Chevrolet Silverado 2500HD/3500/3500HD Ext Cab 6.5ft/8ft box 2WD & 4WD 8.1L engine

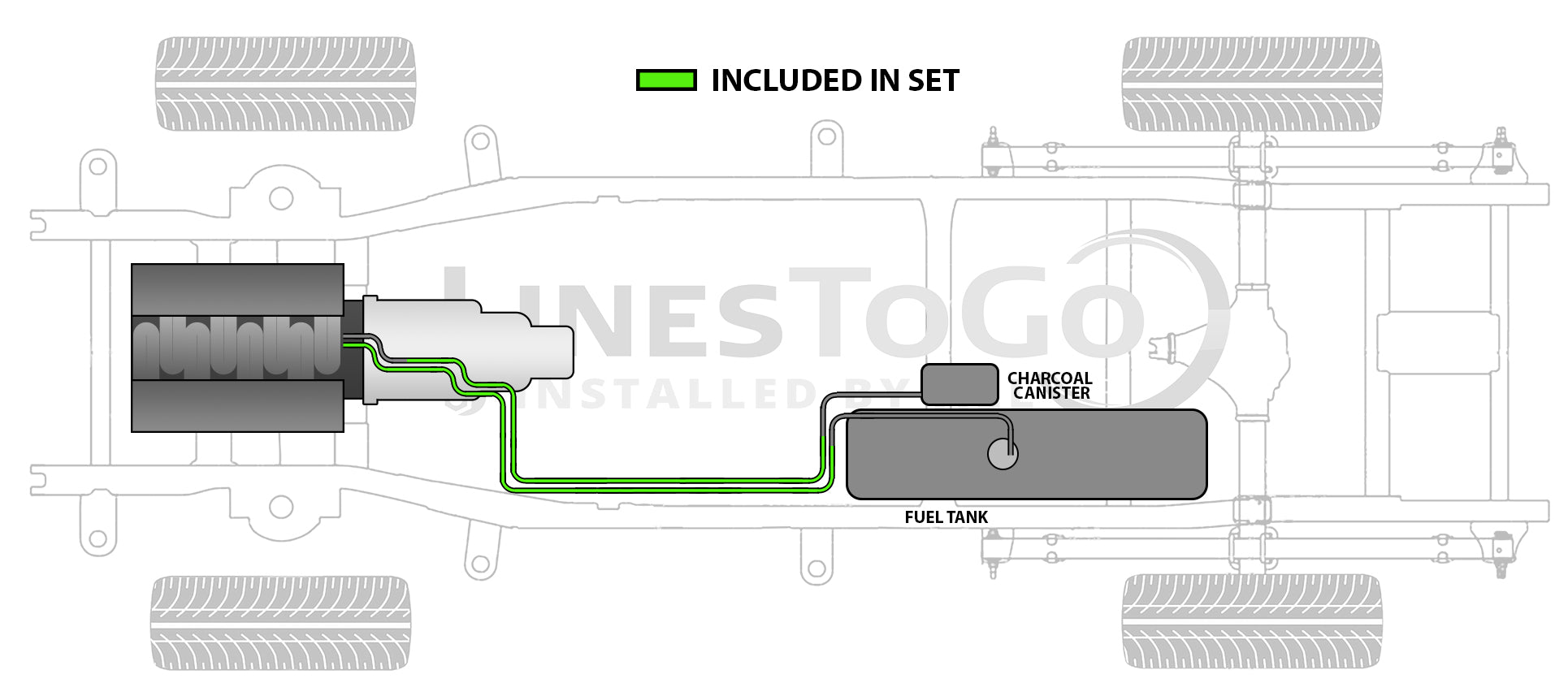

Location: Engine to Hose Connection off Fuel Tank
Nylon Lines Between Fuel Lines and Fuel Tank:
Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3070-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.

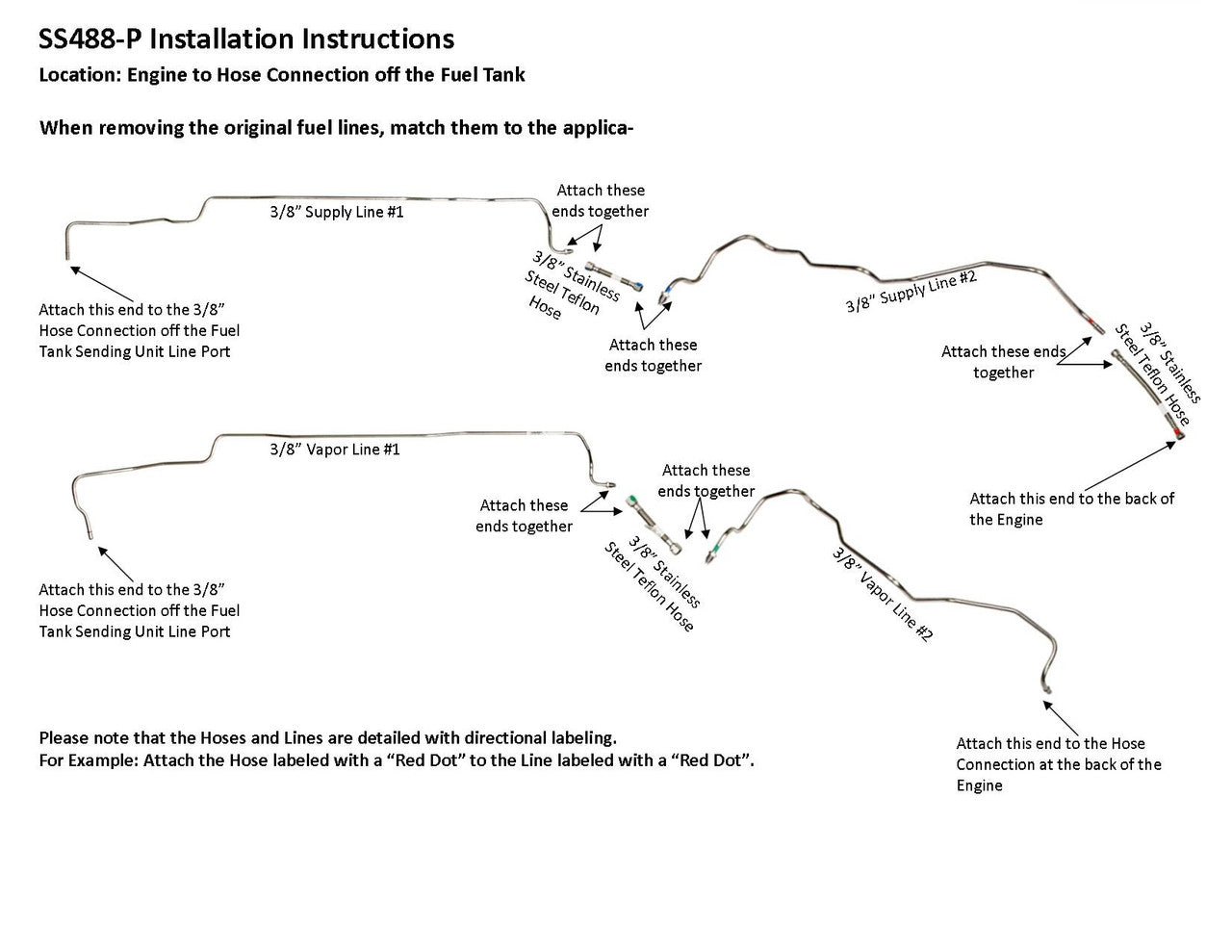

Nylon Installation Instructions:
Step 1
Cut the new nylon hose in the same position as the original nylon hose.
Step 2
Cut the original nylon hose in the same position as the new nylon hose.
Step 3
Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.
OEM Part Number: 15946200

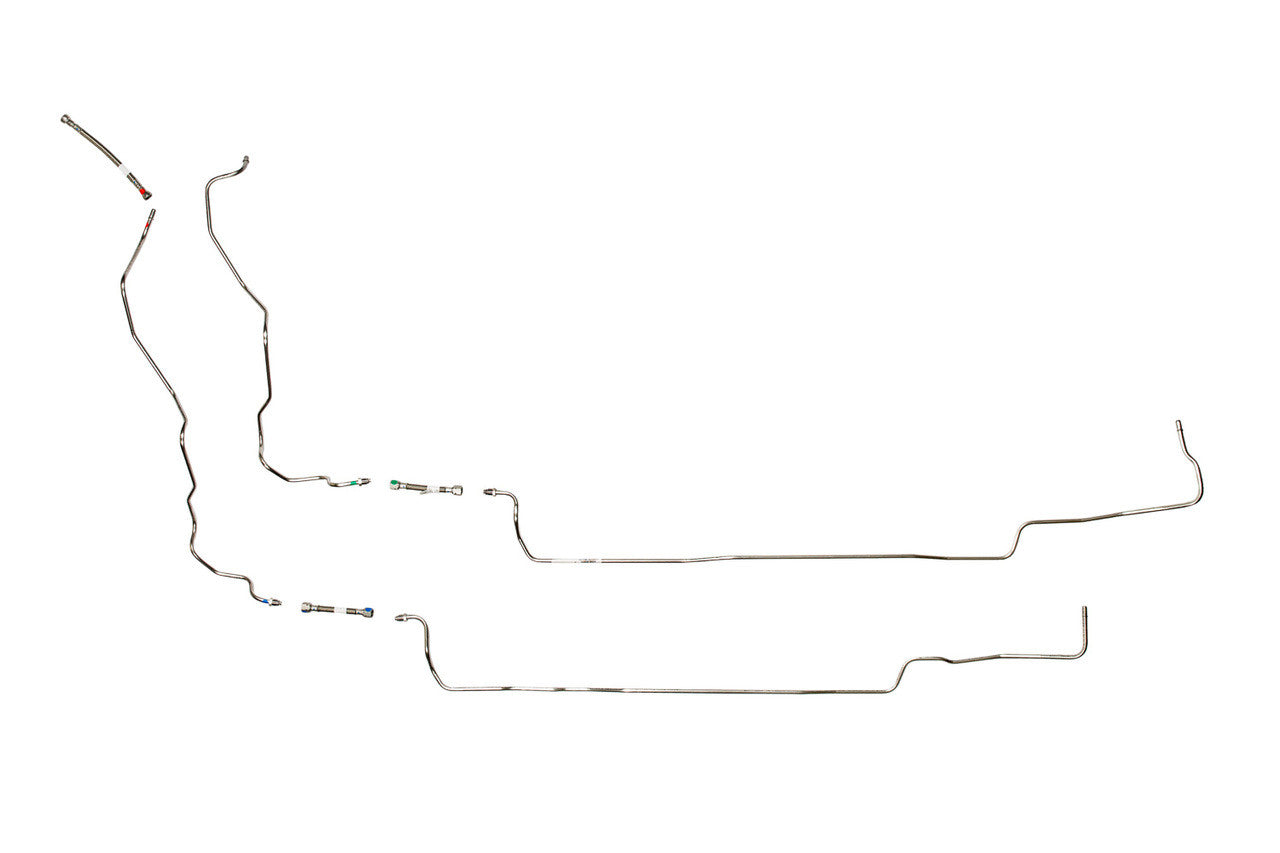

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front sections

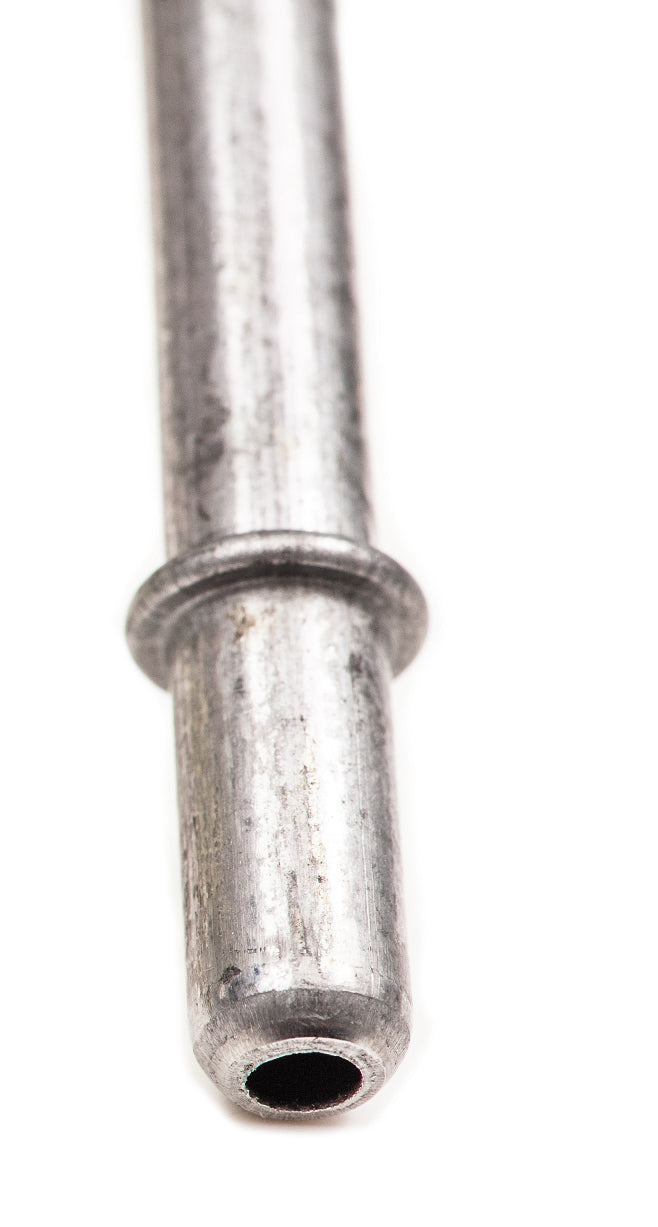

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Warranty: 1 Year
Box Dimensions: 57" x 11" x 7"
