Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1

Flex Fuel (RPO Code L59)

Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1
Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1

Chevy Silverado Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX1

Flex Fuel (RPO Code L59)

SALE: from
from
Save $78.34
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
  • Weight: 6

Product Overview

Shop LinesToGo for 2005 Silverado Chevrolet truck fuel lines - 1500 Ext Cab 6.5 ft & 8 ft box 2WD & 4WD 5.3L Flex Fuel

Nylon lines between the fuel line and the fuel tank are not included. However, you can purchase Stainless Steel Lines between fuel lines and fuel tank, 5076-01.

Location: Engine to Hose Connection off Fuel Tank

OEM Part Number: 15237136

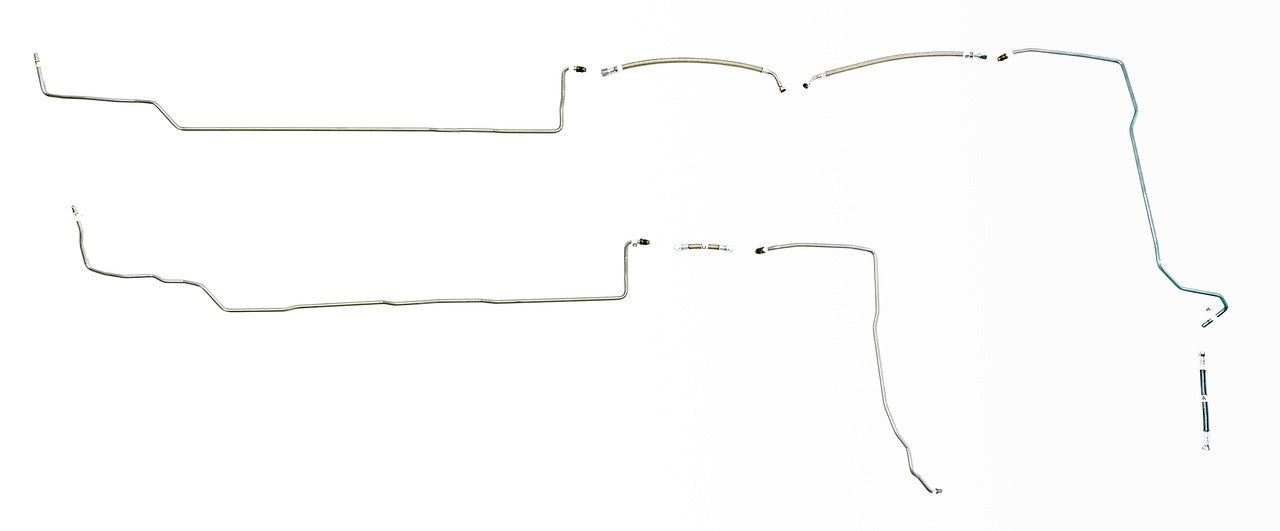

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to flex fuel sensor, hose to join rear and front section

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
