Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C

Flex Fuel (RPO Code L59) Carry Over Model Return Type Fuel System

Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C
Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C

Chevy Silverado Fuel Line Set 2004 C/K1500 Reg Cab 5.3L Flex Fuel FL488-HX1C

Flex Fuel (RPO Code L59) Carry Over Model Return Type Fuel System

SALE:
Save $78.11
/

Delivery Time & Rates

Shop LinesToGo for 2004 Silverado Chevrolet truck fuel lines - C/K Series 1500 Reg Cab 6.5 ft & 8 ft box 2WD & 4WD Carry Over Model Return Type Fuel System L59 5.3L Flex Fuel

SKU: FL488-HX1C
Box Dimensions 39" x 12" x 7"

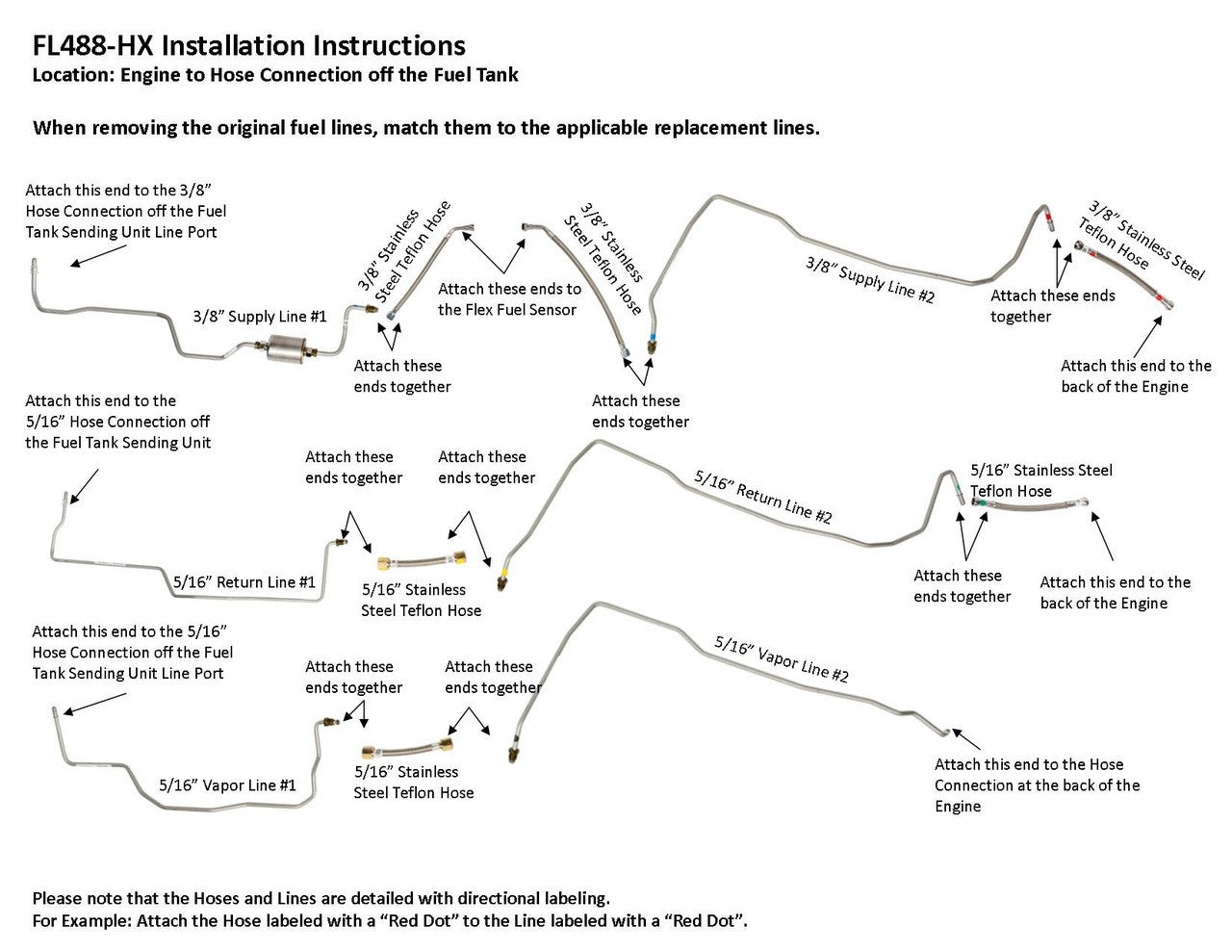

Engine to Hose Connection off Fuel Tank

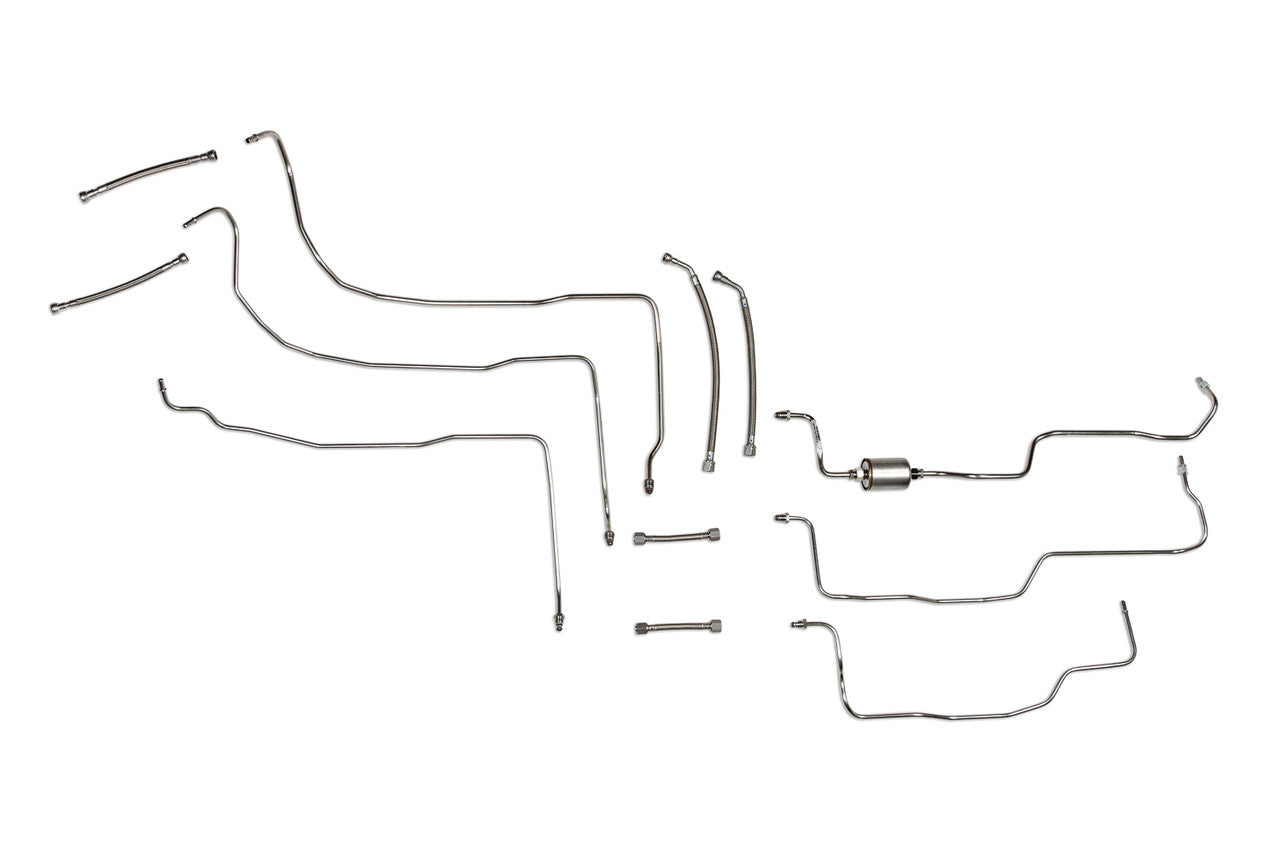

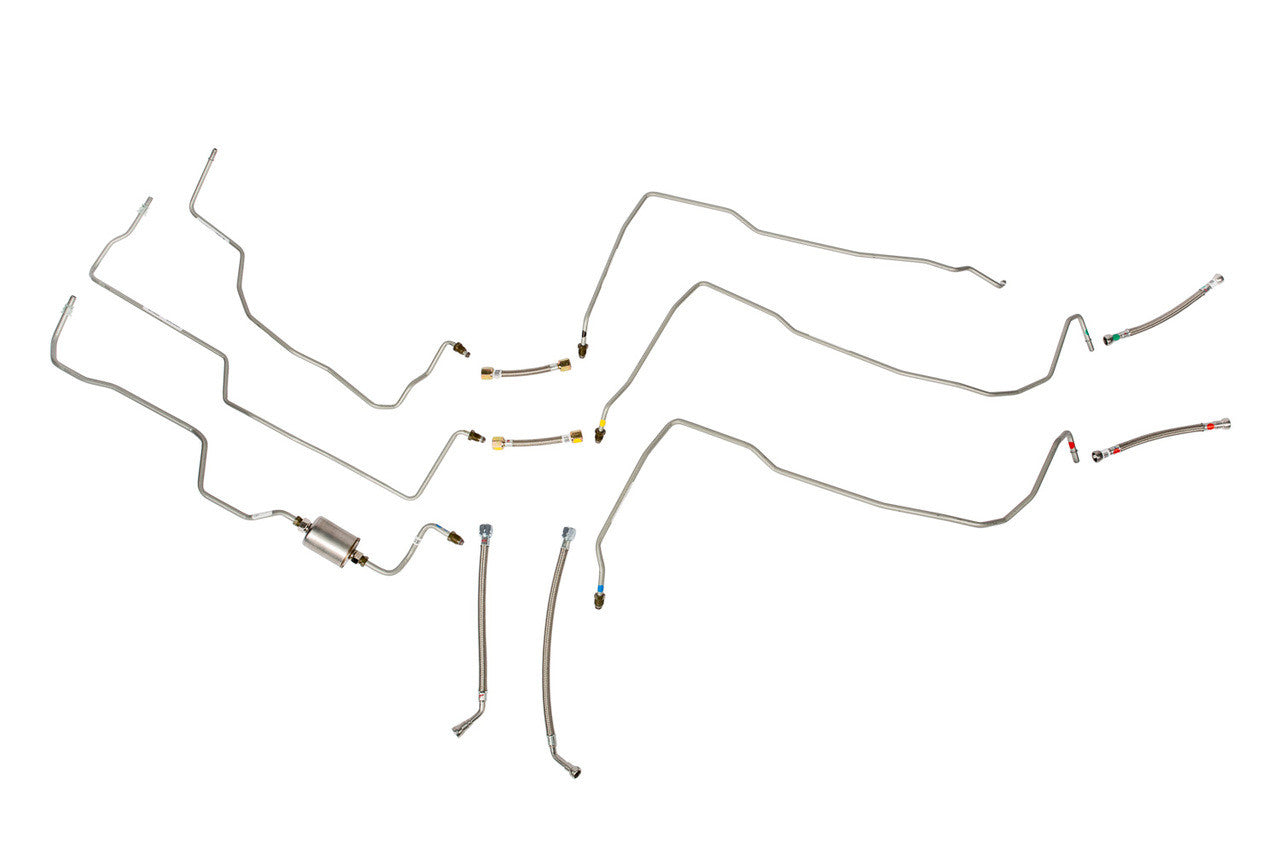

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to join rear and front sections, hoses to engine connection, 1 fuel filter

15173333

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
