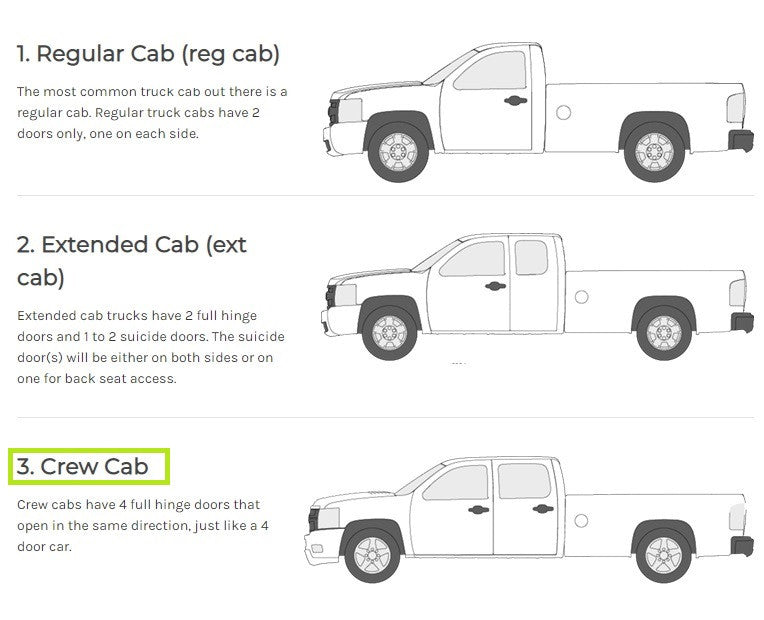

Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: FL488-K1C
  • Weight: 7

Shop LinesToGo for 2003 Silverado Chevrolet truck fuel lines - C/K Series 2500HD/3500 Crew Cab 6.5 ft & 8 ft box 2WD & 4WD 6.0L

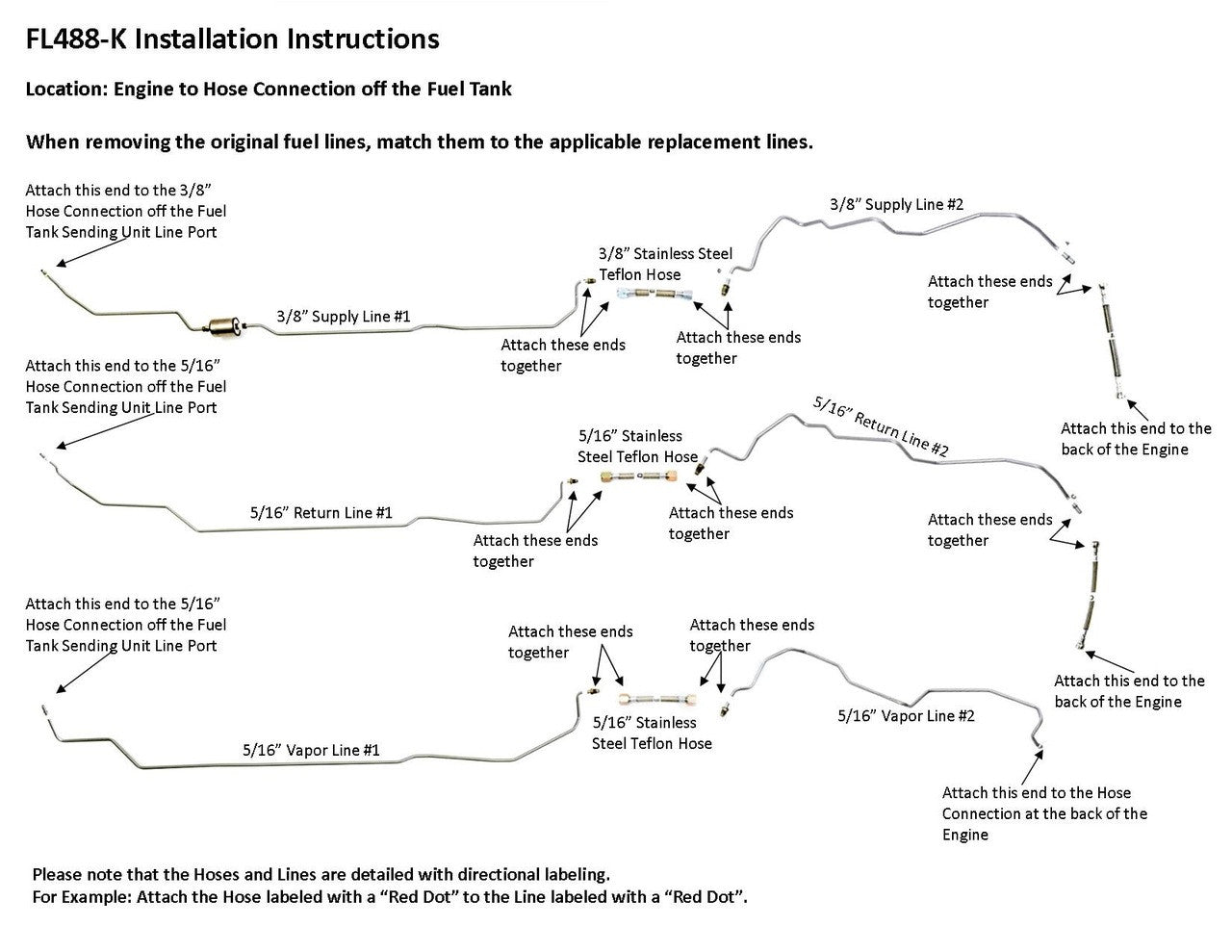

Location: Engine to Hose Connection off Fuel Tank

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA488K313B and SA488K313C. See the video below on how to remove the shipping bend.

Nylon Lines Between Fuel Lines and Fuel Tank:

Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3069-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 15765413

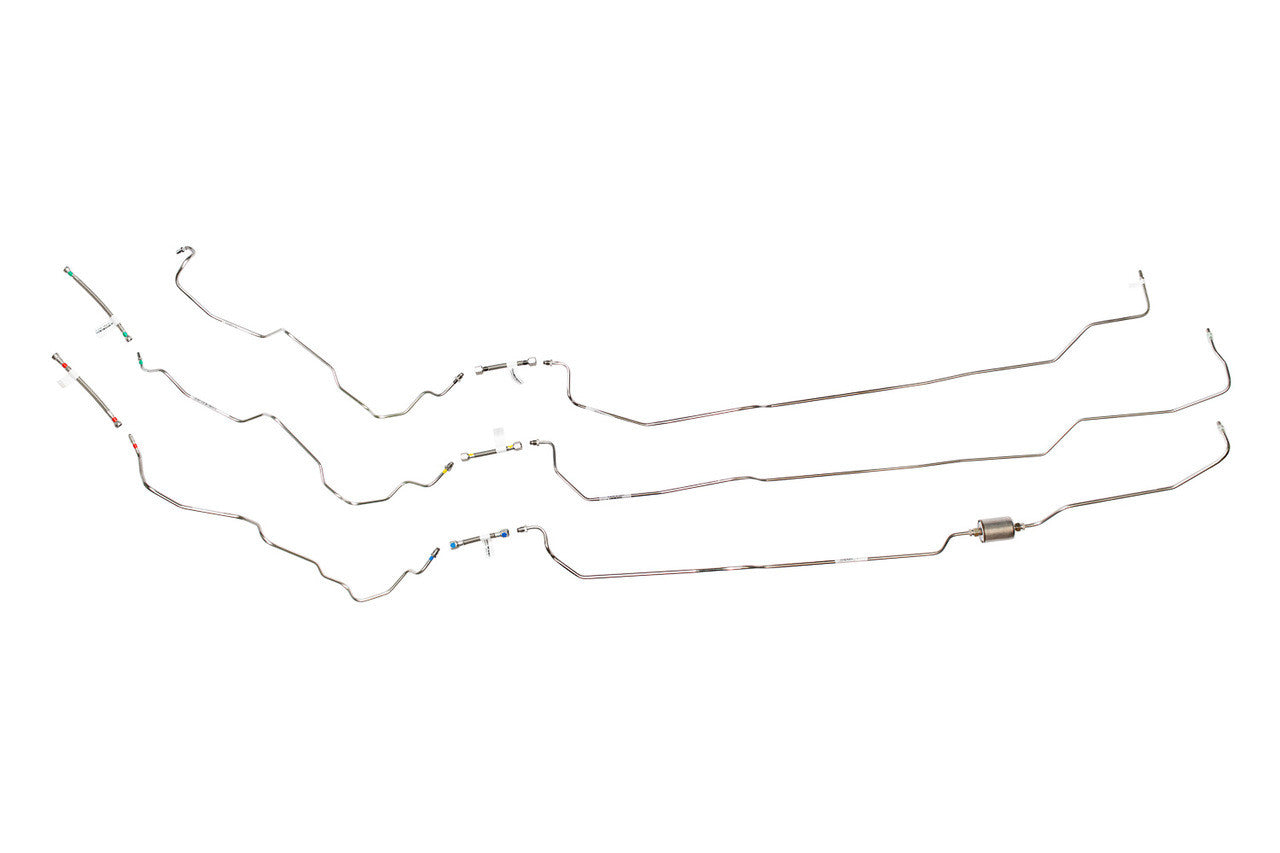

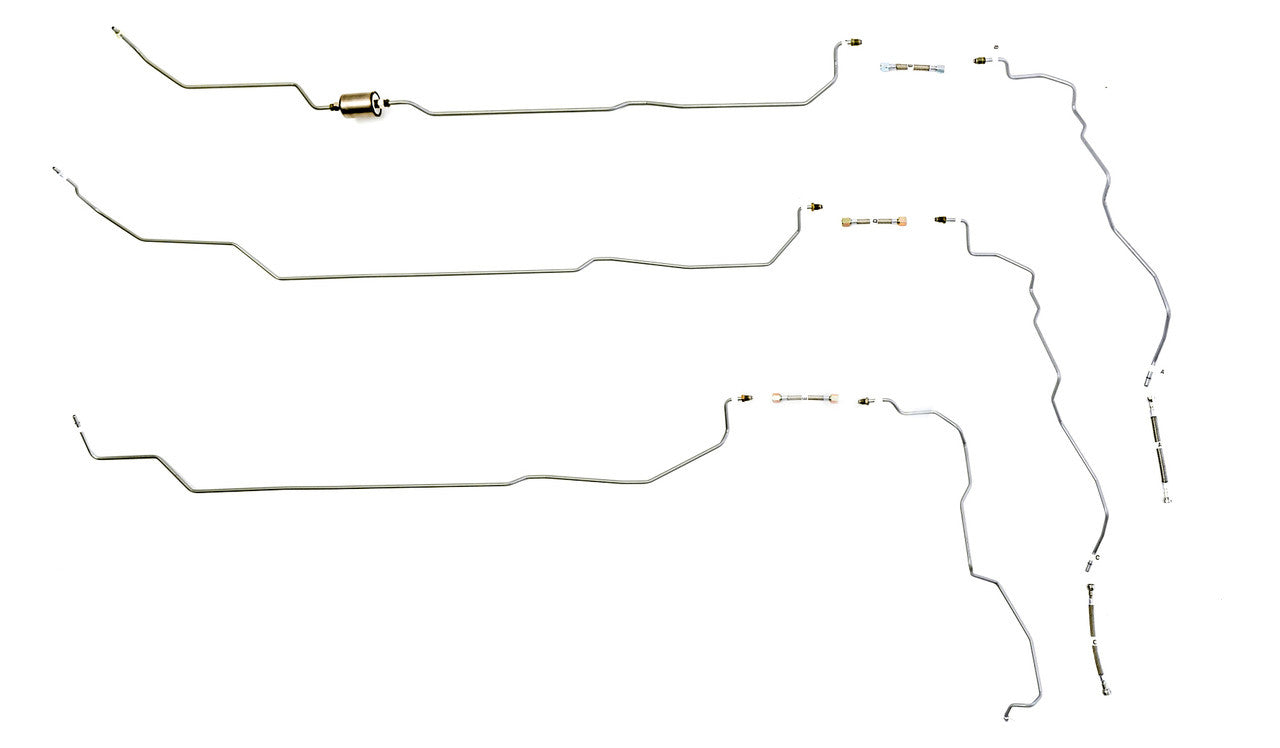

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to engine connection, hoses to join rear and front sections, 1 fuel filter

Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
