Product Overview

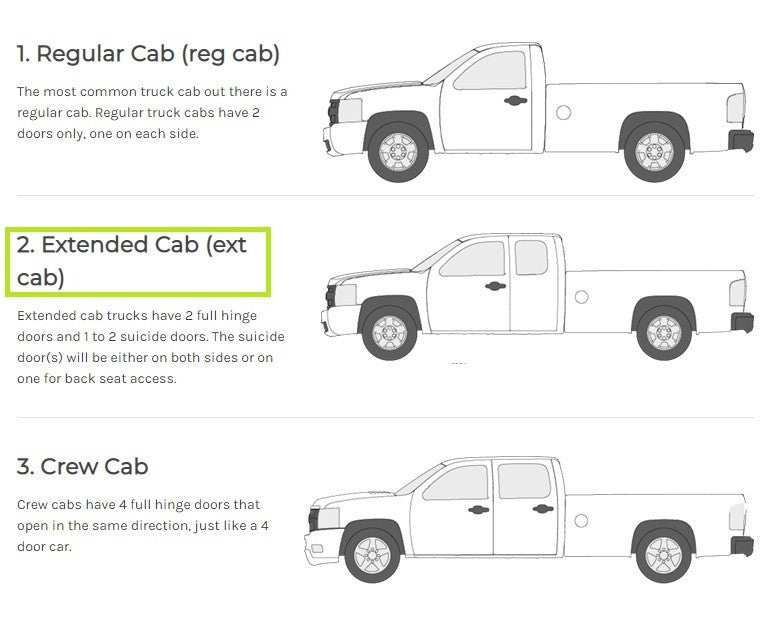

Shop LinesToGo for 2003 Silverado Chevrolet truck fuel lines - 1500 Exc. HD Ext Cab 6.5ft & 8ft Bed 2WD & 4WD for 6.0L Non Flex Fuel engines.

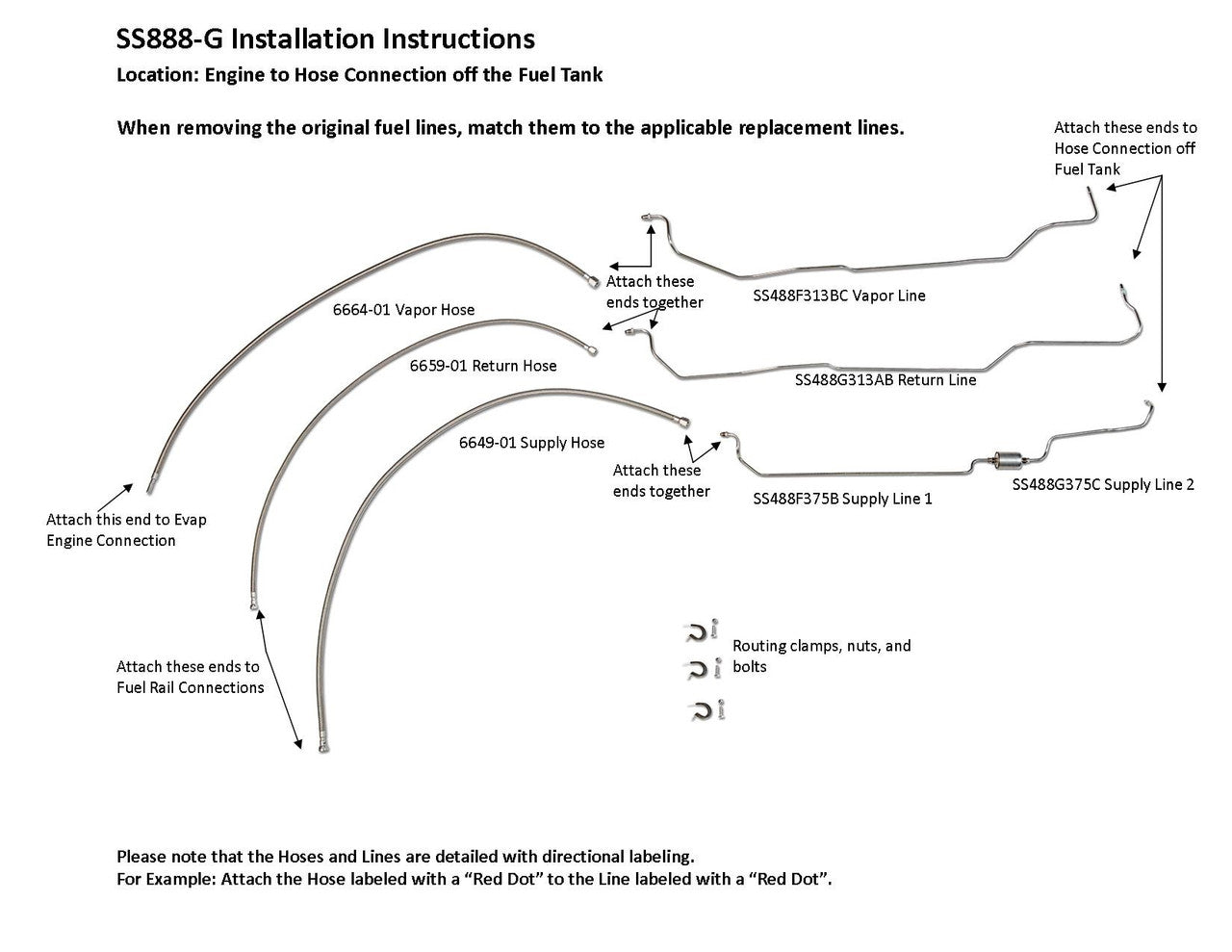

Location: Engine to Hose Connection off Fuel Tank
Please Note: Original equipment Silverado/ Sierra front fuel line sections can be difficult to install from the engine connections down to the frame rail. These LinesToGo 888 Series come with front flexible stainless steel braided Teflon hoses, making a difficult and time consuming job, a whole lot easier and faster. Routing clips and hardware included.
Nylon Lines Between Fuel Lines and Fuel Tank:
Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3069-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.
Nylon Installation Instructions:
Step 1
Cut the new nylon hose in the same position as the original nylon hose.
Step 2
Cut the original nylon hose in the same position as the new nylon hose.
Step 3
Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.
OEM Part Number: 15765803

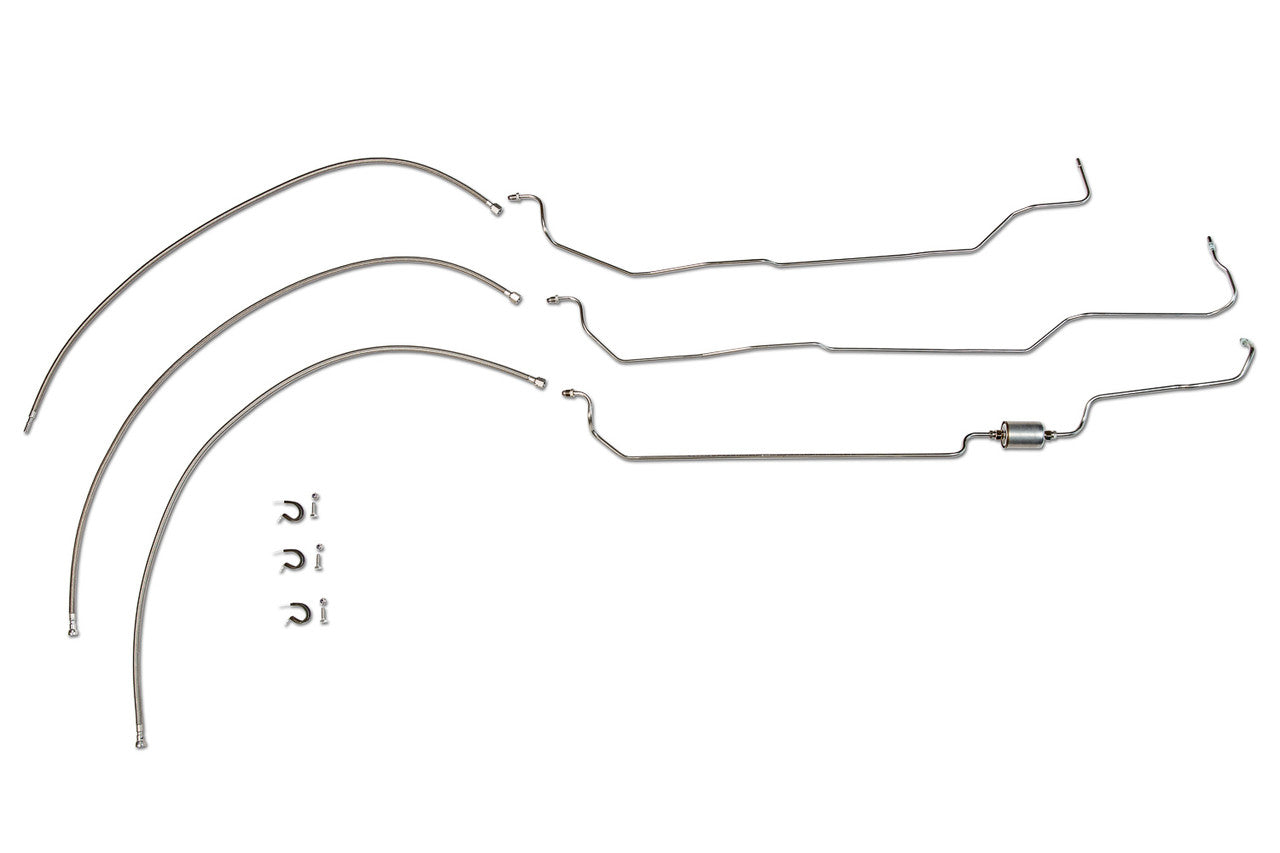

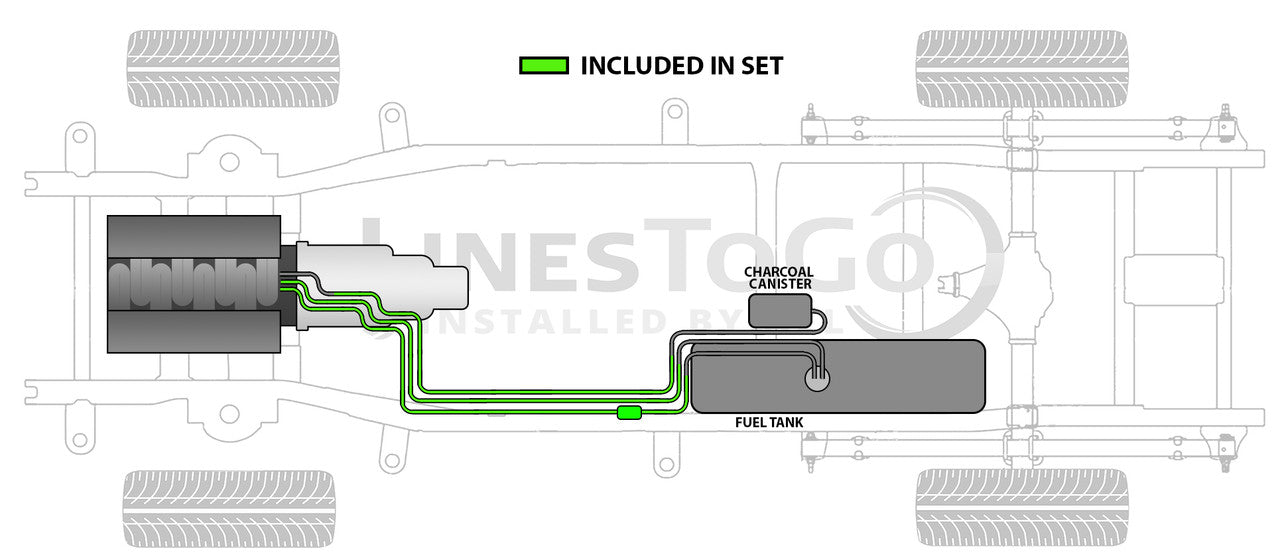

Included in Set: 1 supply line 3/8" (Stainless Steel Braided Teflon Flexible Lines for easy installation), 1 return line 5/16" (Stainless Steel Braided Teflon Flexible Lines for easy installation), 1 vapor line 5/16" (Stainless Steel Braided Teflon Flexible Lines for easy installation), hoses to join rear and front sections, hoses to engine connection, 1 fuel filter, 3 clamps, 3 bolts, 3 nuts
Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Warranty: 1 Year
Box Dimensions: 57" x 11" x 7"
We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
