Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C

w/GVW 8600 lbs (RPO Code C6P)

Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C
Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C

Chevy Silverado Fuel Line Set 2003 1500HD Crew Cab 6.0L FL488-M1C

w/GVW 8600 lbs (RPO Code C6P)

SALE:
Save $64.54
/
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

Shop LinesToGo for 2003 Silverado Chevrolet truck fuel lines - 1500HD Crew Cab w/GVW 8600 lbs (RPO Code C6P) for 6.0L engines

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA488K313B and SA488K313C. See the video below on how to remove the shipping bend

Nylon Lines Between Fuel Lines and Fuel Tank:

Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3069-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.

Nylon Installation Instructions:

Step 1

Cut the new nylon hose in the same position as the original nylon hose.

Step 2

Cut the original nylon hose in the same position as the new nylon hose.

Step 3

Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

SKU: FL488-M1C
Box Dimensions 46" x 11" x 7"

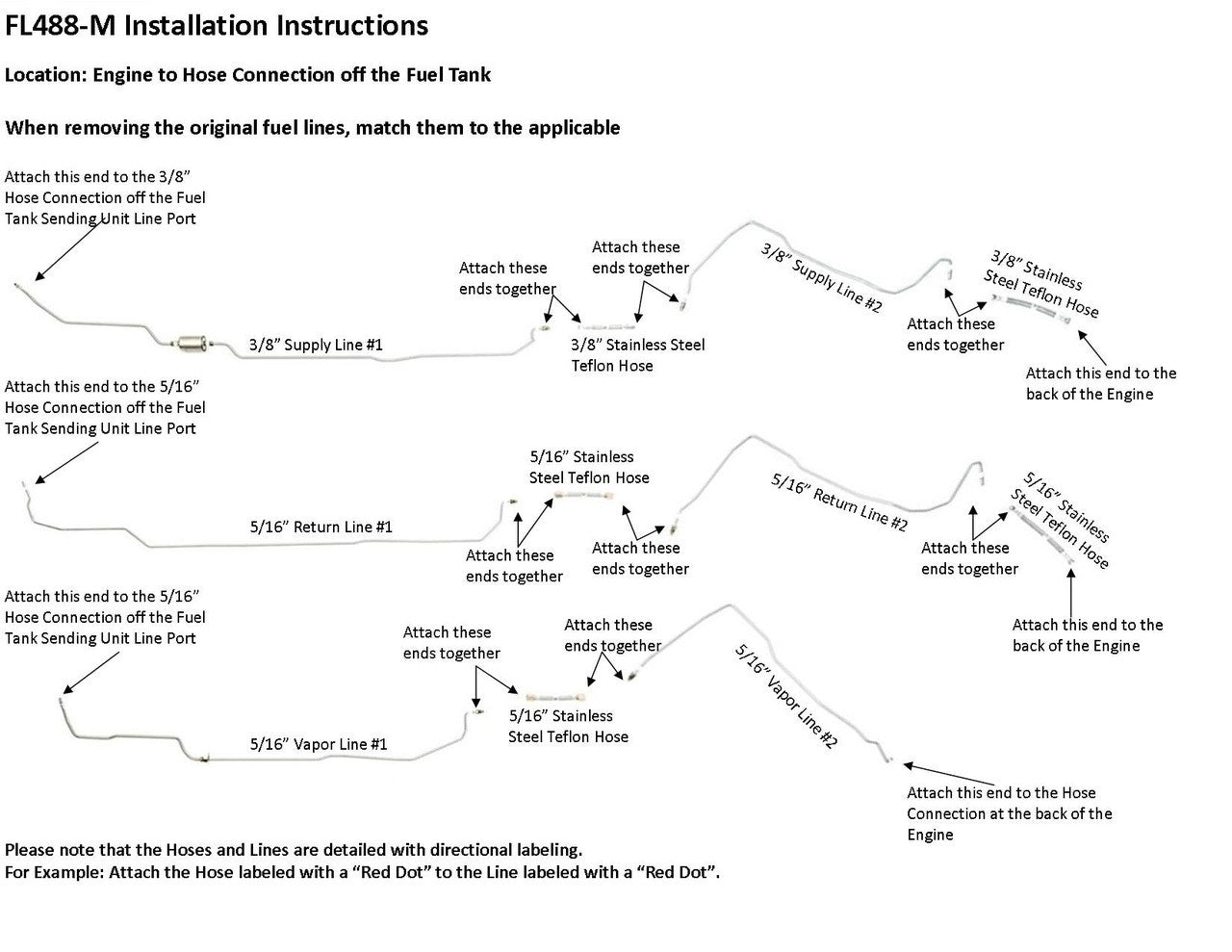

Engine to Hose Connection off Fuel Tank

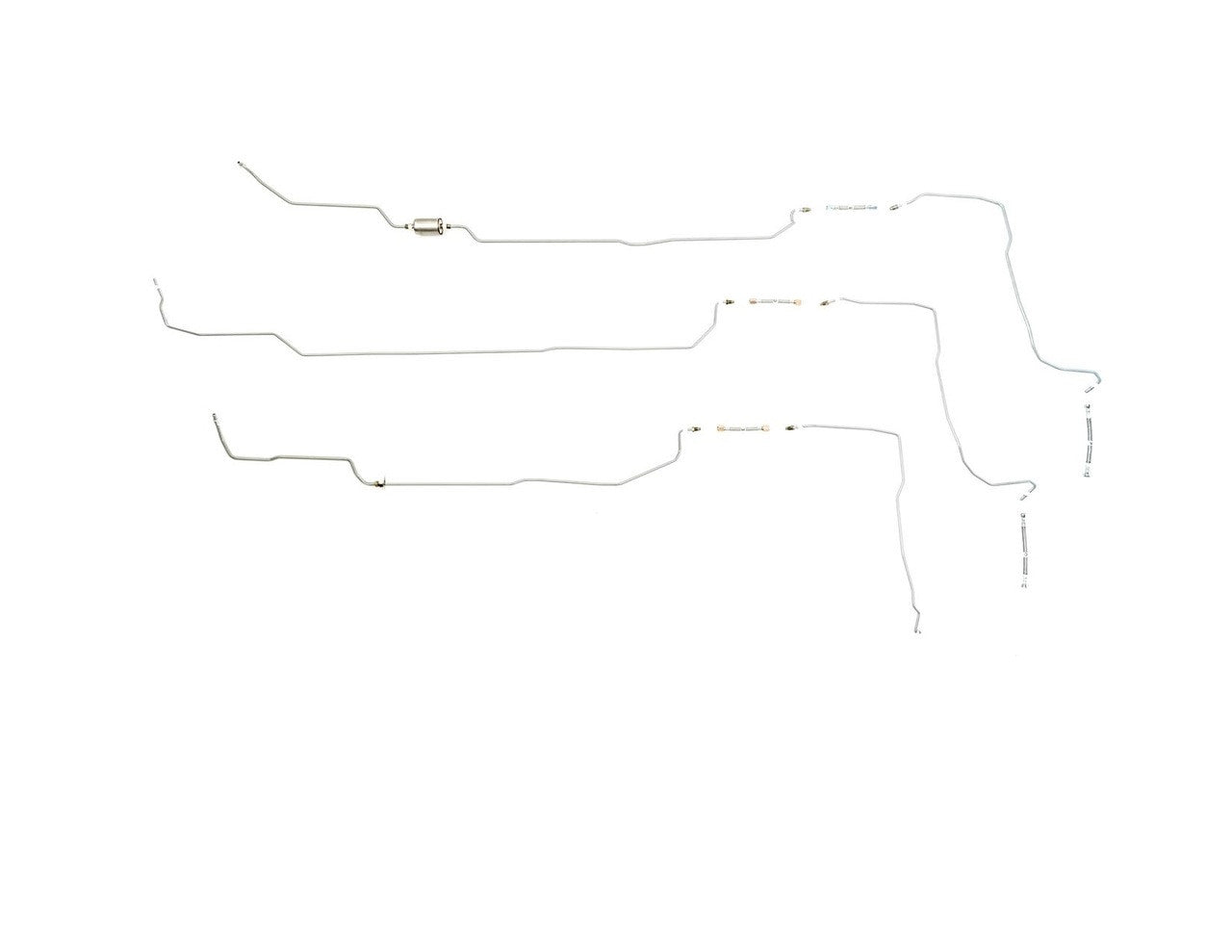

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16” ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to engine connection, hoses to join rear and front sections, 1 fuel filter

15752065

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Overall rating: 4.6086955 / 5 from 23 reviews.

AI Generated Review Summary

Summary topics

Review topics: [fit, quality, service, lines].

Review highlights

Reviews

"Very little bending great product"

— Noman (5/5)

Lines were great, took a

"Lines were great, took a whole week to get them. Pretty frustrating when they advertise free next day shipping."

— brandon k. (1/5)

assesment of lines

"bent fairly close, wasn't crazy about the shipping bend, you have to unbend and straighten, but I understand why they did it. I bent them back straight against rear tire, was nervous about kinking, but worked out. I have put on factory one piece before, liked that these lines were multiple pieces, much easier to install. still took like 6 hours to remove old lines and install new."

— William E. (5/5)

Fuel line set

"Exact fit for my 2003 Silverado 1500hd. Very nice replicas!"

— Joseph S. (5/5)

Well satisfied with everything minor adjustments

"Excellent service"

— Dennis T. (5/5)

Check line color coding to make sure it's correct.

"Lines fit well install was fairly straightforward. Second or third set I've installed from them and have always been impressed. Hooked up lines to color coded dots not realizing they were wrong and had the return line going into the vent. Got a mile down the road and ran out of fuel. Filled up noticed the leak. Figured it out. Swapped lines all good now."

— Dakota P. (3/5)

Excellent quality product. Great material,

"Excellent quality product. Great material, well packaged and perfect fitment. Would totally recommend to anyone looking for a complete fuel line replacement."

— Nakhonphinh S. (5/5)

The lines received were exactly

"The lines received were exactly what I needed and they arrived quickly. Installation was not nearly as easy as it looks/sounds. Took me several hours (5)."

— Brian S. (5/5)

Vanessa was awesome, lines fit

"Vanessa was awesome, lines fit nice, definitely recommended products!!"

— Robert C. (5/5)

Online chat was great to

"Online chat was great to verify I got the correct part. Website was easy to navigate. Price was a little high, but expect that for hard to find parts. Shipping was quick and my mechanic was pleased with the fit. I just wish there had been a stainless steel option."

— Norman S. (4/5)

Q&A
