Shop LinesToGo for 2001 Silverado Chevrolet truck fuel lines - 2500HD/3500/3500HD Ext Cab 6.5 ft & 8ft box 2WD & 4WD 6.0L
Location: Engine to Hose Connection off Fuel Tank
Nylon Lines Between Fuel Lines and Fuel Tank:
Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3069-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.
Nylon Installation Instructions:
Step 1
Cut the new nylon hose in the same position as the original nylon hose.
Step 2
Cut the original nylon hose in the same position as the new nylon hose.
Step 3
Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.
OEM Part Number: 15064599

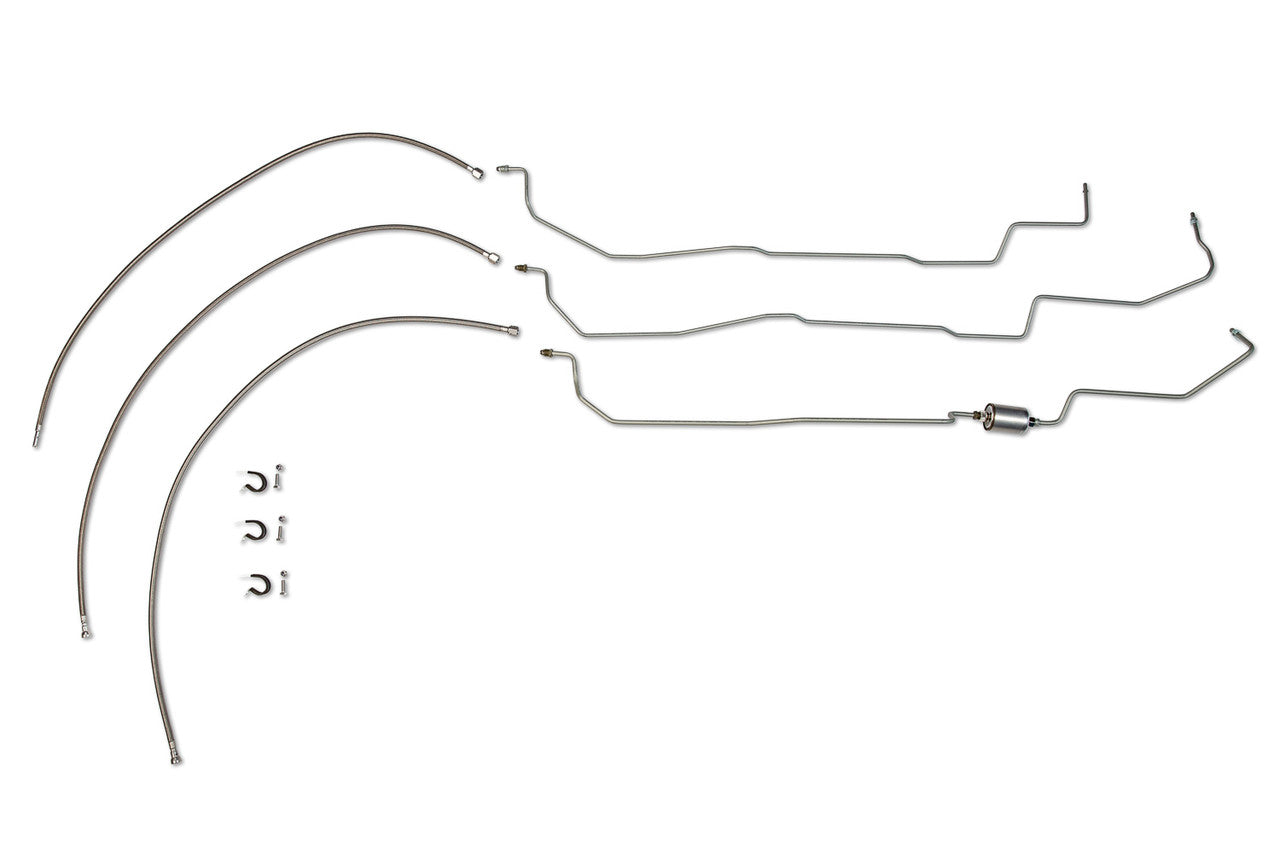

Included in Set: 1 supply hose 3/8" (Stainless Steel Braided Teflon Flexible Lines for easy installation), 1 supply line 3/8", 1 return hose 5/16" (Stainless Steel Braided Teflon Flexible Lines for easy installation), 1 return line 5/16", 1 vapor hose 5/16" (Stainless Steel Braided Teflon Flexible Lines for easy installation),1 vapor line 5/16", 1 fuel filter, 3 clamps, 3 bolts, 3 nuts
Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Warranty: 1 Year
Box Dimensions: 57" x 11" x 7"
We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
Installation Video
