Install this pre bent 2007 Silverado Classic brake line set in no time!
Brake Line Set Stainless Steel 2007 Chevy Silverado 1500 Classic 4WD Reg Cab 8ft Bed w/Front Disc/Rear Drum for 4.3L, 4.8L, 5.3L, and 6.0L engines

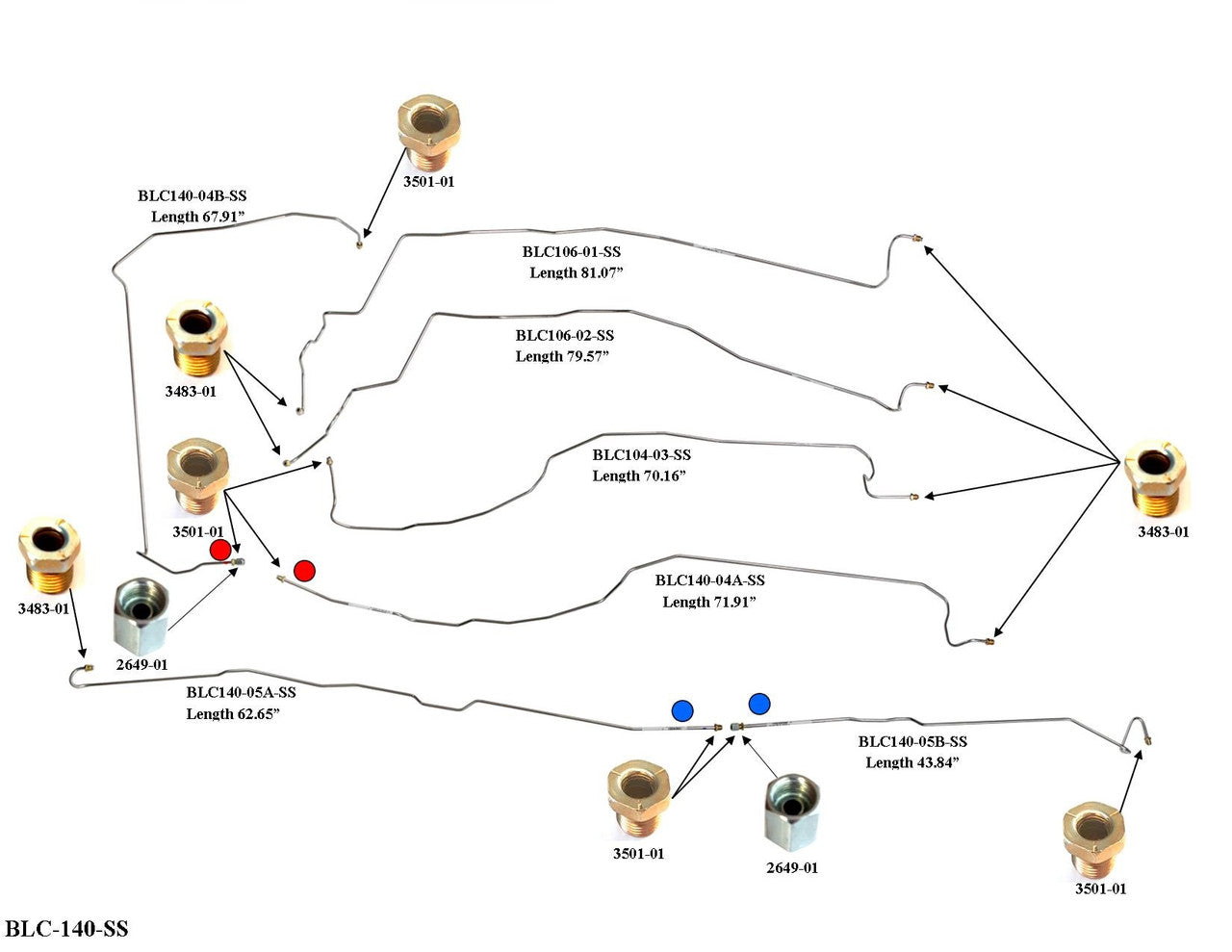

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC106-01-SS, BLC106-02-SS, BLC104-03-SS, BLC140-04A-SS and BLC140-05A-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC140-04B-SS. See the video below on how to remove the shipping twist

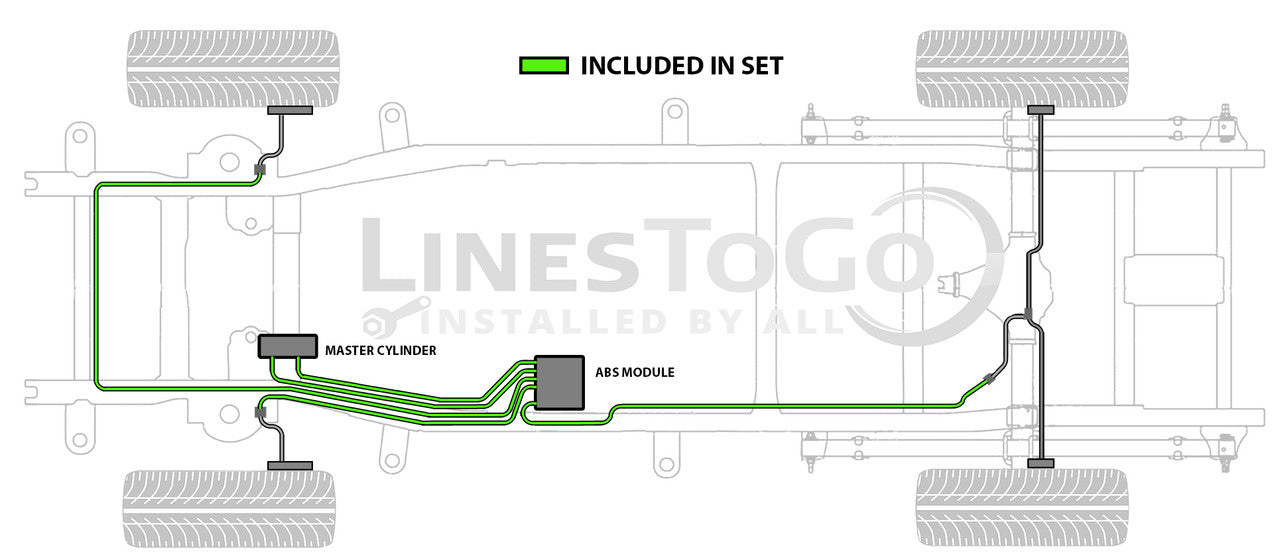

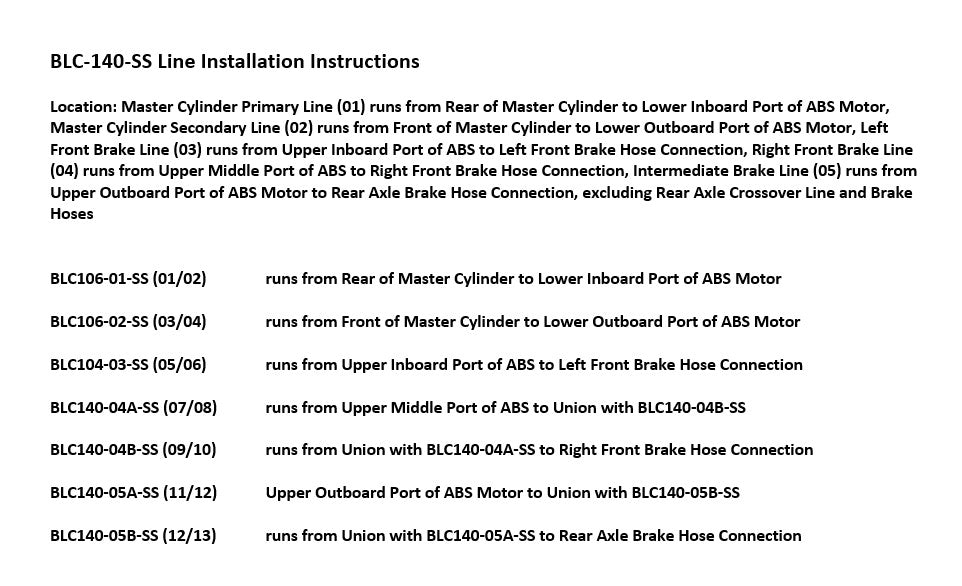

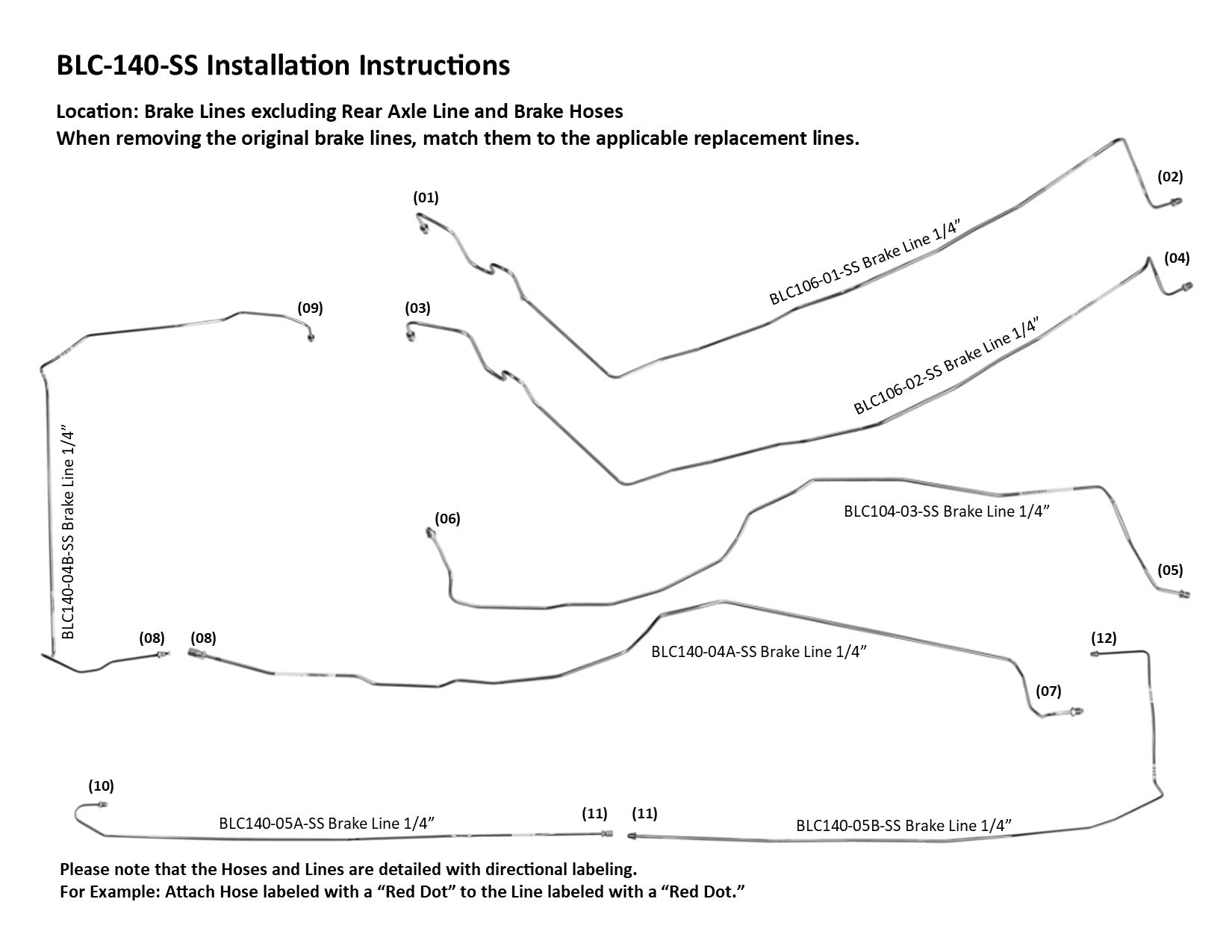

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor to Rear Axle Brake Hose Connection, excluding Rear Axle Crossover Line and Brake Hoses

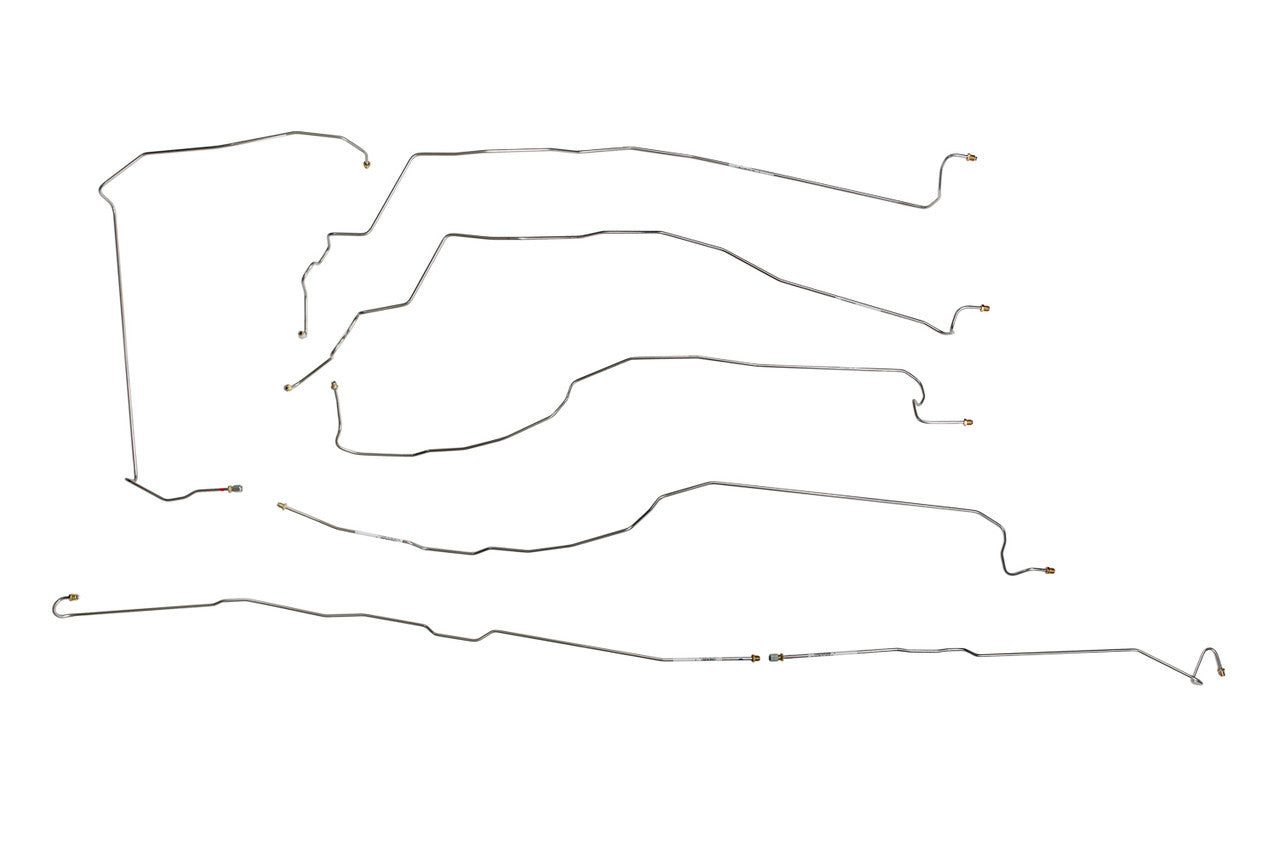

1 Master Cylinder Primary Brake Line ¼”, 1 Master Cylinder Secondary Brake Line ¼”, 1 Left Front Brake Line ¼”, 1 Right Front Brake Line ¼” (in 2 easy to install sections), 1 Intermediate Brake Line ¼” (in 2 easy to install sections), Does NOT include Rear Axle Crossover Line or Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
