Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel

2WD (w/Front Torsion Bar Springs w/Front Disc/Rear Drum); 4WD (w/Front Disc/Rear Drum)

Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel
Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel

Chevy Silverado Brake Line Set 2006 1500 Crew Cab 5.75ft Bed 4.8L BLC-221-SS1D Stainless Steel

2WD (w/Front Torsion Bar Springs w/Front Disc/Rear Drum); 4WD (w/Front Disc/Rear Drum)

SALE:
Save $67.52
/

Delivery Time & Rates

Install this pre bent 2006 Silverado brake line set in no time!

Brake Line Set Stainless Steel 2006 Chevrolet Silverado 1500 2WD (w/Front Torsion Bar Springs w/Front Disc/Rear Drum); 4WD (w/Front Disc/Rear Drum) Crew Cab 5.75ft Bed 4.8L engine

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC103-04A-SS. See the video below on how to remove the shipping bend

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC103-04A-SS. See the video below on how to remove the shipping twist

SKU: BLC-221-SS1D
Box Dimensions 57" x 12" x 7"

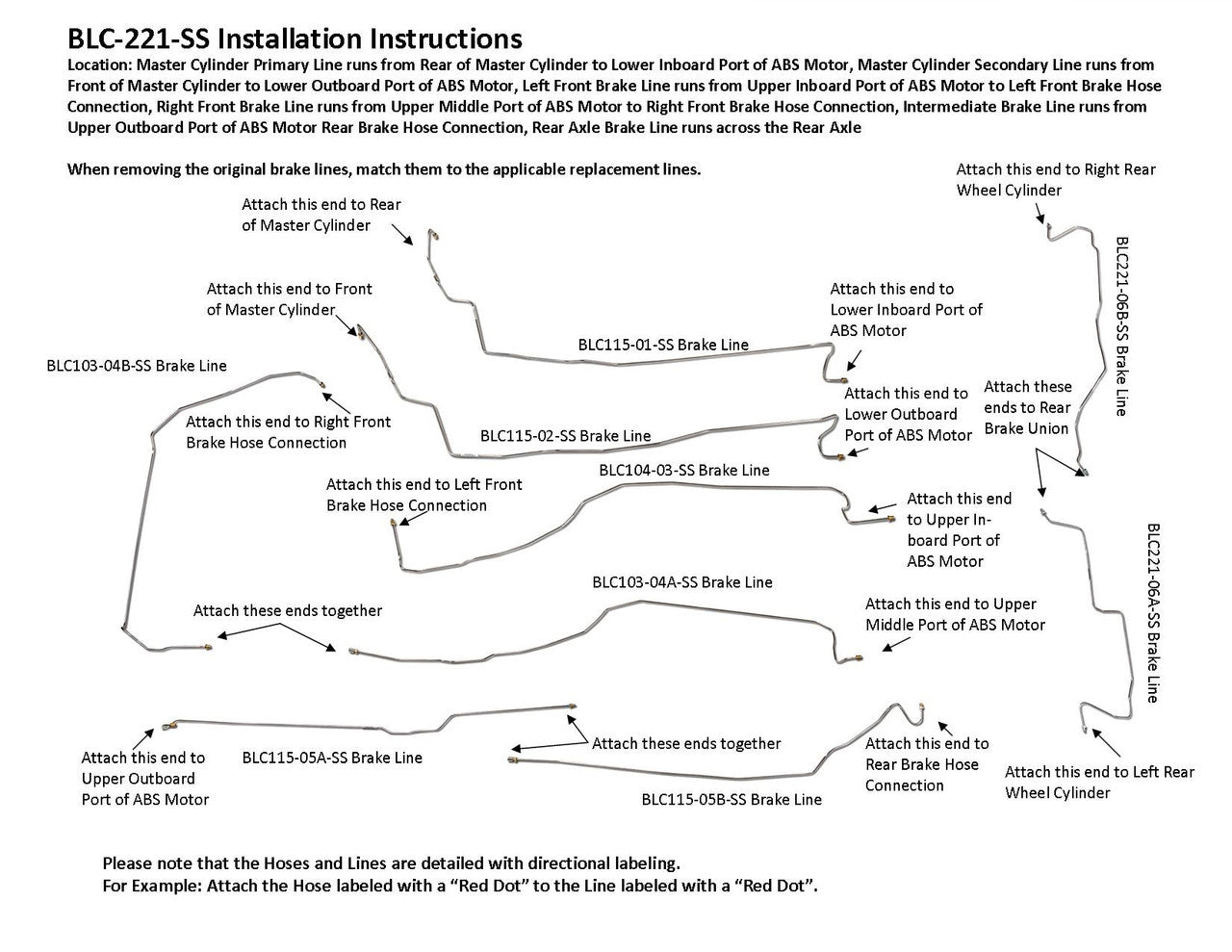

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

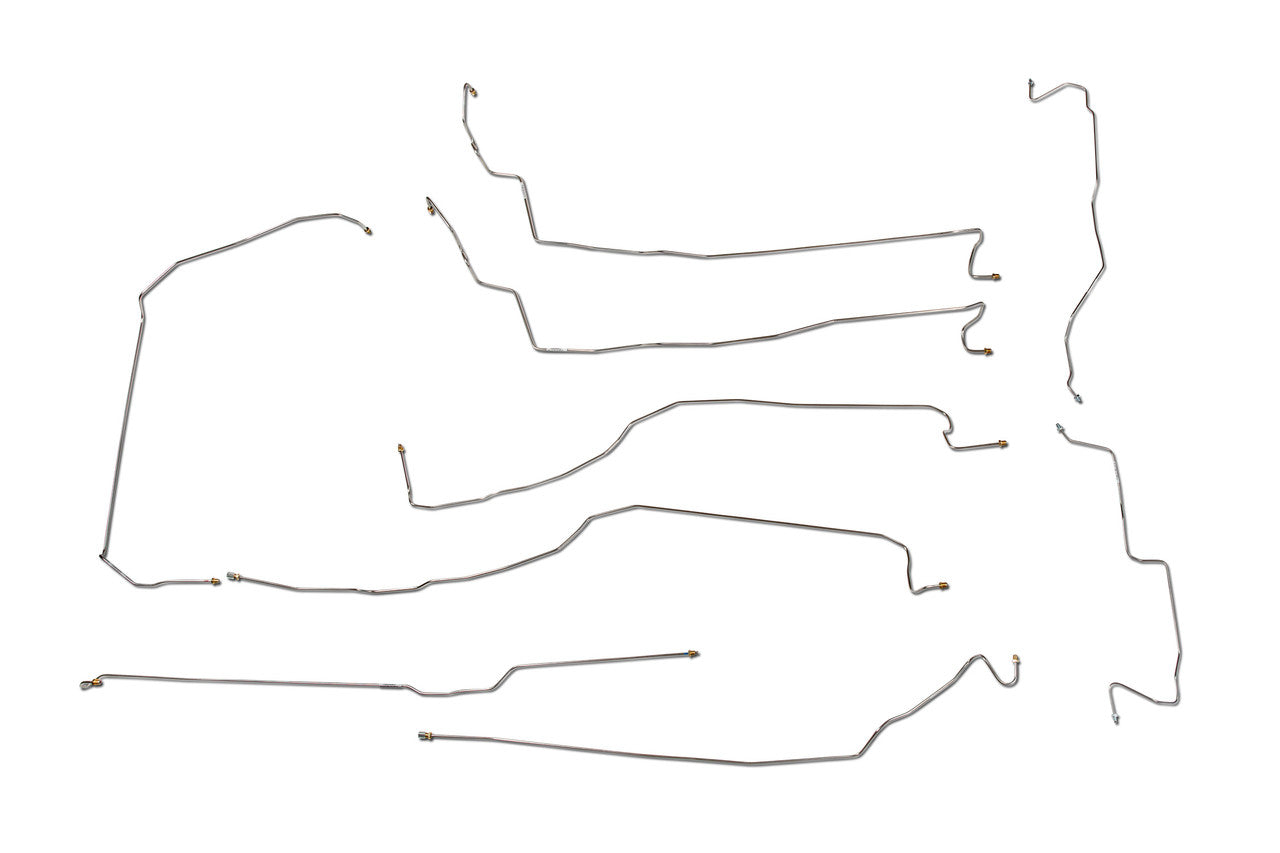

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses



Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
