Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel

w/Front Torsion Bar Springs, w/Front Disc/Rear Drum Brakes

Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel
Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel
Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel
Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel

Chevy Silverado Brake Line Set 2005 1500 Crew Cab 5.75ft Bed 6.0L BLC-221-SS1C Stainless Steel

w/Front Torsion Bar Springs, w/Front Disc/Rear Drum Brakes

MSRP: from
SALE: from
Save $67.52
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-221-SS1C
  • Weight: 5

Install this pre bent 2005 Silverado brake line set in no time!

Brake Line Set Stainless Steel 2005 Chevrolet Silverado 1500 2WD (w/Front Torsion Bar Springs w/Front Disc/Rear Drum), 4WD (w/Front Disc/Rear Drum) Crew Cab 5.75ft Bed 6.0L engine.

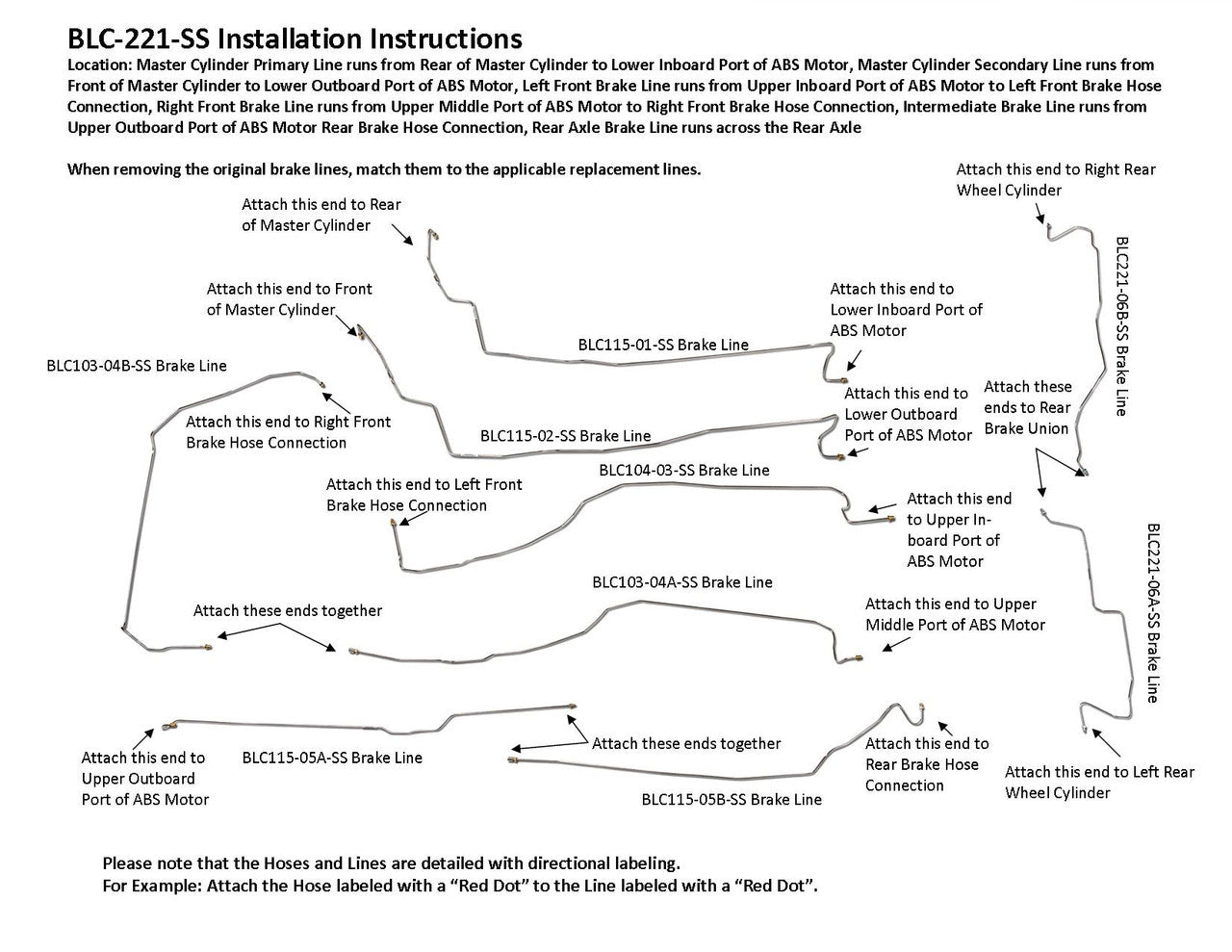

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC103-04A-SS. See the video below on how to remove the shipping bend.

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC103-04A-SS. See the video below on how to remove the shipping twist.

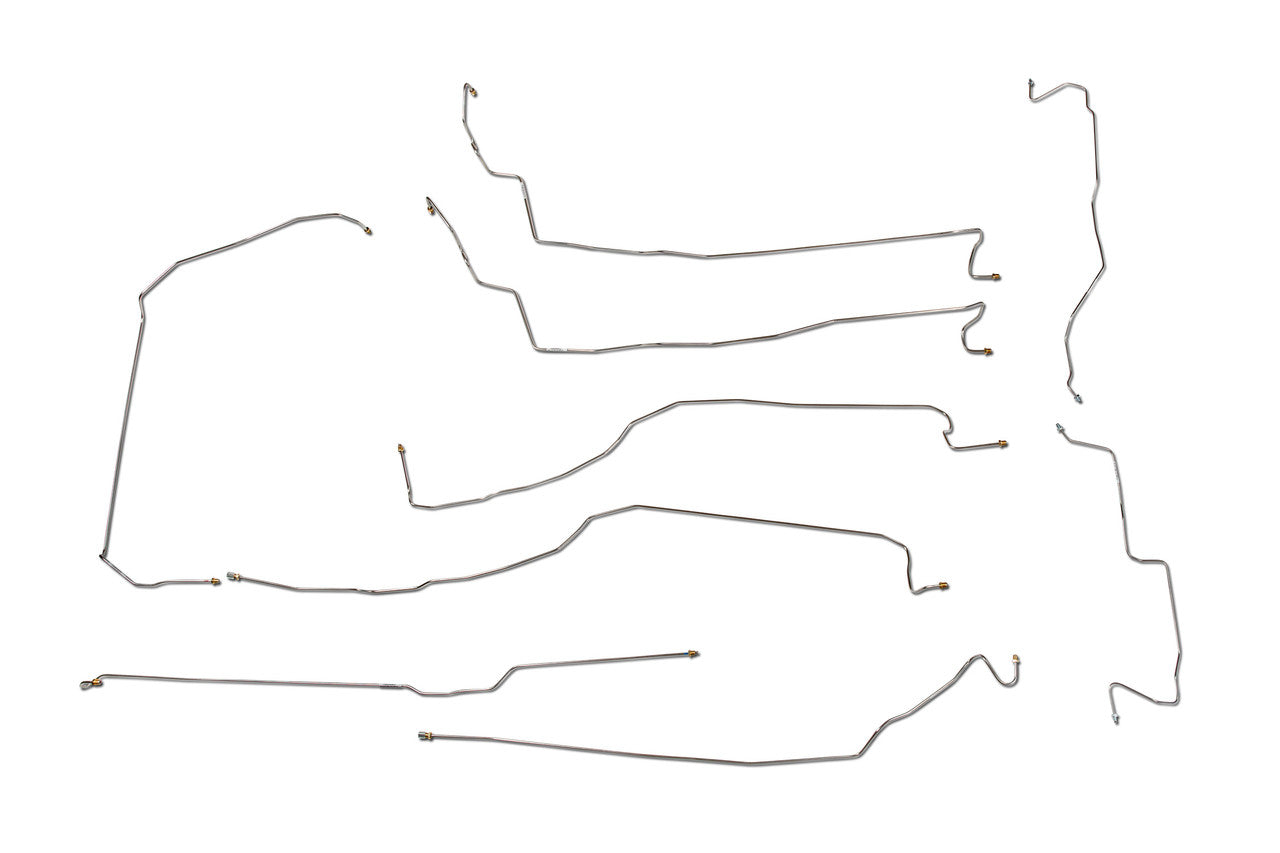

Included in Set: 1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 47" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
