Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o Quadrasteer

Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel

Chevy Silverado Brake Line Set 2004 1500 4WD Ext Cab 6.5ft Bed 5.3L BLC-219-SS1G Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o Quadrasteer

MSRP: from
SALE: from
Save $66.27
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-219-SS1G
  • Weight: 6

Install this pre bent 2004 Silverado brake line set in no time!

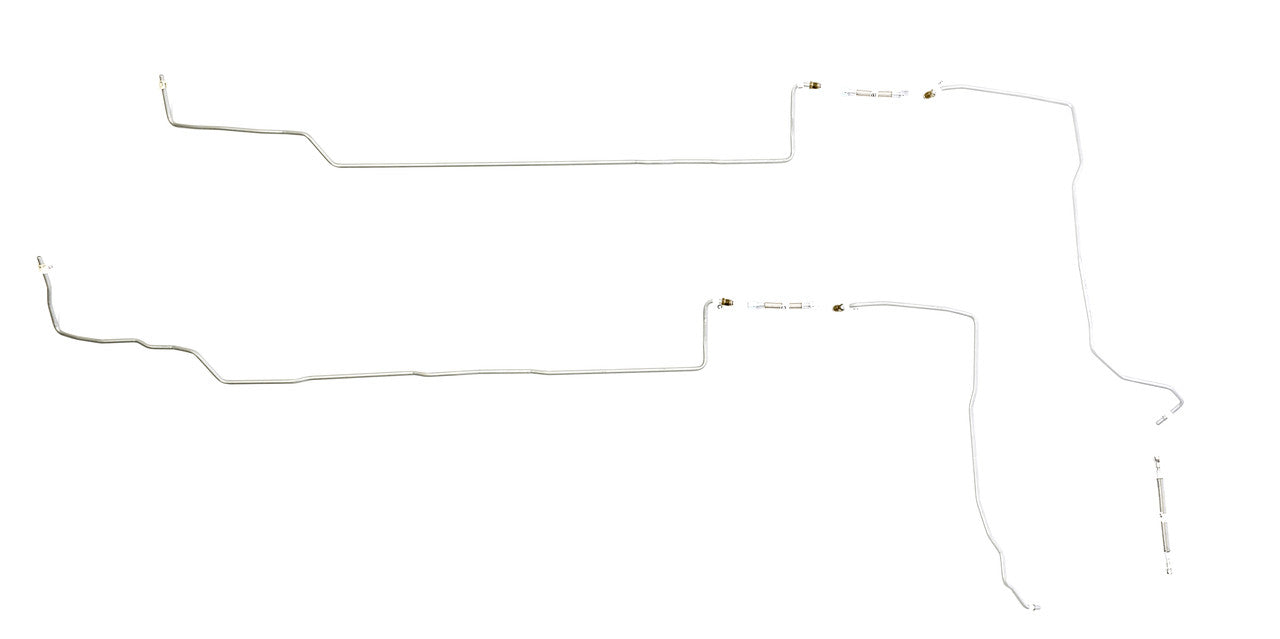

Brake Line Silverado 1500 2004 4WD Ext Cab 6.5ft Box w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o Quadrasteer 5.3L Stainless Steel Set

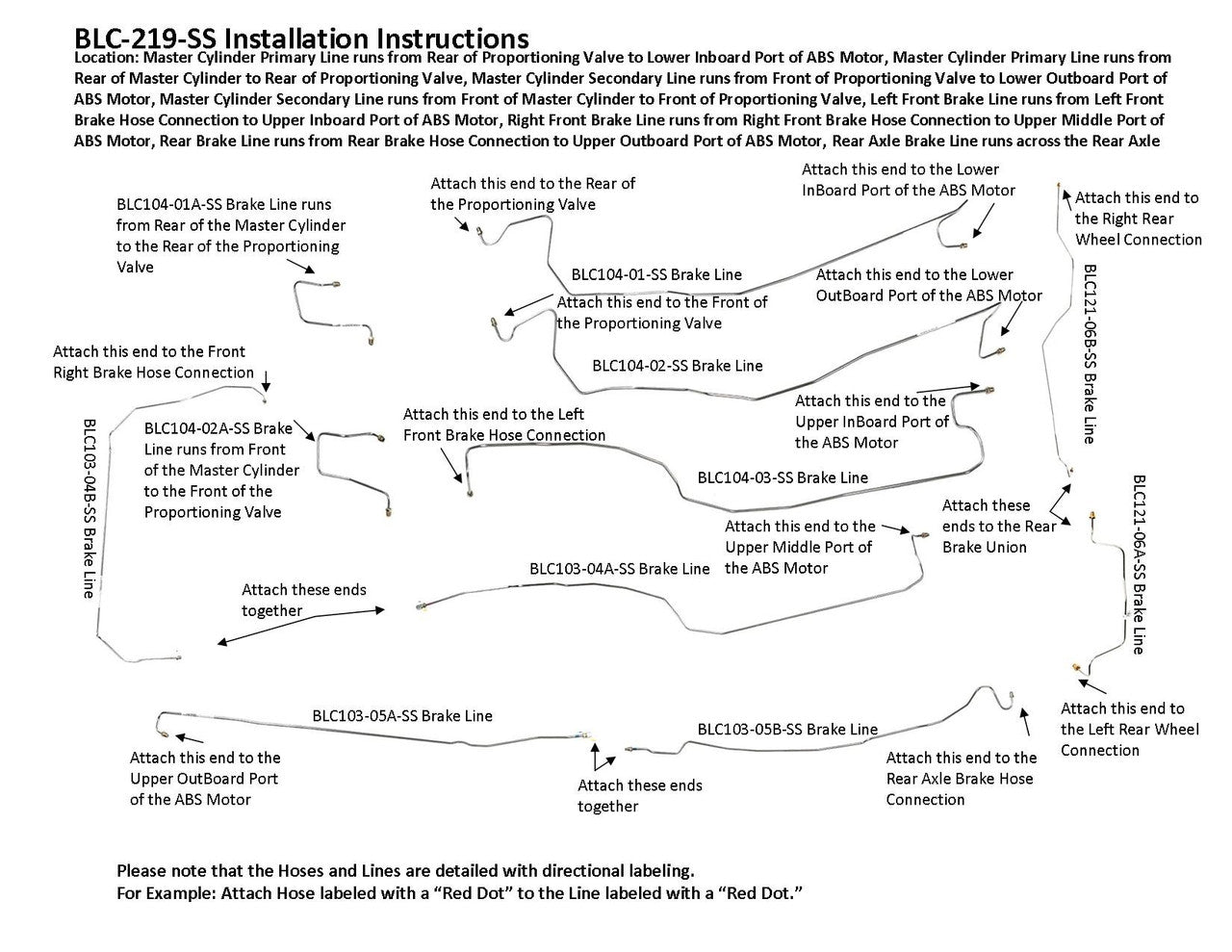

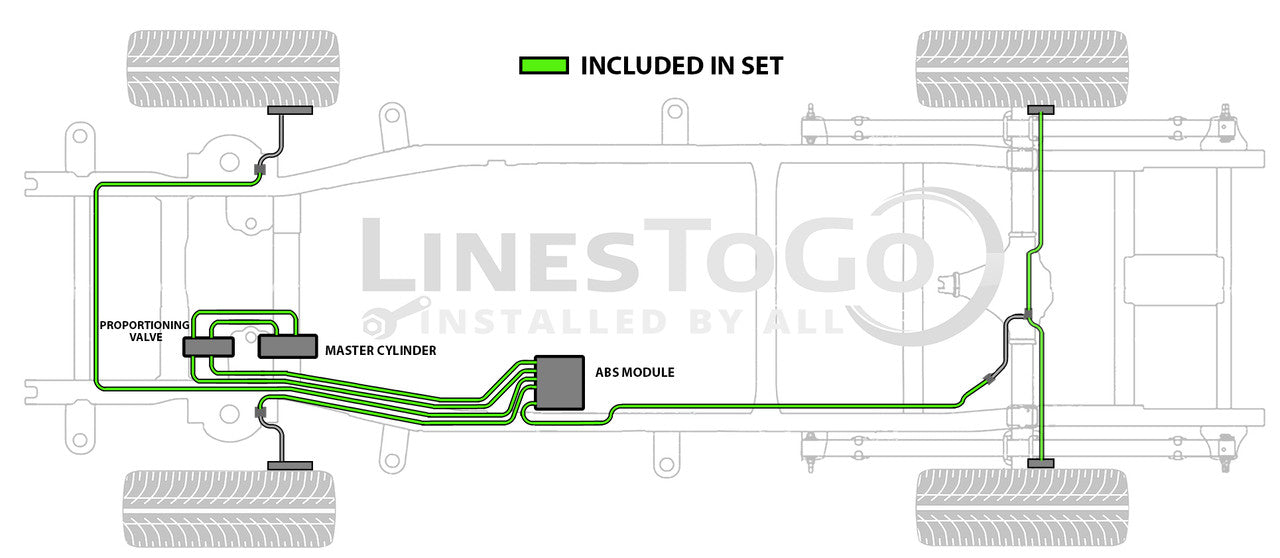

Location: Master Cylinder Primary Line runs from Rear of Proportioning Valve to Lower Inboard Port of ABS Motor, Master Cylinder Primary Line runs from Rear of Master Cylinder to Rear of Proportioning Valve, Master Cylinder Secondary Line runs from Front of Proportioning Valve to Lower Outboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Front of Proportioning Valve, Left Front Brake Line runs from Left Front Brake Hose Connection to Upper Inboard Port of ABS Motor, Right Front Brake Line runs from Right Front Brake Hose Connection to Upper Middle Port of ABS Motor, Rear Brake Line runs from Rear Brake Hose Connection to Upper Outboard Port of ABS Motor, Rear Axle Brake Line runs across the Rear Axle

Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLC103-04B-SS. See the video below on how to remove the shipping bend.

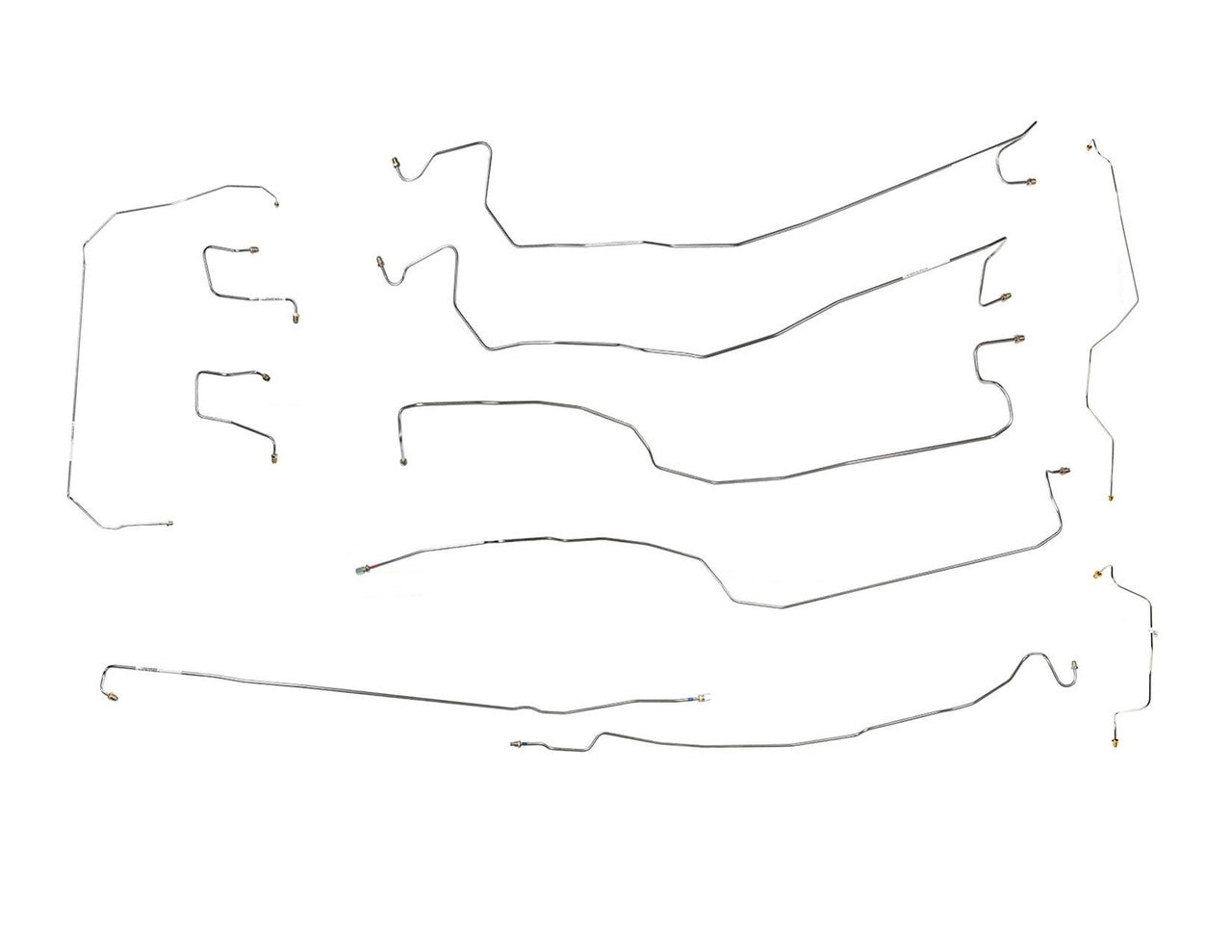

Included in Set: 2 Master Cylinder Primary Brake Lines 1/4", 2 Master Cylinder Secondary Brake Lines 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Rear Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

OEM Part Number: 22932587

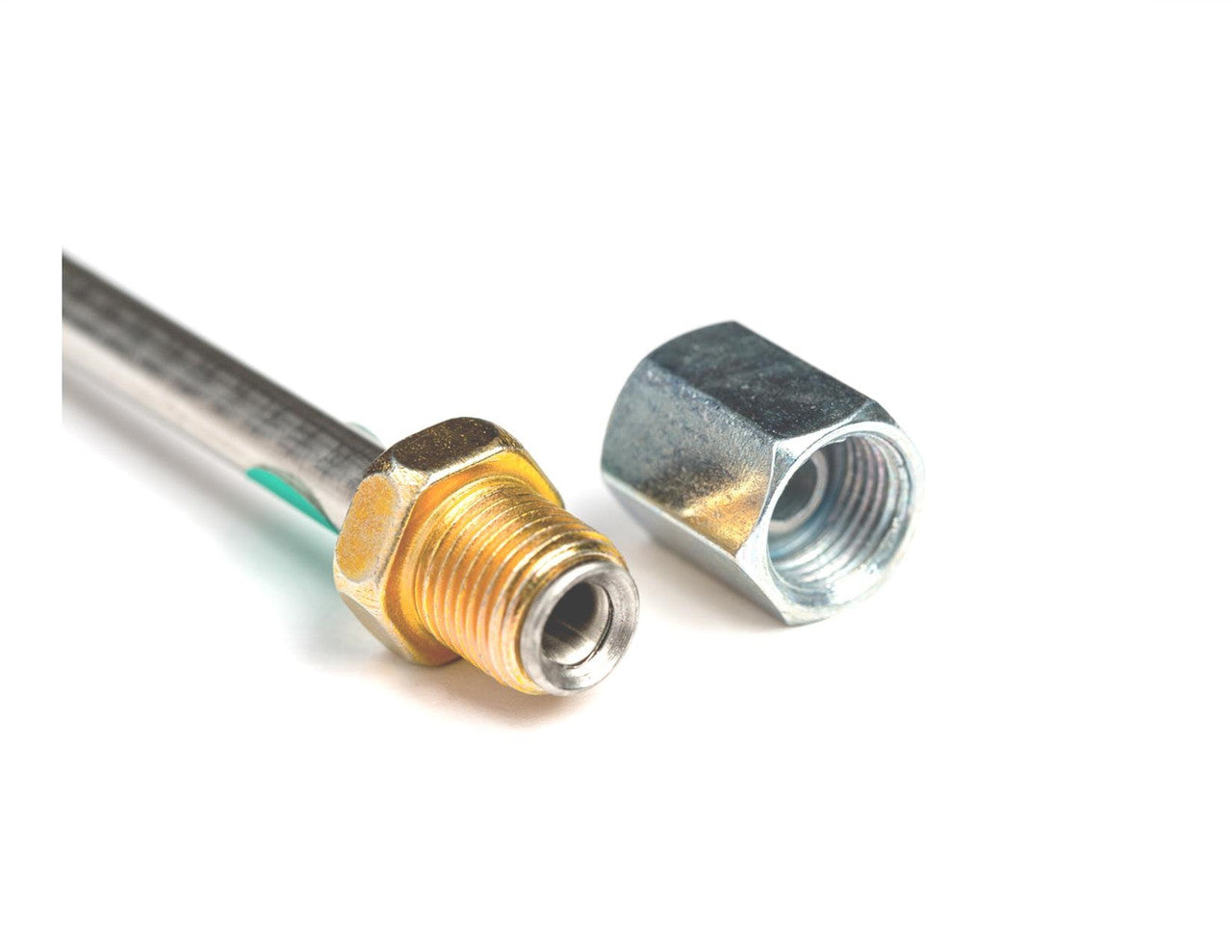

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
