Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer

Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel
Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel

Chevy Silverado Brake Line Set 2004 1500 2WD Reg Cab 6.5ft Bed 4.3L BLC-217-SS1E Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer

MSRP: from
SALE: from
Save $65
from /
Stainless steel

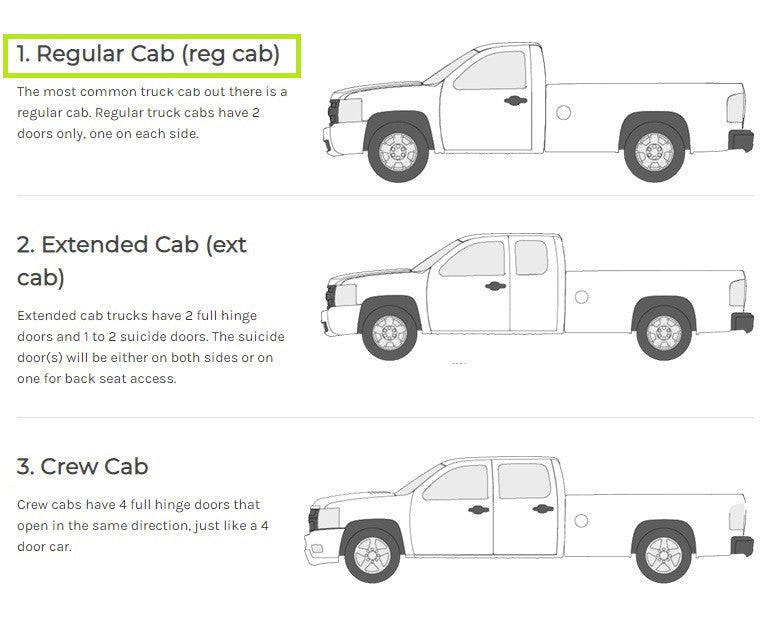

Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-217-SS1E
  • Weight: 5

Install this pre bent 2004 Silverado brake line set in no time!

Brake Line Set Silverado 1500 2WD Reg Cab 6.5ft Bed 4.3L w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer Stainless Steel

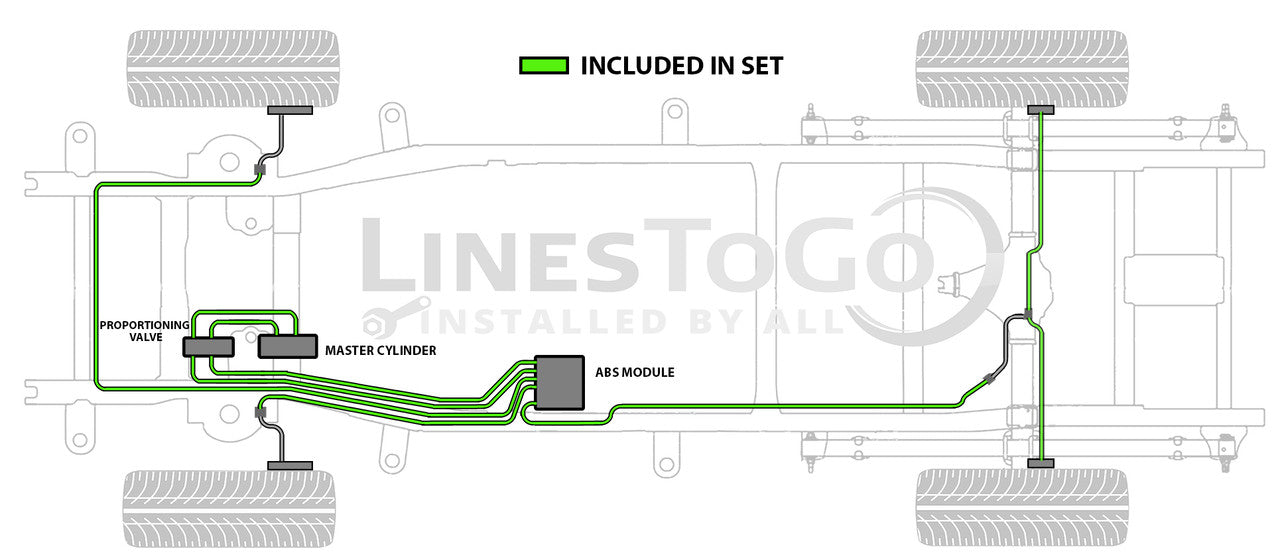

Location: Master Cylinder Primary Line runs from Rear of Proportioning Valve to Lower Inboard Port of ABS Motor, Master Cylinder Primary Line runs from Rear of the Master Cylinder to Rear of the Portioning Valve, Master Cylinder Secondary Line runs from Front of Proportioning Valve to Lower Outboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Front of Proportioning Valve, Left Front Brake Line runs from Left Front Brake Hose Connection to Upper Inboard Port of ABS Motor, Right Front Brake Line runs from Right Front Brake Hose Connection to Upper Middle Port of ABS Motor, Rear Line runs from Rear Brake Hose Connection to Upper Outboard Port of ABS Motor, Rear Axle Brake Line runs across the Rear Axle

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC106-06-SS and BLC127-04A-SS. See the video below on how to remove the shipping bend.

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC127-04B-SS. See the video below on how to remove the shipping twist.

OEM Part Number: 22932583

Included in Set: 2 Master Cylinder Primary Brake Lines 1/4", 2 Master Cylinder Secondary Brake Lines 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Rear Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 39" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
