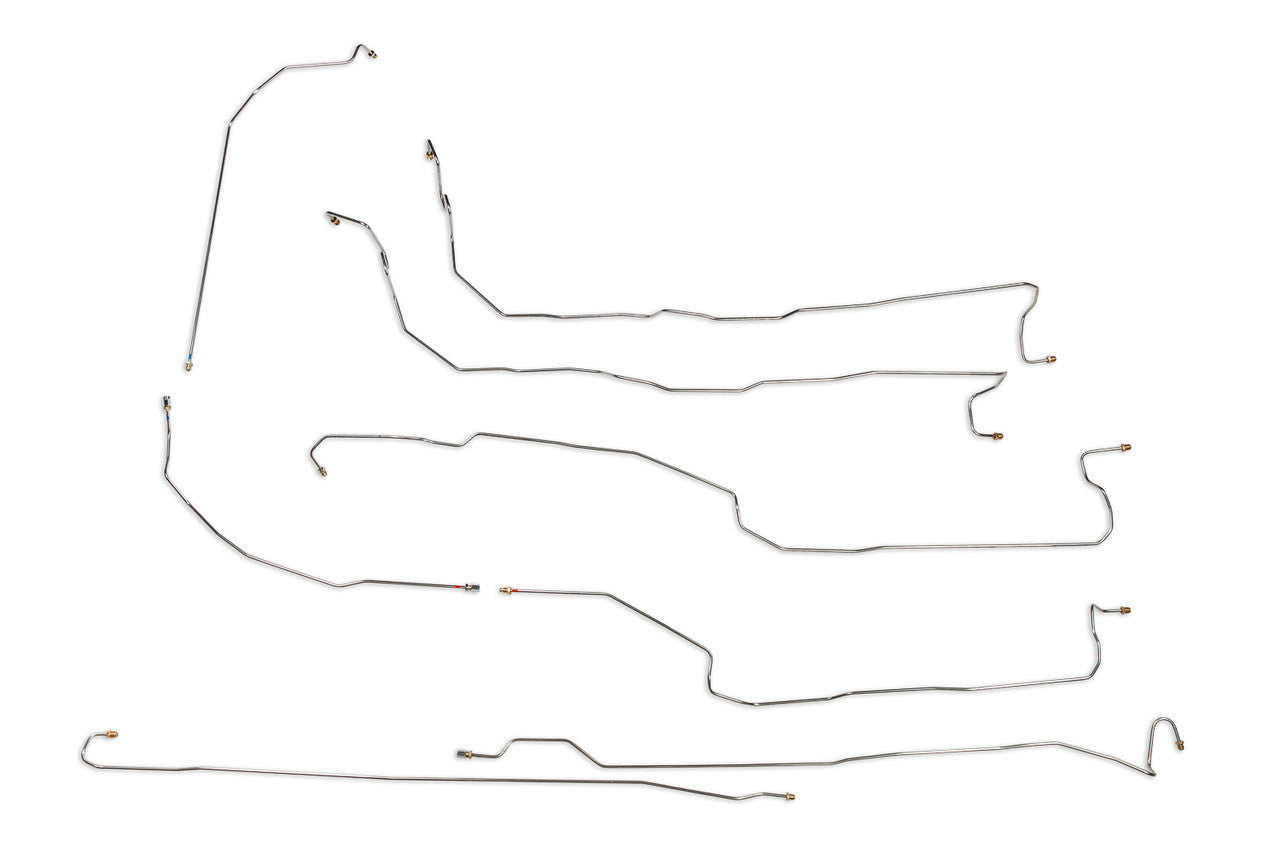

Chevy Silverado Brake Line Set 2003 2500 4WD Ext Cab 6.5ft Bed BLC-180-SS1A Stainless Steel
Chevy Silverado Brake Line Set 2003 2500 4WD Ext Cab 6.5ft Bed BLC-180-SS1A Stainless Steel
Delivery Time & Rates
Install this pre bent 2003 Silverado brake line set in no time!
Brake Line Set Stainless Steel 2003 Chevy Silverado 2500 4WD Ext Cab 6.5ft Bed for 6.0L, 6.6L, 8.1L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC180-01-SS, BLC180-02-SS, BLC113-03-SS, BLC113-04A-SS, BLC119-05A-SS, and BLC119-05B-SS. See the video below on how to remove the shipping bend
Complete set excluding Hoses and Rear Axle Crossover Line

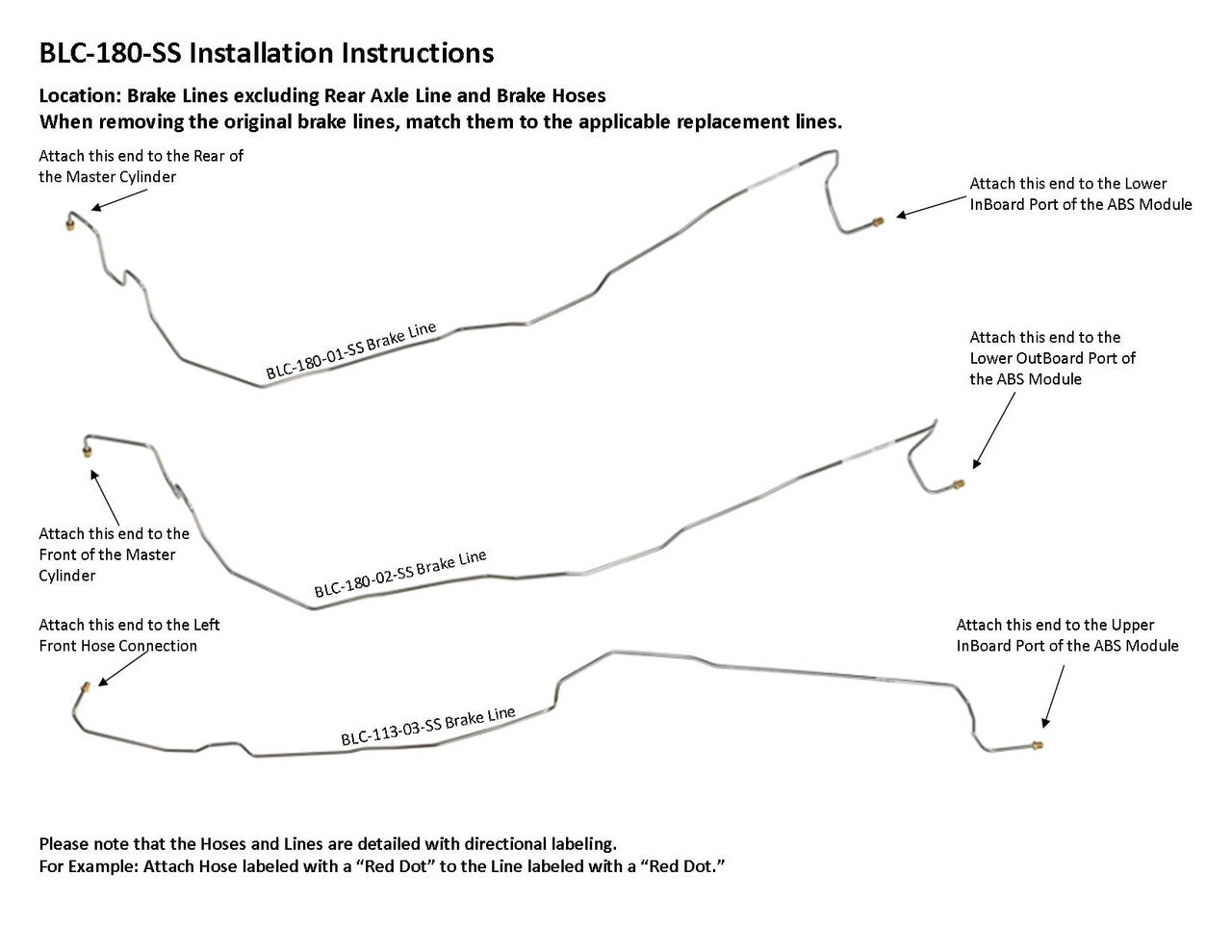

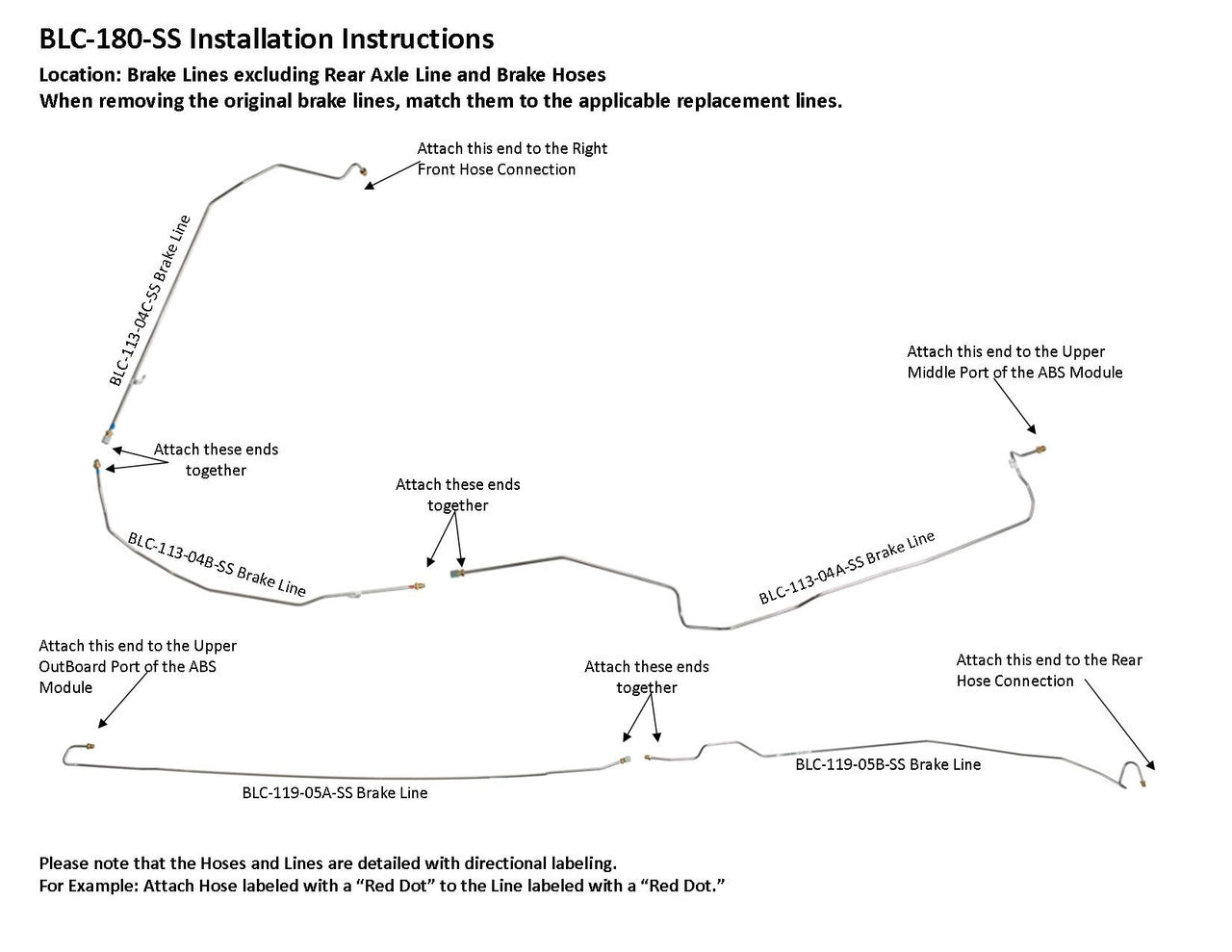

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, 1 Left Front Line from Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Hose Connection to Upper Middle Port of ABS Module (2 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections), Excludes Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
