Install this pre bent 2003 Silverado brake line set in no time!

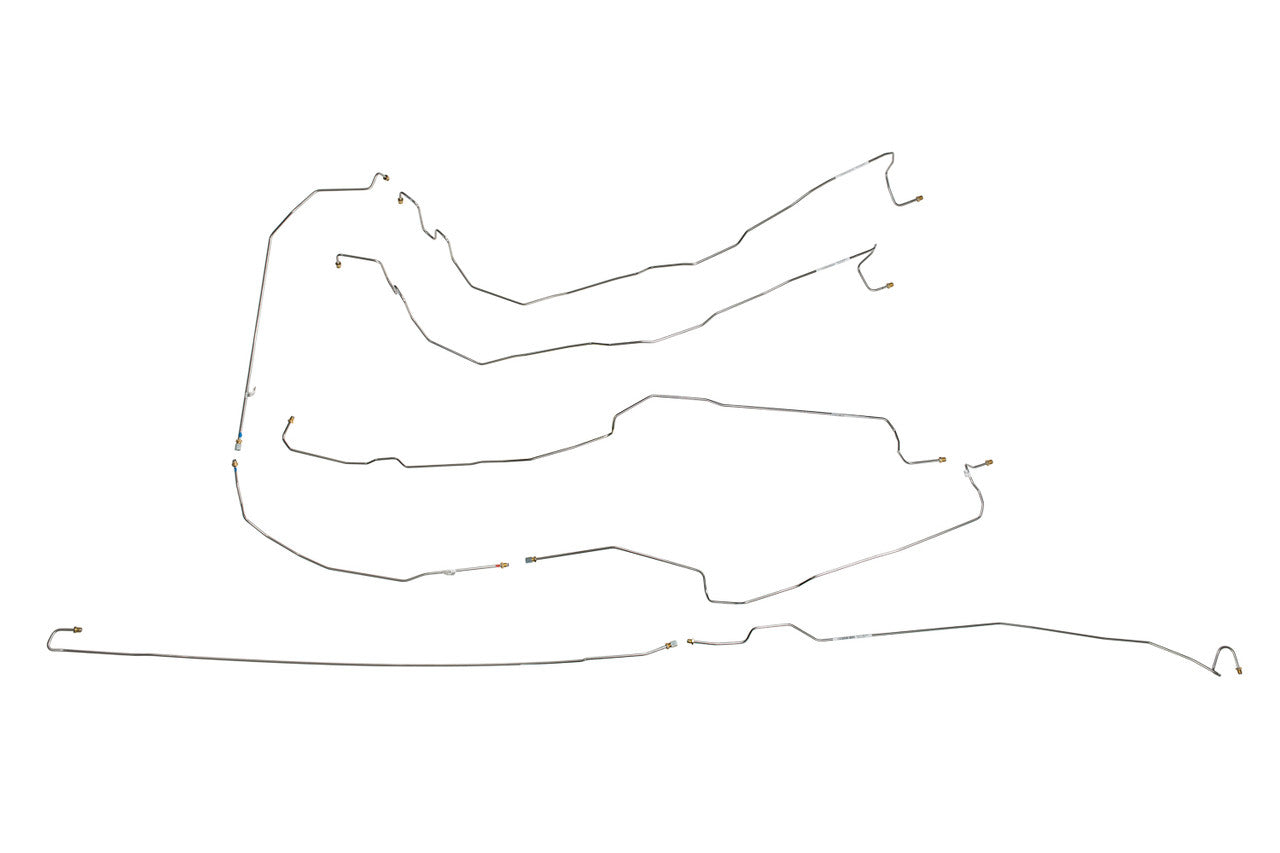

Brake Line Set Stainless Steel 2003 Chevy Silverado 1500 HD Crew Cab 6.5ft Bed for 6.0L engines

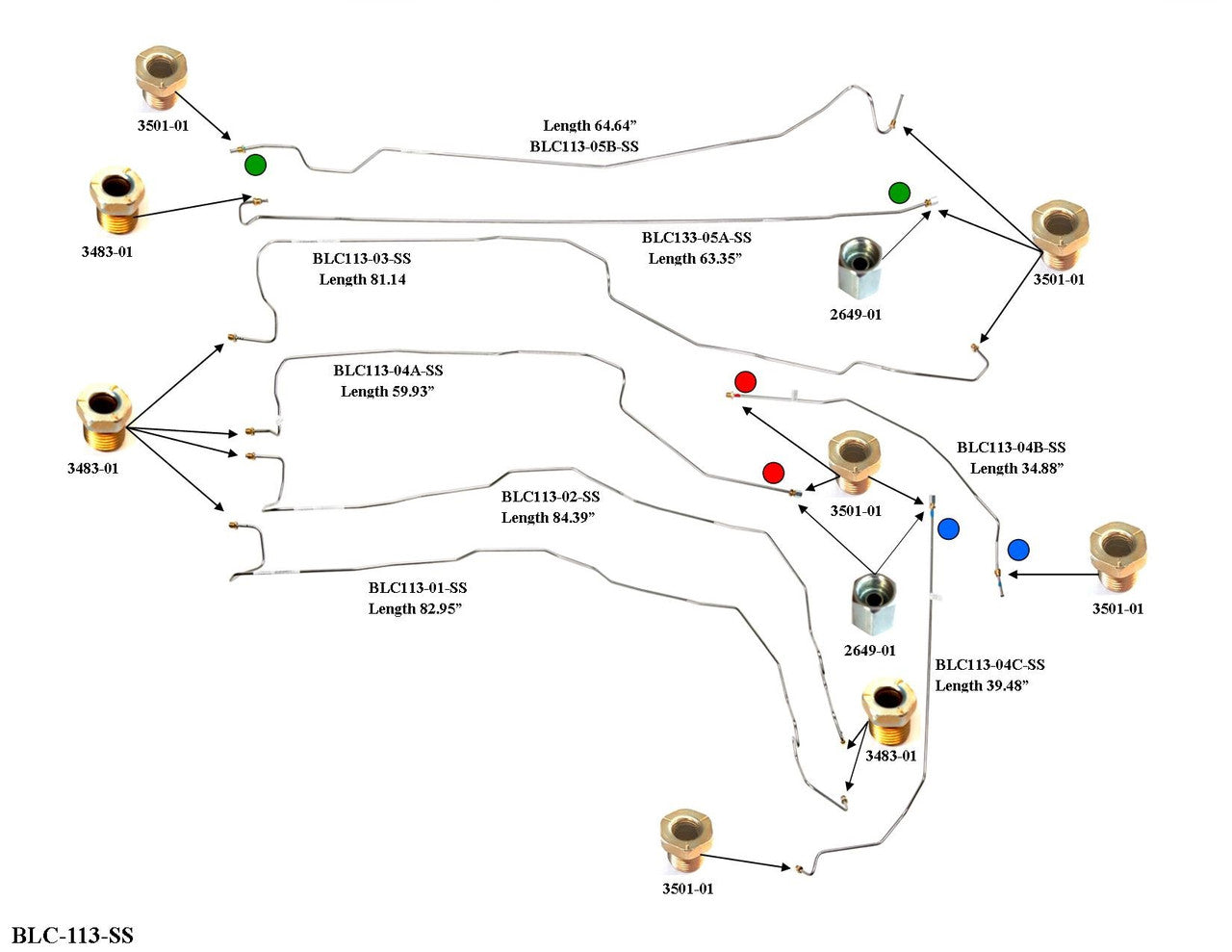

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC113-01-SS, BLC113-02-SS, BLC113-03-SS and BLC133-05A-SS. See the video below on how to remove the shipping bend

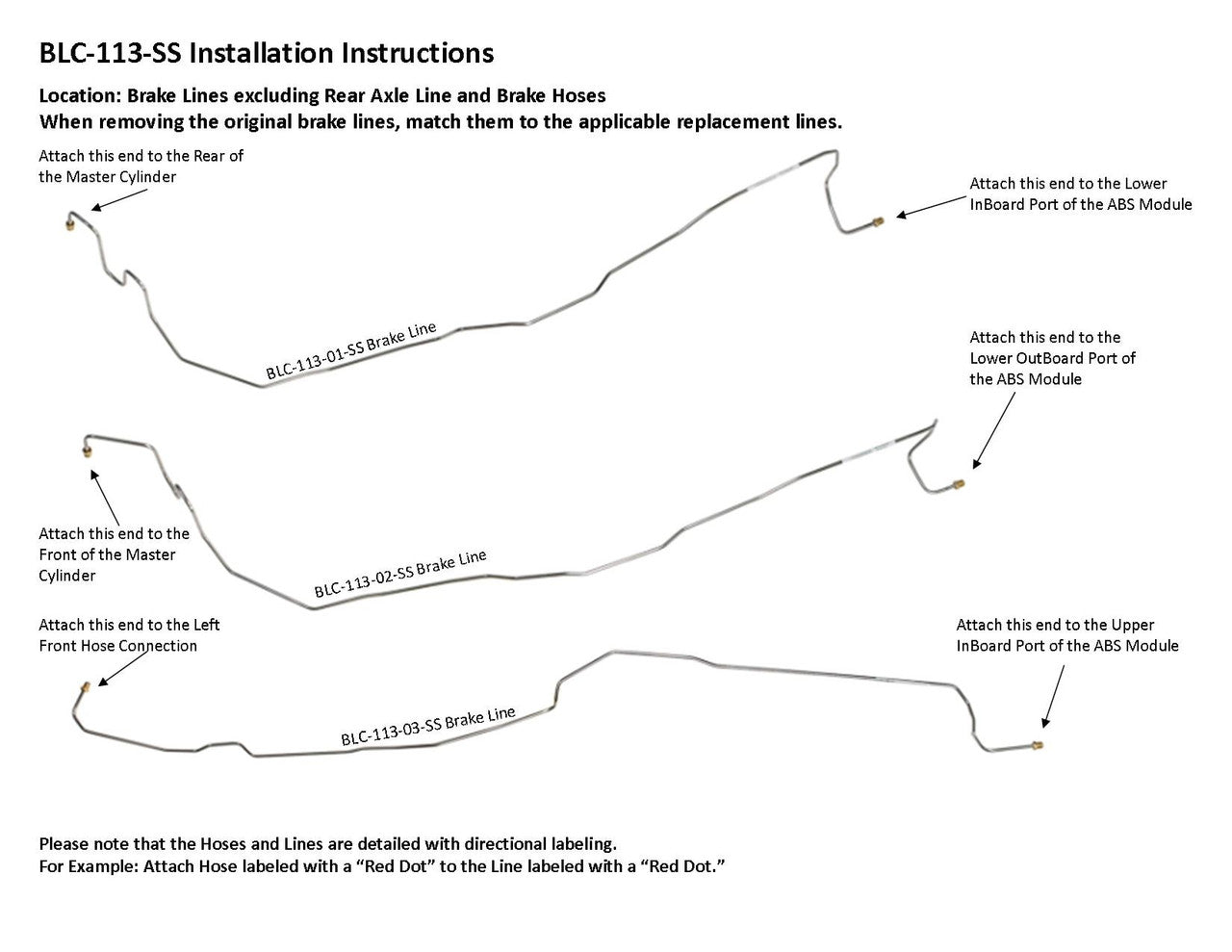

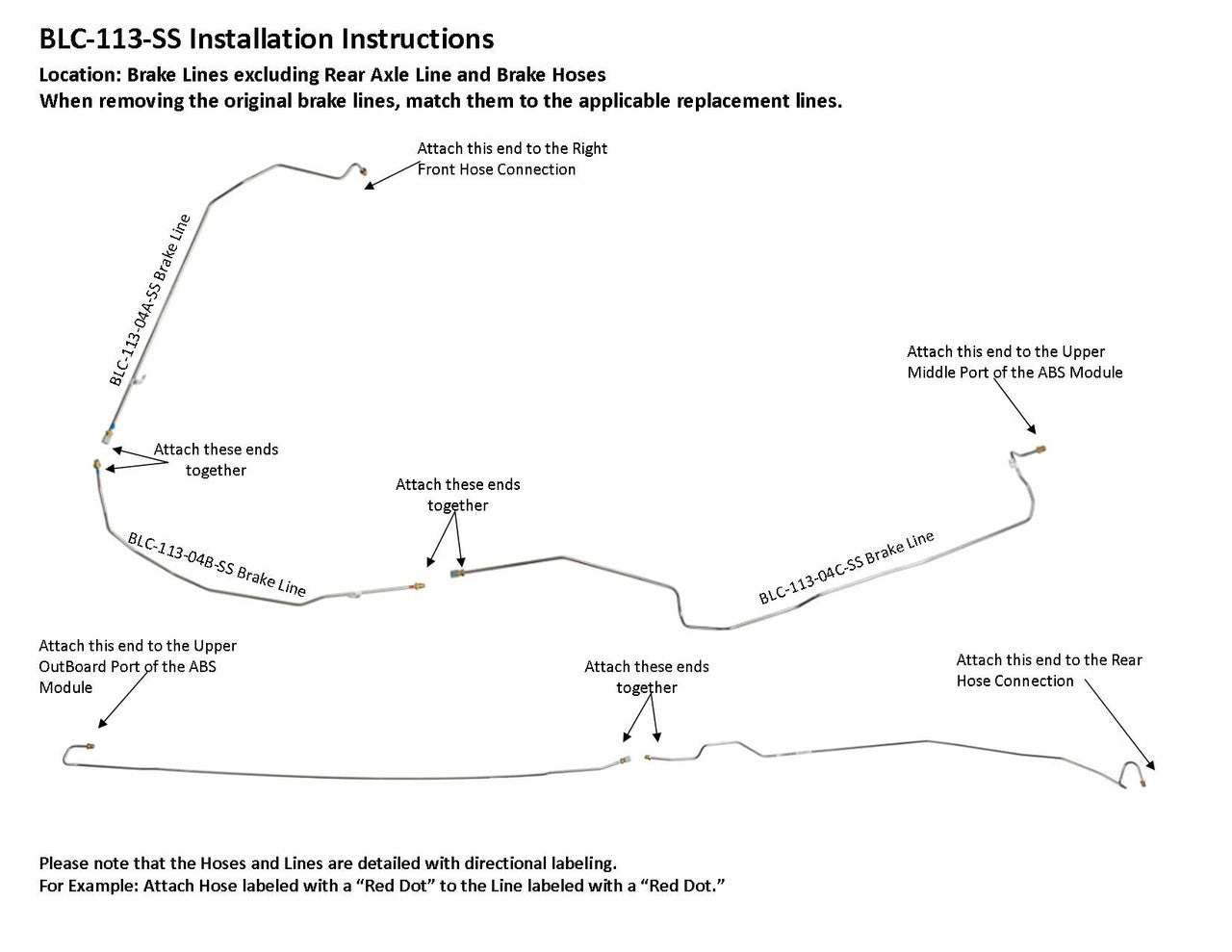

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of ABS, Right Front Line from Hose Connection to Upper Middle Port of ABS (3 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections), excludes rear axle crossover line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
